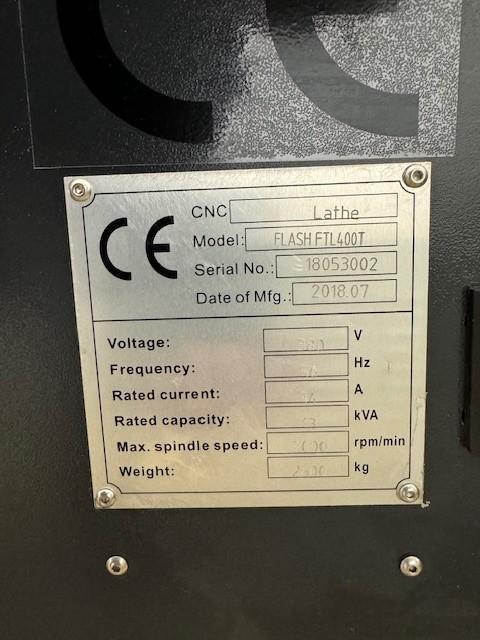

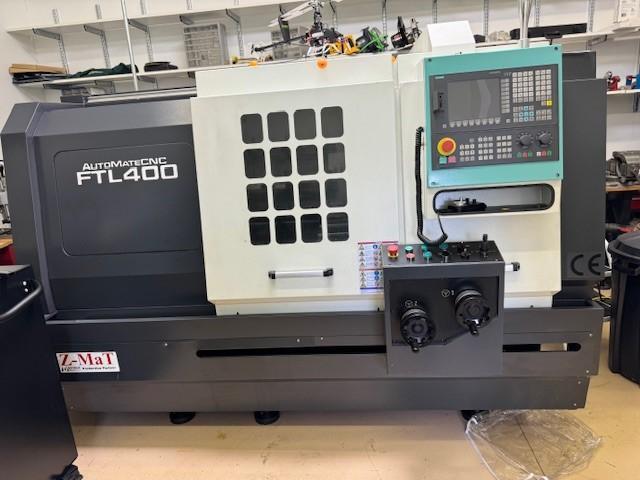

USED AUTOMATE CNC 20" X 33" FLATBED CNC TOOL ROOM LATHE MODEL FTL400T, Stock# 11099, Year: 2018
Brand
Category
Model
FTL 400T
Stock #
11099
Year
2018
Condition
Like New
Location
Michigan
|
Brand: AutoMateCNC

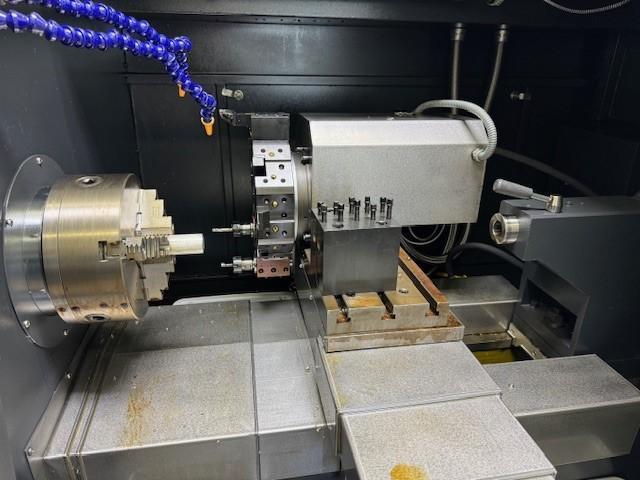

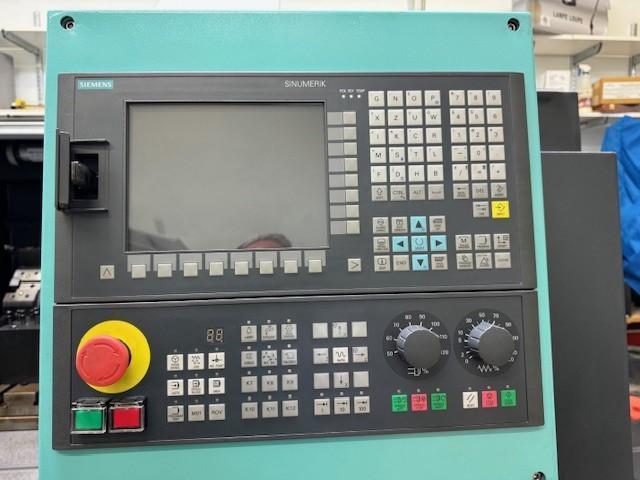

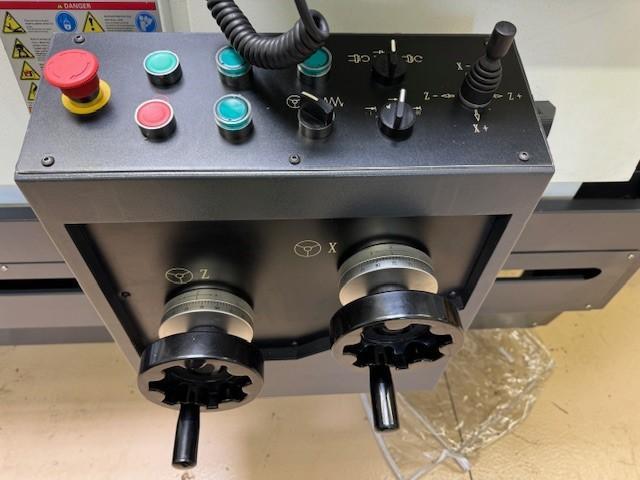

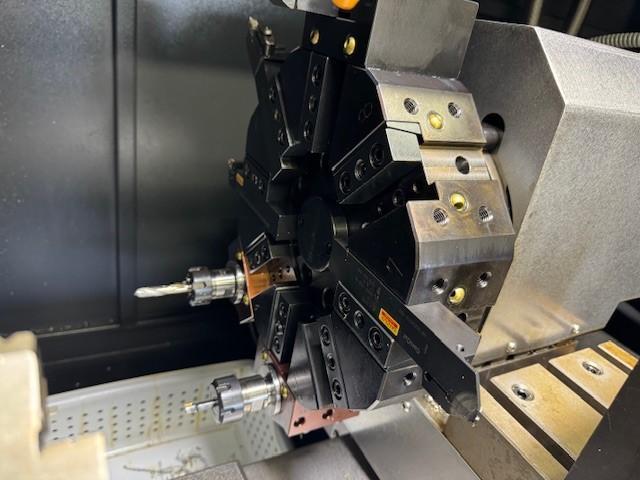

Model: FTL 400T Max swing over bed: 20" Max swing over carriage: 6.5" over gang plate, 9" with gang plate removed Max length of workpiece: 33" center to center X axis travel: 11" Z axis travel: 28" X axis rapids: 750 IPM Z axis rapids: 750 IPM Max cutting speed: 315 IPM Spindle motor: 10 H.P. Siemens servo motor RPM range: 50 - 3,500 Spindle bore: 2.44" Spindle nose taper: A2-6 Tailstock quill travel: 4" Tailstock quill taper: MT4 Coolant capacity: 17.2 gallons Voltage: transformer for 240 volt 3 phase Dimensions: 105" x 63" x 70" Weight: 5,850 Lbs. Equipped with: 8 position turret 10" manual 3 jaw chuck Manual MPG pendent Siemens Sinumerik CNC control Manual tailstock Flood coolant Live tooling set-up |
