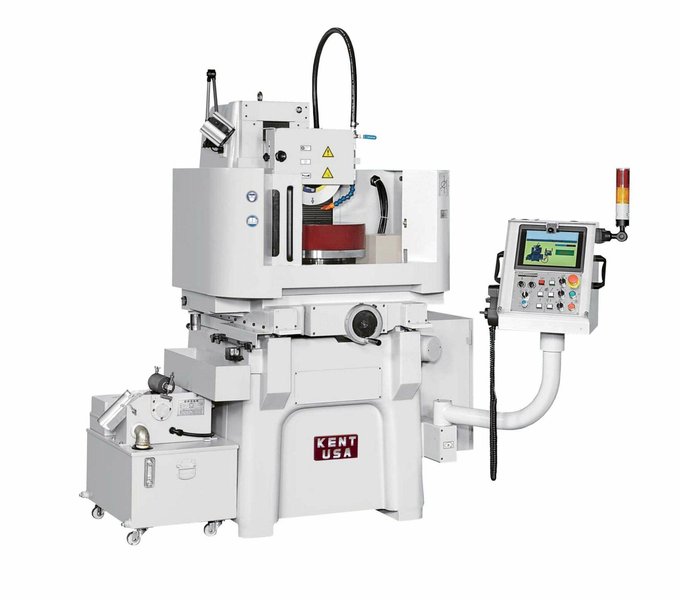

NEW 11.81" KENT USA MODEL KRGH-300 CNC ROTARY SURFACE GRINDER

Brand
KENT
Category
Grinding Machines
Type
Grinders, Surface, Rotary
Model
KRGH-300
Stock #
19387
Year
Not specified
Condition
New

Location

California
REQUEST FINANCING
NEW 11.81" KENT USA MODEL KRGH-300 CNC ROTARY SURFACE GRINDER

FEATURES
  • Z-axis W/ double V, longitudinal V & flat Turcite way
  • AC servo motor drive for 3 axes,
  • 10″ color touch screen with CNC controlled
  • Auto wheel dressing with compensation
  • Open top splash guard
  • Auto lubrication system


SPECIFICATIONS

Rotary Magnetic Chuck Diameter                                11.81"
Max Grinding Radius                                                    8.27"
Distance Table Surface To Spindle Surface                   6.9"
Rotary Magnetic Chuck Speed                                     20-200 RPM
Rotary Magnetic Chuck Motor                                     0.4 HP
Spindle Motor                                                              3 HP
Spindle Speed                                                              3460 RPM
Auto Downfeed Power                                                 0.4 HP
Vertical Downfeed Graduation                                     0.00004"
Wheel Size                                                                    7" x 0.5" x 1.25"
Net Weight                                                                   2,750 Lbs
Gross Weight                                                                3,250 Lbs


Accessories

Standard Accessories

  • Grinding wheel (Dia x Thickness x Bore) 14″x1.5″x5″ (60HZ)
  • Grinding wheel adaptor (flange) & puller
  • Arbor & nut for wheel balancing
  • Diamond tool (1/4 carat) with a base
  • Dust sweeping plate
  • Halogen Working lamp (fitted on the machine)
  • Leveling plates
  • Leveling bolt with nuts
  • Eyebolt
  • T-Nut & screws Tool box & Tools
  • Lubricant oil (4 liters, Mobile #1405 ) Plug (5/8″)
  • Touch up paint
  • Operation manual and inspection sheet
  • Coolant system C/W a magnetic dust separator
  • Automatic diamond wheel dresser with compensation
  • Automatic demagnetizing controller for electro-magnetic chuck
  • Electro-magnetic chuck (standard)
  • Grinding wheel balancing apparatus
  • Spare grinding wheel flange
  • Spindle overload protection device
  • Standard splash guard

Optional Accessories

  • Spindle inverter(3 HP/ 440V/ 60Hz)
  • Heidenhain” two axes DRO system
  • Coolant system and paper filter (10.5 gal )
  • Coolant system with paper filter and magnetic dust separator (10.5 gal)
  • Cutting fluid cooler
  • Auto dynamic balancer for grinding wheel on machine
  • Grinding wheel flange (auto & dynamic)
No files or videos to display
