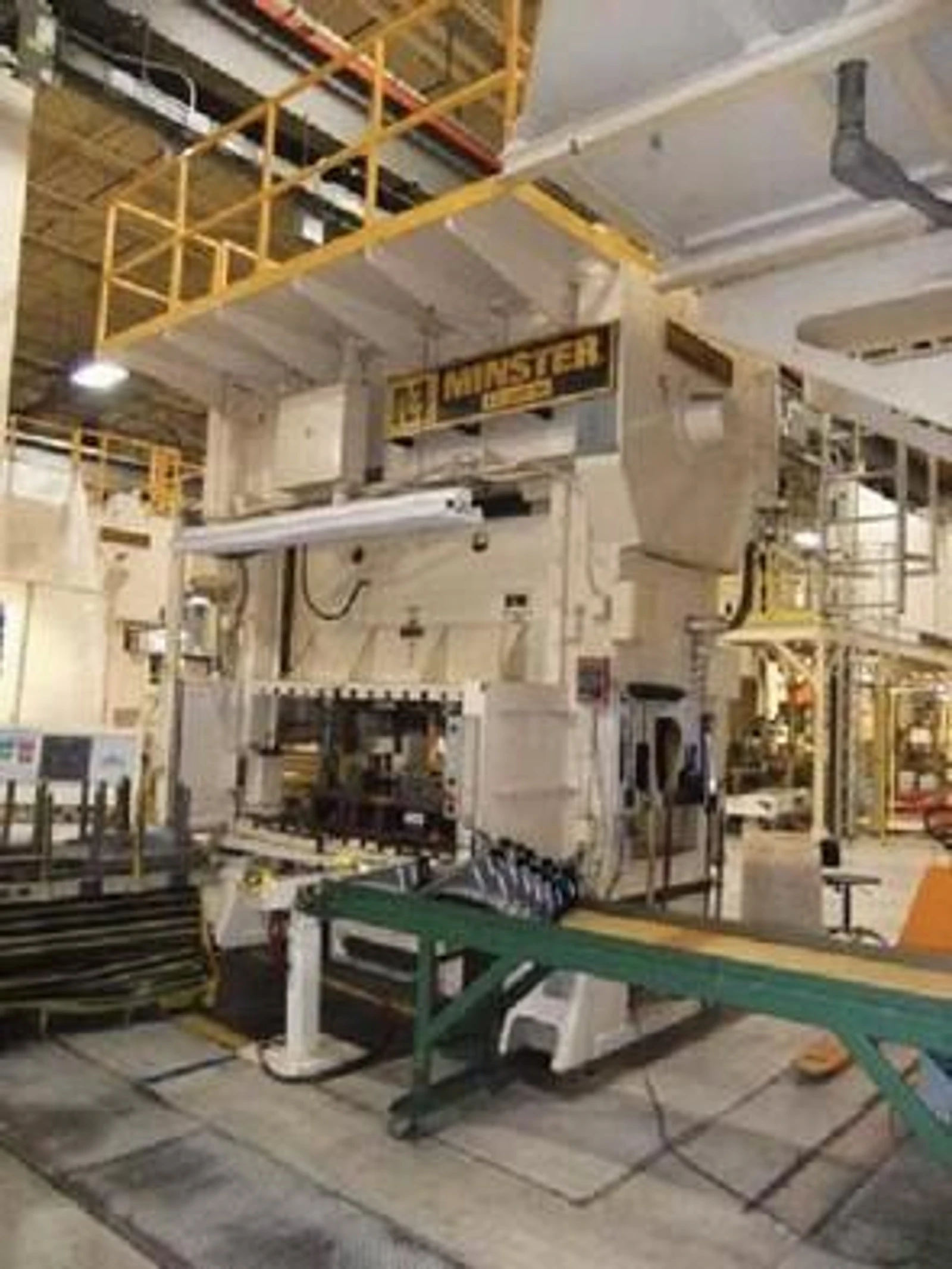

Used Minster E2-200-96x54 New 2001
Brand
Category
Model
E2-200-96x54
Stock #
30107
Year
2002
Condition
Excellent
Location
Michigan
| Tonnage | 200 tons |
| Stroke | 14 inches |
| Shut Height | 27 inches |
| SPM | 60 |
| Vari Speed (Yes/No) | yes |
| Bed W | 54 inches |
| Bed L | 96 inches |
| Crank (Single/Double) | double |
| Air Clutch (Yes/No) | yes |
| CNC Control | yes |
| Type of CNC Control | Minster PMC |
| Dimensions | 132 x 72.0 in |
| Weight | 80000 pounds |
|
E2-200-96X54-SG HEVISTAMPER Specifications (U.S.)
Press Specifications Shutheight Indicator Readout................................................ Inch Capacity at Distance off Bottom........................................... 200 ton at 0.250 in Crankshaft Extension Diameter............................................. 5.00 in Crankshaft Extension Location............................................. Both Right and Left Sides Drive Arrangement................................................................ Single Geared Twin Drive Lube Unit Location................................................................ Left Hand Side Approximate Press Mass....................................................... 80,000 lb.
Press Slide Specifications Stroke Length........................................................................ 12.0 in Speed Range.......................................................................... 30-60 spm Adjustment of Shutheight...................................................... 6.00 in Area of Slide, R-L x F-B....................................................... 96.0 x 54.0 in Slide Face Machining............................................................ Standard
Press Bolster Specifications Bolster Plate Material............................................................ Steel Bolster Plate Thickness.......................................................... 5.00 in Area of Bolster, R-L x F-B.................................................... 96.0 x 54.0 in Opening in Bolster, R-L x F-B.............................................. None Bolster Plate Machining......................................................... Standard
Press Frame Specifications Upright Passline Opening, F-B.............................................. 25.0 in Area of Bed, R-L x F-B......................................................... 96.0 x 54.0 in Opening in Bed, R-L x F-B................................................... 90.0 x 24.0 in Bed Deflection at 67% of Die Area....................................... 0.0018 in/ft Shutheight, SDAU................................................................. 27.00 in, on Bolster Approx. Clearance, Foot to Bottom of Bed.......................... 0.50 in Approx. Distance Foot to Top of Bolster.............................. 41.0 in Approx. Distance Foot to Top of Bed................................... 36.0 in Approx. Floor Space, R-L x F-B 132 x 72.0 in |
|
