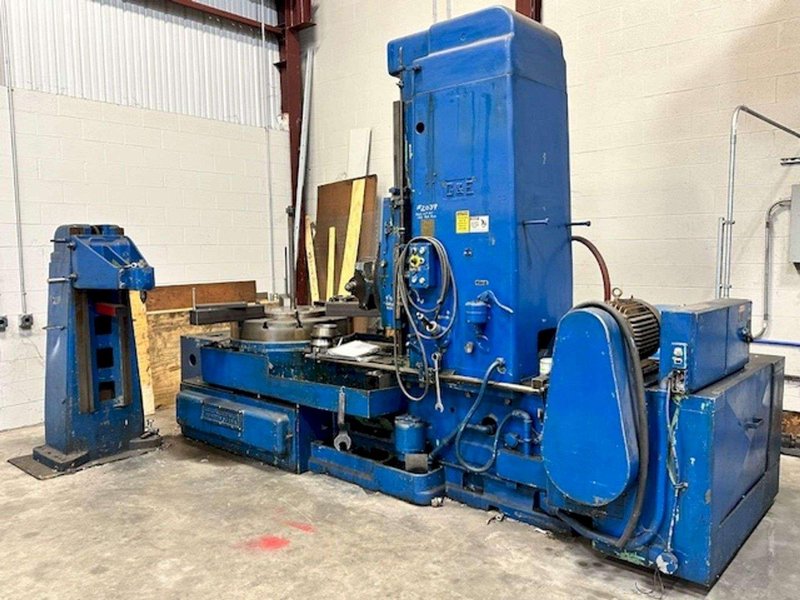

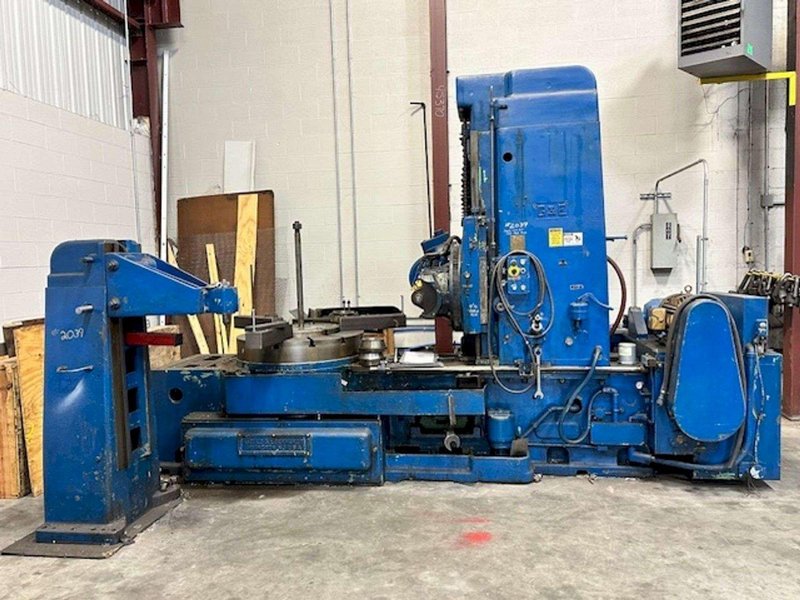

GOULD & EBERHARDT MODEL #72HWD VERTICAL GEAR HOBBER: STOCK #21263
Brand
Category
Type
Model
72H
Stock #
21263
Year
Not specified
Condition
Good
Location
Ohio
|
GOULD & EBERHARDT MODEL #72HWD VERTICAL GEAR HOBBER: STOCK #21263 Model 72HWD MAXIMUM WORKPIECE DIAMETER 72"
HORZ/VERT Vert
MAXIMUM DIAMETRAL PITCH 1
MODULE 25.4
AXIAL TRAVEL 30"
MAXIMUM HOB DIAMETER 10.75"
HOB ARBOR SIZE 1.5"
HOB SPEED 100 RPM
TABLE DIAMETER 40"
TABLE HOLE DIAMETER 10"
CONTROL MANUFACTURER Conventional
Maximum DP in Steel: 1. DP
Face Capacity: 30"
Maximum Diameter Spur Gear With Support: 48"
Maximum Diameter Spur Gear Without Support: 80"
Maximum Diameter Helical Gear w/o Sup (45 Degrees): 78"
Minimum Centers Work & Hob Arbors: 3"
Maximum Diameter Hob: 10.75"
Diameter of Work Table: 40"
Diameter of Index Worm Gear: 48"
Hob Speed Ranges: 6 - 100 RPM
Feed Range: .03 - .200"
Main Motor: 15 HP
Approximate Dimensions: 90" x 207"
Approximate Weight: 38,000#
EQUIPPED WITH:
Differential
Infeed
Change Gears
Hob Arbor

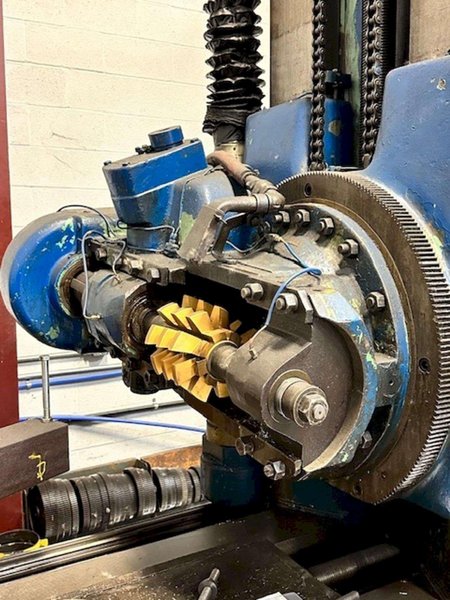

Heavy Duty Worm Hob Drive

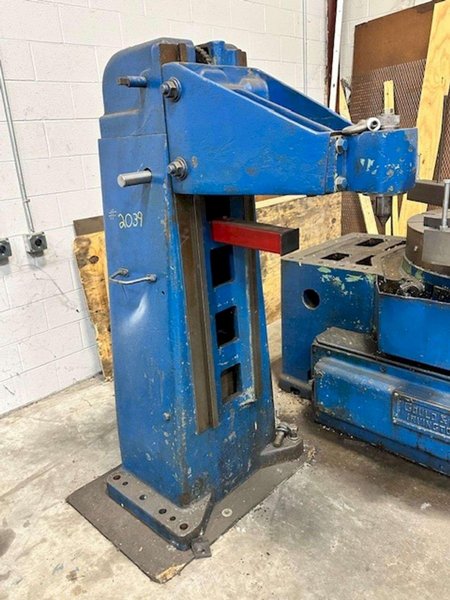

Tailstock W/Center

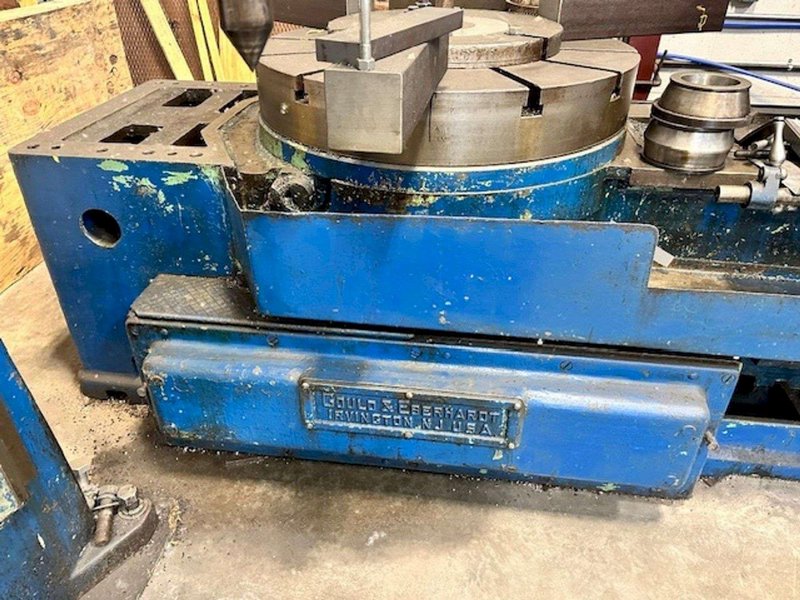

40" T-Slotted Table
Coolant Pump
Lube |
