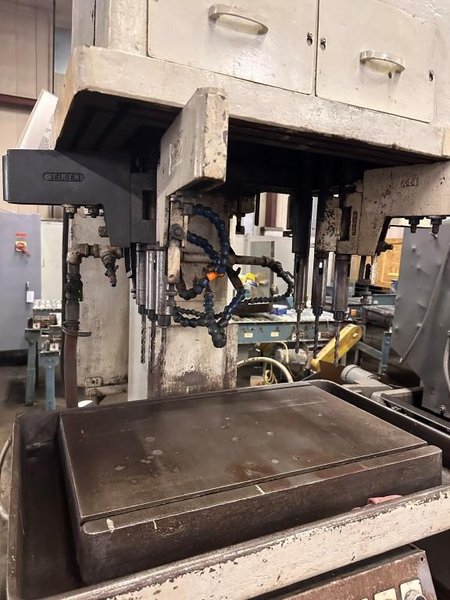

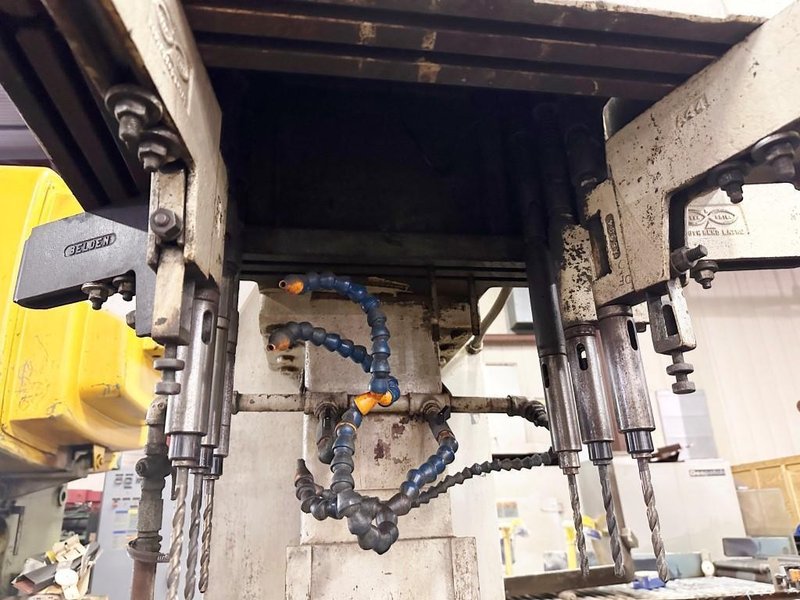

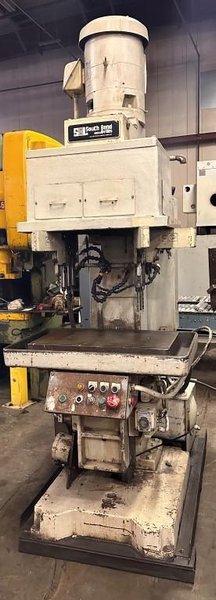

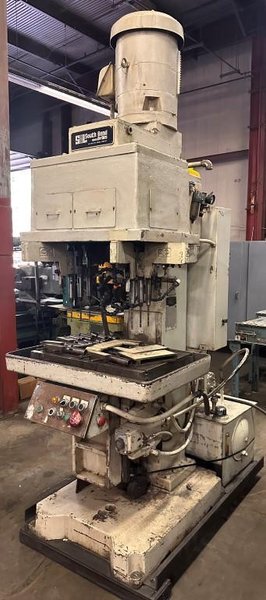

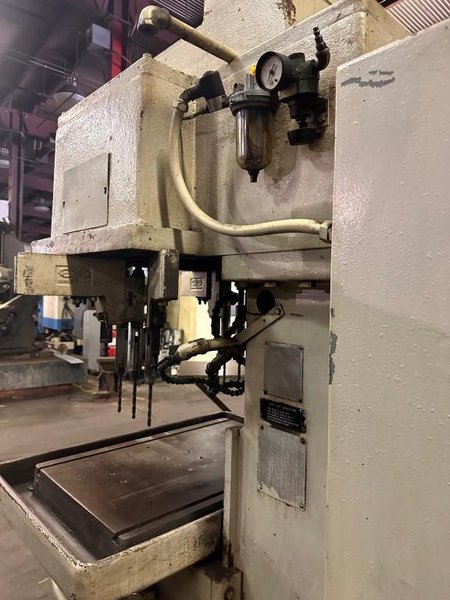

18-Spindle Deka Model HRG 1222-18 Multiple Spindle Drilling & Tapping Machine
Brand
Category
Model
HRG 1222-18
Stock #
MSD630
Year
1987
Condition
Used
Location
Ohio
| Number Of Spindles | 18 |
| Drilling Area (Opening Of Head) | 14 ½” FB x 22 ¾” LR |
| Center Of Head To Face Ways On Column | 12” |
| Feed Stroke Of Table | 6" |
| Range Of Feeding | 0 to 90 IPM |
| Rapid Traverse Rate | 120 IPM |
| Distance Between Head Flange And Table Top | 28” Maximum/14” Minimum |
| Working Surface Of Table | 19-3/4” FB x 29 ½” LR |
| Head Drive Motor (875 RPM) | 15 HP |
| Size Of Hex Drives | ¾” |
| 18 Spindles | 9/16” |
| 10 Spindles | 25/32” |
| 8 Spindles | 7/8” |
| 18 Spindles | ½ - 20NF |
| 11 Spindles | ¾ - 16NF |
| 9 Spindles | 1” – 12NF |
| Spindle Speed Range (with Change Gears) | 173-1561 RPM |

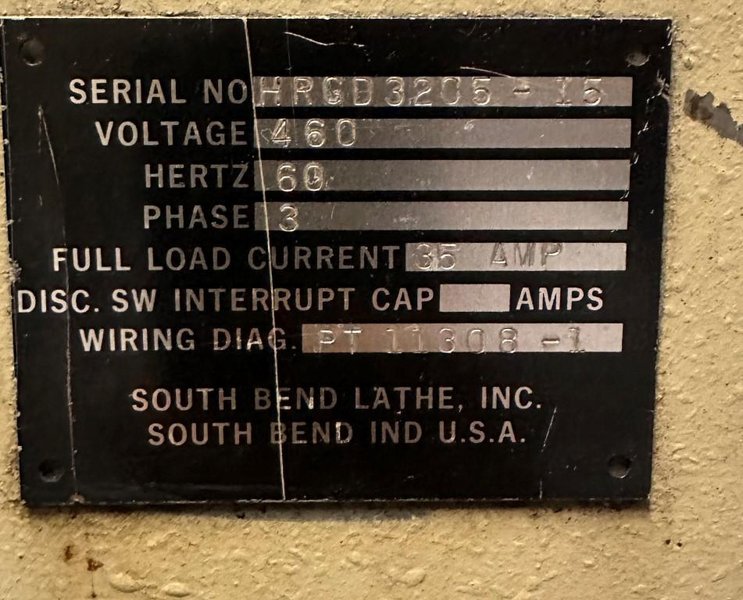

| Electrics | 3/60/230-460V |
| Presently Wired For | 3/60/460V |
| Approximate Dimensions | 46” LR x 58” FB x 115” Height |
| Approximate Weight | 4,500 Lbs. |
|
EQUIPPED WITH:

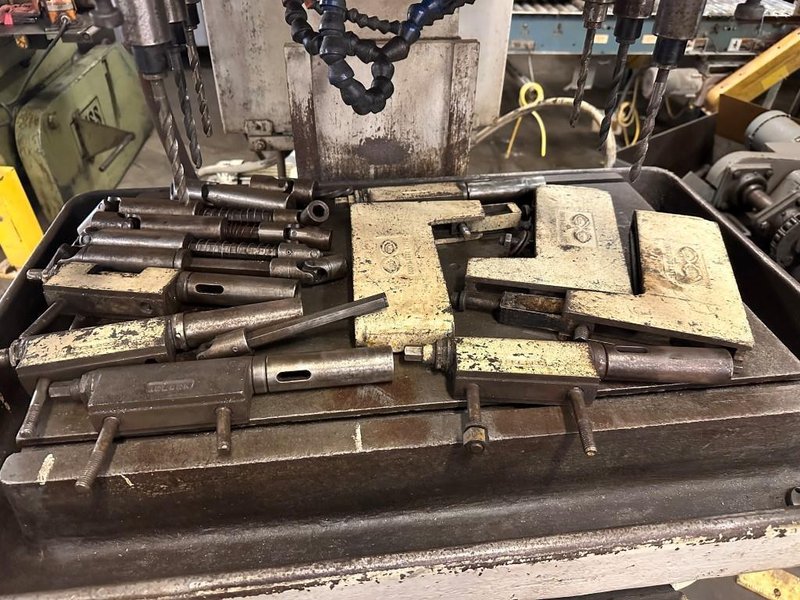

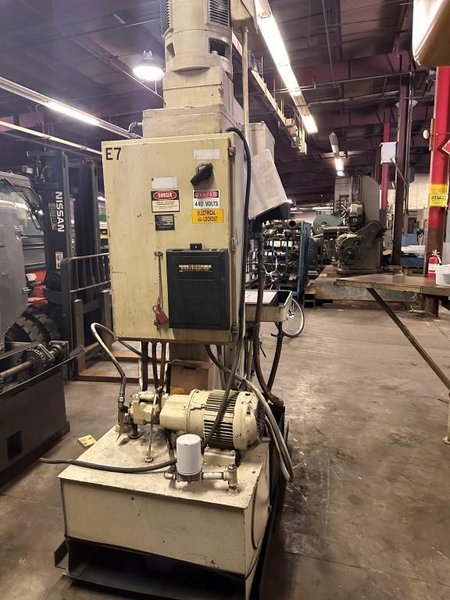

(9) Complete Spindles with the Adjustable Arms, Upper Universal Joints, and Lower Spindles. Tapping. Step Drilling. Allen Bradley PLC Control. 3 HP Hydraulic Power Unit. Coolant Pump and Tank. Miscellaneous Tooling. |
|
