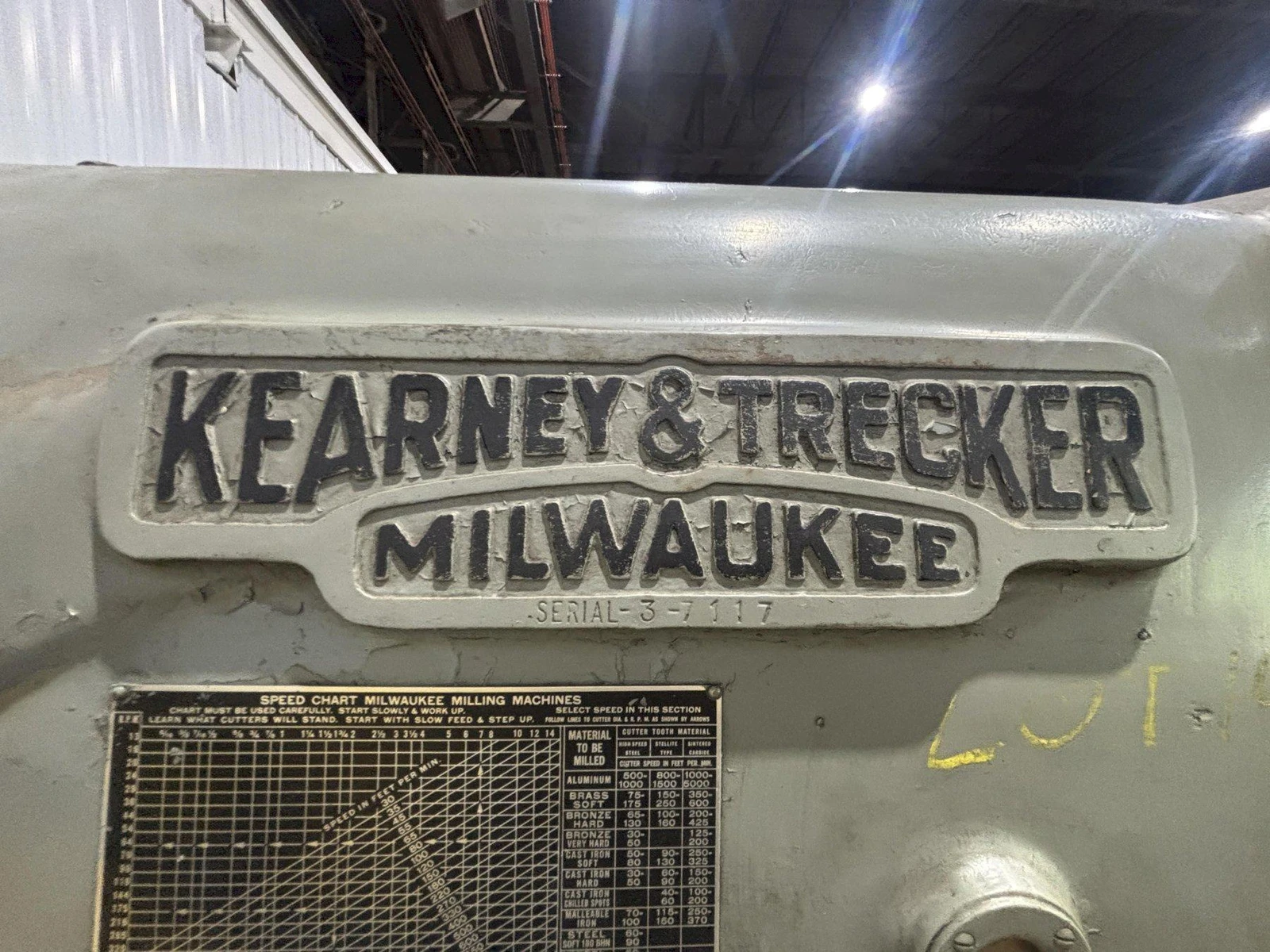

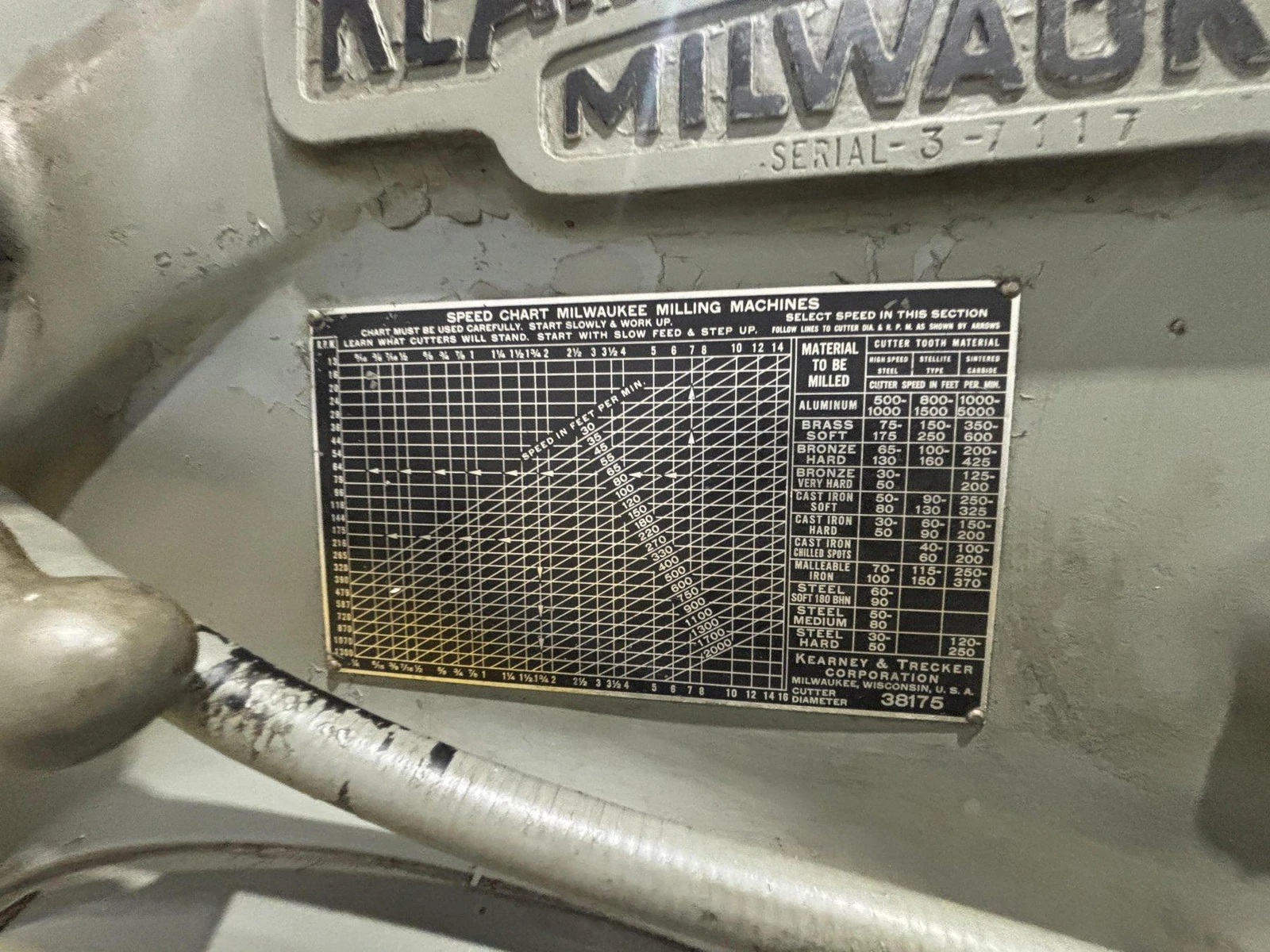

SERIAL ................................. 3-7117

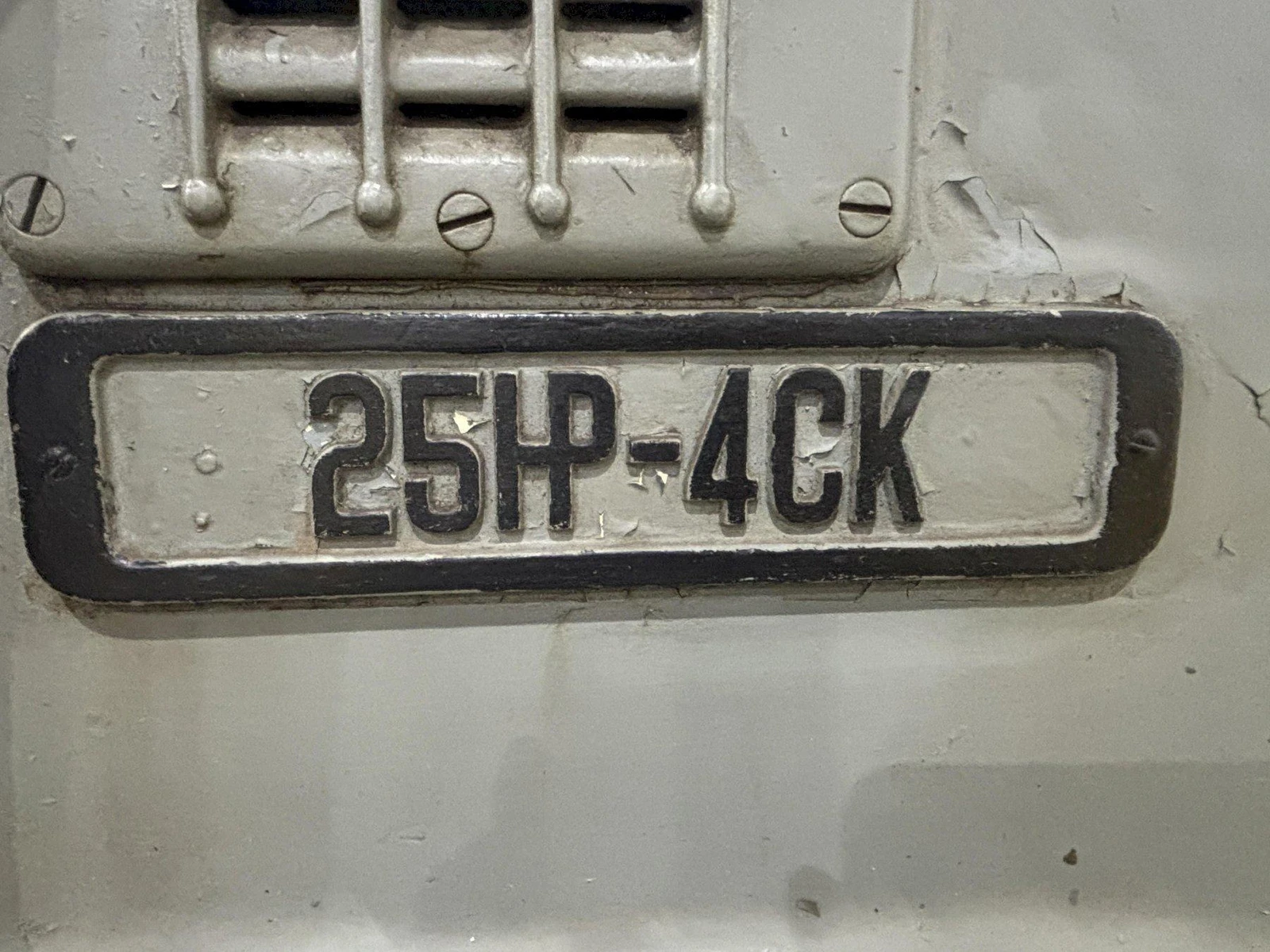

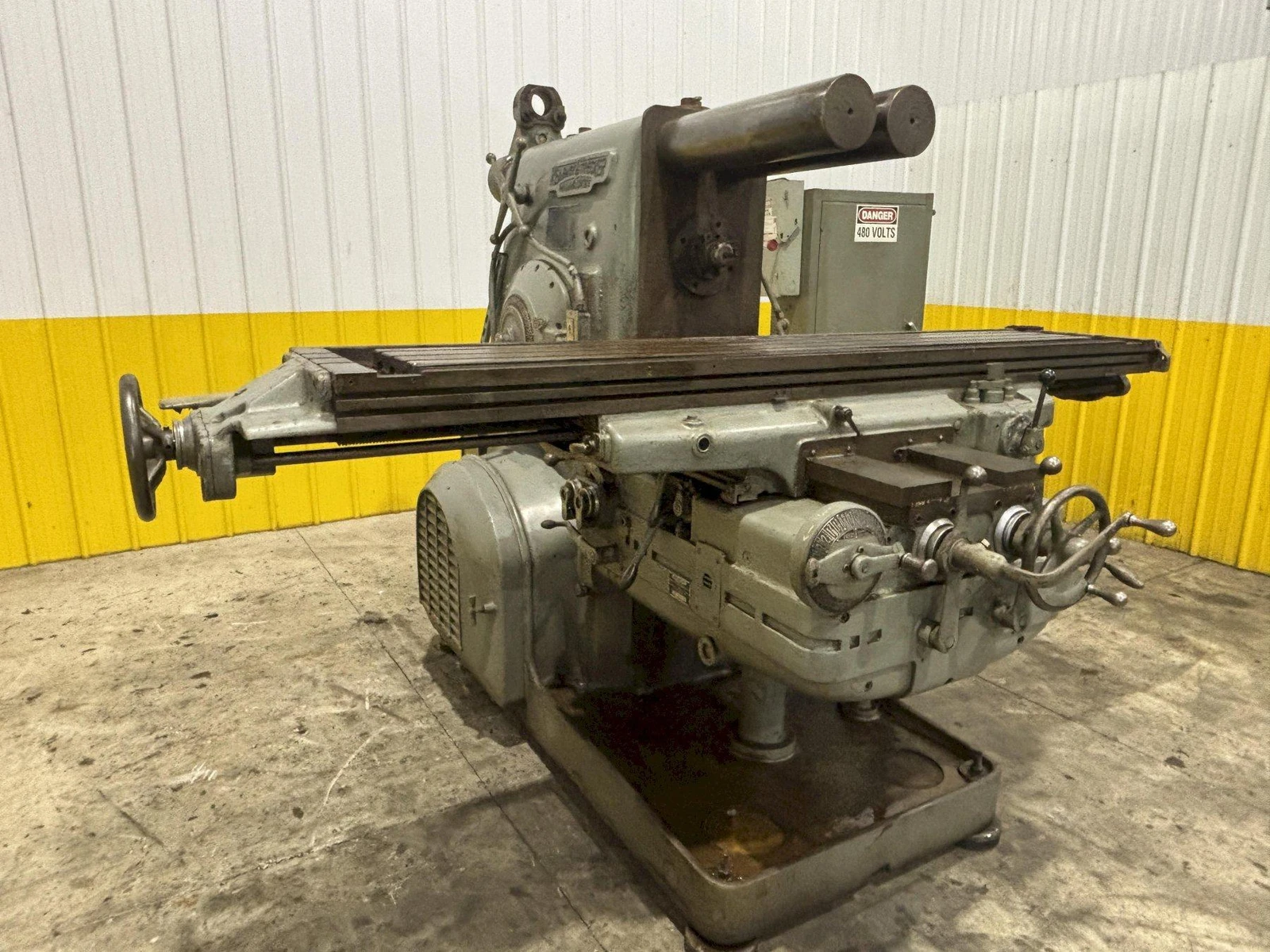

MODEL .................................. 4CK

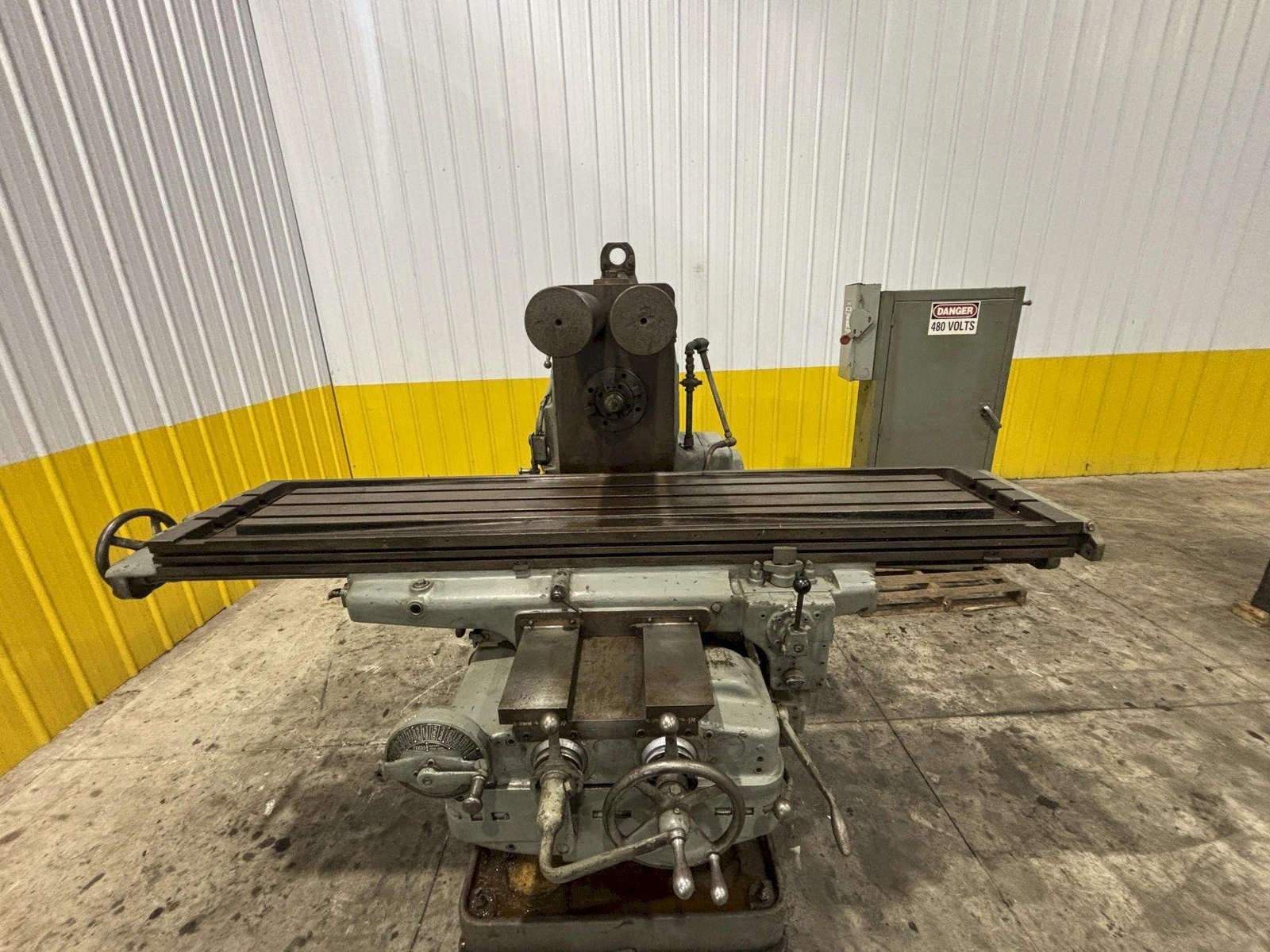

WORKING SURFACE OF TABLE ............... 90" X 18"

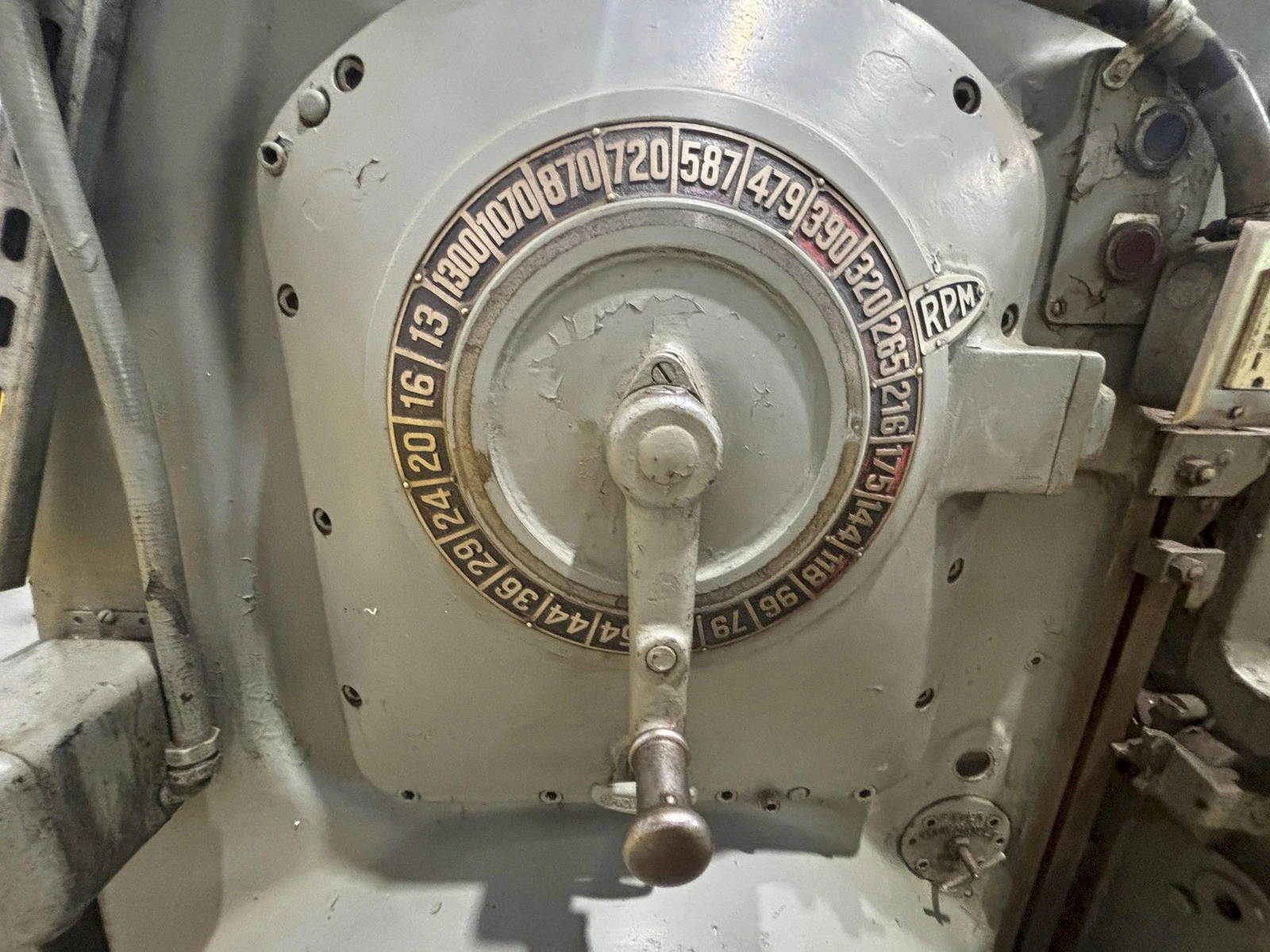

SPINDLE SPEEDS ......................... (24) 13 TO 1300 RPM

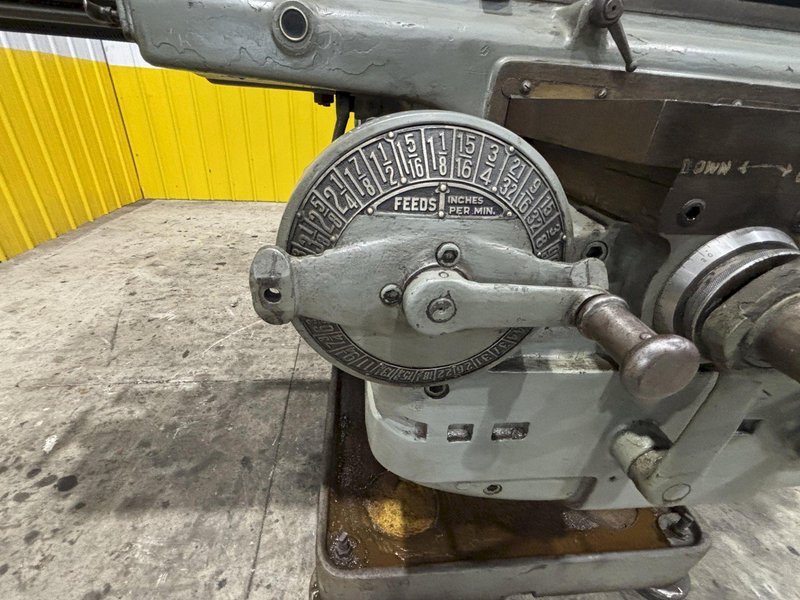

CROSS AND LONGITUDINAL FEEDS ........... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ......................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .................... 42"
CROSS TRAVEL ........................... 14"
VERTICAL TRAVEL ........................ 18"
POWER RAPID TRAVERSE ................... 150 IPM
SPINDLE TO TABLE ....................... 0" MINIMUM, 21" MAXIMUM
TAPER IN SPINDLE ....................... #50 NS
OVERARM SUPPORT ........................ YES
COOLANT ................................ YES

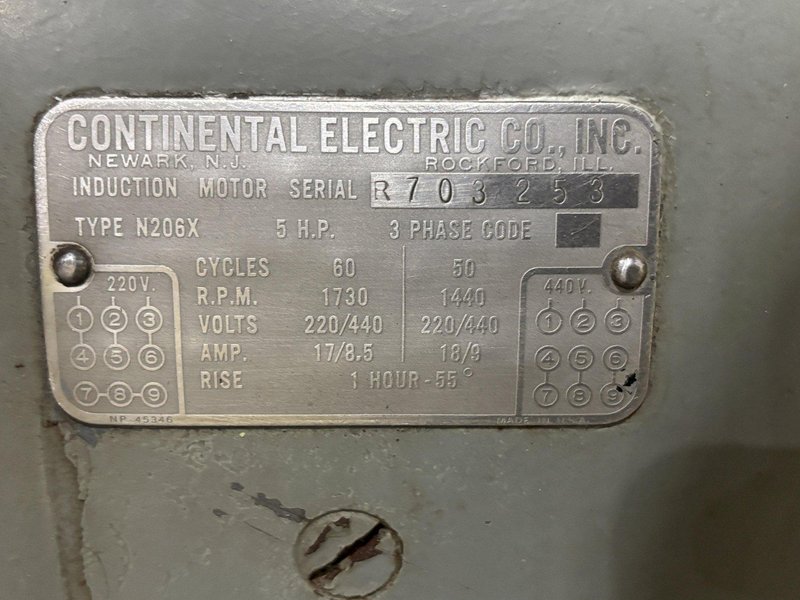

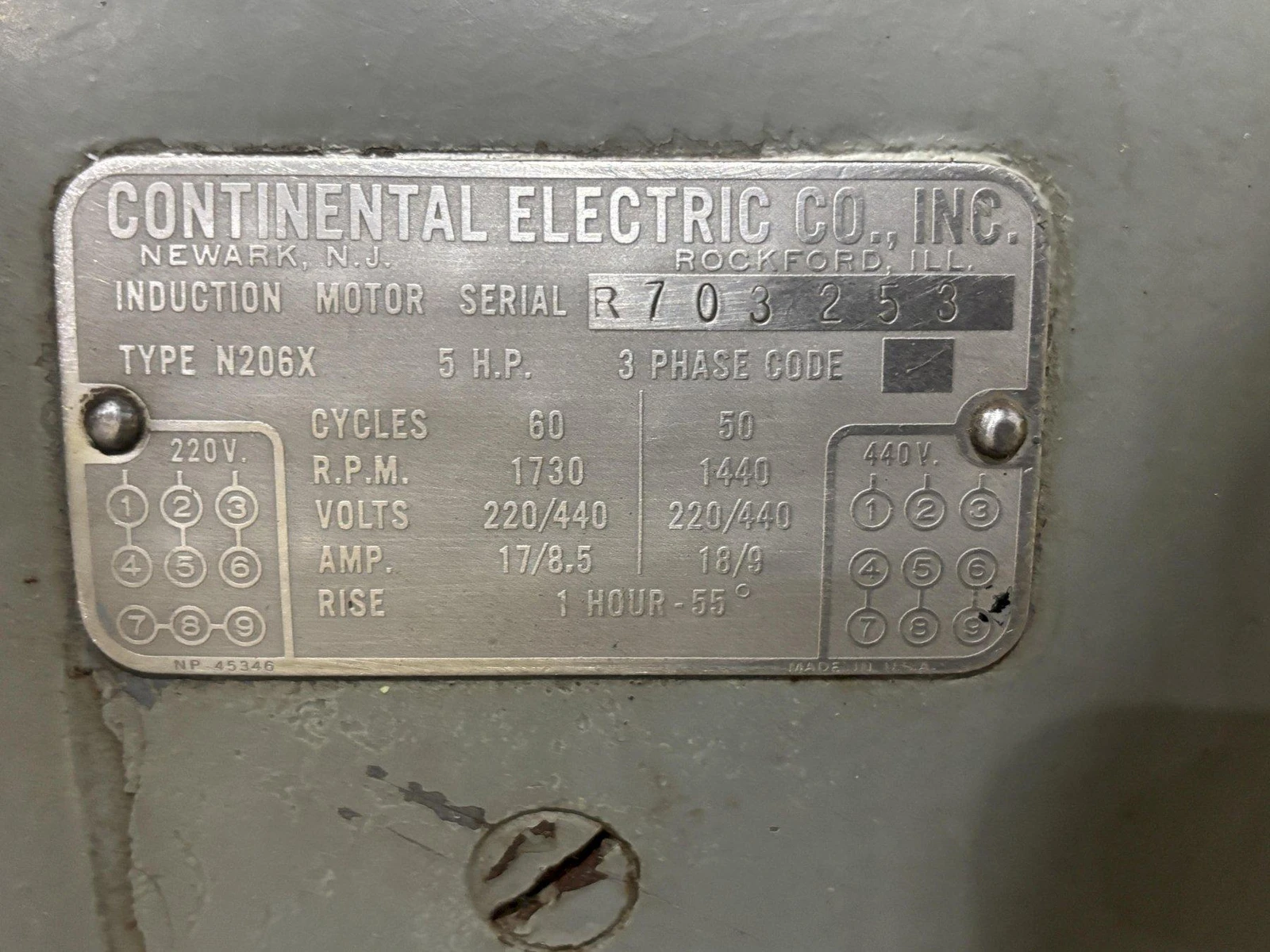

RAPID MOTOR ............................ 5 HORSEPOWER
MOTOR .................................. 25 HORSEPOWER |
