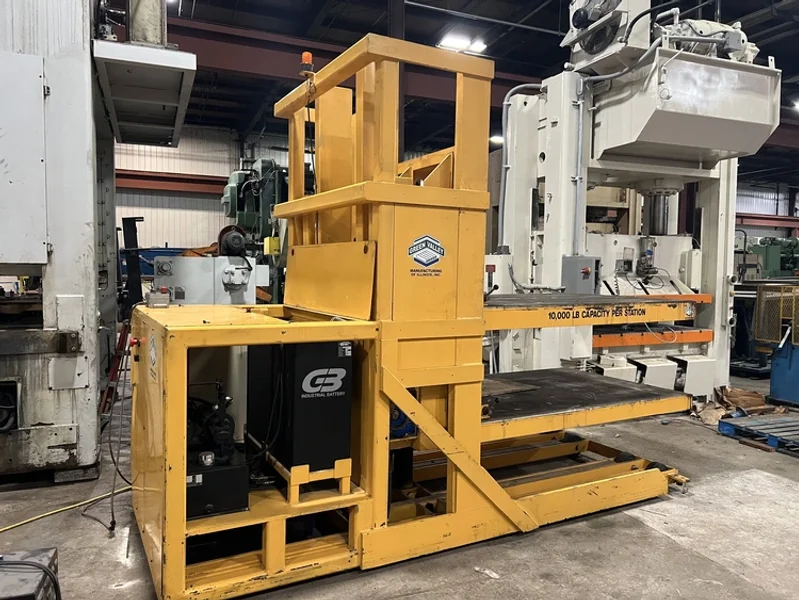

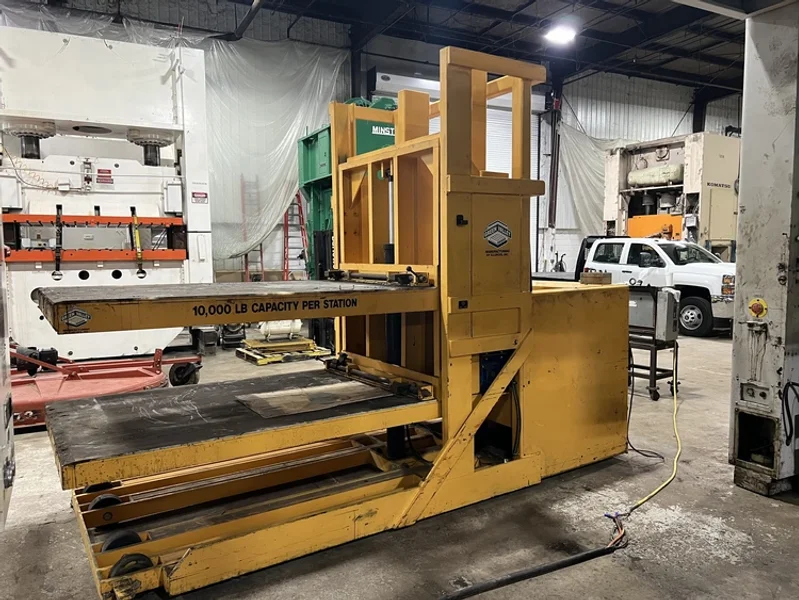

GREEN VALLEY MOTORIZED DIE CART, STOCK 14304T

Die Specifications
maximum die size: 109” L-R X 71” F-B X 21” tall
maximum die weight: 10,000 lb.
transfer height range: presses at approx. 33” to 60” above the floor,20,000 lb. (total capacity) Over/Under Die Cart Features:
frame: structural steel weldments
cart capacity: 20,000 lb. total cart capacity, each deck rated for one 10,000 lb. die
cart drive system: 4 hp DC internal drive
mobility method: poly casters
cart drive controls: pendant controller with: forward/reverse, E-stop,
left/right powered steering, and lift & push/pull controls
drive wheel traction control: drive wheels are load bearing
cart travel speed: infinitely variable from 0 to 120 fpm
operator position (drive): walk along via tethered pendant (ride-on station is optional)
steering: powered ±90° for high maneuverability
cart deck size: Each deck is approx. 54" X 72”
deck configuration: over/under dual elevation decks
deck surface: UMMW lined steel plate deck over structure
die guides: no guiding, large L-R dies hang over sides
cart size: approximately 54"W X 158"L including mast lift & battery/drive
push/pull device: dual rigid chain push/pull system on each deck for single
stroke die transfers to/from the cart/press/rack steel-on-steel
chain/die interface: manual lever to secure end of chain hooks to die brackets
die brackets: 4 included, additional sold separately (2 required per die)
die transfer height: variable deck height via hydraulic mast lift to provide deck height range
from approx. 11” to 61” and 40” to 90” above the floor
die stops: drop-into-socket die stops at transfer end of deck, permanent fixed die
stops at non-transfer end
press interface: one docking rail included (1 required for each press)
rack interface: lip at transfer end of each deck to mate with bracket on shelf
safety features: creep speed (approx. 30% of full speed) with lift deck raised, audible
alarm, strobe light guarding: covers on moving drive components
cart power: 24 VDC
battery capacity: Steel case 1000 AH

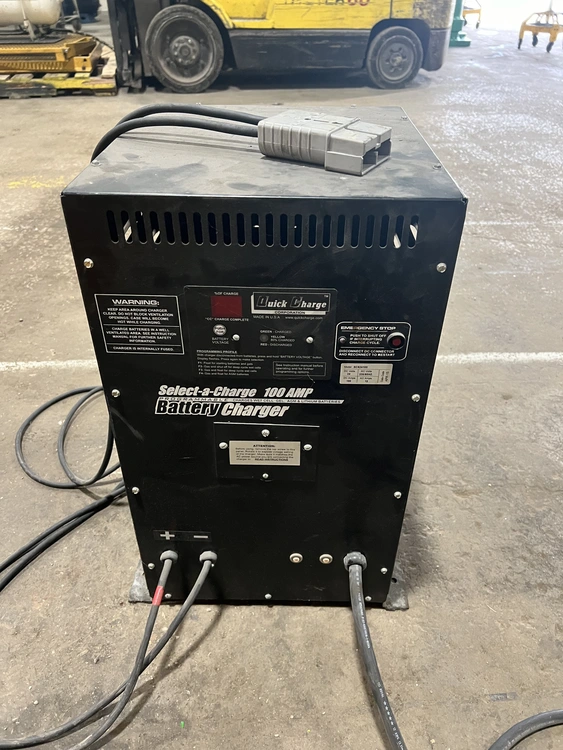

battery charger: fully automatic charger built in
main control panel: power switch, battery gage, fuses, audible alarm
