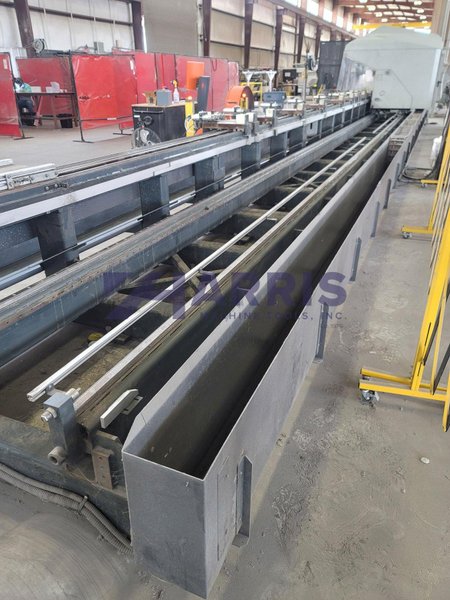

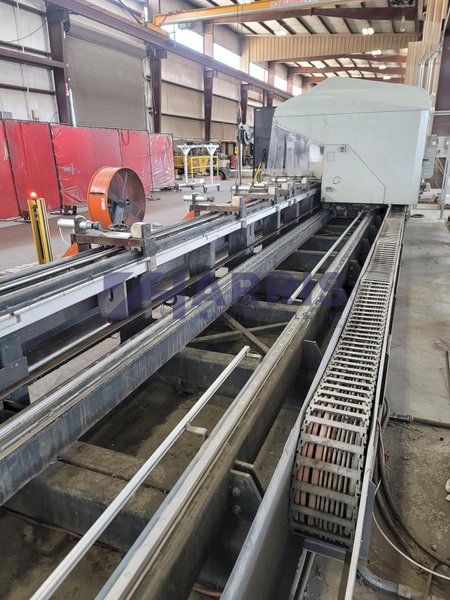

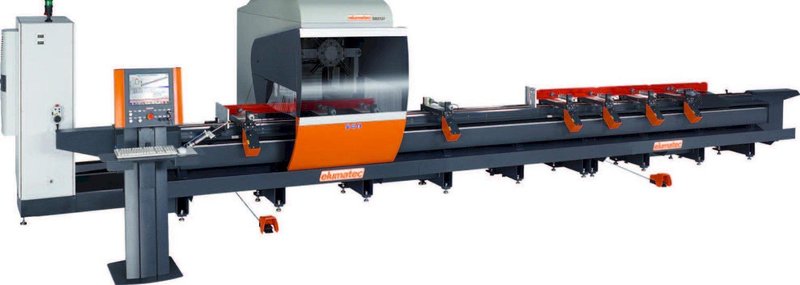

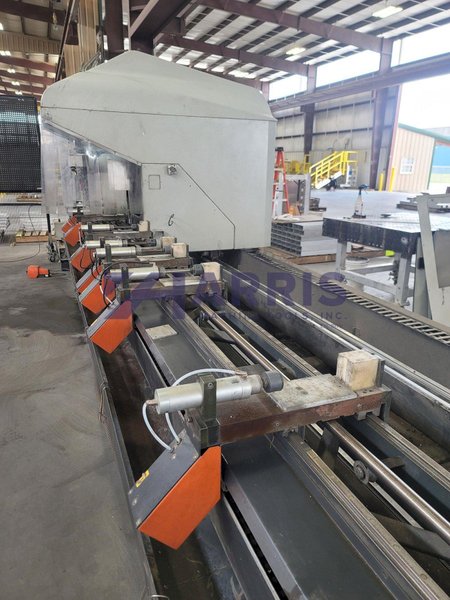

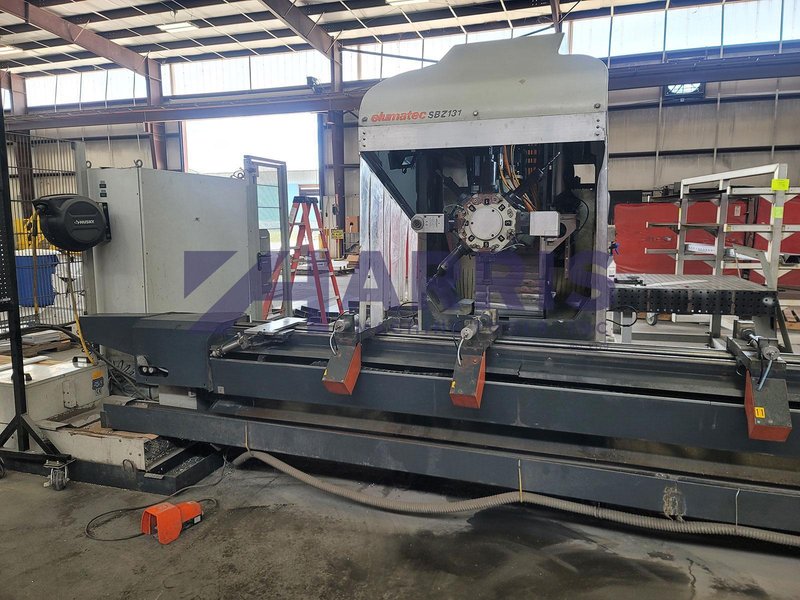

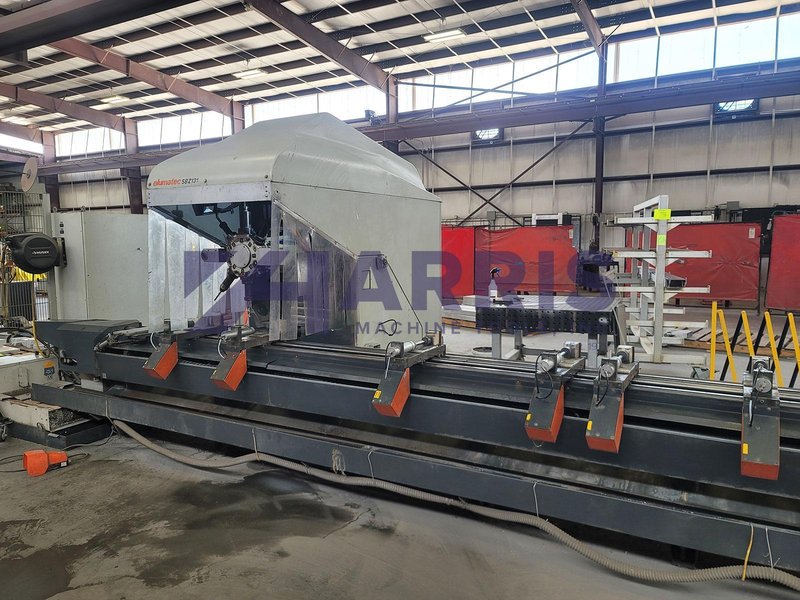

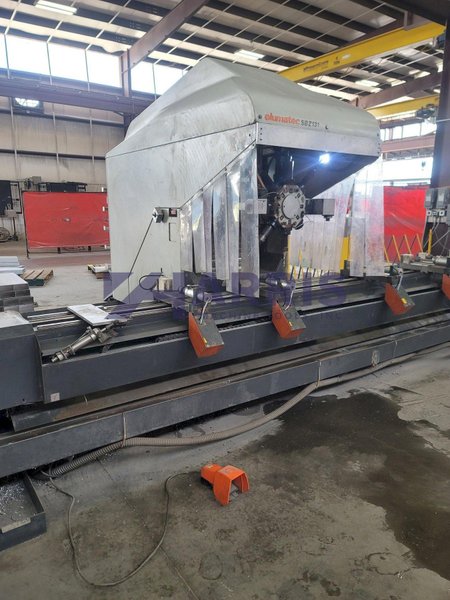

2012 Elumatec Profile Machining Center, SBZ-131-V2 WITH 40’ length capacity and saw option

Name: Used ELUMATEC SBZ-131-V2 For Sale 20375
Brand: ELUMATEC
SKU: 20375
Availability: PreOrder

Brand

ELUMATEC

Texas

X Axis Travel	4200, 7200, 8500, 10200, 11500 mm
X-Axis Rapid Traverse Rate	60m/min.
Y Axis Travel	485mm
Y-Axis Rapid Traverse Rate	60m/min.
Z Axis Travel	340 mm
Z-Axis Rapid Traverse Rate	60m/min.
Spindle Speed	6000 RPM
Spindle Output	5.5 kW max
Tool Changer Capacity	8 Tools on Turret
Compressed Air Supply	7 Bar

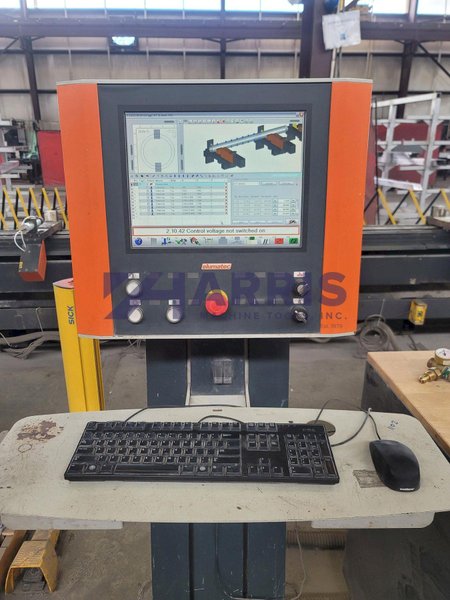

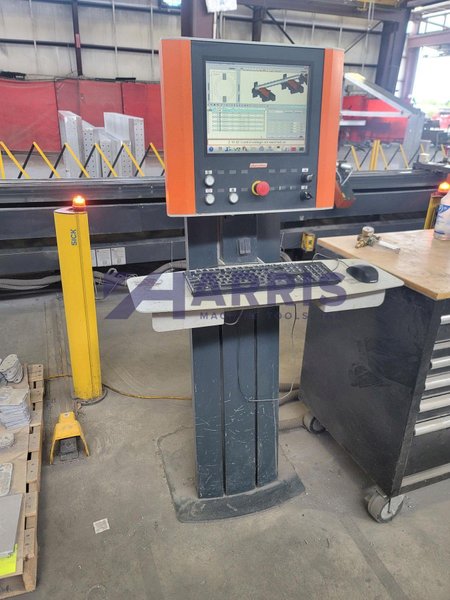

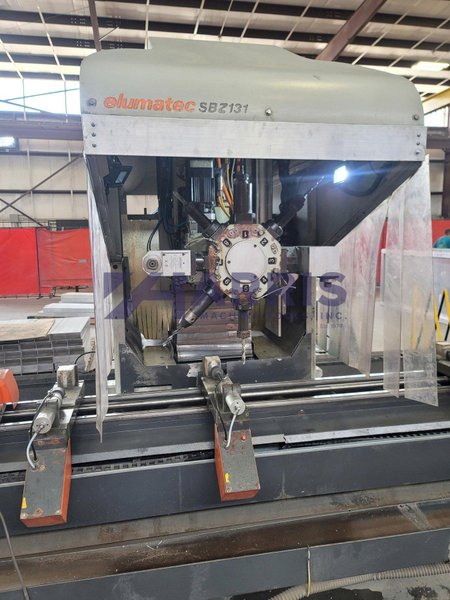

40’ length capacity Saw option Additional Information from the Manufacturer: 3-axis profile machining centre SBZ 131 For the economical and efficient processing of aluminium, steel, and special steel profiles All operations like routing, drilling, and tapping are carried out with the profile stationary to avoid scratches and damages on the profile surface The travelling turret head provides rapid tool changes with optimum processing cycles The turret head can be equipped with 8 standard tools or angle routing heads 2 separate working zones allow profile processing in oscillating mode The autonomous clamping adjustment enables clamp positioning during secondary time Electronic 4-axis industrial PC control Tool spindle is designed as an additional axis 15" colour monitor RJ 45 10/100 MBit network connection Serial and parallel interfaces (extendable) for online connection, barcode scanner and label printer Mobile operation terminal eluCam (Easy and direct programming on the machine)
