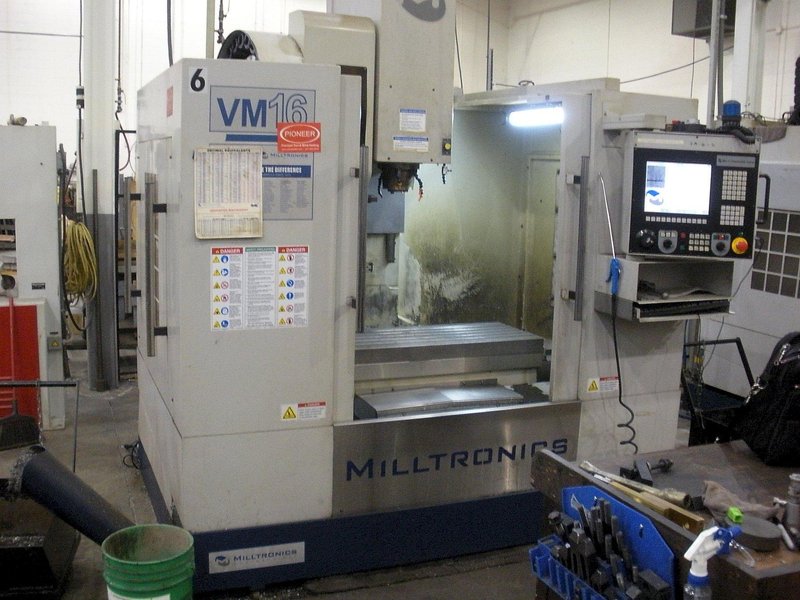

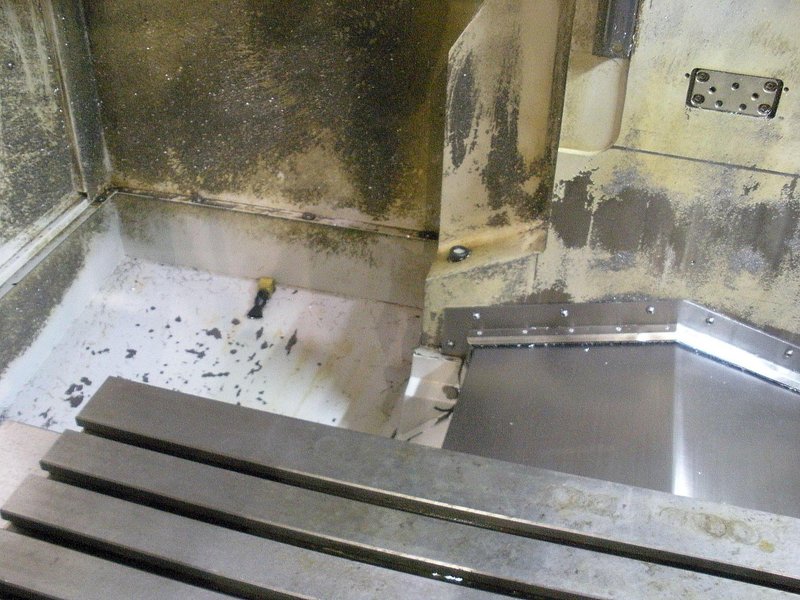

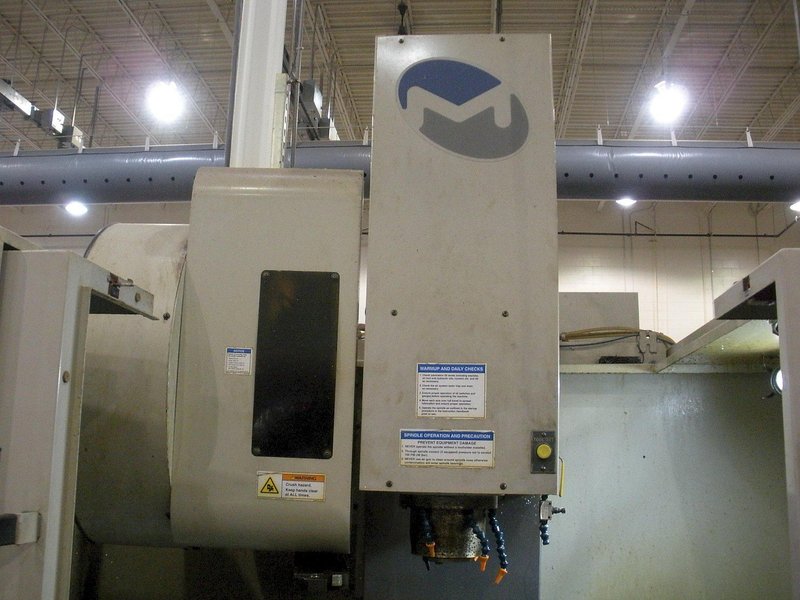

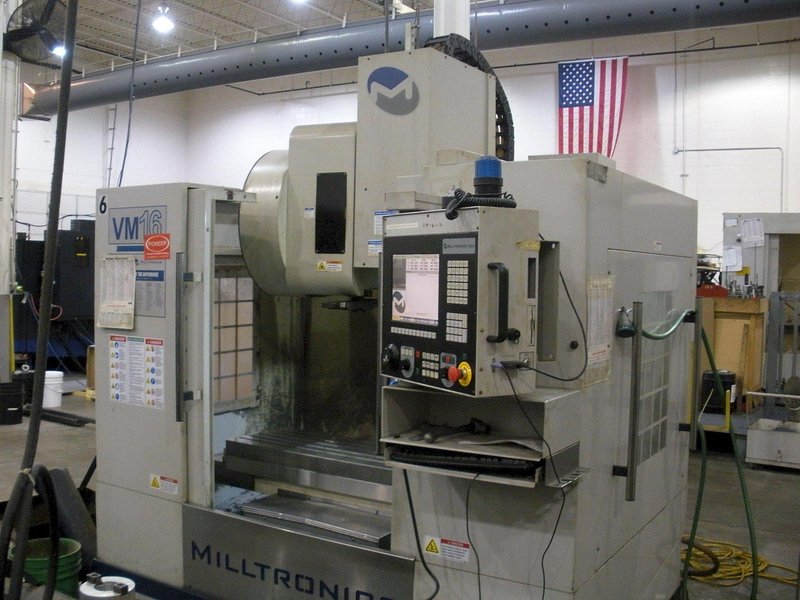

2008 Milltronics VM16 Vertical Machining Center

Name: Used MILLTRONICS VM16 For Sale 34757C
Brand: MILLTRONICS
SKU: 34757C
Availability: PreOrder

Brand

MILLTRONICS

Ohio

Type Of CNC Control	Milltronics 8200
# Axis	3
Spindle Speed	15000
Spindle Taper	CT40

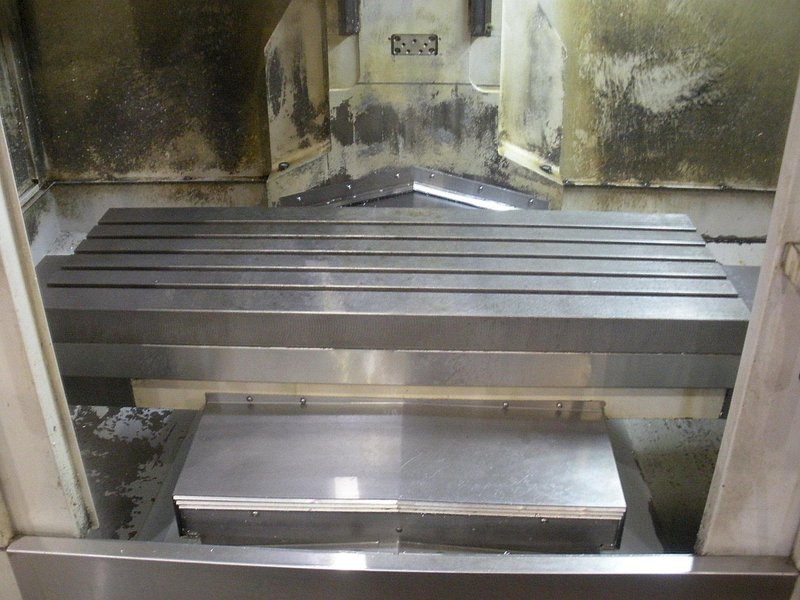

Specifications: Table Size - 45" x 16" Travels (XYZ) - 30" x 16" x 20" Throat Distance, Spindle to Column - 16" Distance, Spindle to Table Top - 4" to 24" Maximum Table Load - 1500 Lbs. Spindle RPM - 15,000 Spindle Taper - CT40 ATC Type - 24 Arm Style Tool Change Time - 3.5 Seconds Spindle Motor (1 min / 30 mins) - 24 / 15 hp Rapid Traverse XY / Z - 1000 / 800 ipm Max Feedrate (Part Dependent) - 500 ipm Power - 208-240 VAC 50-60hz, 4 Phase, 50 amps, 19 kVA Floor Space Requirements - 92" x 90" Machine Height - 114" Machine Weight, Approx - 9000 Lbs. Equipped with: 8200 Series Control 12" LCS Active Matrix Color Display Conversational Plus G & M Code Programming 3D Part and Wire Frame Tool Path Graphics Plus Side Modeling Graphics Networking High Torque AC Digital Servo Drives Electronics Spindle Orient and Rigid Tap Remote Handwheel Linear Ball Ways 24 Pocket Swing Arm ATC Spindle Air Purge Auto Lubrication Metal Telescopic Way Covers Chip Auger 6-Nozzle Flood Coolant Air and Wash Down Hoses Full Enclosure Wide Side Doors for Cleaning Access Work Light * Specifications are subject to independent verification by the buyer. * No tooling or fixturing is included. * Offered on consignment. No warranty or return privilege. * Rigging and transportation responsibility of the buyer.
