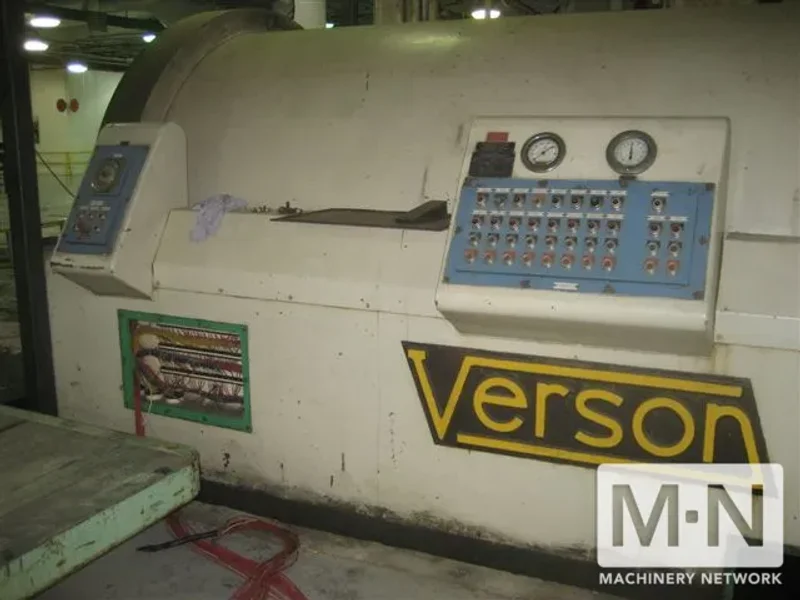

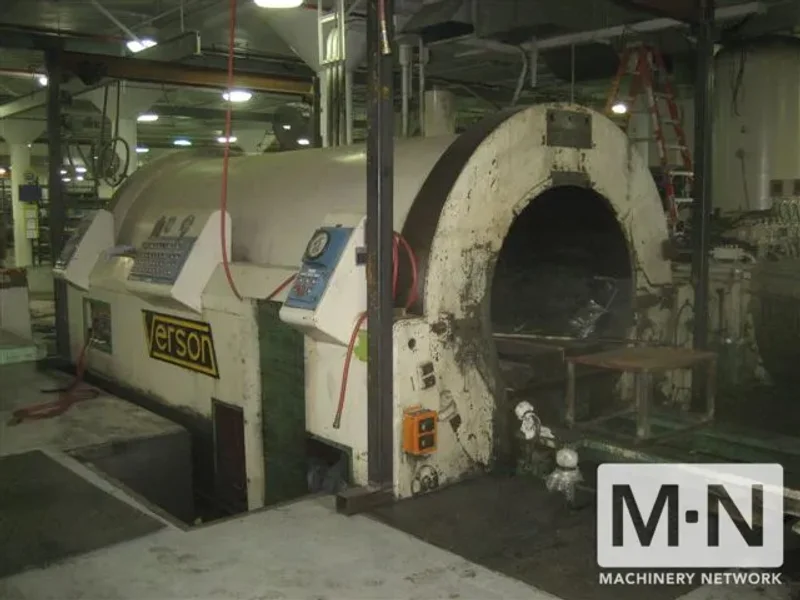

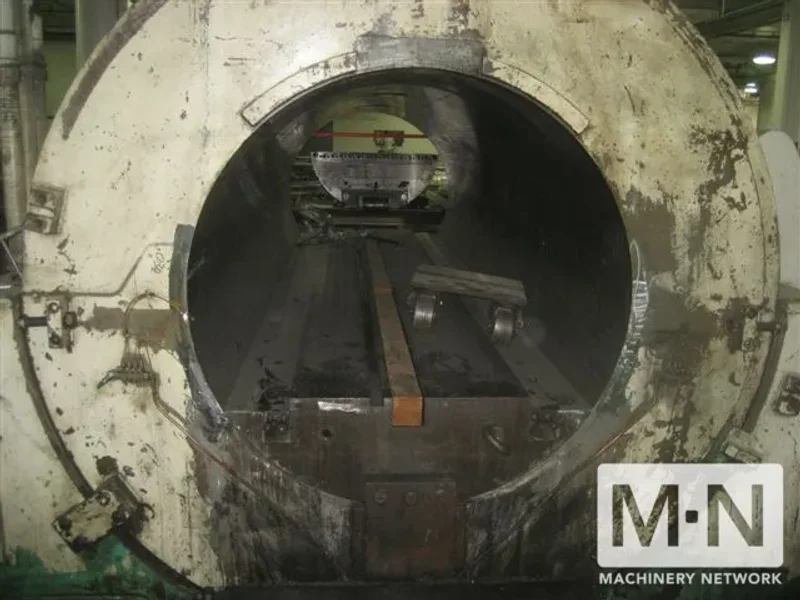

Verson Wheelon 41000R-50-164 Hydraulic Press

(1) 41,000 TON VERSON "WHEELON" 41000R-50-164 DIRECT-ACTING
RUBBER PAD HYDRAULIC FORMING PRESS NEW 1973

SPECIFICATIONS:
CAPACITY: ......................................... 41,000 TONS
FORMING PRESSURE: ................................. VARIABLE TO 10,000 PSI (MAX)
PRESS TABLES:
TRAY SIZE @ TOP: .................................. 50" x 164"
TRAY AREA @ 6" DEPTH: ............................. 42-1/2" x 157"
TRAY AREA @ 10" DEPTH: ............................ 37-1/2" x 152"
(FILLER PLATES AVAILABLE, REDUCES DEPTH OF TRAY TO 6")
MOTOR DRIVES:
(2) EVACUATE HIGH PRESSURE PUMPS: ................. 150 HP & 75 HP
(1) ACCUMULATOR CHARGE PUMP: ...................... 30 HP
(1) PILOT PRESSURE PUMP: .......................... 25 HP
(1) VACUUM & COOLER PUMP: ......................... 15 HP
(1) SUPERCHARGE PUMP: ............................. 10 HP
(1) TRAY DRIVE PUMP MOTOR: ........................ 25 HP
(1) PAD VACUUM PUMP: .............................. 1 HP
(1) CYLINDER ROLLOVER: ............................ 3 HP
(1) MICRO CLEAN OIL FILTER: ....................... 1/4 HP

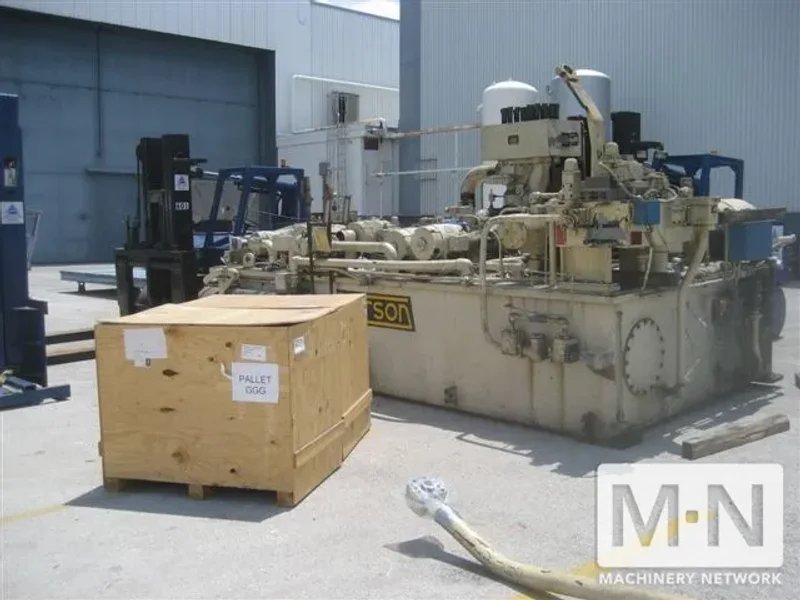

HYDRAULIC SYSTEM:
CAPACITY: ......................................... 2,900 GALLONS
OILGEAR INTENSIFIER
OILGEAR, DENNISON AND WORTHINGTON PUMP ASSEMBLY
PRESS SIDE RAILS WITH PRESSURE PADS

EQUIPPED WITH:
THROW PAD ROLL-UP DEVICES ON ALL TABLES
VACUUM PAD HOLD UP SYSTEM
ELECTRICAL PANEL
SPARE PRESS TABLE
PRINTS AND DRAWINGS FOR MACHINE AND FOUNDATION
ALL NEW PRESS WEAR PARTS (E.G. INNER & OUTER SIDE RAILS,
FLUID CELL, WEAR PAD, ETC..)

PRICE IS PRIOR TO REMOVAL
