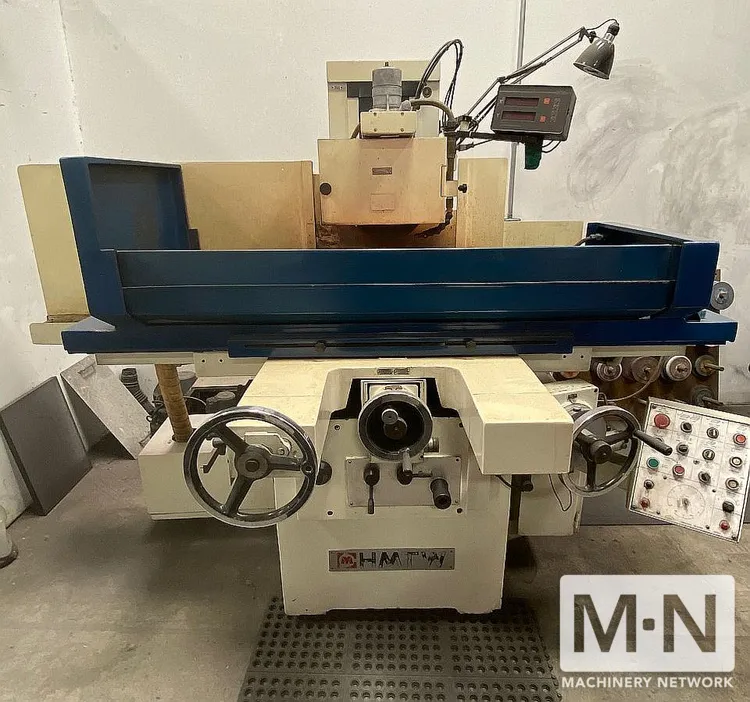

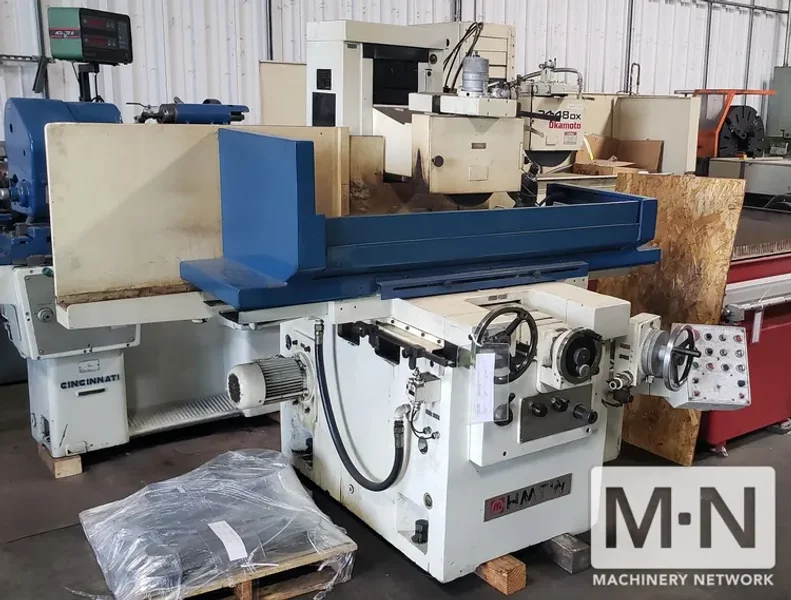

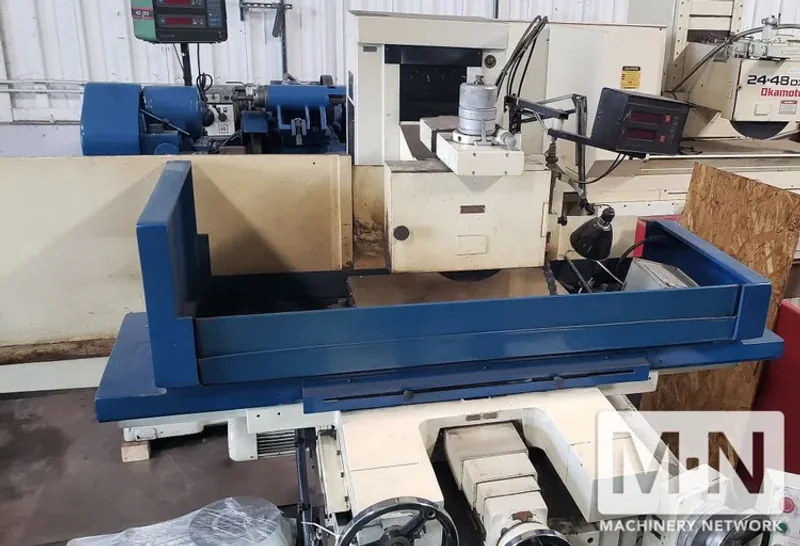

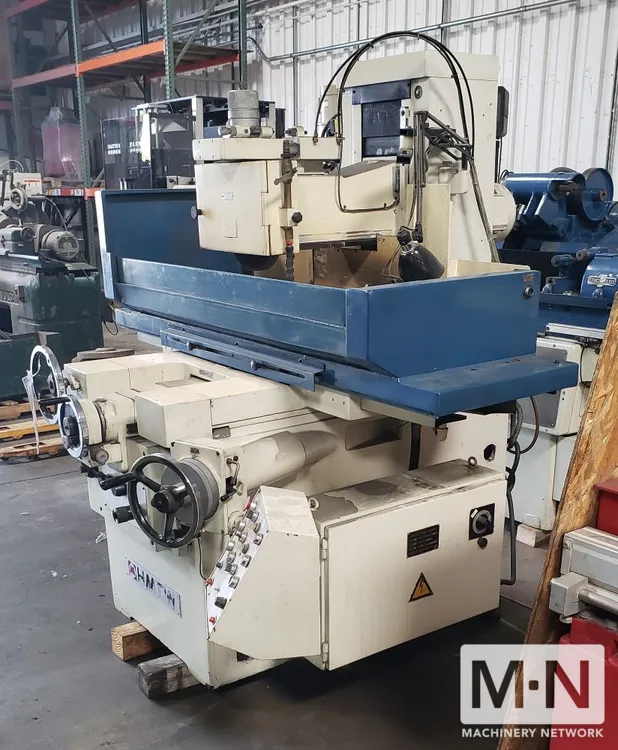

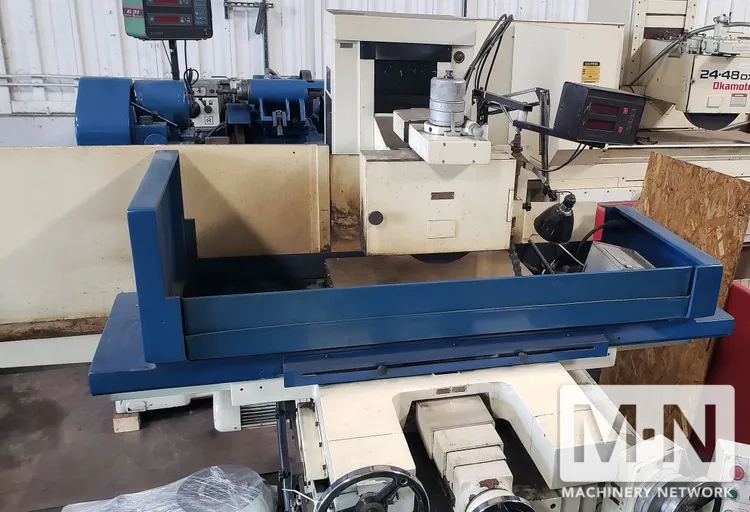

16" x 24" HMTW HZ-1624 Automatic Surface Grinder

Brand
COOLANT CHILLERS
Category
Fastener Equipment
Type
Parts Formers
Model
HZ-1624
Stock #
40290
Year
Not specified
Condition
Not specified
Location
Not specified
REQUEST FINANCING

Overview

Type:
GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)
Manufacturer:
HMTW
Model:
HZ-1624
Condition:
Good
Stock #:
40290
Status:
For Sale

Description

16" x 24" 3 axis Auto Hyd, OTW dress, DRO

Table size16" x 24"16" x 24"
Table travel - longitudinal29.5"29.5"
Table travel - cross16.5"16.5"
Distance - spindle center to table4.9" - 19.7"4.9" - 19.7"
Max table load660 lb299.4 kg
Longitudinal table speeds1.6 - 32 FPM1.6 - 32 FPM
Cross feed - manual, per grad..0005".0005"
Cross feed - manual, per rev..25".25"
Cross feed - automatic.02" - 0.8".02" - 0.8"
Down feed - manual, per rev..0001.0001
Down feed - auto incremental.0001" - .0015".0001" - .0015"
Grinding wheel dimensions14" x 1.6 x 5" bore14" x 1.6 x 5" bore
Dimensions100" x 89" x 89"100" x 89" x 89"
Weight6500 LBS6500 LBS

Digital readout

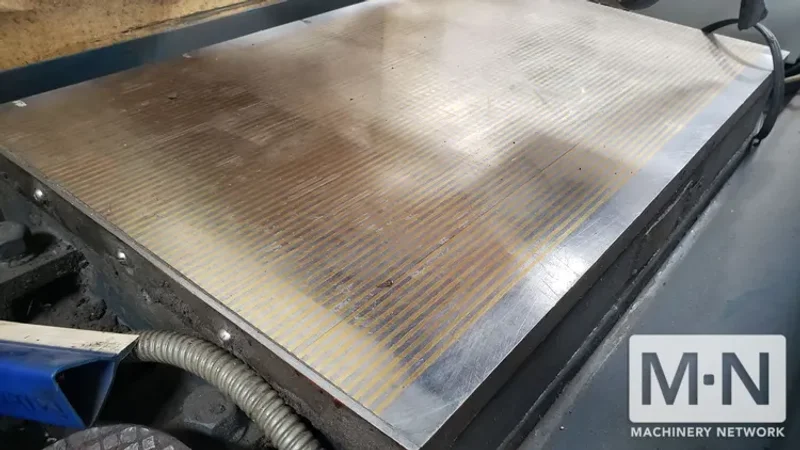

Fine pole electro magnetic chuck
Over the wheel dresser
Hydraulic & coolant system
