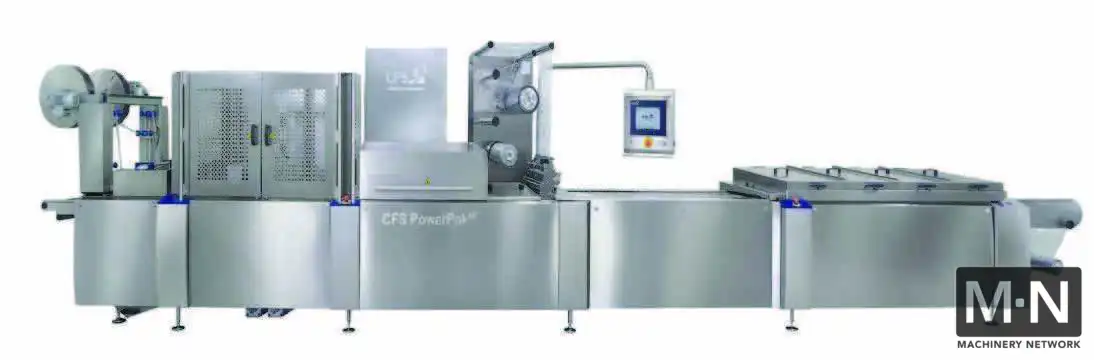

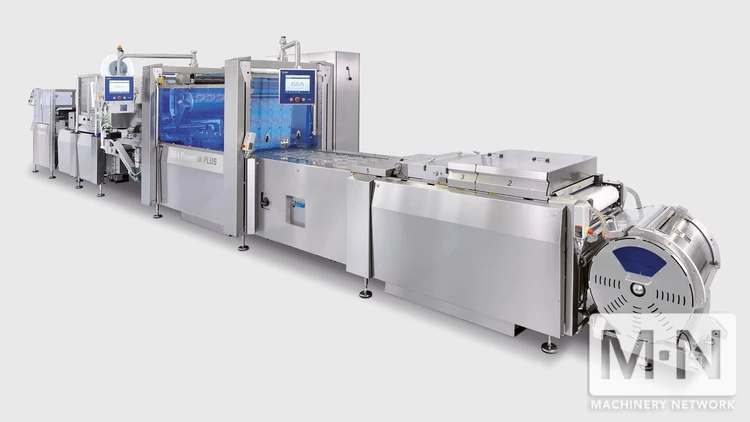

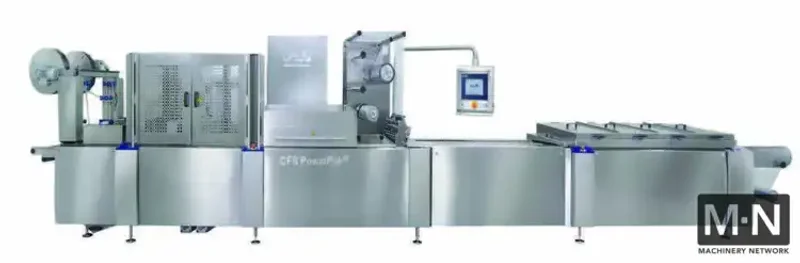

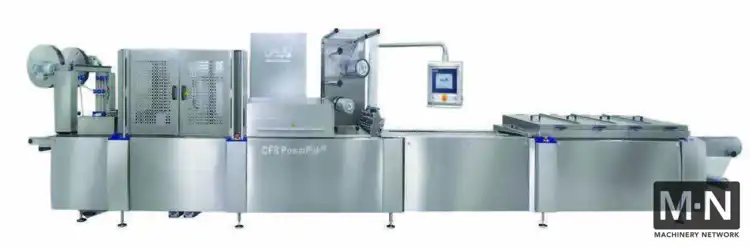

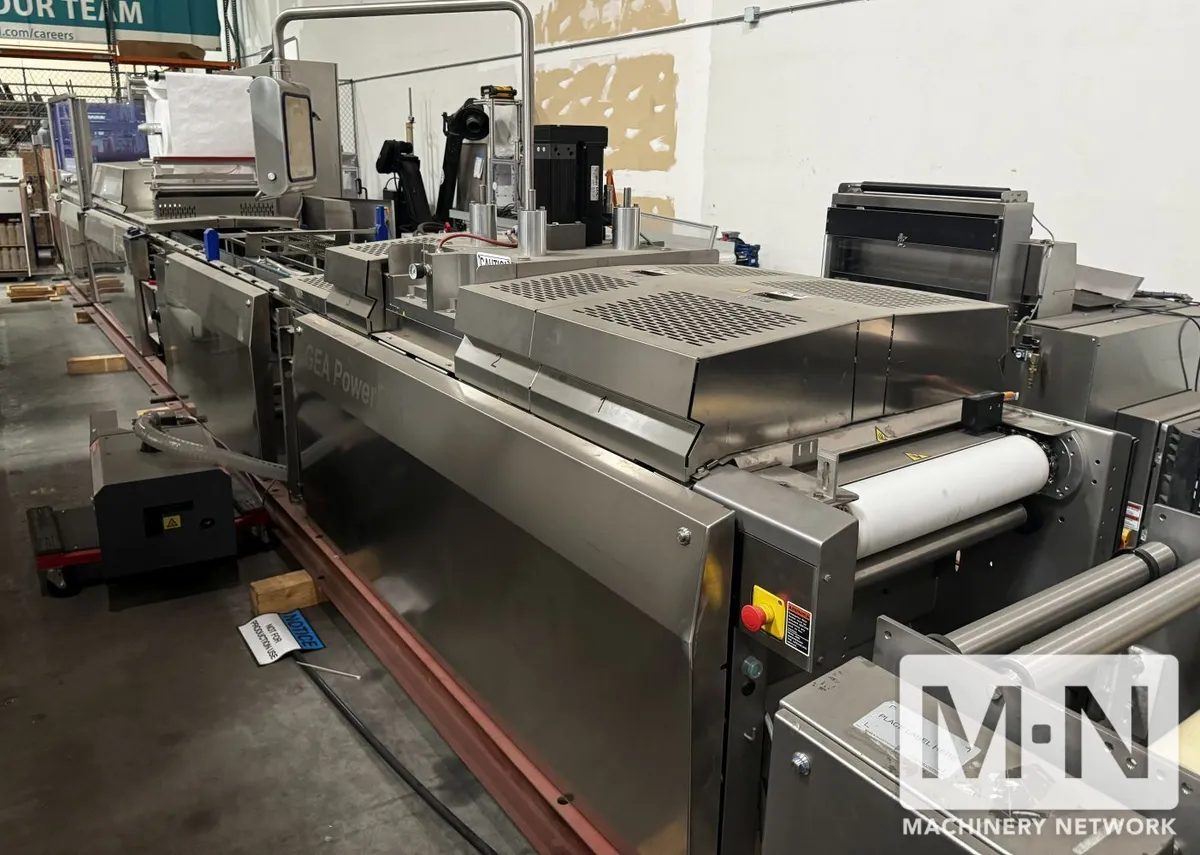

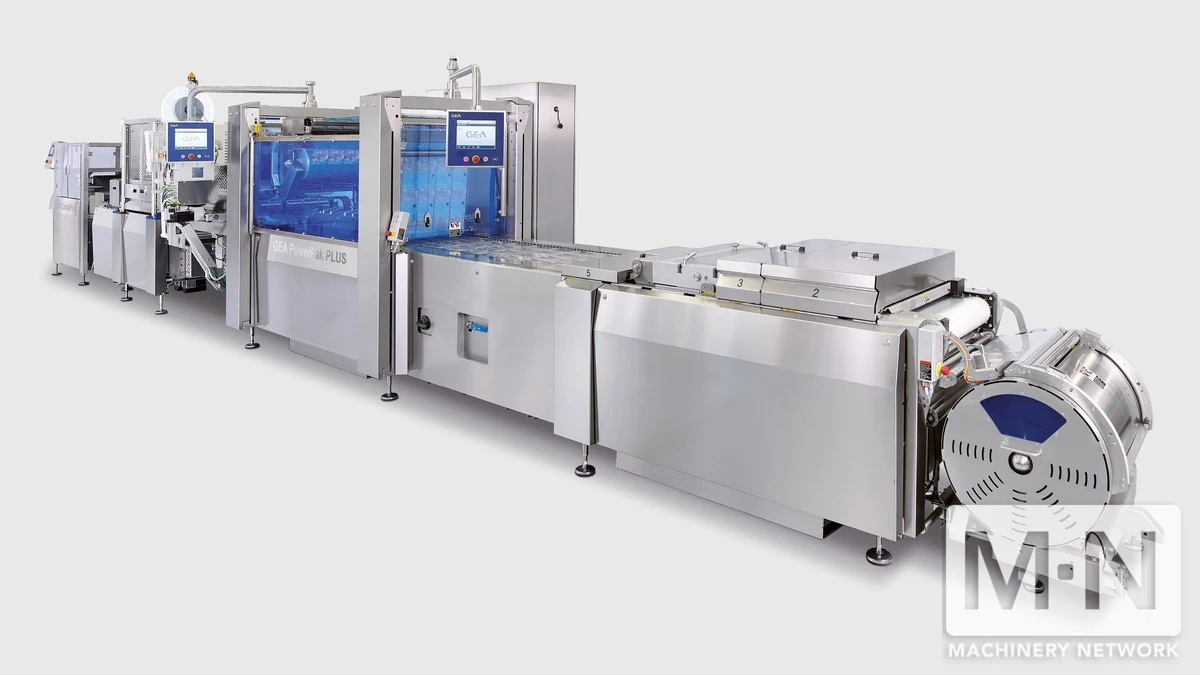

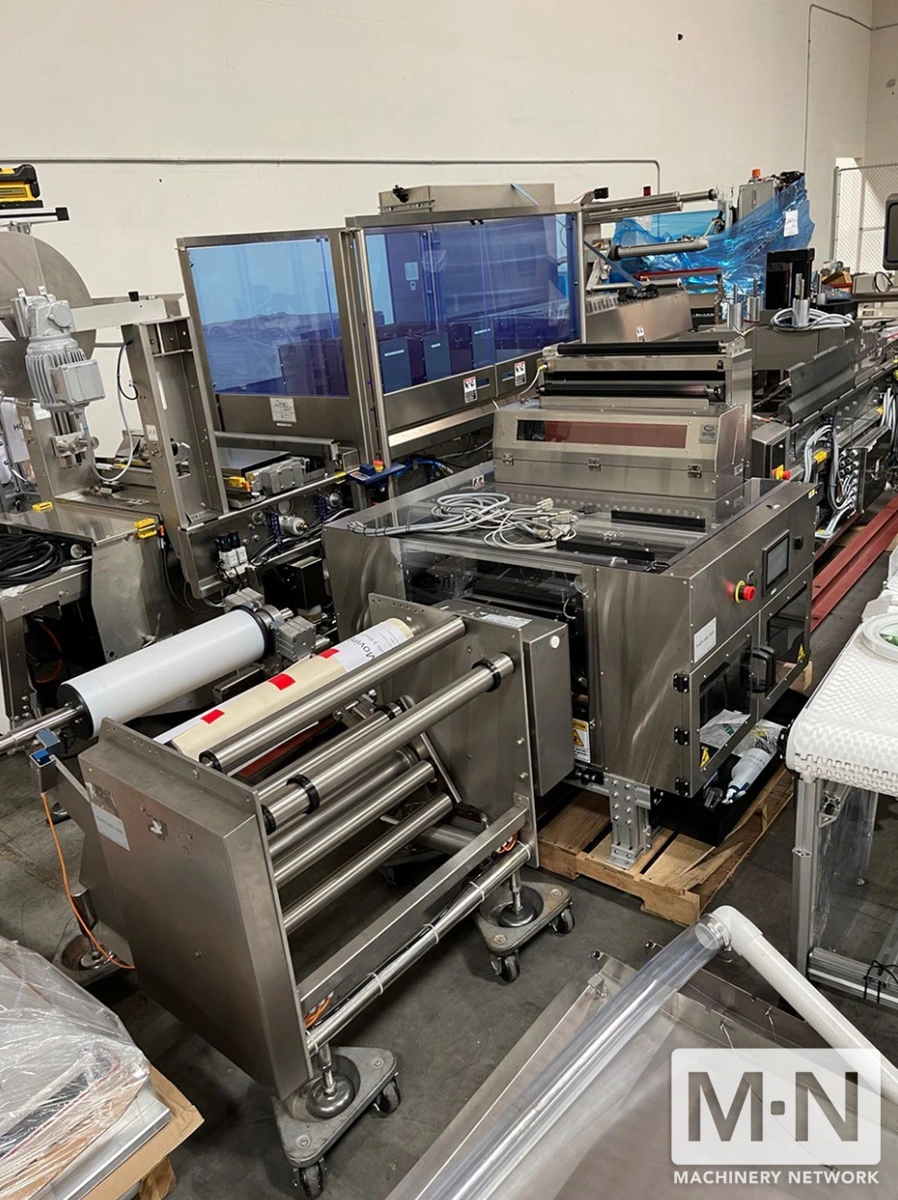

GEA Powerpak Plus Thermoformer Machine, 2016

GEA Powerpak Plus Thermoformer Machine, 2016

Name: Used GEA POWERPAK PLUS For Sale 40943
Brand: GEA
SKU: 40943
Availability: PreOrder

Brand

GEA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

THERMOFORMING MACHINES

Manufacturer:

GEA

Model:

POWERPAK PLUS

Year:

2016

Stock #:

40943

Status:

For Sale

Description

Web width: 540mm, 10-12 cycles per minute, 100psi, Busch 1144 BV forming pump, packaging material: rigid PETG up to .040"/ Tyvek, water: 45L per hour, forming web width: 540mm, non-forming web width: 530mm, forming/non-forming roll size: 500mm max OD

Specifications

Products:...................... Medical Products
Type of package:............... Rigid
Web width of machine:.......... 540mm
Packaging material:............ Forming: Rigid, PETG up to .040 “
Non forming:................... Tyvek
Dieset configuration:.......... 4- up, (2tracks x 2row) 3- up, (3tracks x 1row)
Machine cycle speed:........... 10 to 12 cycles per minutes
Electrical:.................... 208 Volts, 3 Phase, 60 Cycle, * Amps (TBD)
Compressed Air:................ 100 PSI @ * CFM Dry Air (TBD)
Water:......................... 45 Liters per Hour/12 Gallons per Hour
Forming Web Width:............. 540mm +2 / -0
Non- Forming Web Width:........ 530mm + 2 -1mm
Film Cores:.................... 3” and 6”
Forming Film Roll Size:........ 500mm Max OD
Non Forming Roll Size:......... 500mm Max OD
Vacuum pumps:.................. Busch 1144 BV forming vacuum pump

Equipped With:

GEA B&R Control System UL 508A
Touch Screen Operator Panel
Cost Fox Data Collection System
Film Drive System
Forming Film Unwind system
2250mm Forming module with 130mm max dieset opening
3000mm Loading area
2000mm Sealing module
2000mm Cross cutting module
Longitudinal cutting module
PowerPak Formset with 575mm index length
PowerPak Formset with 390mm index length
OPTIONS:
1 Upper film registration
1 Splice detection for top and bottom film
1 Low film detection for upper and lower film
1 Stack light
1 Servo driven 1200mm reject conveyor
1 Film lift for top film including tool change lifting gear
1 Busch 1144 BV forming vacuum pump mounted below

Loading area:

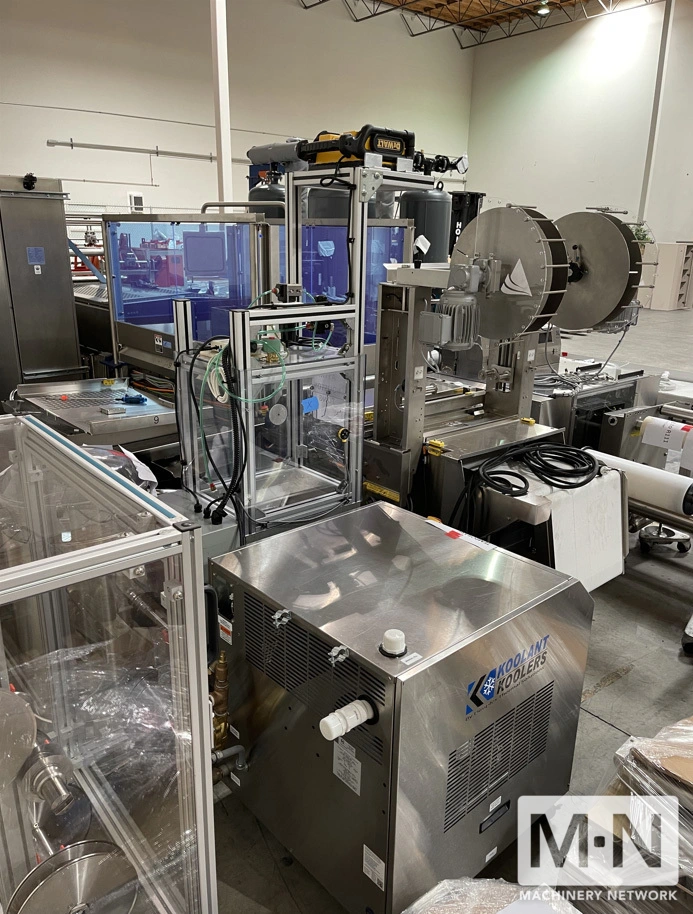

1 Coolmaster K-004.9 Water chiller

1 Servo cylinder for forming and seal station lift
1 Servo lift for strip punches
1 Servo drive for Optiform Plug drive
1 Jumbo forming film unwind with 6” expandable mandrel to accommodate a 1000mm diameter film roll

No files or videos to display
