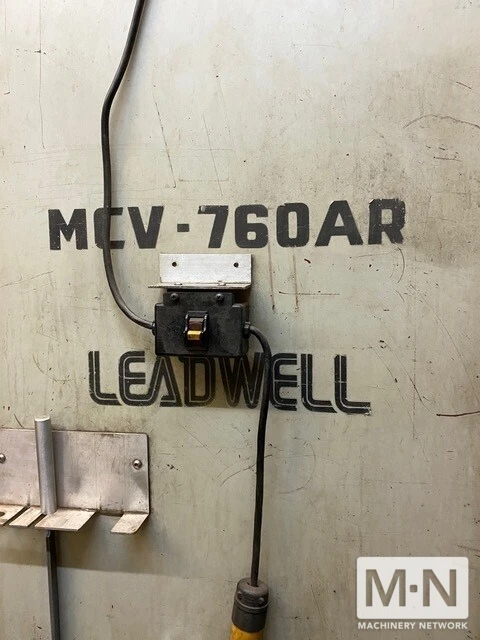

Leadwell MCV-760AR CNC Vertical Machining Center

Leadwell MCV-760AR CNC Vertical Machining Center

Name: Used STROJARNE PIESOK MCV-760AR For Sale 51112
Brand: STROJARNE PIESOK
SKU: 51112
Availability: PreOrder

Brand

STROJARNE PIESOK

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Vertical Machining Centers

Manufacturer:

LEADWELL

Model:

MCV-760AR

Stock #:

51112

Status:

For Sale

Specifications

ImperialMetric

X Axis Travel	29.9"	759.46 mm
Y Axis Travel	20"	508 mm
Z Axis Travel	24"	609.6 mm
Cutting Feed Rate	16,404 ft/min	16,404 ft/min
Spindle Motor	15 hp	11.2 kW
Spindle Speed	6,000 RPM	6,000 RPM
Spindle Taper	MAS-CT 40	MAS-CT 40
Max. Table Load	1,543 Lbs	1,543 Lbs
Dimensions	97.6" x 153.3" x 116.1"	97.6" x 153.3" x 116.1"
Weight	14,550 Lbs	14,550 Lbs

Equipped With:

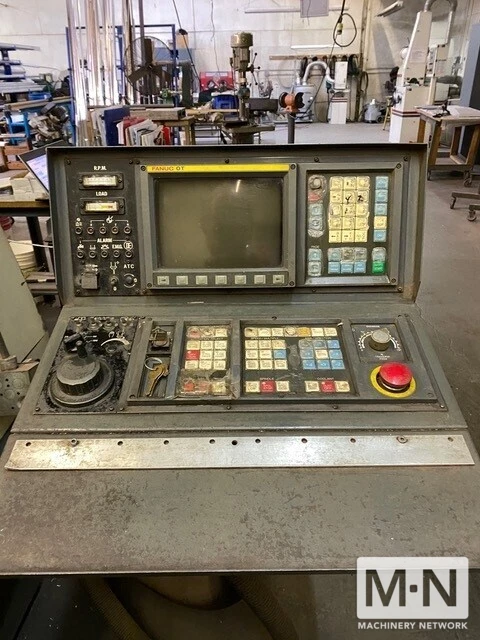

Fanuc OMF Control

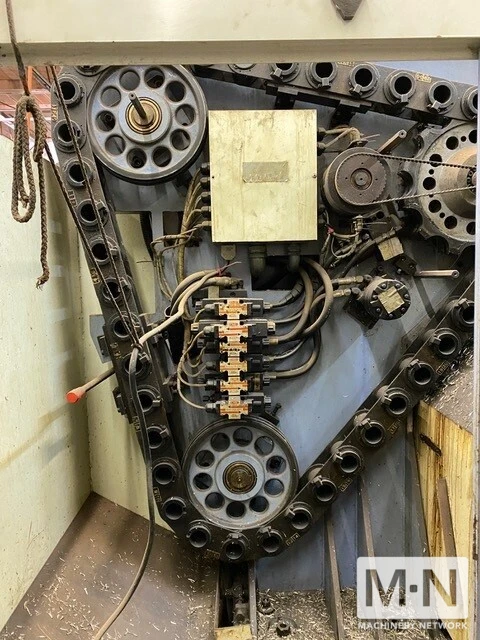

24 Position Double Arm Automatic Tool Changer
Screw Type Chip Conveyor

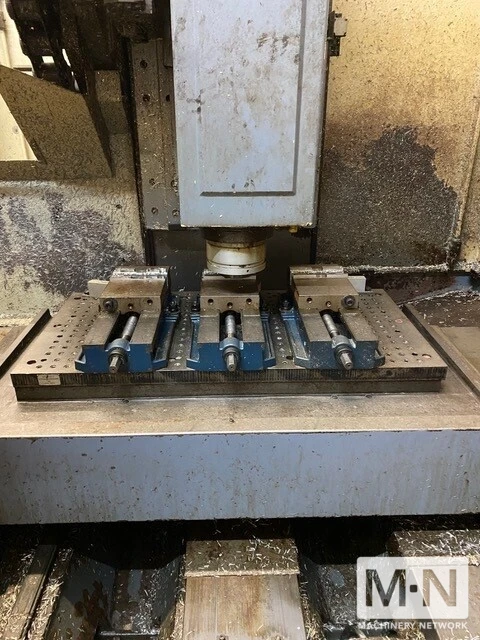

19 3/4" x 39 1/2" Stevens Drilled & Tapped Sub-Plate
Coolant Pump Motor: ½ HP
Lubrication Pump: 3 Watt
Power Requirement: 20 KVA
Hydraulic Pressure: 35 kg/cm2
Air Source: 6 kg/cm2
Electrics: 240 Volts, 3 PH, 60 CYC

Max. Tool Diameter: 3.9"
Max. Tool Length: 9.8"
Max. Tool Weight: 15 Lbs
ATC Time Tool To Tool: 2.5 Sec
ATC Time Chip To Chip: 5 Sec
