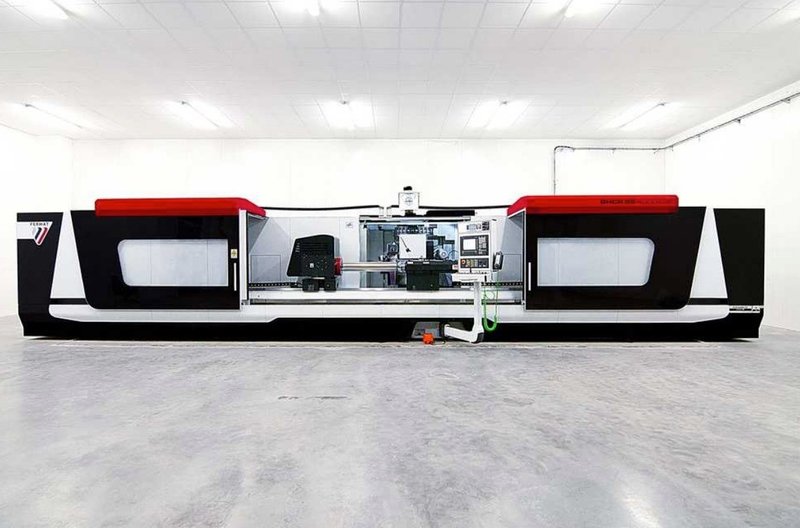

Lucas Fermat BHCR/BHCR HD Universal Cylindrical Grinding Machine

Brand
Model
Not specified
Stock #
BHCR/BHCR HD
Year
Not specified
Condition
New
Location
Not specified

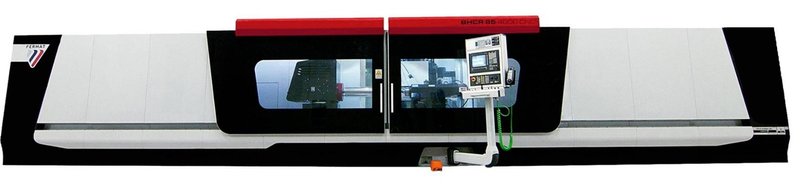

Lucas Fermat BHCR/BHCR HD Universal Cylindrical Grinding Machines

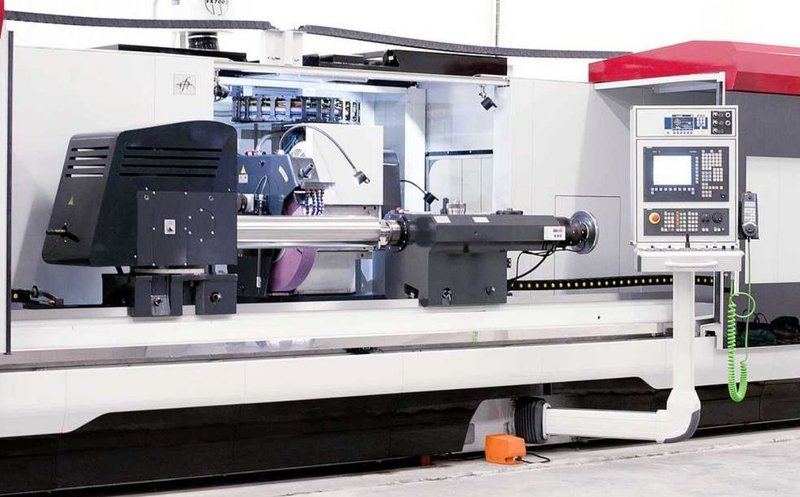

The Lucas Fermat BHCR is a fully CNC controlled grinding machine with controlled axis X (grinding wheel head in-feed) Z (longitudinal table feed) controlled axis C (grinding wheel peripheral speed) and controlled axis B that can be equipped with up to 3 grinding tools to enable very high productivity.


The grinding machine is designed primarily for CNC controlled grinding performed on external cylindrical surfaces of various diameters and their adjoining face areas and radiuses including automatic dressing by CNC dresser and stabilization via CNC system as well. Universal cylindrical grinding machine BHCR can be additionally equipped with automatic balancing system in-process gauge axial probe super finish attachment automatic (electric) rests XZ ruler etc.

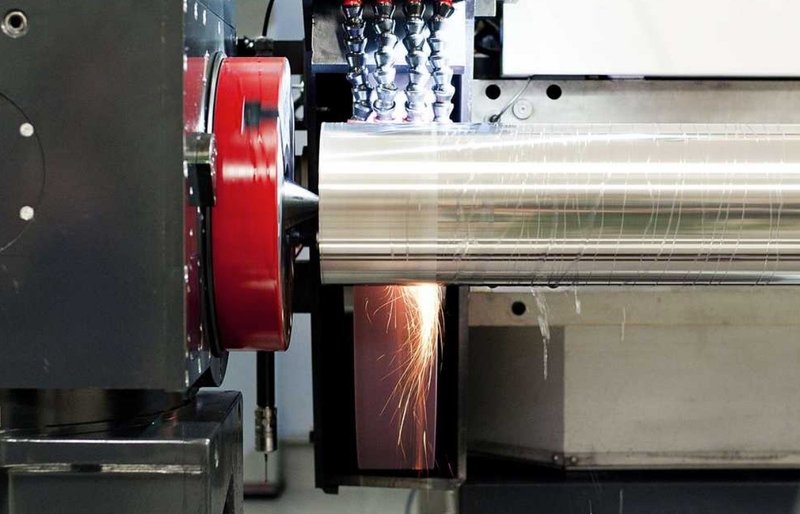

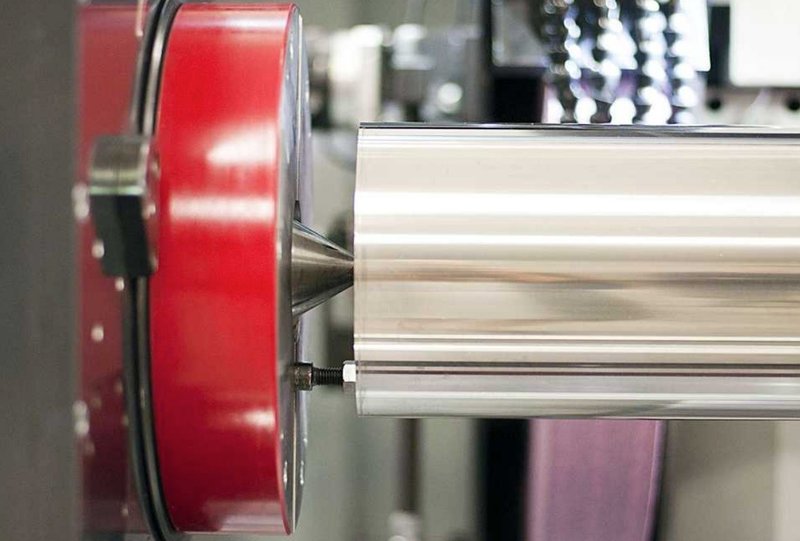

 The machine can perform a grinding with longitudinal feed and a moving table a plunge-cut grinding with a fixed or oscillating table a grinding in the cycle of plunge-cut and longitudinal grinding with e.g. a follow-up longitudinal regrinding. The cylindrical or conical surfaces may be ground in the centers. More complex surfaces may be ground by linear and circular interpolation.

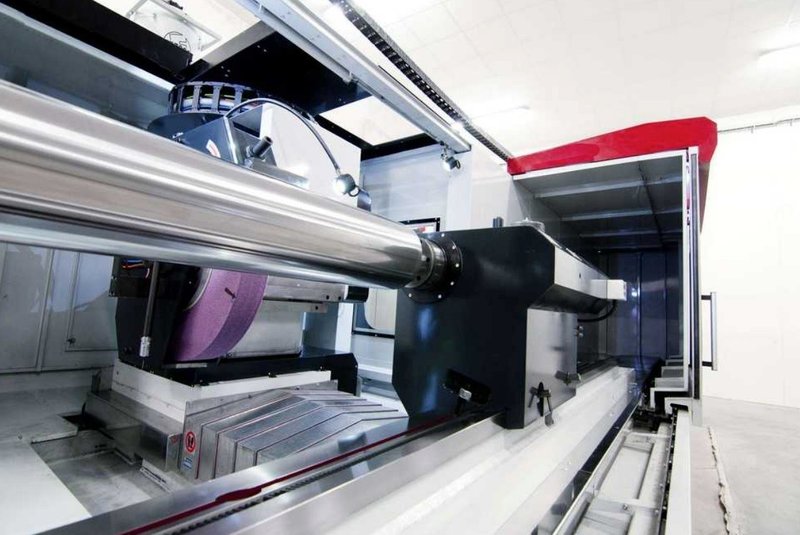

 The grinding wheel head feed-in and the table carriage are performed by servomotors and ball screws. The BHCR center grinding machine represents a very stable and accurate machine that can be used in a series production as well as in a single-part production for workpieces of a total weigh up to 4 000 kg optionally up to 5 000 kg (in Heavy Duty – HD version).
