Hwacheon 51" x 393" Mega 130x10000 CNC Lathe

SPECIFICATION:
Swing Over Bed 51.18"
Swing Over Cross Slide 36.61"
Maximum Turning Dia.On Cross Slide 36.61"
Center Distance 393.70"
Spindle Bore 10.03"
Tailstock Taper No 6 MT
Quill Diameter 7.87"
Spindle Speeds 40-630 RPM
Spindle Speed Ranges 3-Steps
X-Axis Stroke 25.98"
Z-Axis Stroke 393.70"
Rapid Traverse X & Z Axes 236.22 IPM
Weight Capacity Between Centers 26,400 LBS
Floor Space L x W 540" x 110.6"
Overall Height 98.81"
Machine Weight 64,900 LBS



Equipped With:

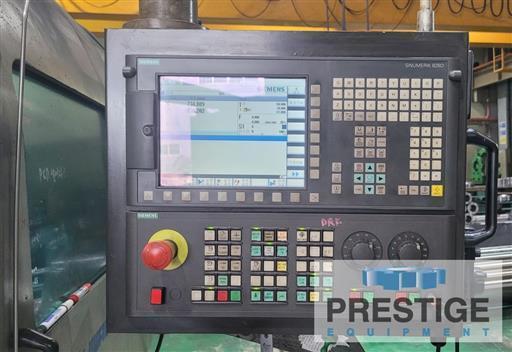

Siemens 828D CNC Control
Remote MPG Handle

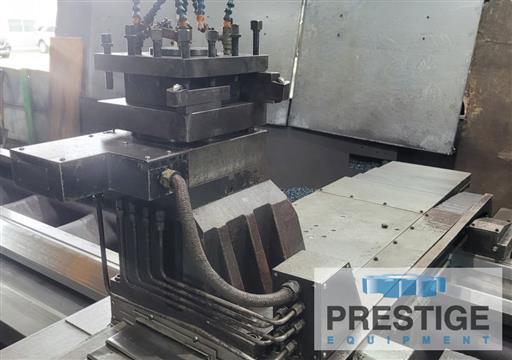

4-Position Automatic Turret

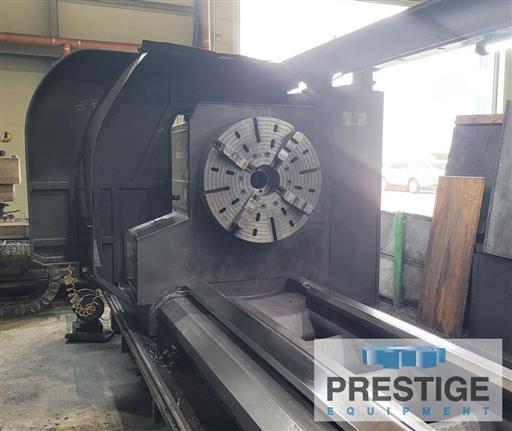

31.49" 4-Jaw Chuck
20.47" Openside Steady Rest
31.49" Roller Rest
7.87" Boring Bar Attachment
Built-In Tailstock Spindle
Rack & Pinion For Tailstock Movement
Large Ball Screw On X-Axis
Coolant Pump
80 HP/ 55 HP Spindle Motor
