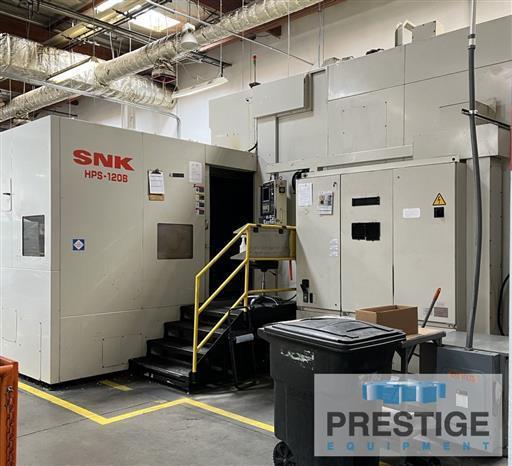

SNK HPS-120B 5-Axis CNC Horizontal High Speed Aerospace Profiler

SPECIFICATIONS:
X-Axis Travel 124.01"
Y-Axis Travel 71"
Z-Axis Travel 41"
A-Axis Spindle Head Tilt +/-100 Degrees
C-Axis Spindle Head Rotation +/-360 Degrees
Spindle Tilt Center To Spindle End 11.81"
SPINDLE:
Spindle Speeds, MAx 15,000 RPM
Spindle Nose CAT 50
Spindle Drive Motor 73 HP
TABLE:
Table Size 120" x 59"
Permissable Workpiece Weight 1100 Lbs.
Table Positioning, Setup Horizontal
Table Positioning, Machining Vertical 90 Degrees
FEED RATES:
Rapid Traverse, X & Z Axes 944.88 IPM
Rapid Traverse, Y-Axis 787.4 IPM
Rapid Traverse, A & C Axes 0-1800 DPM
Cutting Feedrate, XYZ Axes 0.03"-787.4 IPM
Cutting Feedrate, A & C Axes 0-1800 DPM
Table Top to Horizontal Spindle 28.03"



Equipped With:

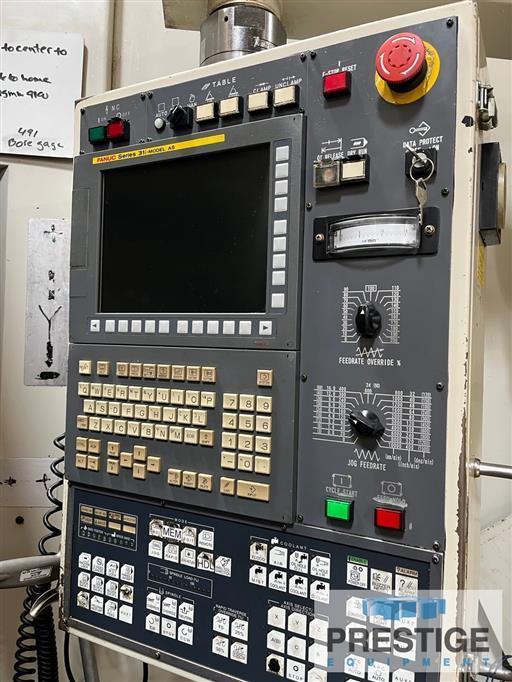

FANUC 31iMA 5-Axis CNC Control

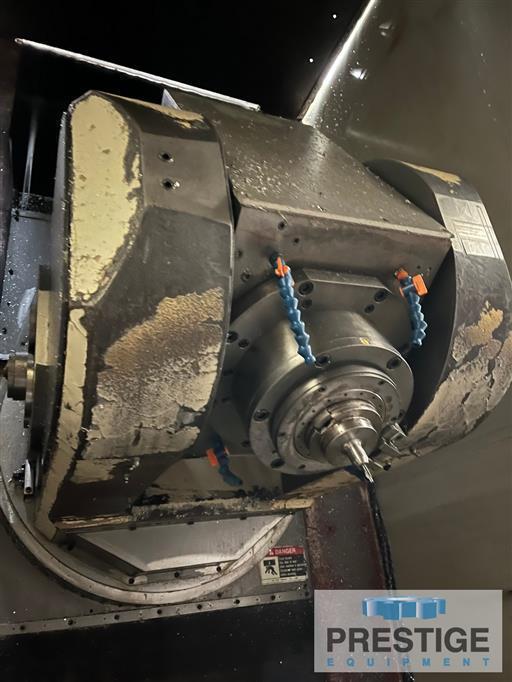

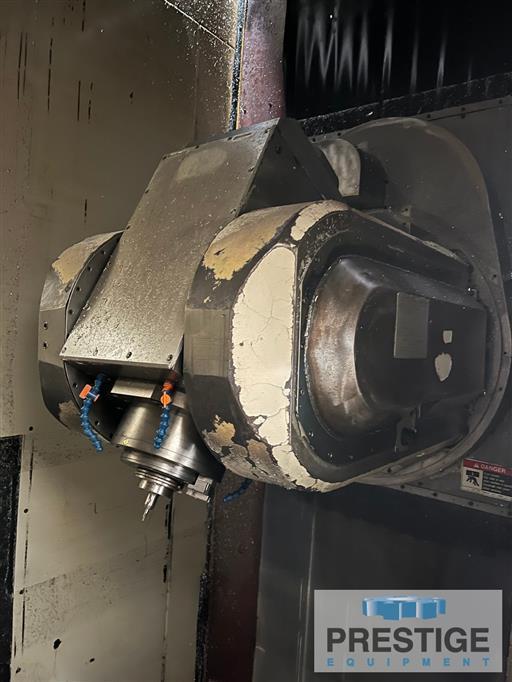

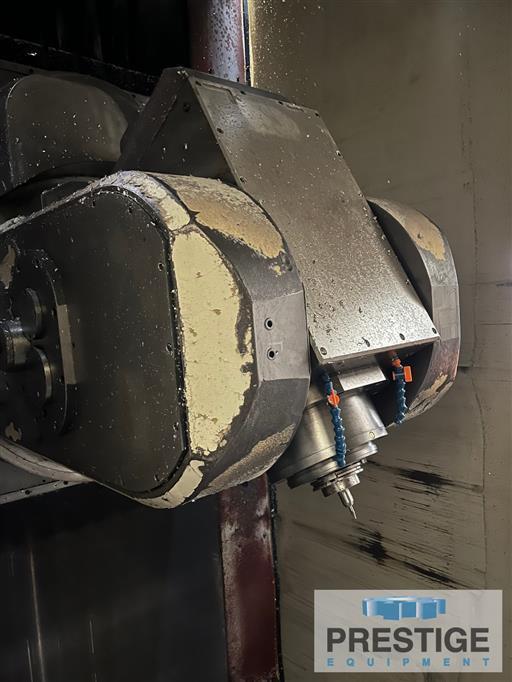

2-Axis Swivel Head
40-Position Automatic Tool Changer
Coolant Through Spindle

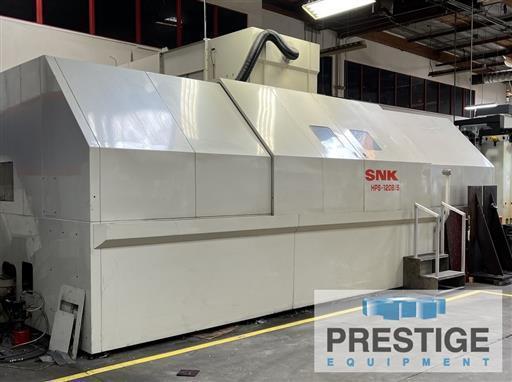

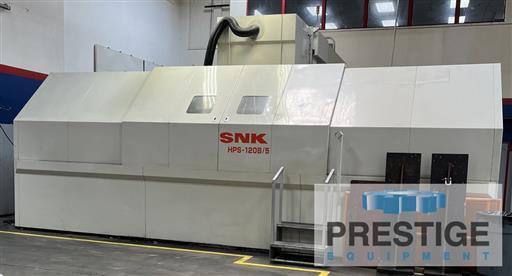

Full Splash Enclosure
New 2008, Installed in 2011
Chip Conveyor
