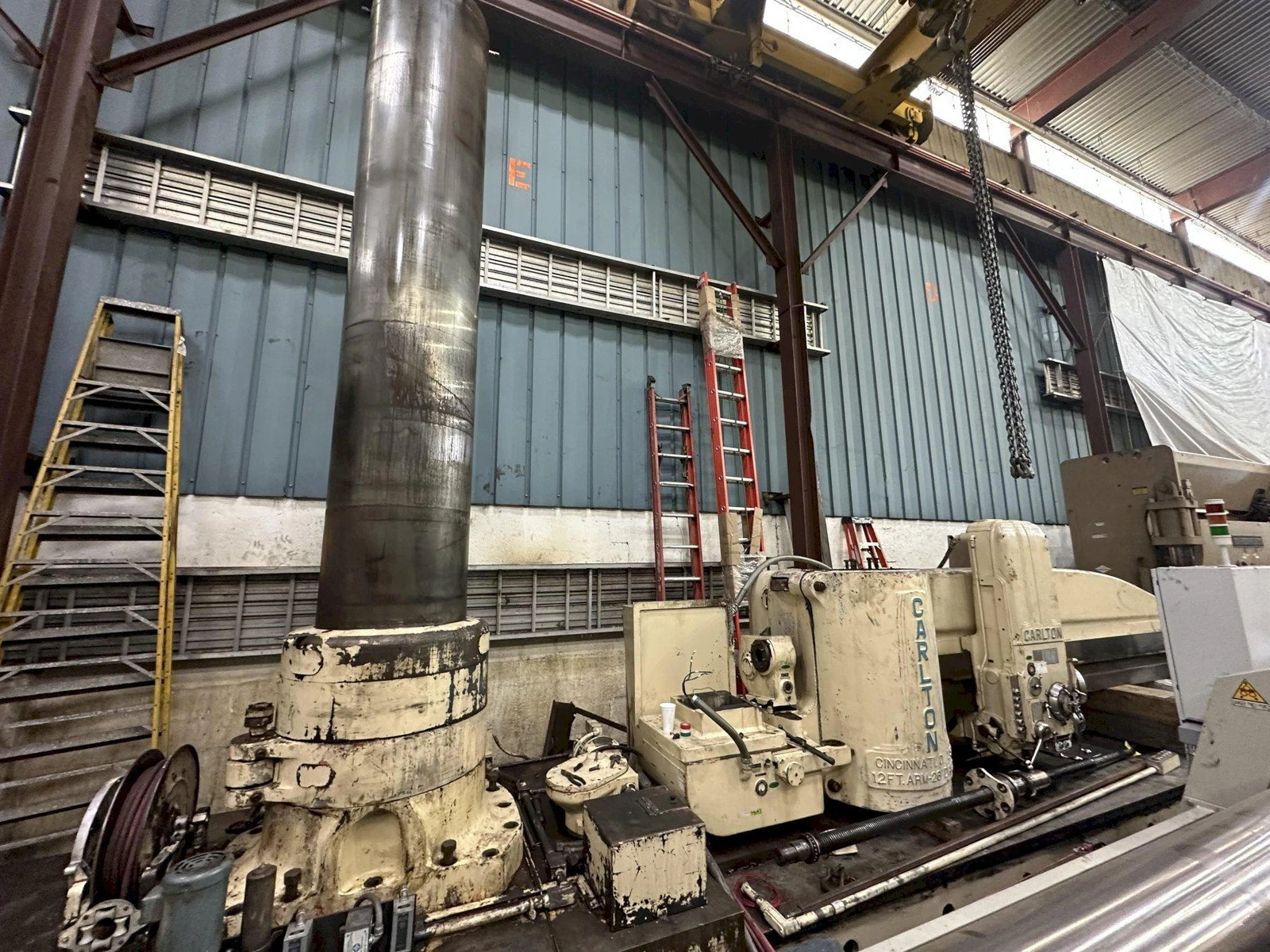

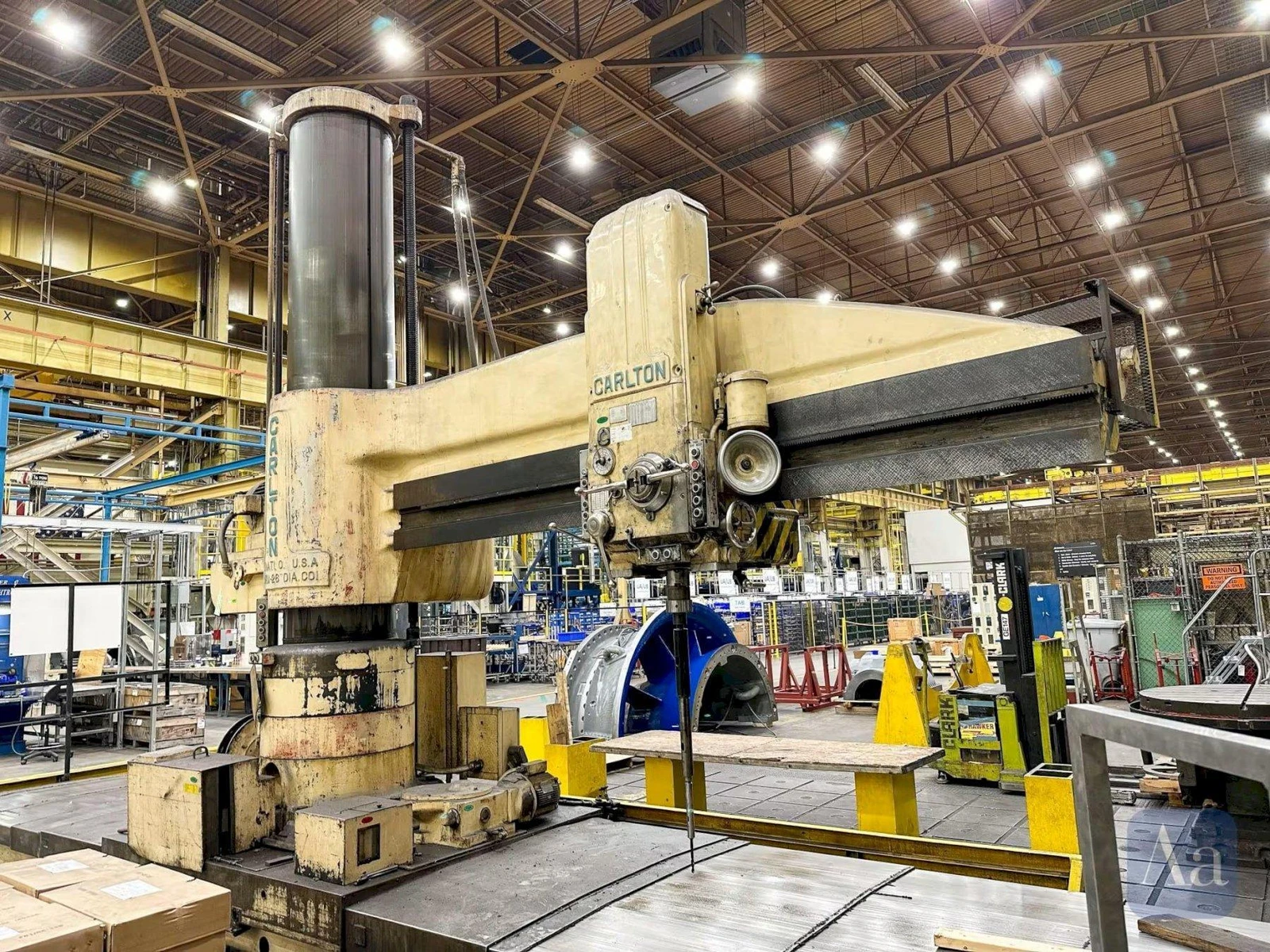

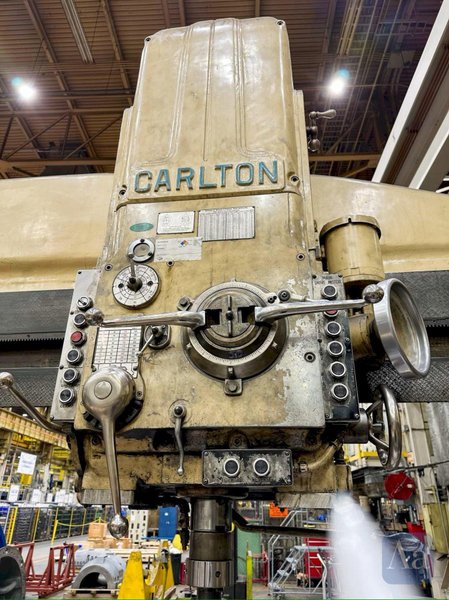

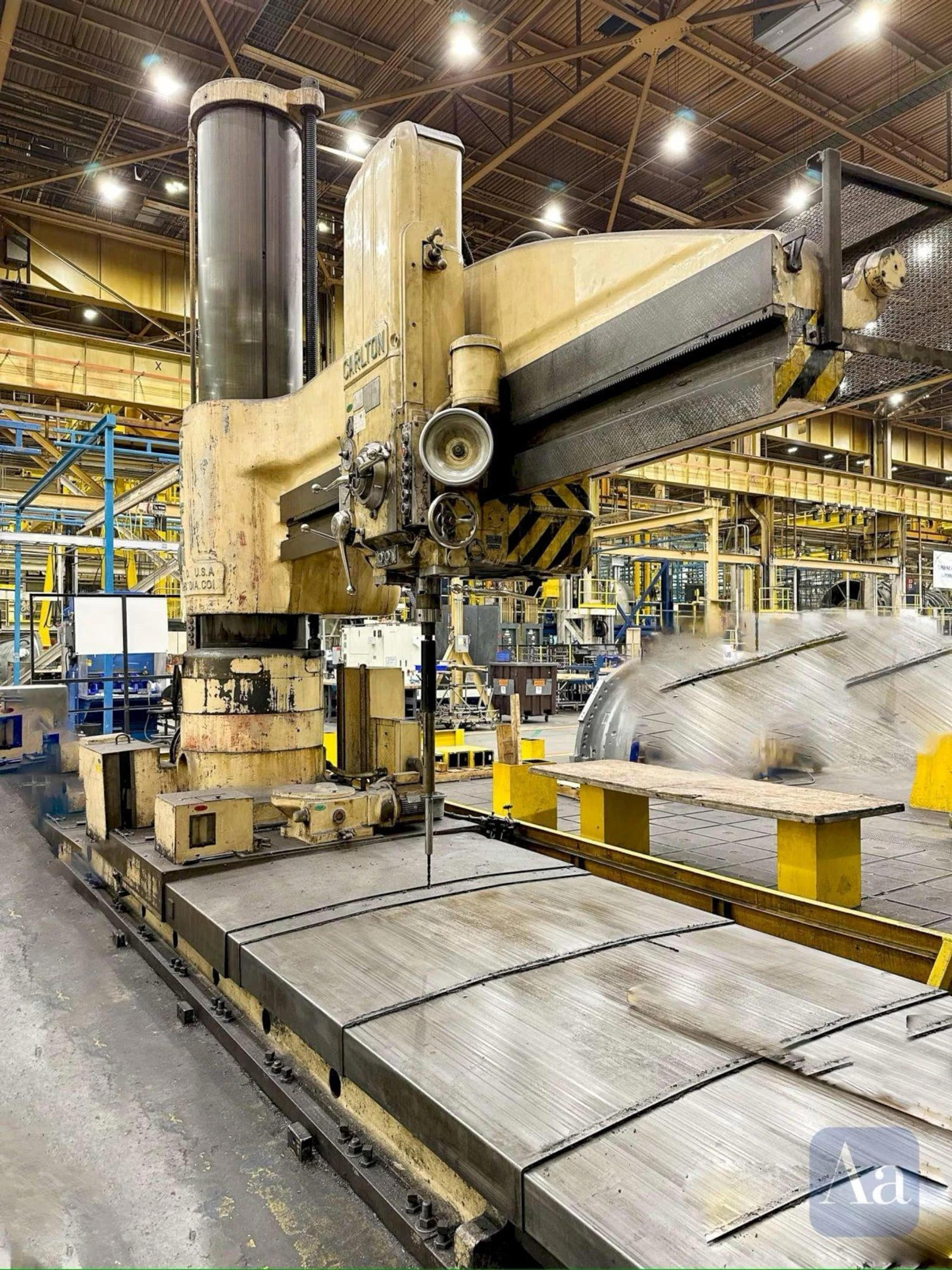

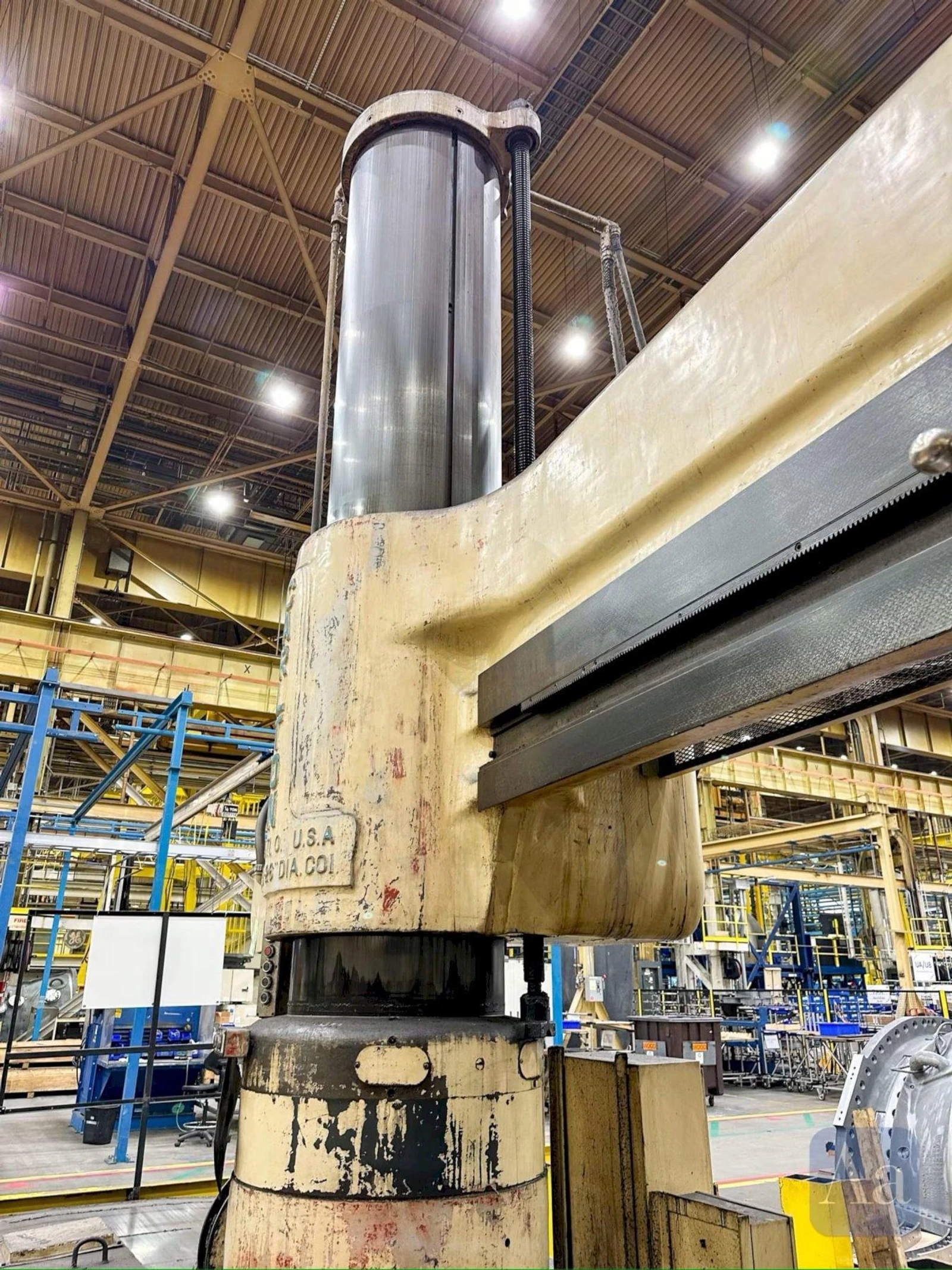

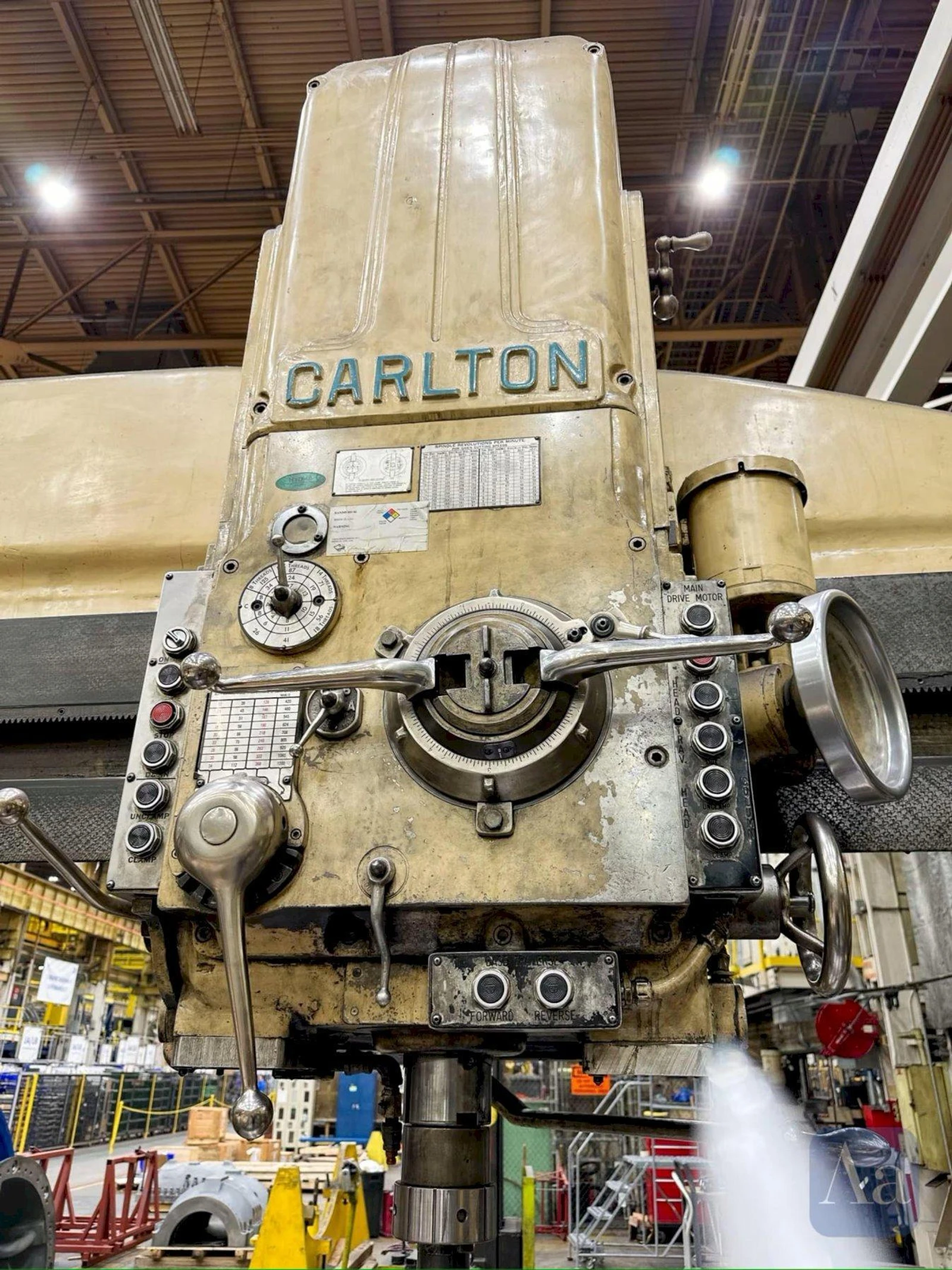

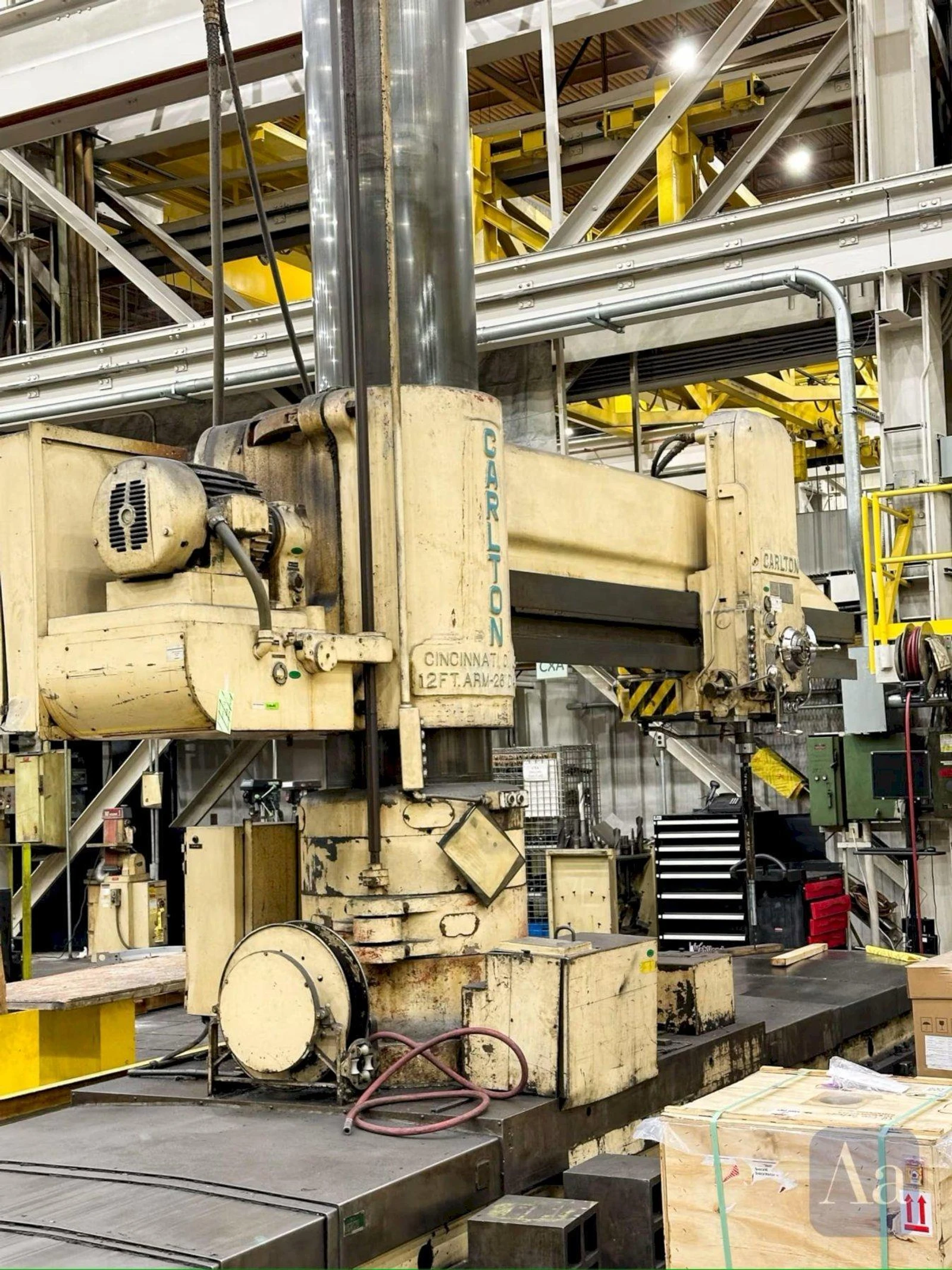

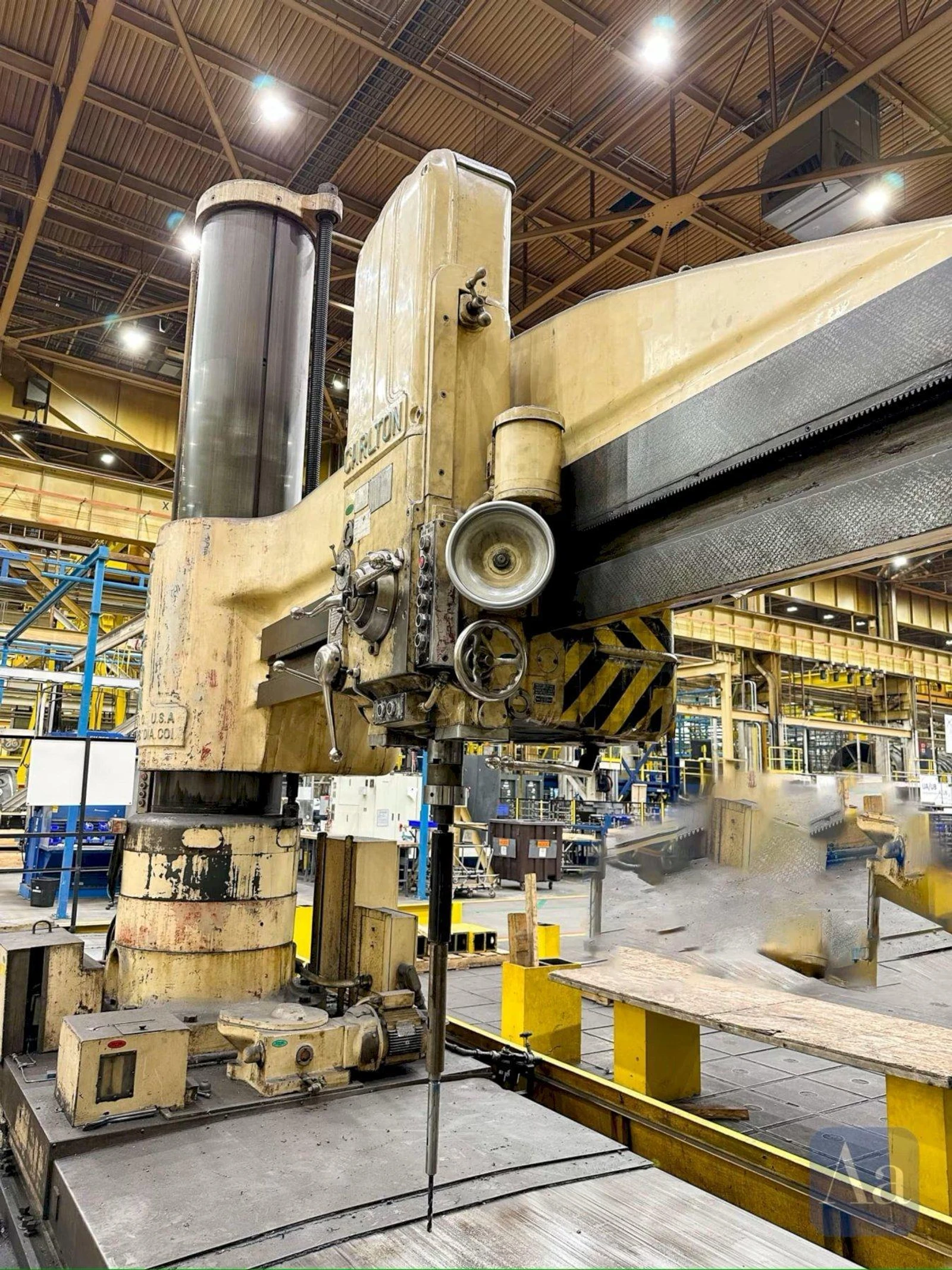

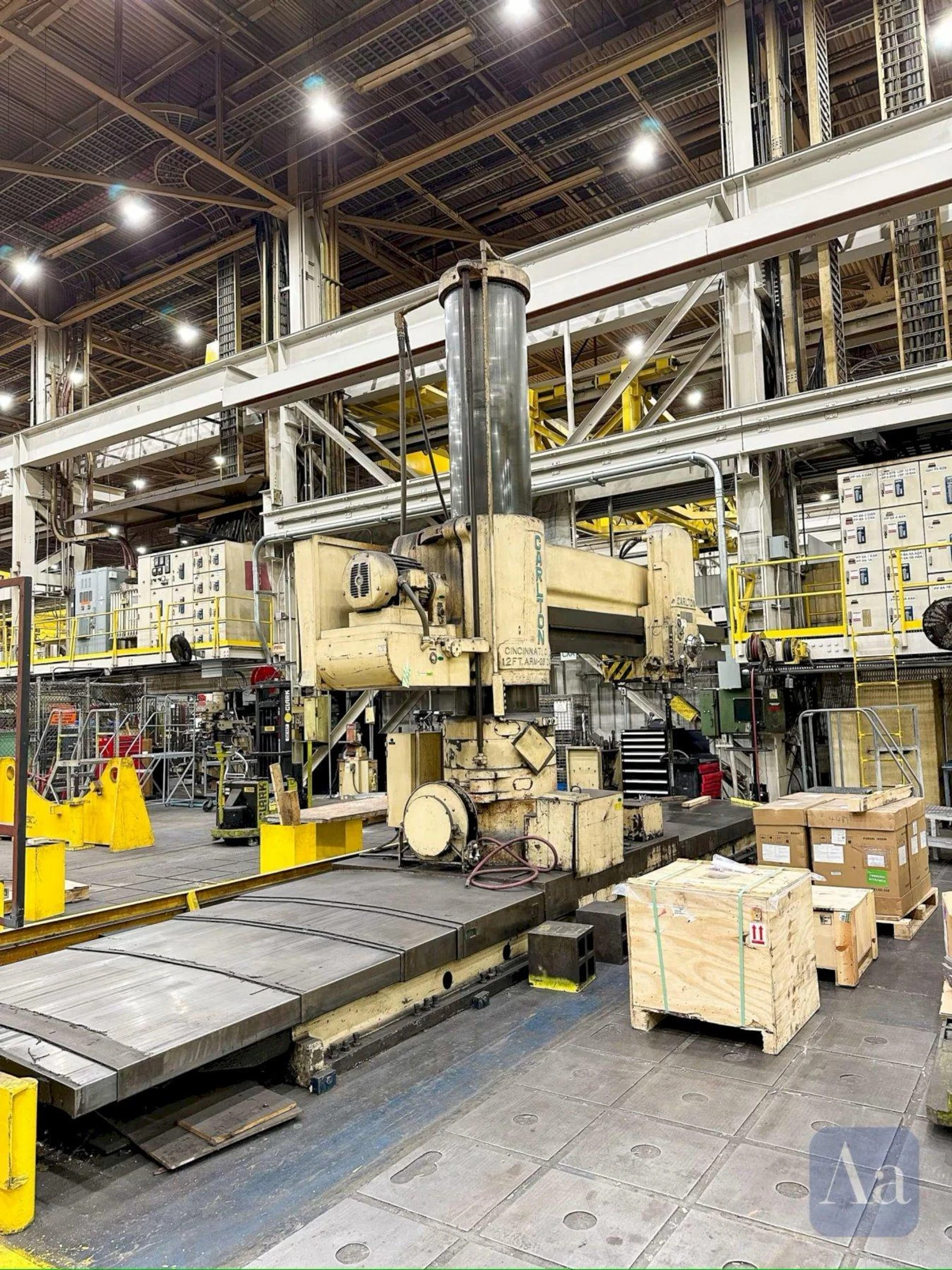

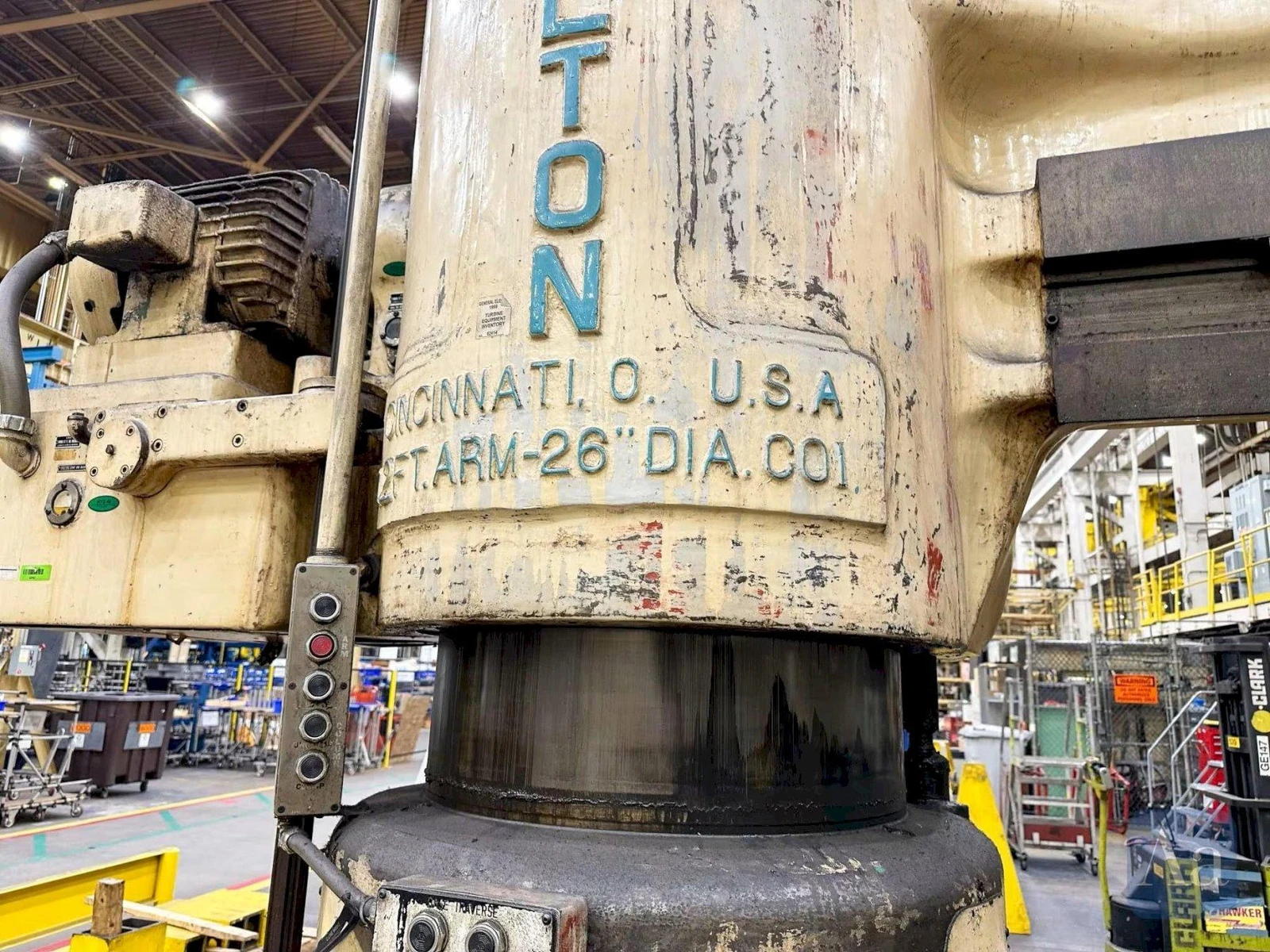

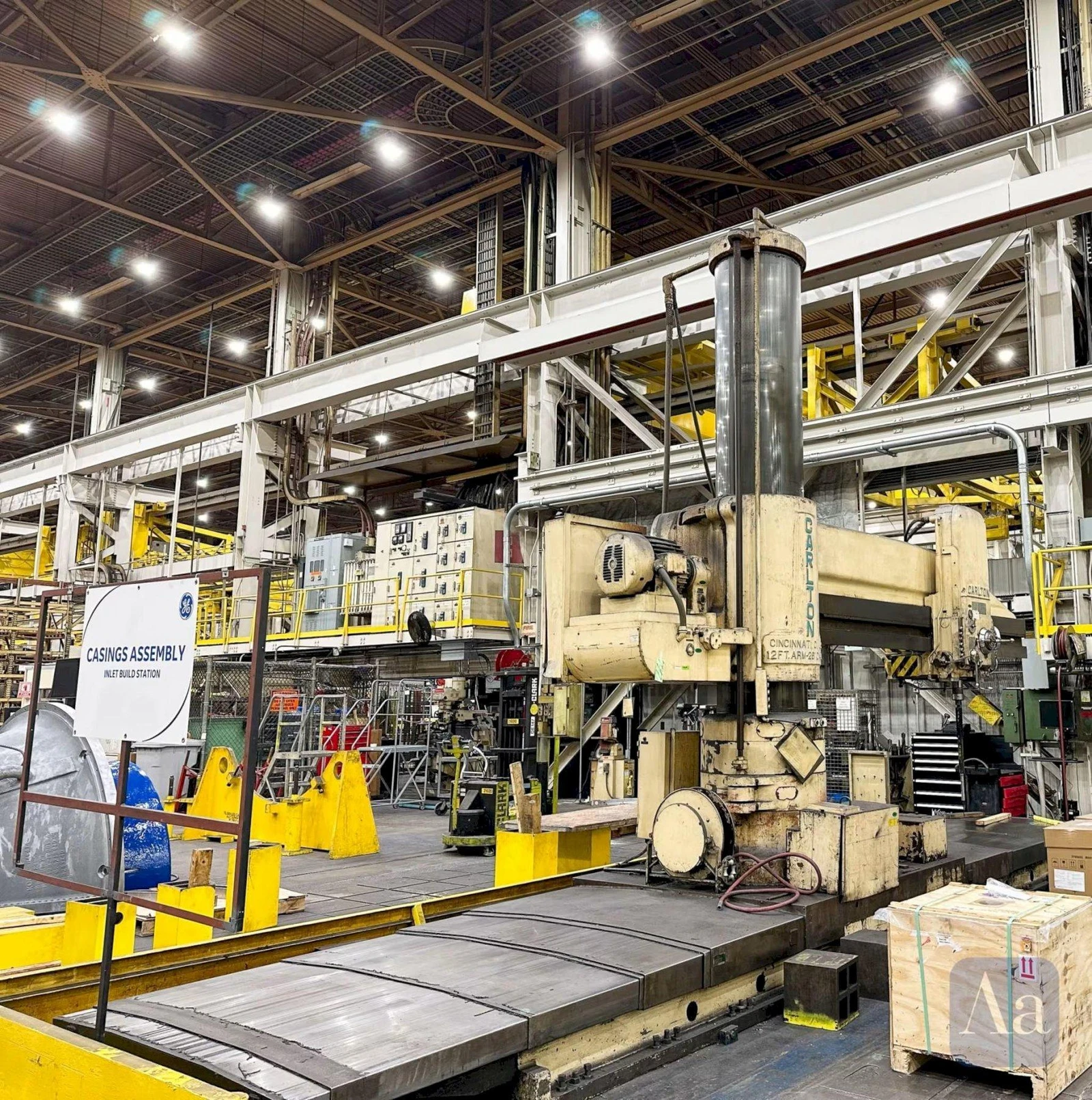

12' X 26" CARLTON MODEL #5A TRAVELING BASE RADIAL ARM DRILL: STOCK #21125
Brand
Category
Type
Model
Not specified
Stock #
21125
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ............... 5A-XXXX
MODEL ................ 5A
YER NEW .............. 1984

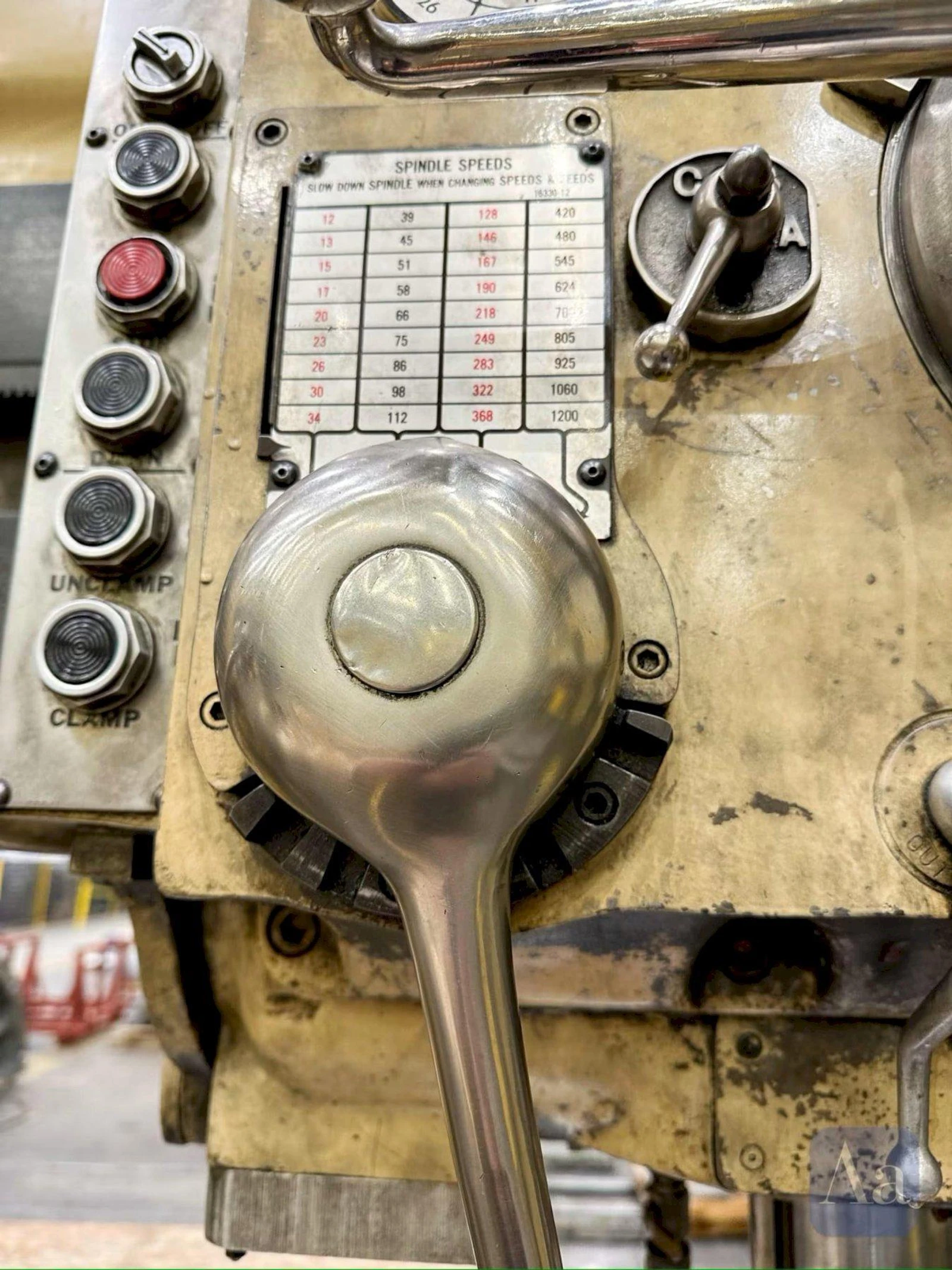

SPINDLE SPEEDS ....... (36) 10 TO 1200 RPM
FEEDS................. (18) .004 TO .125 IPR
THREAD TAP LEADS ..... 8, 11-1/2, 14, 18 TPI

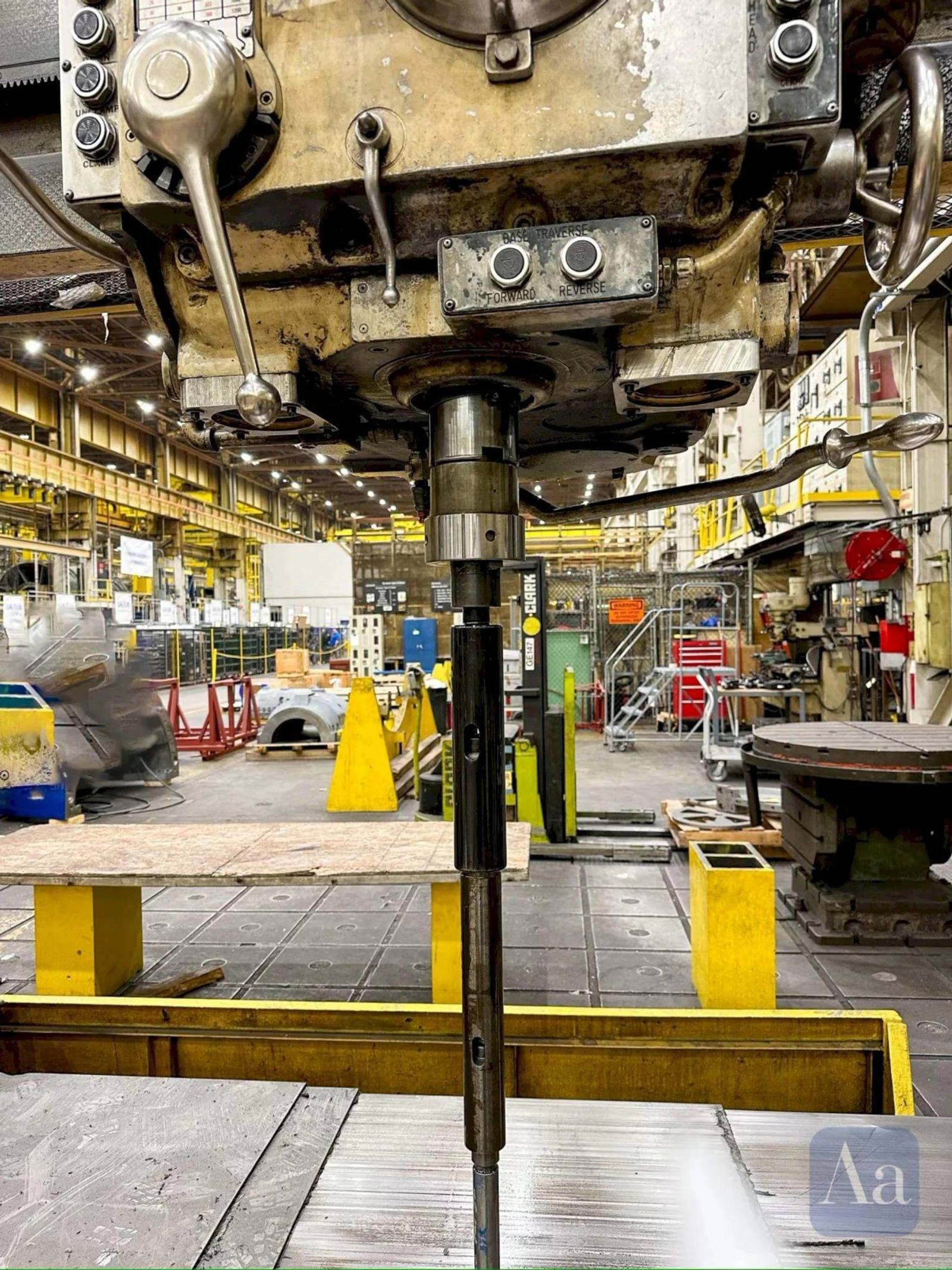

SPINDLE TRAVEL........ 24"
DIAMETER OF SPINDLE .. 4"
TAPER IN SPINDLE ..... #6 MT
SPINDLE TO BASE ...... 20" MIN, 126" MAX
SPINDLE TO COLUMN .... 16-1/2" MIN, 144" MAX
POWER CLAMPING ....... YES
POWER HEAD TRAVERSE .. YES
POWER ELEVATION ...... YES
PENDANT CONTROL ...... YES

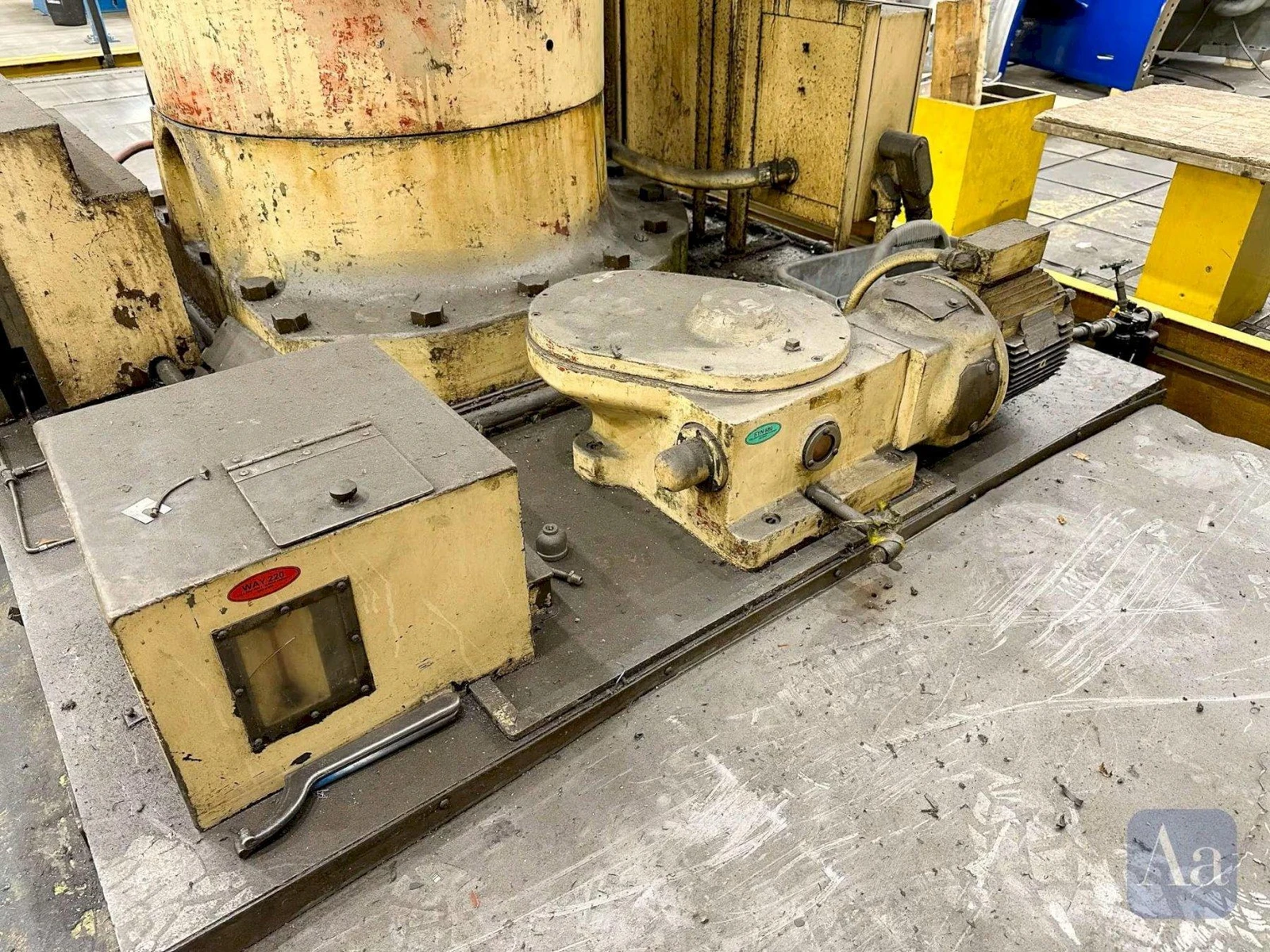

TRAVELING BASE ....... 36'
MAIN DRIVE MOTOR ..... 50 HORSEPOWER |
