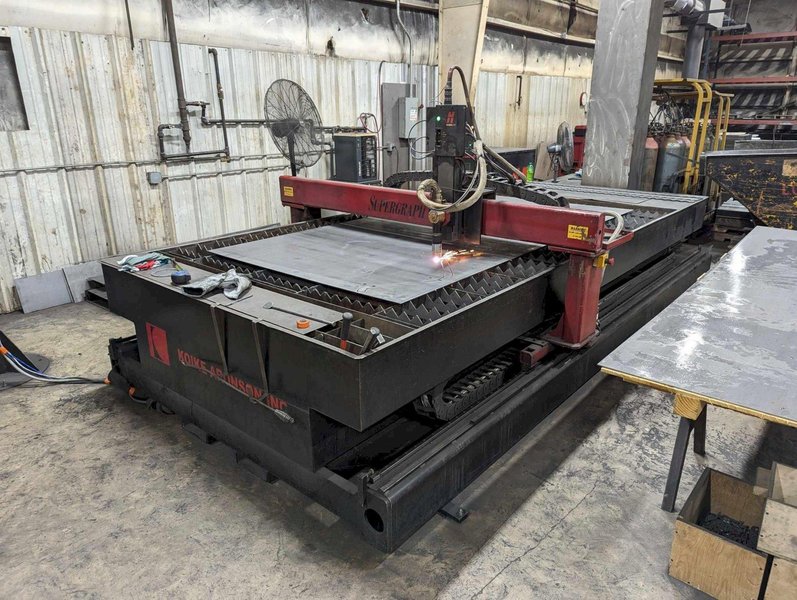

78" X 144' KOIKE ARONSON MODEL SG-7812 SUPER GRAFT PLASMA CNC CUTTING MACHINE

78" X 144' KOIKE ARONSON MODEL SG-7812 SUPER GRAFT PLASMA CNC CUTTING MACHINE

Nw 2015

Motor Driven with

EQUIPPED WITH:

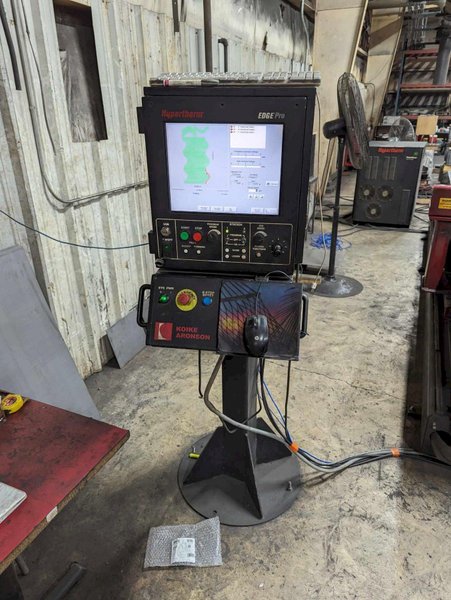

Hypertherm Edge Pro CNC Controls

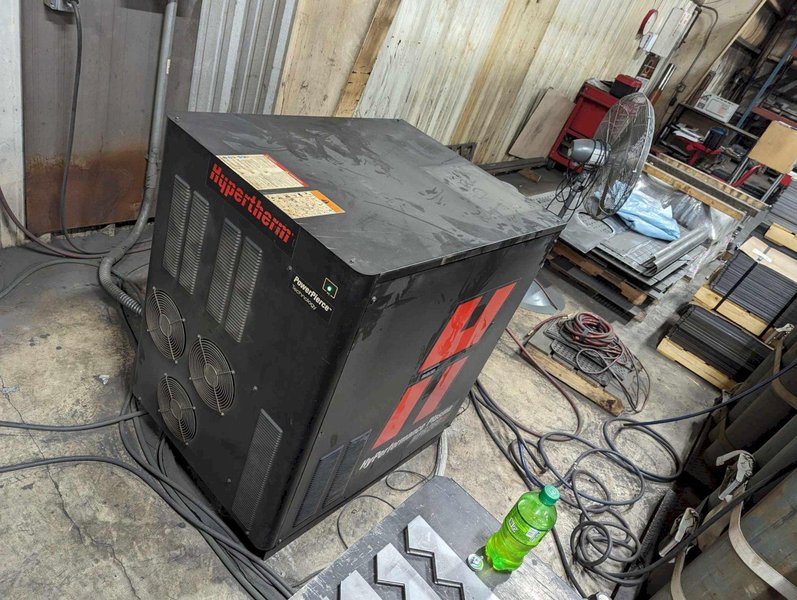

Hpertherm HPR260xp Cutting System
Precision Linear Bearing Design X & Y Axis
Down Draft Table


SPECIFICATIONS:
Cutting Area                                                             6'6" x 12'
Positioning Accuracy and Speed                              +/-0.005” at 1000IPM maximum traverse speed
Torch Height                                                             Hypertherm Command THC, Innerlogic Inova or Koike Sensor-THC
Ventilation                                                                Zoned Down Draft Table with automatic damper control
Sheet/Part Support                                                   Removable slat supports; Replaceable slats
Drive System                                                             Planetary Gearbox with 800 watt dual side drive AC servos
Table Strength                                                           Full table capacity of 1 inch plate
Table Type Unitized                                                  single piece
