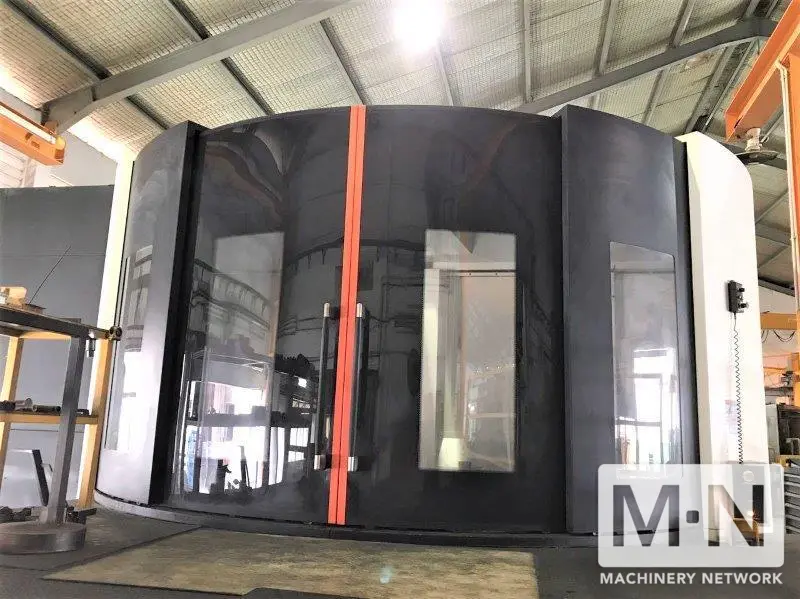

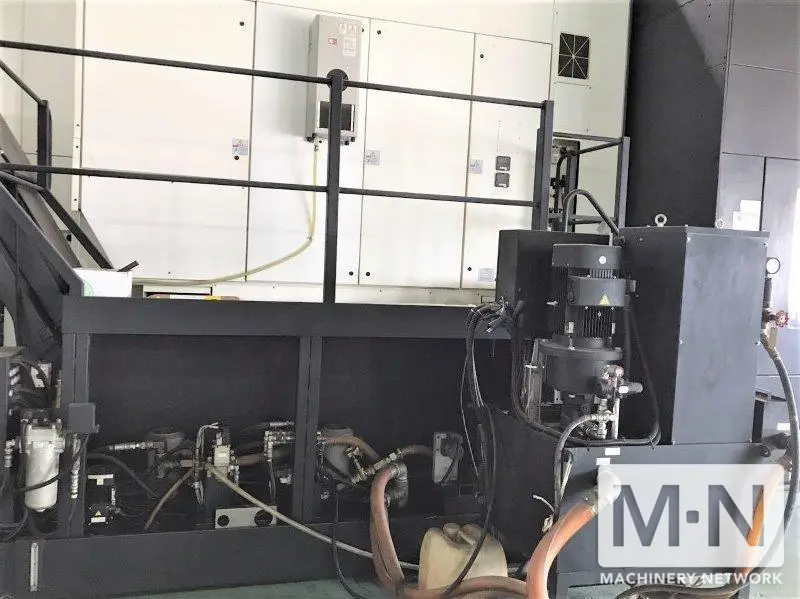

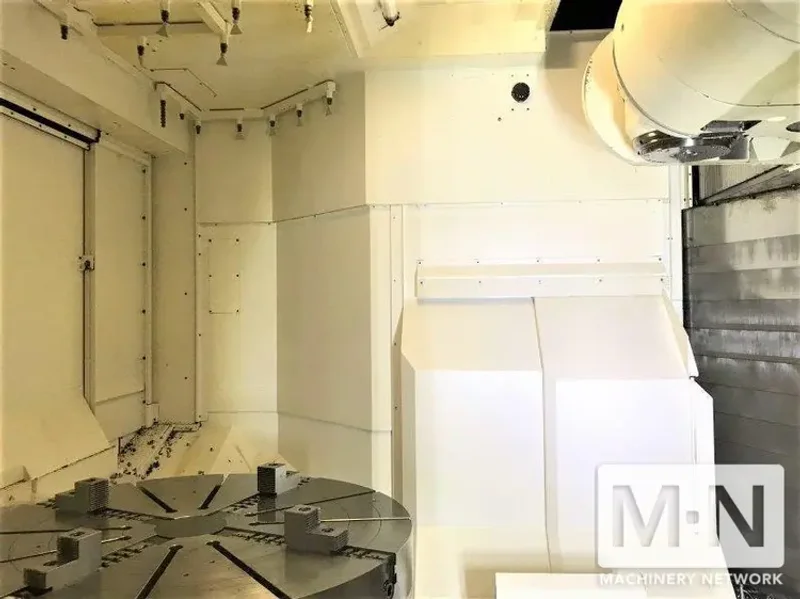

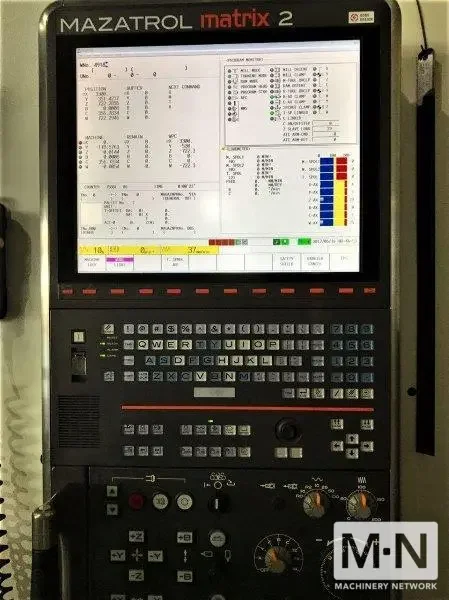

Mazak Integrex E-Ramtec V/10 CNC 5-Axis Vertical Machining Center

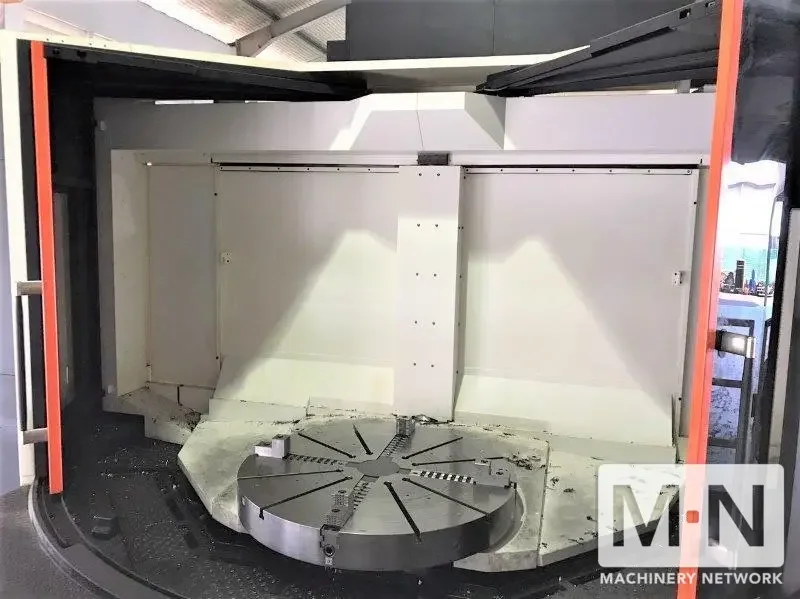

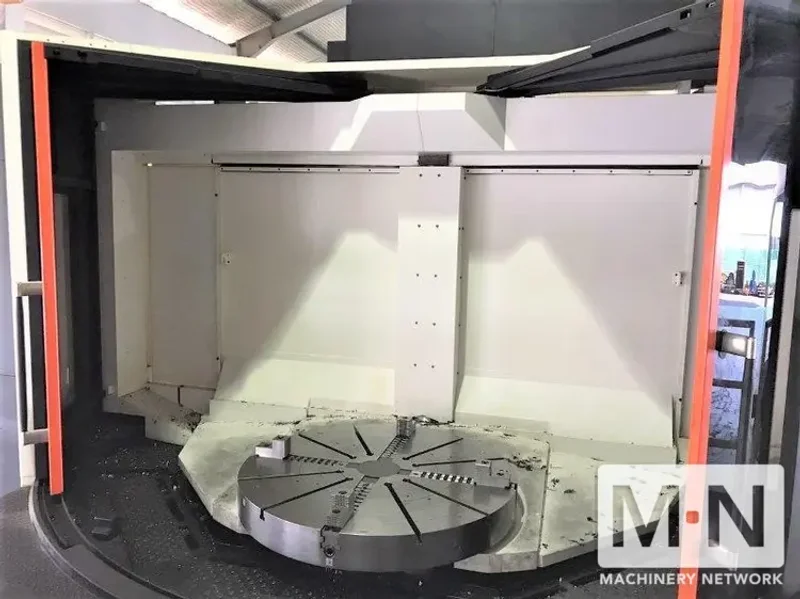

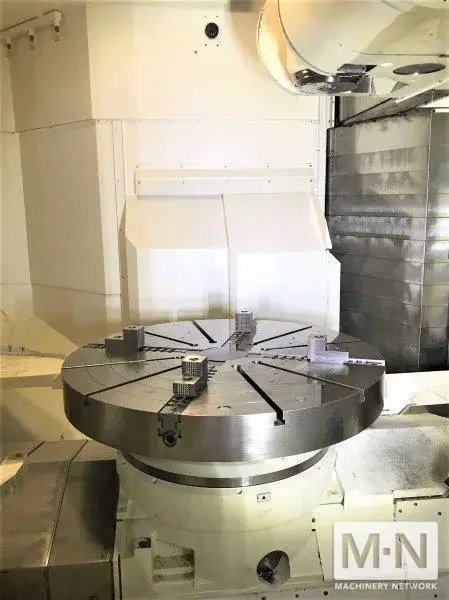

AUTOMATIC PALLET CHANGER (2) PALLETS 55"
PALLET CHANGER SYSTEM ROTARY TYPE
PALLET {TURNING SPINDLE 300 RPM
PALLET LOAD CAPACITY 11,023 LBS
PALLET CHANGER TIME 25 SEC.
MAX WORKPIECE DIAMETER 78.74"
MAX WORKPIECE HEIGHT 56.69"
X-AXIS STROKE (LONGITUDINAL TABLE MOVEMENT) 73.82"
LESS THAN WORKPIECE DIAMETER 66.93"
67.91" WORKPIECE DIAMETER 66.93" OR LARGER
Y-AXIS STROKE ( CROSSWISE SPINDLE MOVEMENT 41.73"
Z-AXIS STROKE ( VERTICAL SPINDLE MOVEMENT) 57.09"
W-AXIS STROKE (RAM SPINDLE MOVEMENT) 35.43"
RAPID TRAVERSE X/Y/Z 1654/1181 IPM
B/C TRAVEL 150/360 DEG.
DISTANCE FROM THE CENTER OF B-AXIS ROTATION TO THE CENTER OF PALLET
X-AXIS ZERO POINT 64.96"
X-AXIS MINUS STROKE END 8.86"
LESS THAN WORKPIECE DIAMETER 66.93"
2.95" WORKPIECE DIAMETER 66.93" OR LARGER
DISTANCE FROM THE SPINDLE NOSE TO THE CENTER OF PALLET B-AXIS = +90 DEG.
X-AXIS ZERO POINT 53.15"
DISTANCE DROM THE CENTER OF B-AXIS ROTATION TO THE TOP SURFACE OF PALLET
3.94" TO 61.02"
DISTANCE FROM THE SPINDLE NOSE TO THE TOP SURFACE OF PALLET B-AXIS=0 DEG.
-7.87 TP 49.21"
MILL SPINDLE NOSE TYPE 7/24 TAPER, NO. 50
MILL SPINDLE SPEED 25 TO 10,000 RPM
NUMBER OF MILL SPINDLE SPEED CHANGE RANGES 2 STEPS (ELECTRIC)
I.D. OF MILL SPINDLE BEARING 3.94"
MILL SPINDLE DRIVE MOTOR AC INVERTER MOTOR 50 HP
RAM SPINDLE NOSE TYPE HSK-63
RAM TOOL STORAGE CAPACITY {RAM SPINDLE 40
RAM SPINDLE SPEED 3,000 RPM
RAM SPINDLE DRIVE MOTOR (AC INVERTER MOTOR) 10 HP
MACHINE DIMENSIONS 260" X 385" X 205" TALL
MACHINE WEIGHT 127,000 LBS
