12' X 220 TON DURMA MODEL# 37200 CNC HYDRAULIC PRESS BRAKE
Brand
Category
Type
Model
37200
Stock #
116404
Year
Not specified
Condition
Used
Location
Not specified
|

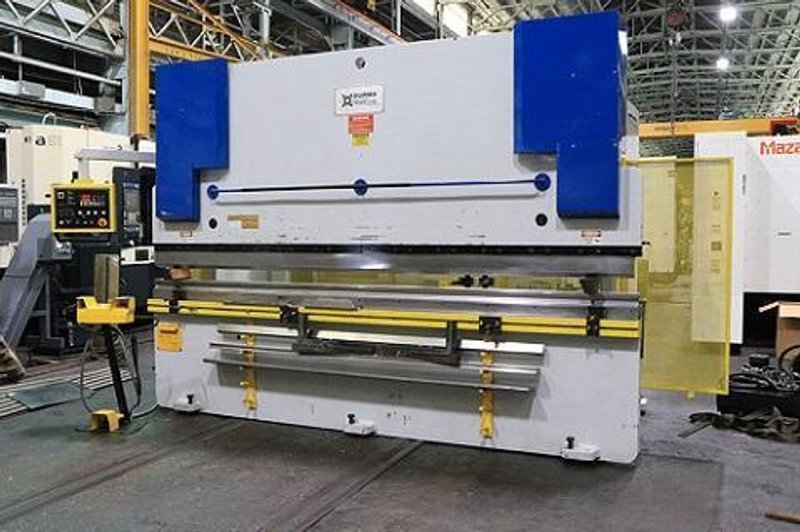

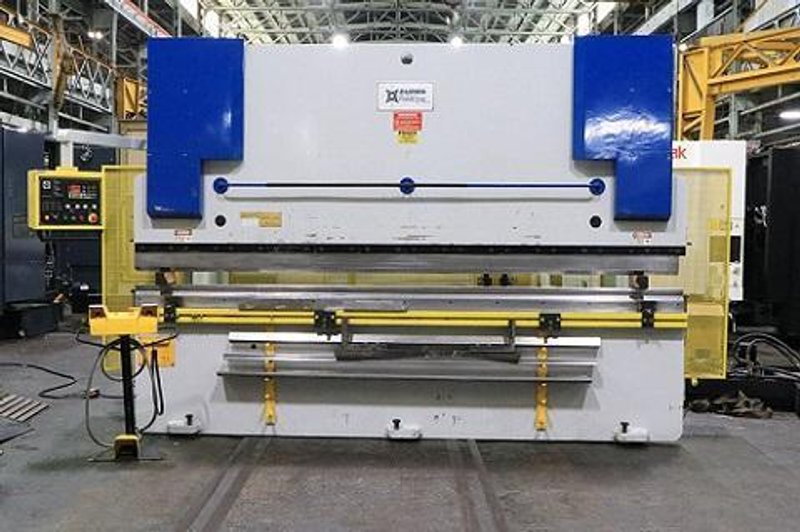

12' x 220 TON DURMA CNC HYDRAULIC PRESS BRAKE
MODEL HAP 37200
Capacity ........................ 220 Ton
Overall Length of Bed & Ram ..... 12'
Distance Between Housings ....... 10'6"
Bending Capacities .............. 12' x 1/4"
10' x 3/8"
Stroke (Adjustable) ............. 7.48"
Open Height ..................... 13"
Throat Depth .................... 16"
SPM @ Max. Stroke ............... 6 SPM
Speeds .......................... 236 IPM - Approach
19 IPM - Press
192 IPM - Return

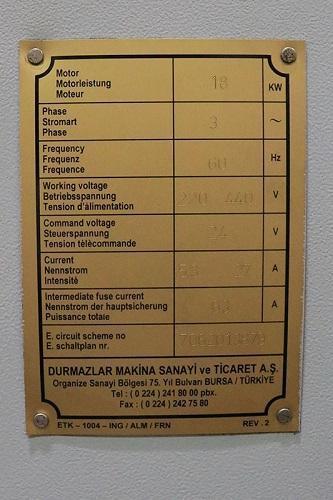

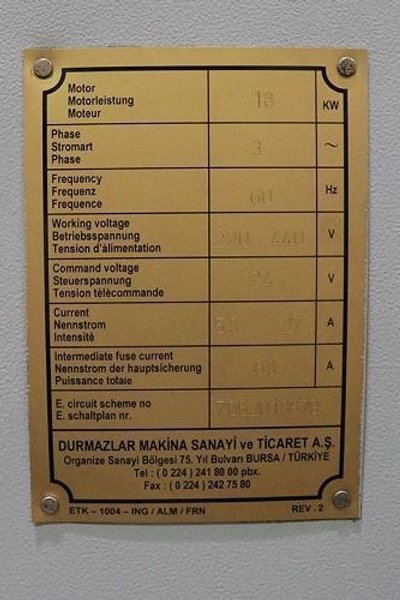

Voltage ......................... 230 / 460 / 3 Ph
EQUIPPED WITH:

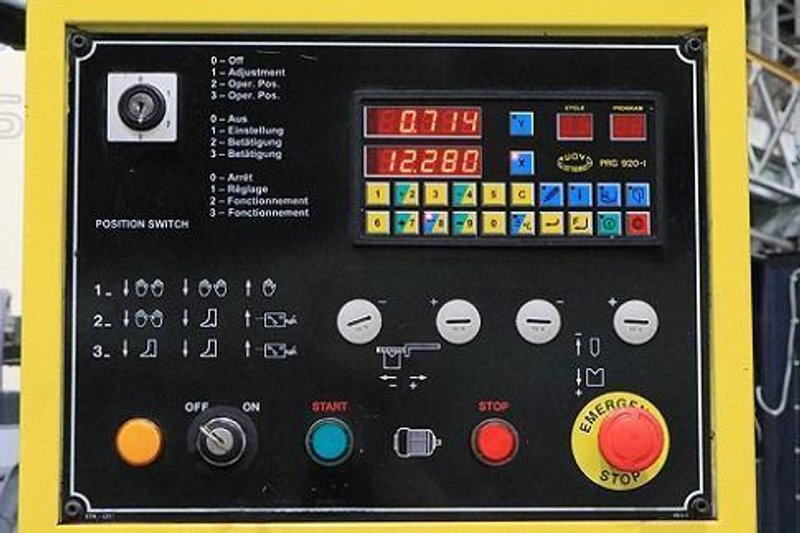

- 2-Axis CNC Back Gauge

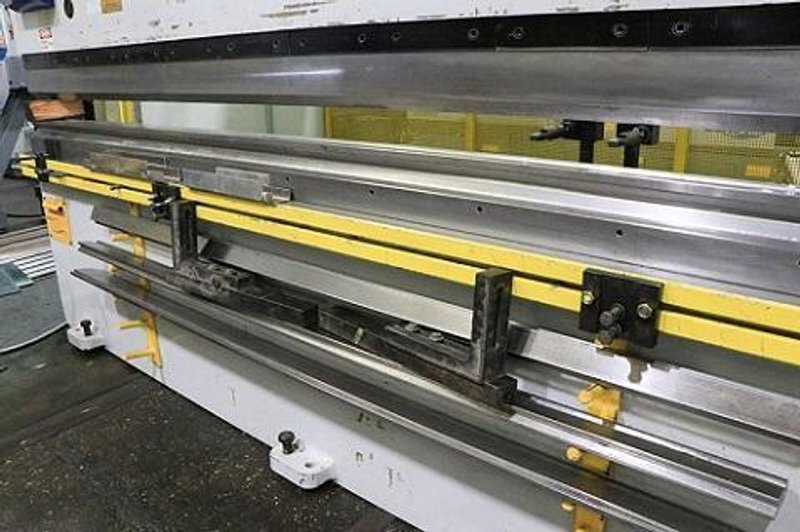

- Lower Die Rail
- Sectional Ram Clamps
- Tonnage Control with Gauge

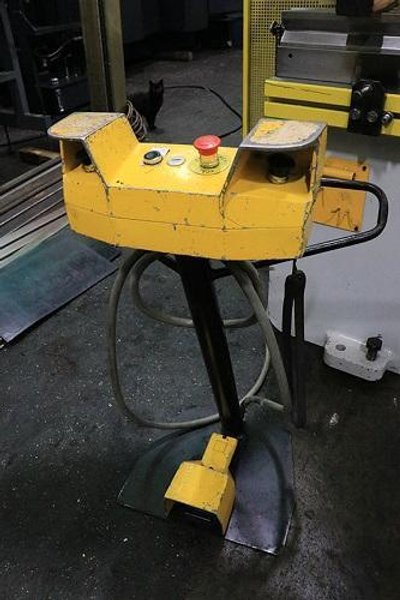

- Dual Palm Button or Electric Foot Switch Operation
- 4 Way Lower Die
- Misc. Dies (As Shown)
- Front Arm Supports
Weight: 30,000 Lbs.
Dimensions: 190" L-R x 93" F-B x 123" H
|
