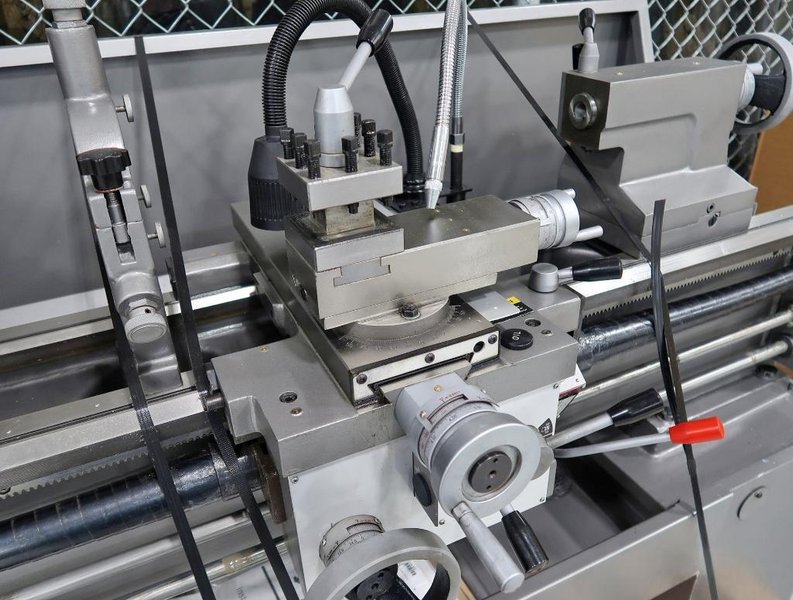

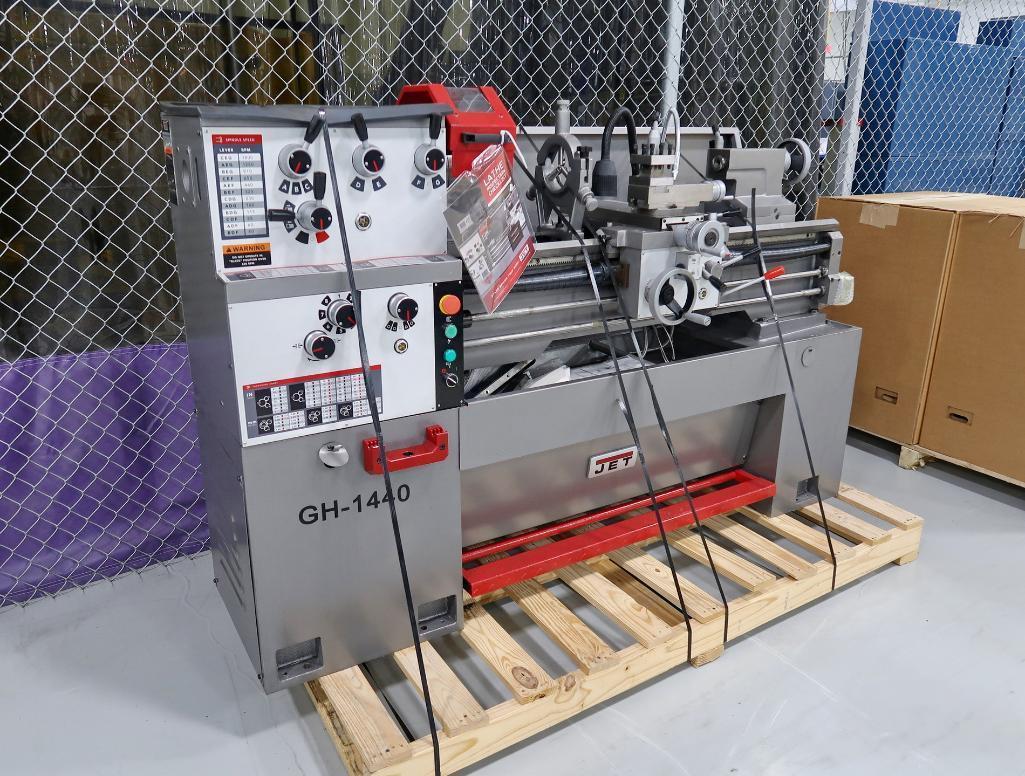

14" X 40" JET MODEL GH-1440 GAP BED ENGINE LATHE: STOCK #78316

SERIAL ..................... 21070253

MODEL ...................... GH-1440-3

YEAR NEW ..... BRAND NEW NEVER USED 07/2021

SWING OVER WAYS ............ 14"

SWING IN GAP ............... 20"

LENGTH OF GAP .............. 9-3/4"

SWING OVER CROSS SLIDE ..... 8-1/4"

DISTANCE BETWEEN CENTERS ... 40"

SPINDLE SPEEDS ............. (12) 42 TO 1800

DIAMETER OF SPINDLE HOLE ... 1-1/2"

ENGLISH THREADS ............ 1 TO 112 TPI

METRIC THREADS ............. 0.45 TO 7.5 TPMM

FEEDS LONGITUDINAL ......... (40) 0.0012 TO 0.0294 IPR

FEED CROSS ................. (40) 0.0004 TO 0.00103 IPR

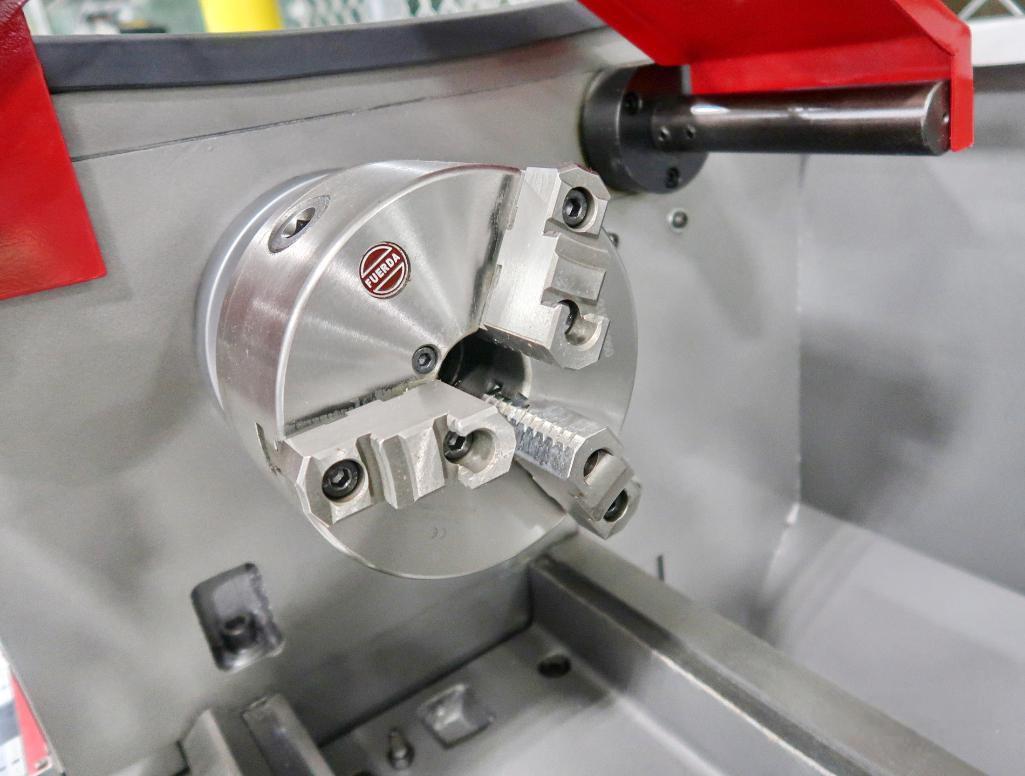

CHUCK ...................... 10" 3 JAW

STEADY REST ... YES

THREAD DIAL ................ YES

TAPER IN TAILSTOCK ......... #3MT

CHIP PAN ................... YES

HARDEN WAYS ................ YES

FOOT BRAKE ................. YES

2 AXIX DIGITAL READOUTS .. YES

MOTOR ...................... 3 HORSEPOWER
