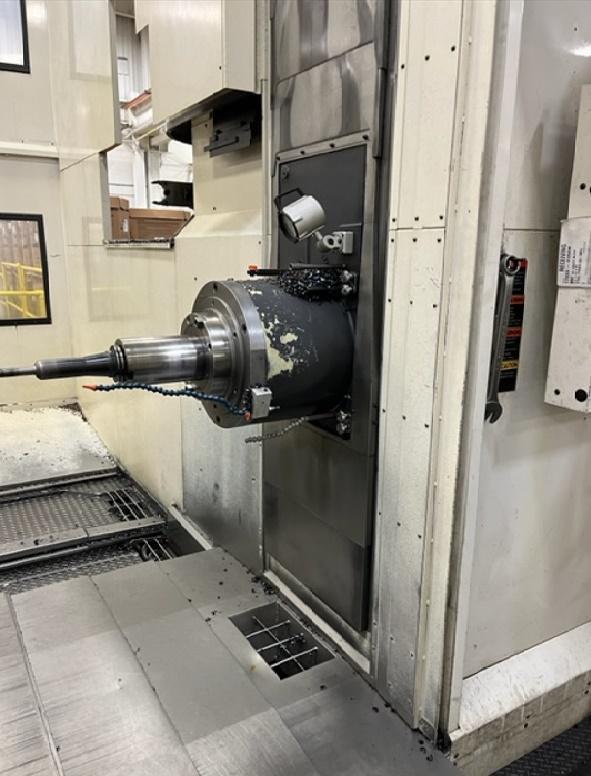

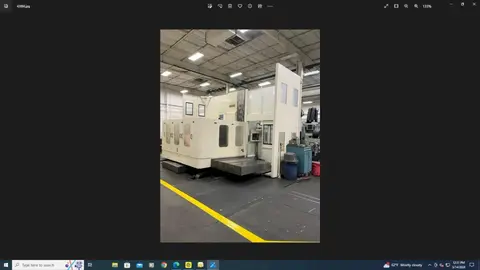

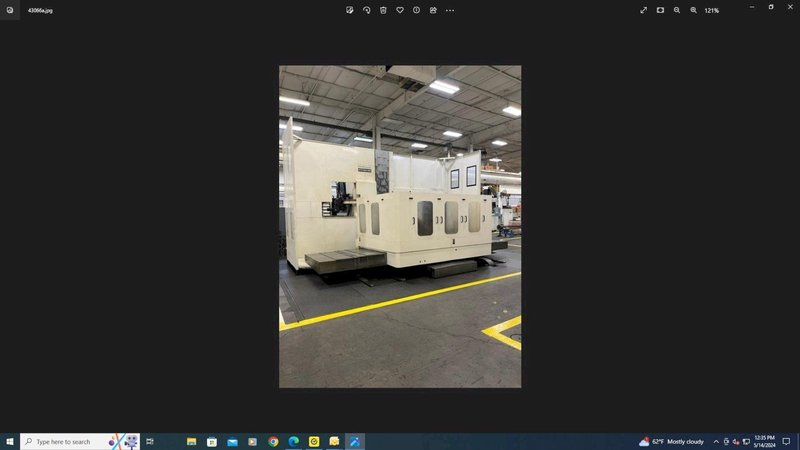

Toshiba BTD-130H.R22 CNC Table Type Boring Mill
Brand
Category
Model
BTD-130H.R22
Stock #
Not specified
Year
2018
Condition
Excellent
Location
Not specified
|
SPECIFICATIONS: SPINDLE DIAMETER 5.12" TAPER IN SPINDLE #50 VERTICAL HEAD TRAVEL, Y-AXIS 90.55" TABLE CROSS TRAVEL, X-AXIS 118.11" SPINDLE TRAVEL, Z-AXIS 55.99" SADDLE TRAVEL, W-AXIS 27.55" TABLE SIZE, BUILT-IN ROTARY 86.61" X 70.86" TABLE INDEXING 0.0001 DEGREE FEED RATES TO 157 IPM RAPID TRAVERSE: X,Y, & Z AXES TO 393 IPM RAPID TRAVERSE: W-AXIS 236 IPM RAPID TRAVERSE: B-AXIS 500 DEGREES/MINUTE TABLE LOAD CAPACITY 44,400 LBS. SPINDLE SPEEDS 5-2500 RPM

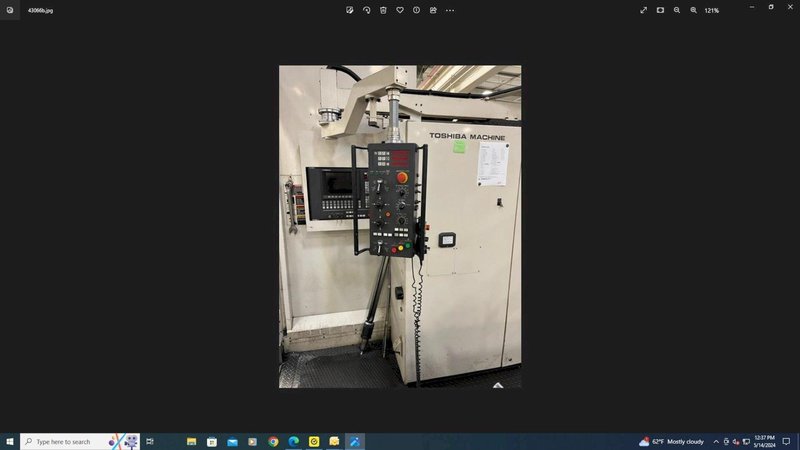

EQUIPPED WITH: TOSNUC 999 CNC CONTROLS FULL B-AXIS ROTARY TABLE 38 POSITION AUTOMATIC TOOL CHANGER THROUGH SPINDLE COOLANT CHIP CONVEYOR FLOOD COOLANT 40 HP SPINDLE MOTOR |
