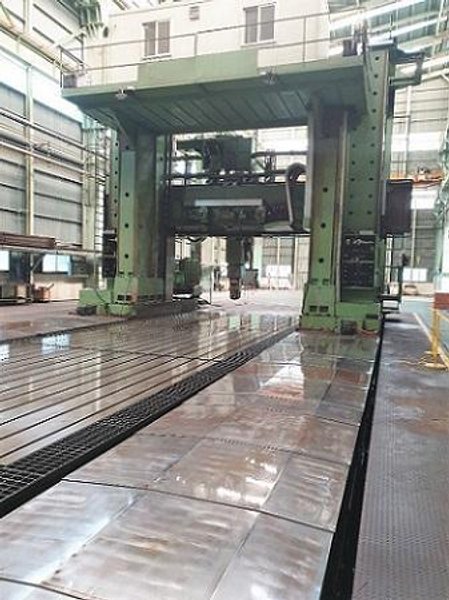

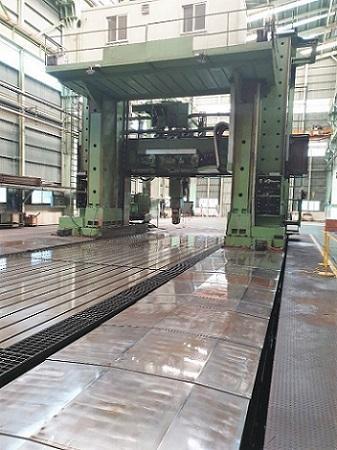

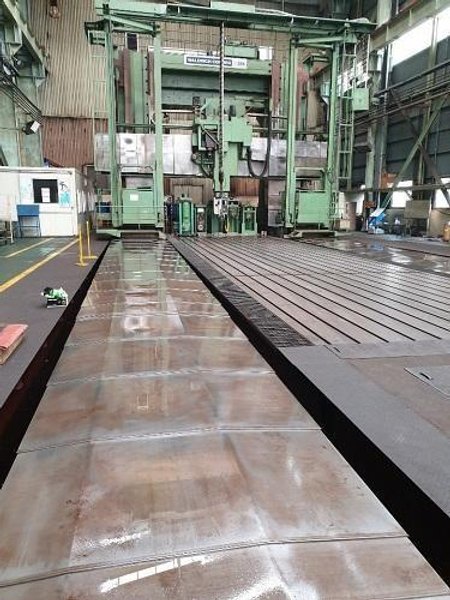

WALDRICH COBURG CNC TRAVELING GANTRY PLANO MILLER

FEATURES:

FULLY REBUILT & RETROFIT IN 2009

SIEMENS SINUMERIK 840 D

TRAVELLING GANTRY DESIGN

ADJUSTABLE RAIL

CAPACITY:

DISTANCE BETWEEN COLUMNS COVERS         204.72"

HEIGHT UNDER SPINDLE NOSE             208.66

TRAVELS:

X-AXIS GANTRY TRAVEL               826.77"

Y-AXIS HEAD TRAVEL    255.90"

Z-AXIS RAM STROKE      39.37"

W-AXIS CROSS RAIL VERTICAL TRAVEL               138.19"

SPECIFICATIONS:

T-SLOTTED WORK SURFACE     787.74" X 177.16"

WORK SURFACE WEIGHT CAPACITY    350 TON

SPINDLE MOTOR            134 HP

SPINDLE SPEEDS           TO 2,000 RPM

SPINDLE TAPER               1PH7224-2NF15-OBAO

RAM CROSS SECTION 24.01" X 27.56"

C-AXIS, AUTO INDEXING

MACHINE FOOTPRINT 1,299" X 590"

MACHINE HEIGHT         413"

MACHINE WEIGHT        530 TON

EQUIPPED WITH:

SIEMENS SINUMERIK 840D CNC CONTROL

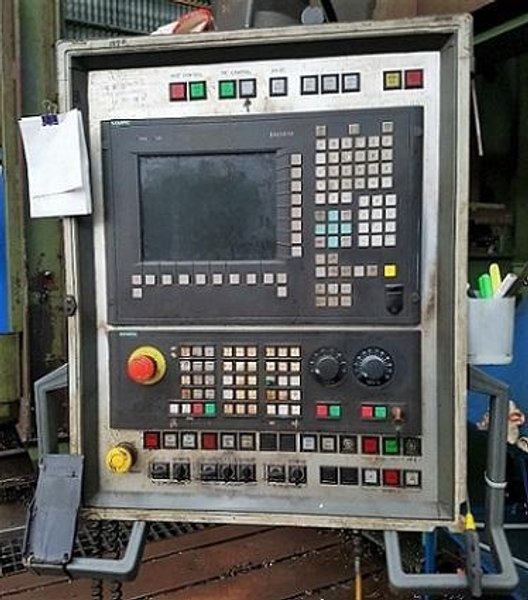

PENDANT MOUNTED CRT

TELESCOPING STEEL WAY COVERS

SPINDLE UNIT ATTACHMENTS INCLUDING;

ANGULAR, HORIZONTAL, ECCENTRIC, SLIM, LONG & SHORT EXTENSIONS

NOTE:

FULLY REBUILT AND CNC RETROFIT IN 2009
