175 TON X 10' WYSONG MODEL PHS175-120 7-AXIS CNC HYDRAULIC PRESS BRAKE
Brand
Category
Type
Model
PHS175-120
Stock #
116387
Year
Not specified
Condition
Used
Location
Not specified
|

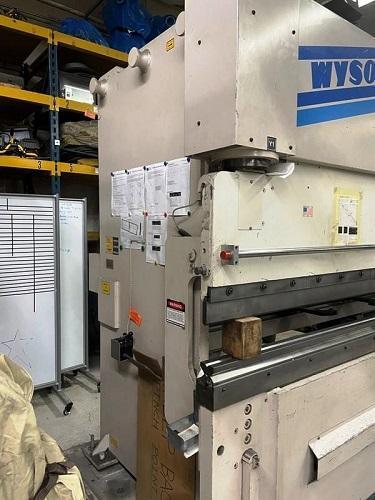

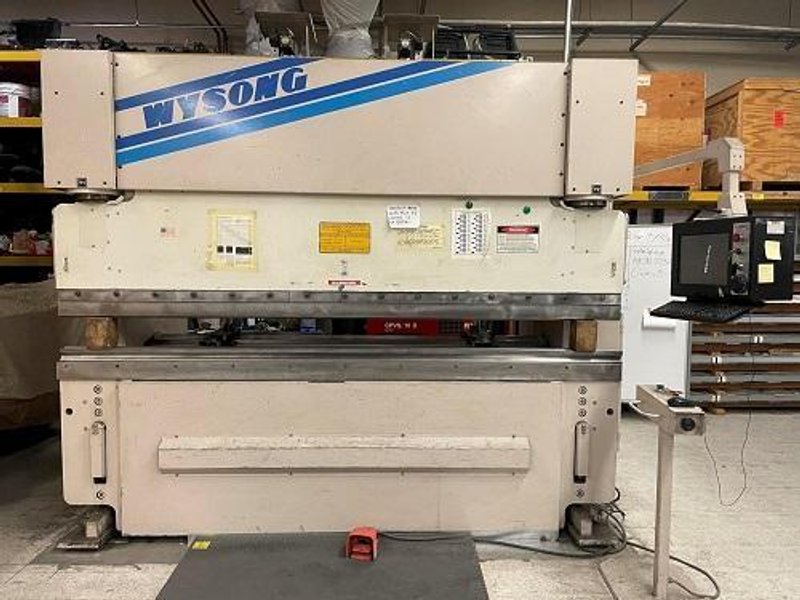

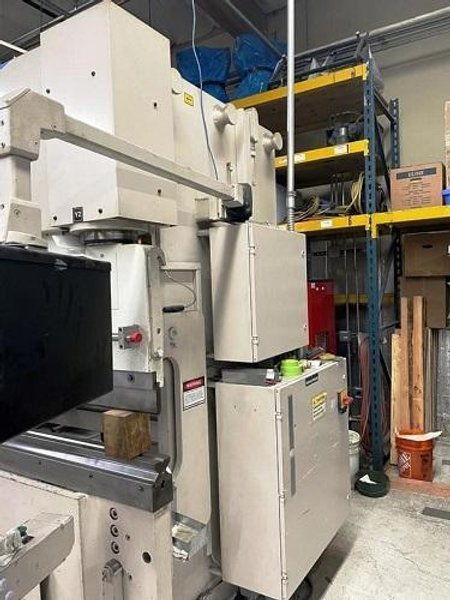

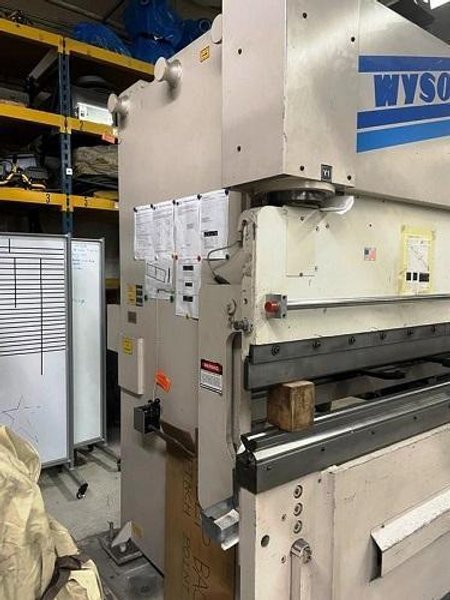

175 TON X 10' WYSONG MODEL PHS175-120 7-AXIS CNC HYDRAULIC PRESS BRAKE
SERIAL NO. PHS4-100 NEW 1997
UPDATED CONTROLS IN 2009
MOTOR DRIVEN WITH 20 HP, 3-PHASE, 60 CYCLE, AC MOTOR AND CONTROLS

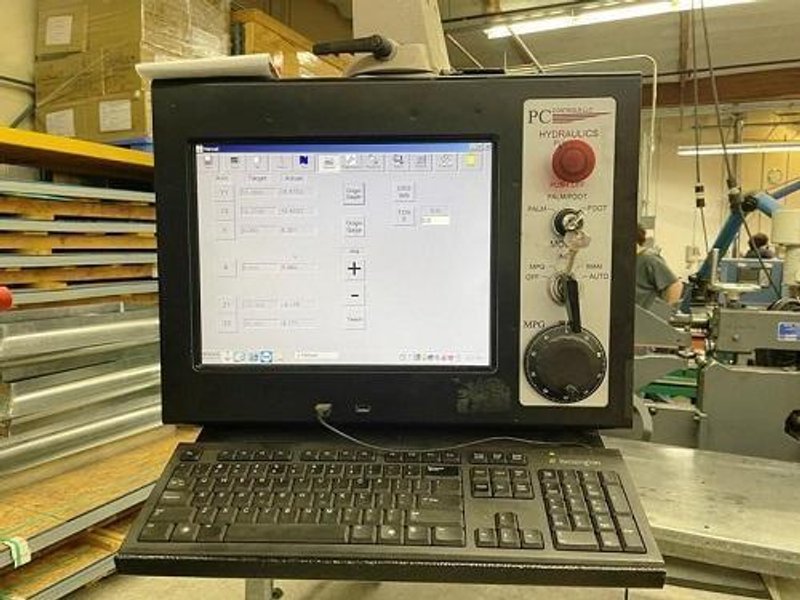

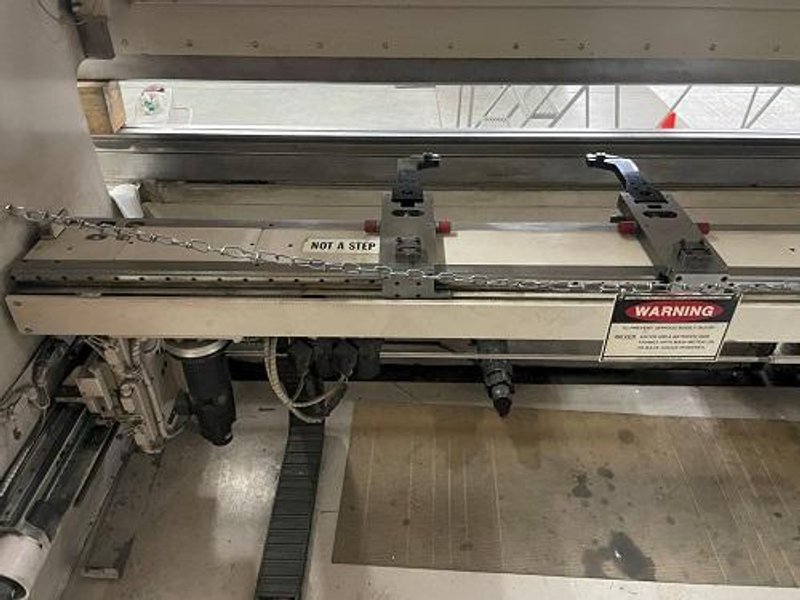

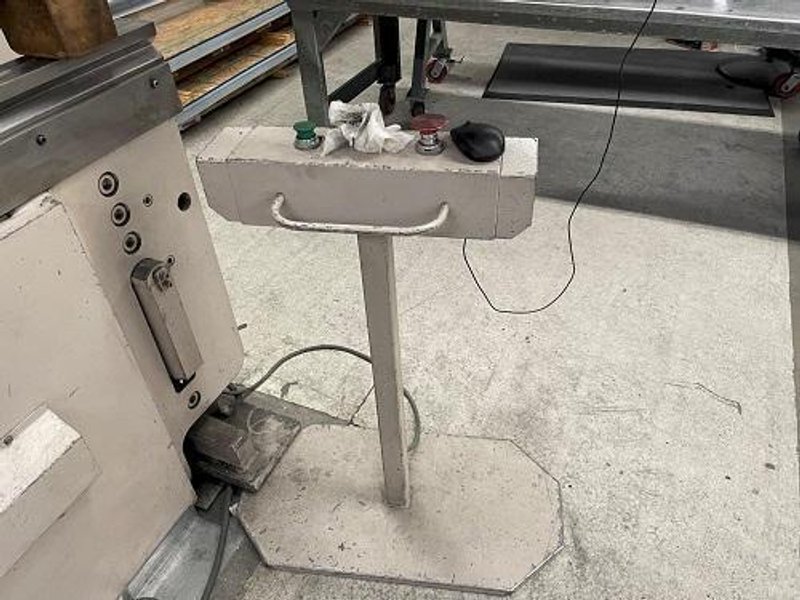

EQUIPPED WITH: PC800 CNC CONTROLS, PEDESTAL MOUNTED CONTROLS, 4-AXIS BACK
GAUGE,, Y1 AXIS, Y2 AXIS, CROWNING
SPECIFICATIONS:
PRESS FORCE 175 TONS
OVERALL LENGTH OF BED AND RAM 120"
DISTANCE BETWEEN HOUSINGS 102"
TRAVELS
R - AXIS 8"
X1 _ AXIS 20" (FLIP-UP STOP ARMS FOR STANDARD FLANGES)
X2 - AXIS 20" (FIXED LOCATION STOPS FOR LARGE FLANGES 24" AND GREATER)
Y1 - AXIS 8"
Y2 - AXIS 8"
Z1 - AXIS 39" FROM CENTER
Z2 - AXIS 30" FROM CENTER
OPEN HEIGHT 17"
CLOSED HEIGHT 9"
STROKE 8"
PROGRAMMED TILT OF RAM .625"
THROAT DEPTH 10"
SPEEDS
APPROACH 300 IPM
PRESS 22 IPM
RETURN 225 IPM
APPROXIMATE DIMENSIONS 132" X 86" X 114" H
APPROXIMATE WEIGHT 23,500 LBS
|
