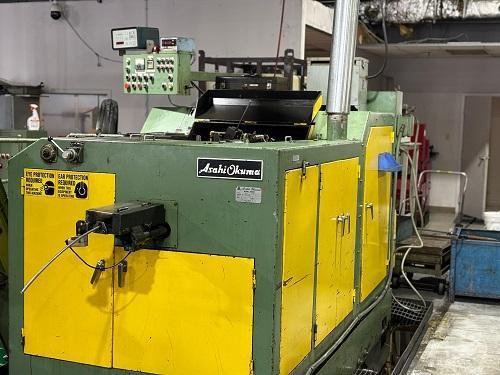

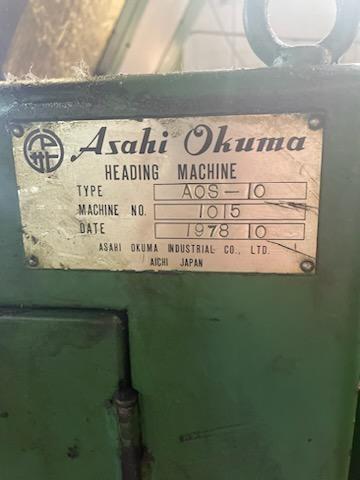

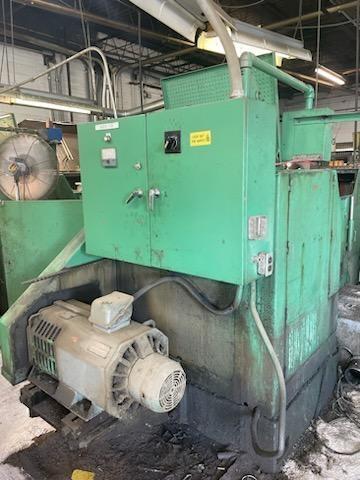

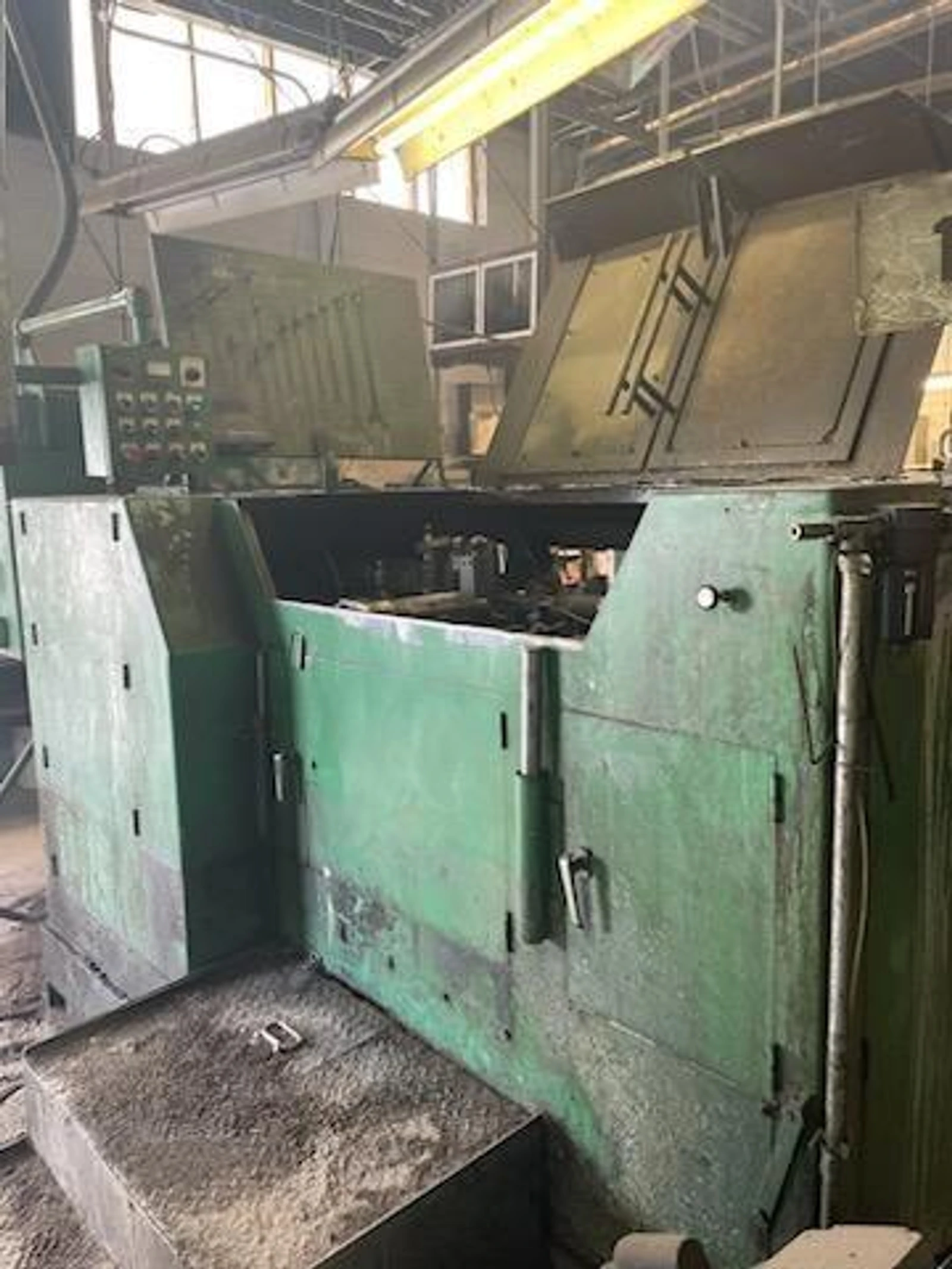

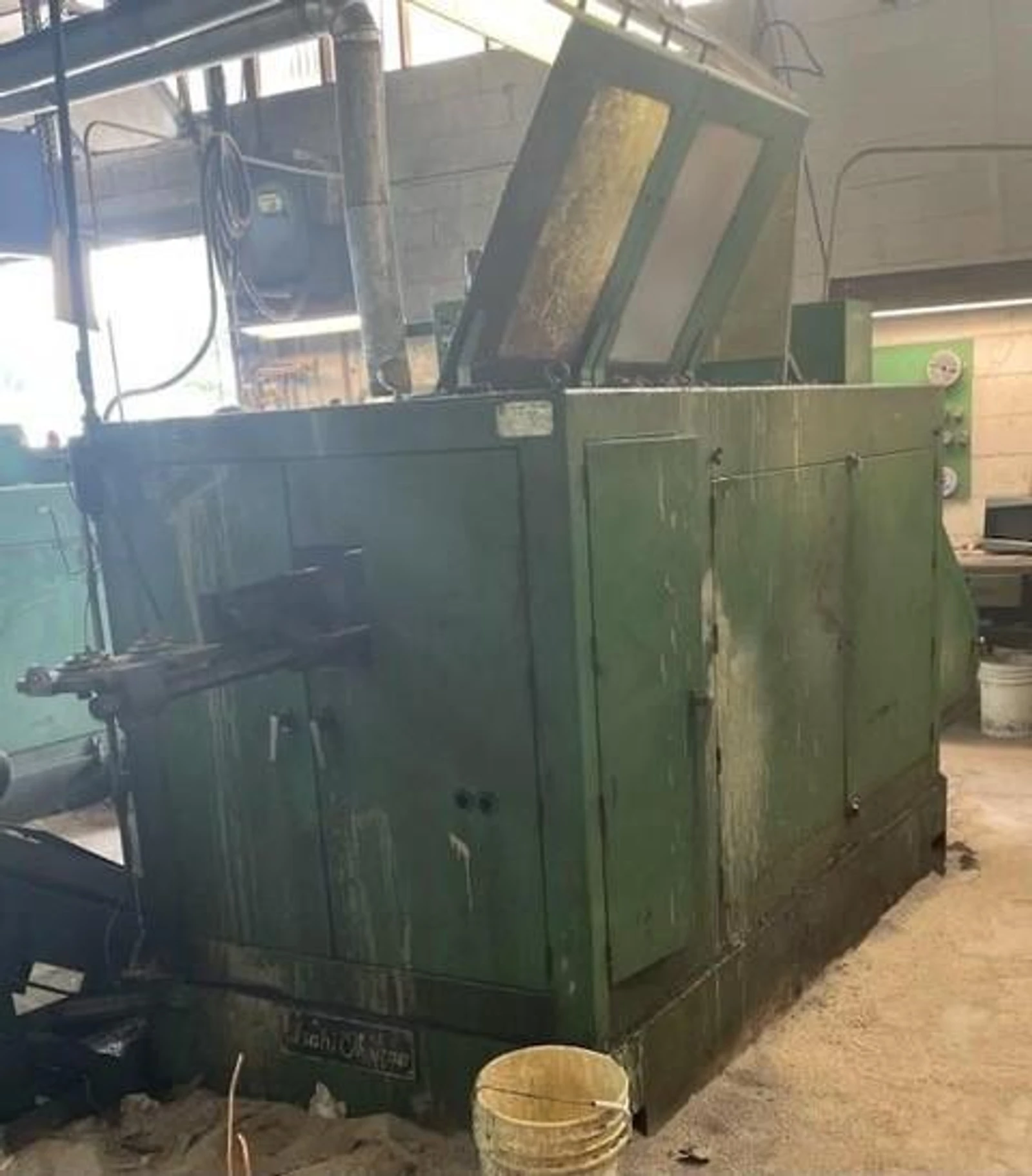

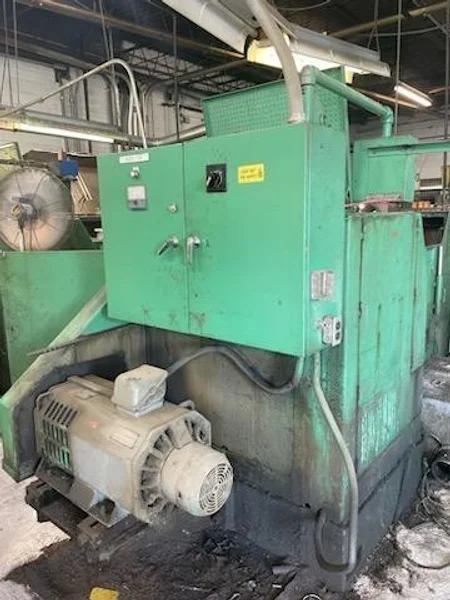

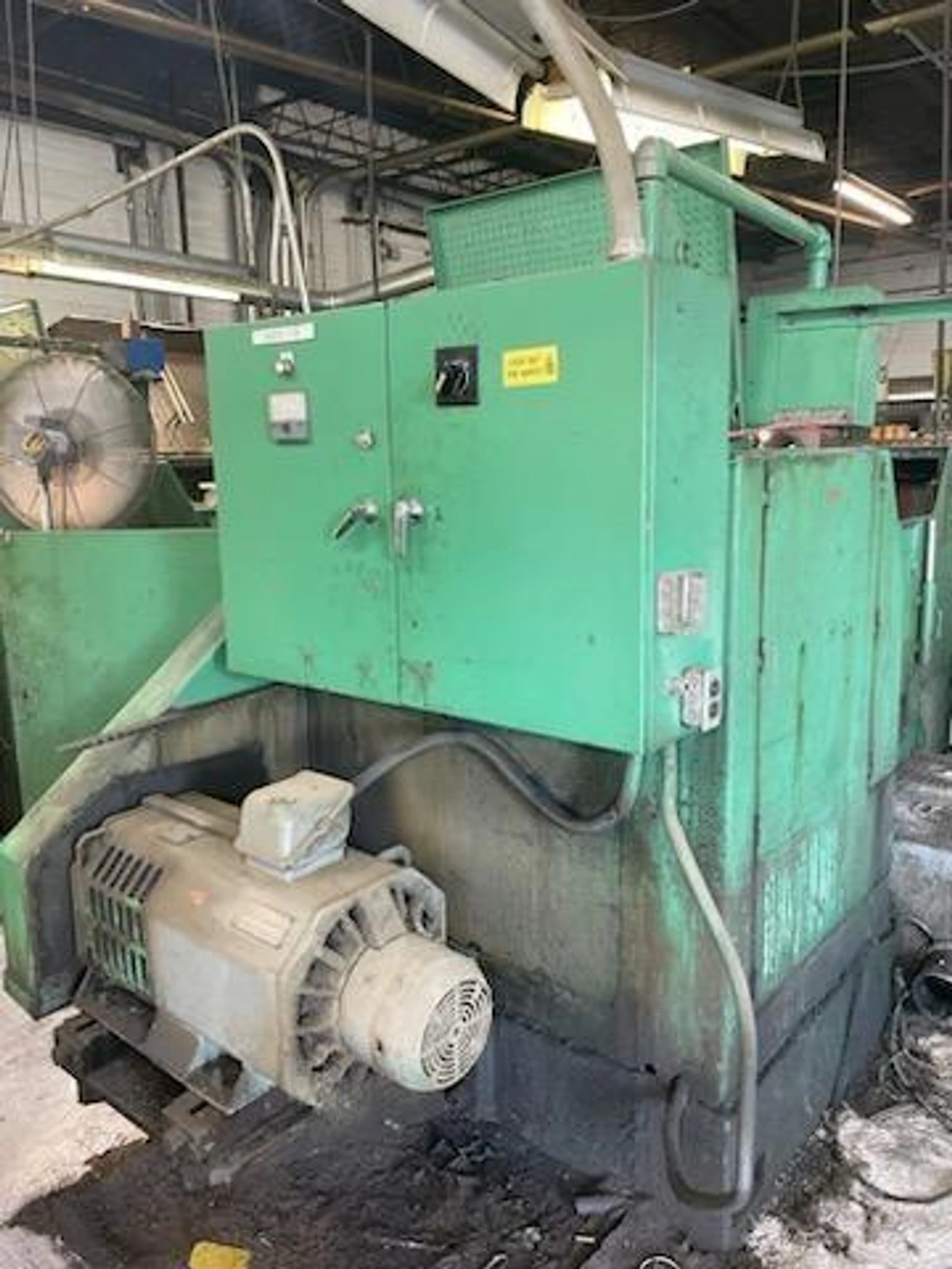

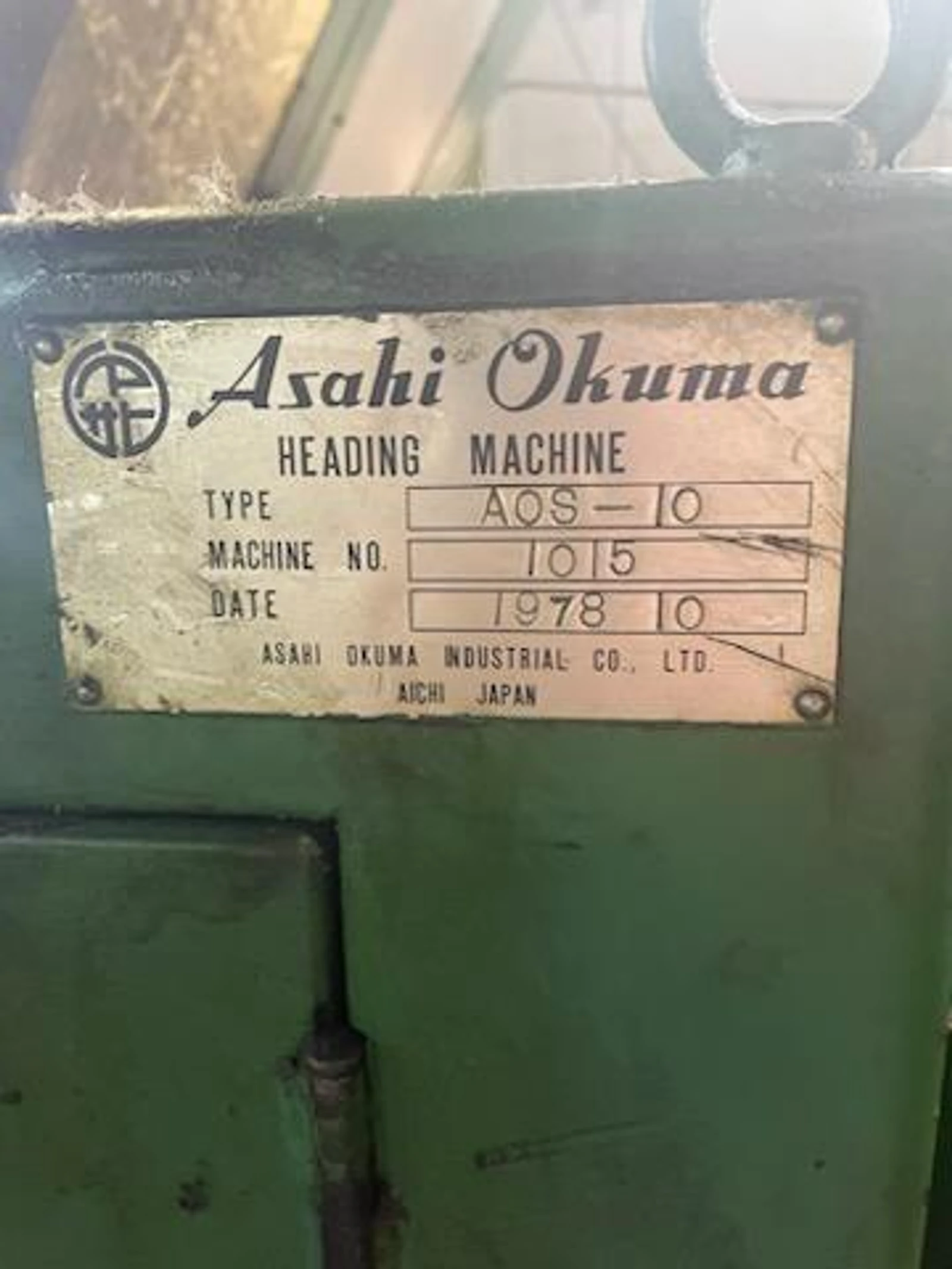

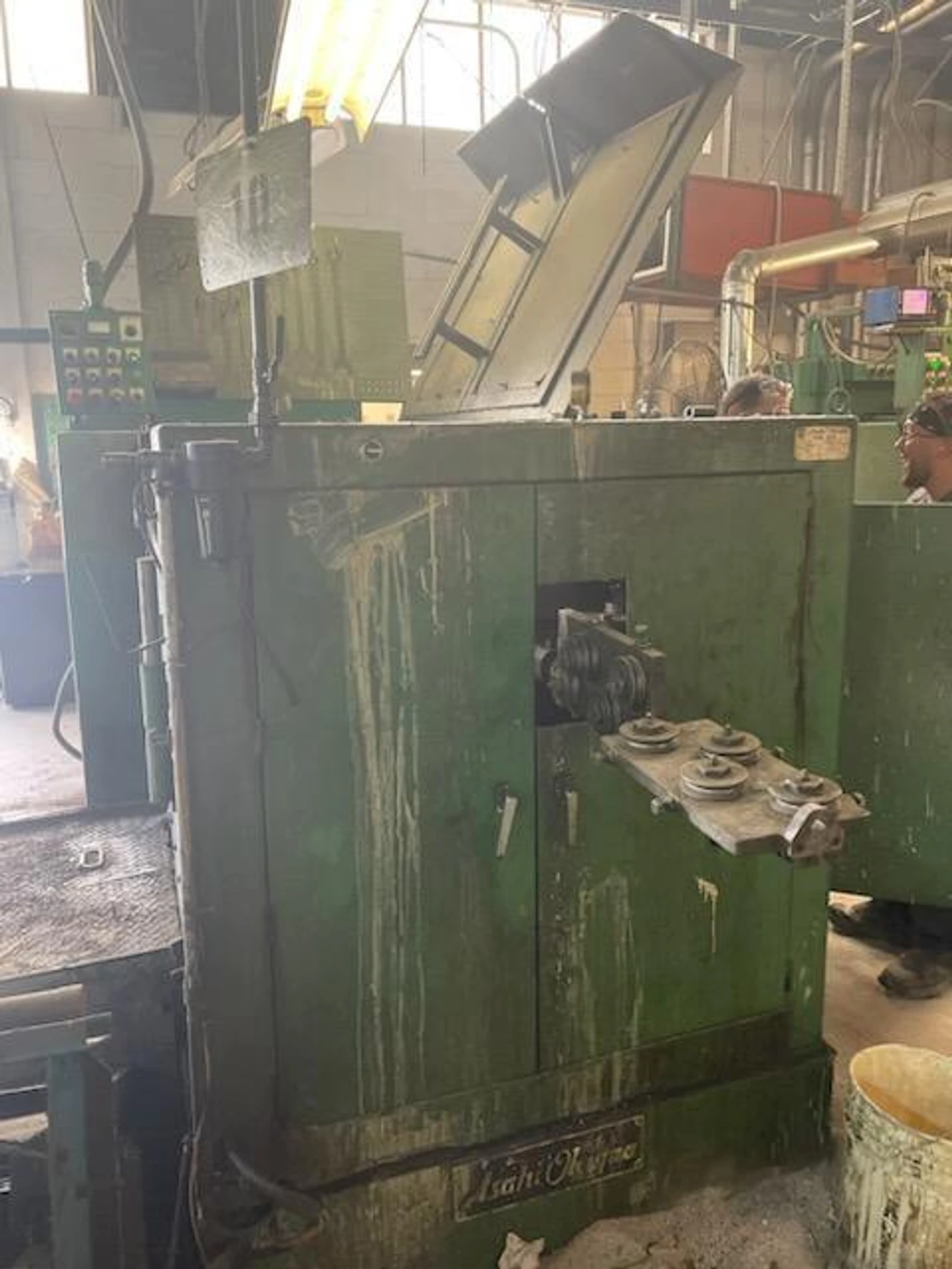

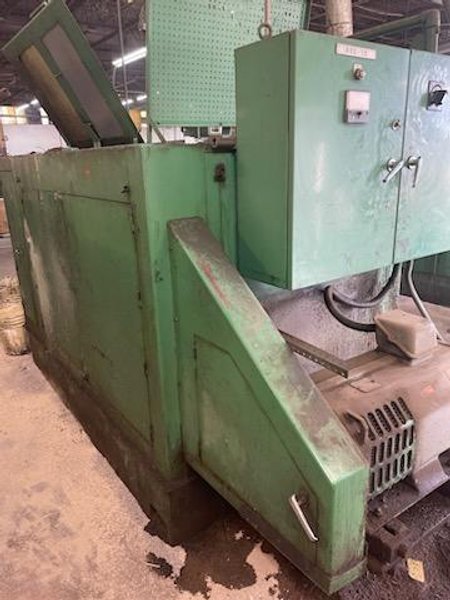

3/8" ASAHI OKUMA MODEL AOS-10 HIGH SPEED DOUBLE STROKE SOLID DIE COLD HEADER

            Max. Cutoff Diameter...................     25/64” 10mm

            Max. Cutoff Length.......................      3-5/32”           8mm

            Max. Kickout Length.....................     2-49/64”        70mm

            Min. Kickout Length......................     5/16”              8mm

            Max. Output....................................      180ppm         180ppm

            Electrics............................................       440/3/50        440/3/50

            Net Weight.....................................       13,200lbs       6,000kg

            Floor Space (mm)..........................      157.5”x 59”    4000 x 1500mm

Features:

                        * Automatic Recirculating Lubrication System

                        * Operator Controls - push button, run/jog/stop

                        * Fully Integrated Sound Enclosure

                        * Variable Speed Drive

                        * Allow steel hardened & ground die block

                        * Bushing cutoff system

                        * Timed and adjustable positive punch knockout
