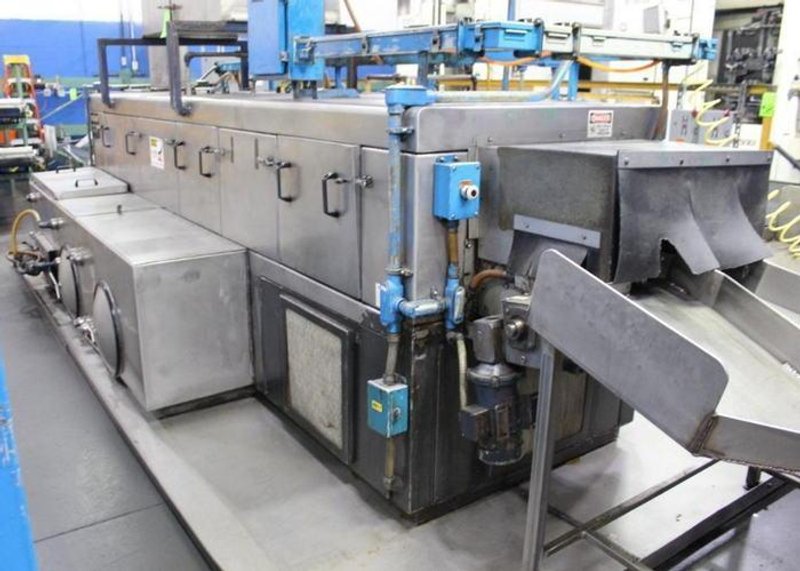

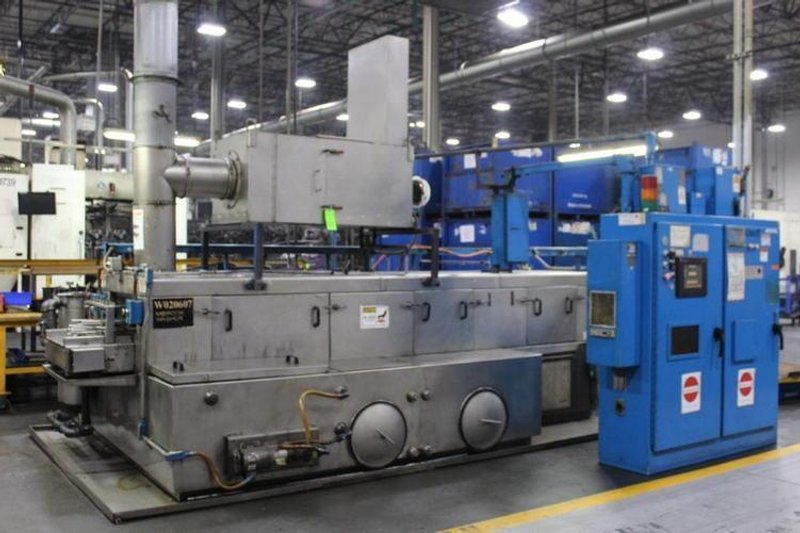

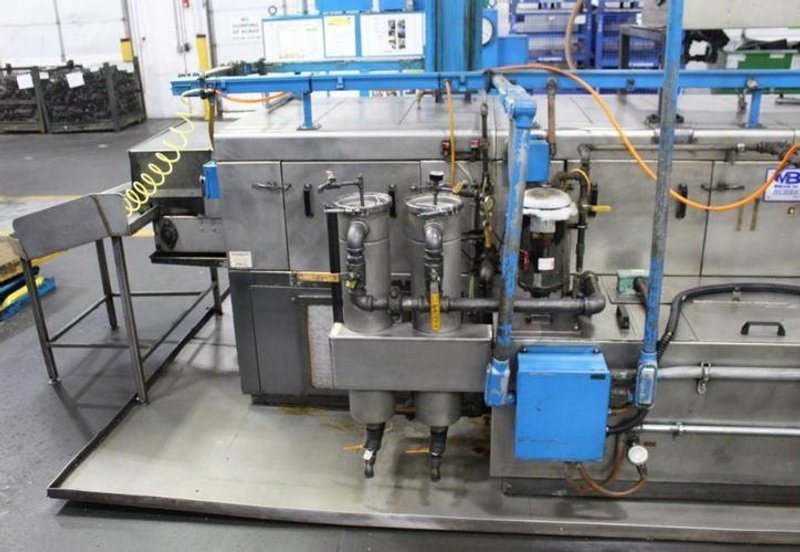

24" W x 12" H MIDBROOK 3 Stage Parts Washer, Elect Heated Wash/Rinse, Regen B/O
Brand
Type
Model
G5024W1R1B0
Stock #
Z24021A
Year
Not specified
Condition
Good
Location
Ohio
|
AGE: 2001

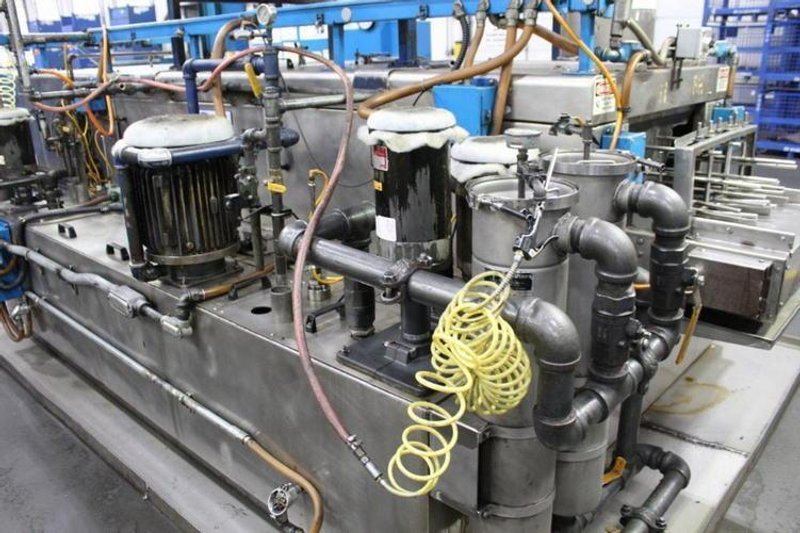

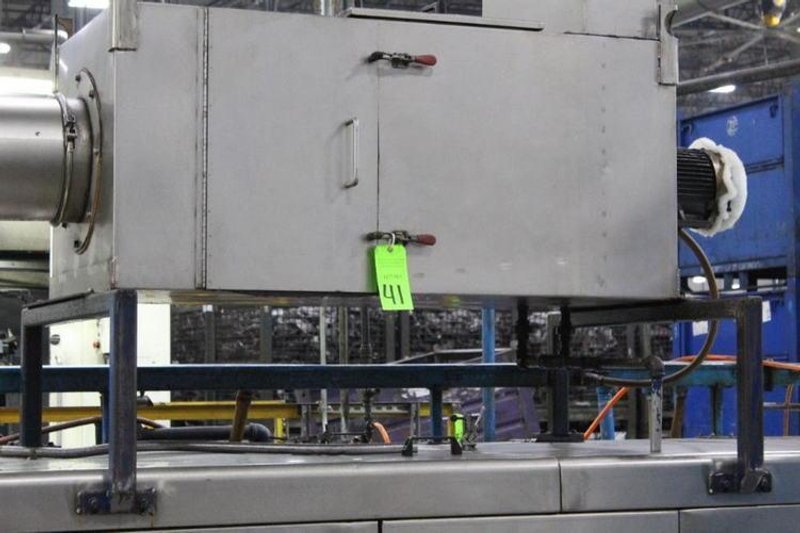

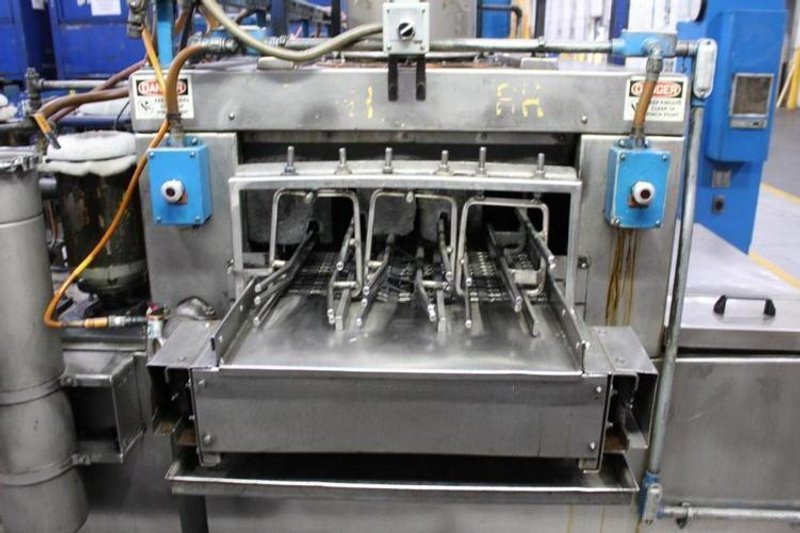

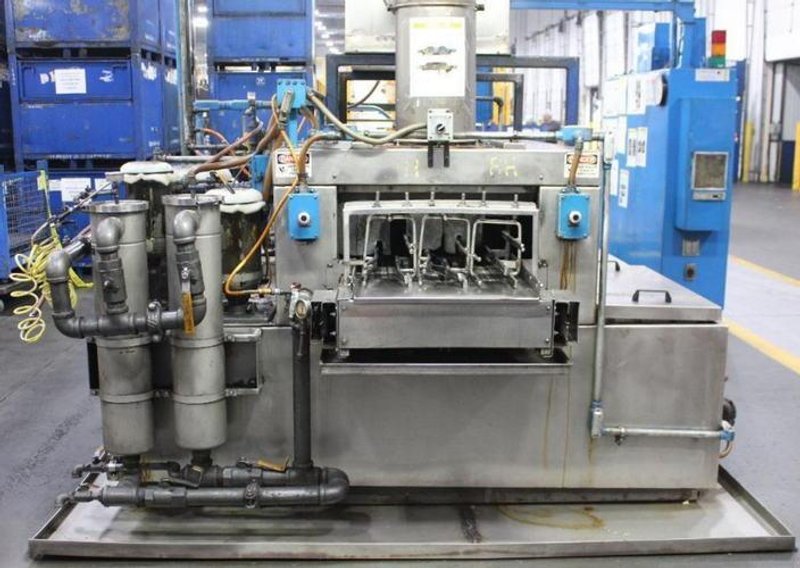

MODEL NUMBER: G5024W1R1B0 SPECIFICATIONS: 3 Stage Washer Stainless Steel Construction Belt Width: 24" Currently divided into (3) lanes, but can be easily removed for full 24" use Load Height, Max.: 12" Load / Unload Height: 36" 18" Loading Length 6' Wash: (2) 480 Volt Lufran, 48kW Each Drop-In Electic Heaters 472 Gallon Tank: (2) 5 HP Pumps (1) 20 HP High Pressure Pump (2) Inline Superior Stainless Steel Filters 7" with 2" Outlet 100 Micron Filter Bag Removable Chip Basket (3) Pump Screens Multi-Level Float Switch 145 Degree Operating Temperature 4' Rinse: 480 Volt Lufran, 48kW Drop-In Electric Heater 283 Gallon Tank: 3 HP Pump (2) Inline Superior Stainless Steel Filters 7" with 1 1/2" Outlet 100 Micron Filter Bag Removeble Chip Basket Pump Screen Multi-Level Float Switch 145 Degree Operating Temperature 4' Regen Blow-Off, 18 HP Gast, 600 CFM @ 2 PSI EQUIPPED WITH: 1" x 1" x 24" Standard Stainless Steel Flatwire Conveyor 18" Diameter Clean-Out Door, Each Tank Suparator Model 240/001 With Suparskim that Separates Oil from Wash Fluid, Water Content in the Removed Oil is Reduced to Less Than 1% Upgraded with Top-Mounted Mist Removal with a 5 HP Blower Lift-Off Access Doors 10 Ga. Stainless Steel Tank Low Solution Level Detection 10 Ga. Stainless Steel with 2" Lip Containment Pan with 1-1/2" Drain NOTE: The installation shown in the photos show a cool air intake from the ceiling to mix with wash chamber air to reduce air temperature going into the mist remover. This helps precipitate the water from the incoming air from the inside of the washer. CURRENT REPLACEMENT COST PER MANUFACTURER IS $260,000 OVERALL DIMENSIONS: 142" W x 205" L x 150" (Est.) with Mist Exhaust Top Discharge Attached SHIPPING DIMENSIONS: 108" W x 205" L 105" (Est.) High with Mist Collector 85" (Est.) High without Mist Collector |
