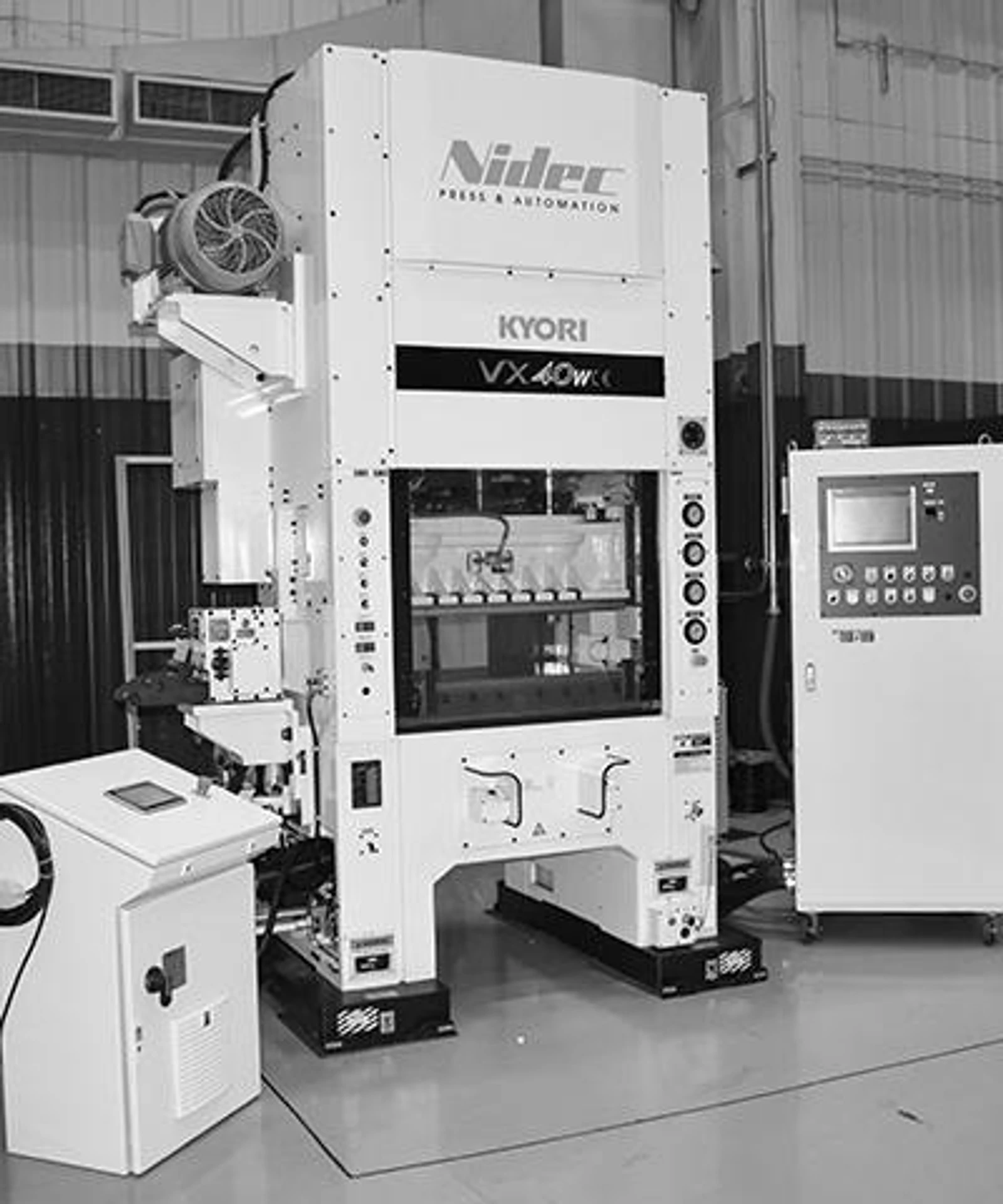

NEW Kyori ANEX VX-40W
Brand
Category
Model
VX-40W
Stock #
0K0036
Year
2024
Condition
New
Location
Ohio
| SPM | 1000 |
| Tonnage | 40 metric-tons |
| Shut Height | 285 millimeters |
| Vari Speed (Yes/No) | yes |
| Bed W | 600 millimeters |
| Bed L | 950 millimeters |
| Crank (Single/Double) | double |
| Air Clutch (Yes/No) | yes |
|
SPECIFICATIONS: Model Number........................................................... VX-40W Force × Distance off Bottom..................................... 400 kN Drive Arrangement.................................................... Flywheel w/ Dynamic Balancer Drive Location............................................................ Right Hand Side Approximate Press Weight........................................ 9,500 kg Shutheight Indicator Readout.................................... Metric Shop Air Pressure, Minimum.................................... 5.9 bar Stroke Length, Speed Range.................................... Variable from 16-50 mm in 7 distinct increments 16 mm @ 1000 SPM 20 mm @ 800 SPM 25 mm @ 600 SPM 30 mm @ 500 SPM 35 mm @ 400 SPM 40 mm @ 350 SPM 50 mm @ 260 SPM
Slide Specifications Area of Slide (AxB).................................................... 950 x 450 mm Bolster Specifications Bolster Plate Material................................................ S45C Area of Bolster, (AxB)............................................... 950 x 600 mm
Opening in Bolster (C)............................................... 110 mm
Shutheight, Maximum (SDAU)................................. 285 mm on Bolster Shutheight Adjustment.............................................. 50 mm Feedline Height from floor……………………………. 1366 mm Feedline height over Bolster…………………………. 120+- 20 mm (4) Individual Spacers…………………………………. TBD (to get 1366mm) (4) Individual Shock Mounts………………………….. Air type shock absorber Approx. Clearance, Foot to Bottom of Bed............... 505 mm
Approx. Distance Foot to Top of Bed........................ 935 mm |
|
