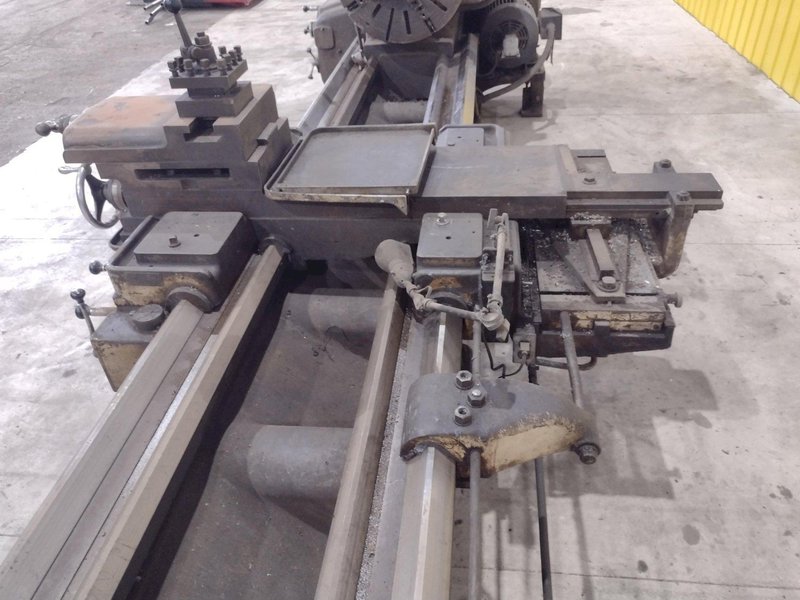

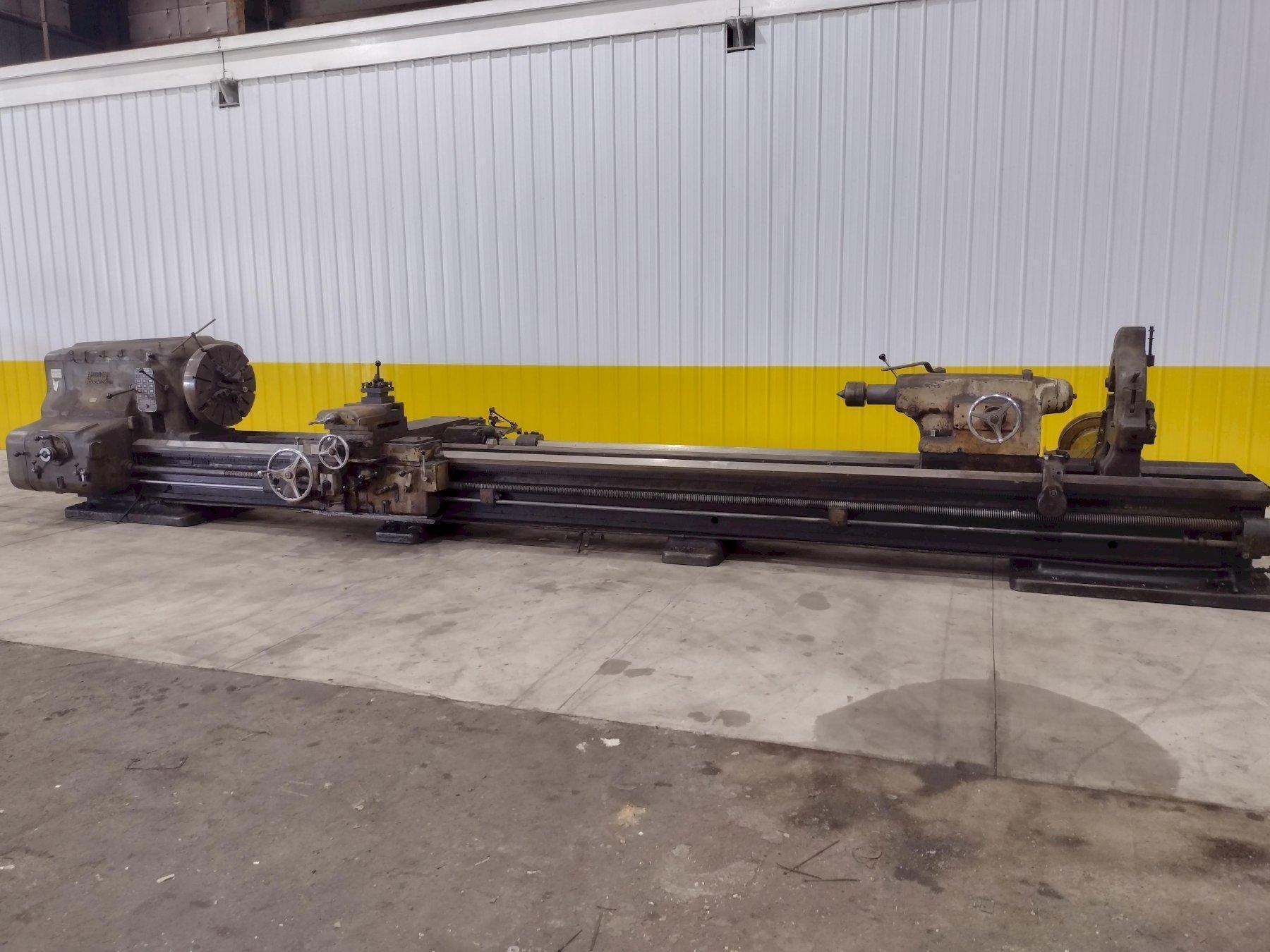

40" X 22' AMERICAN PACEMAKER ENGINE LATHE: STOCK #78228

SERIAL ............................ 70754-48

MODEL ............................. 32

SWING OVER WAYS ................... 40"

SWING OVER CROSS SLIDE ............ 24"

DISTANCE BETWEEN CENTERS .......... 264"

SPINDLE SPEEDS .................... (27) 7 TO 600 RPM

THREADS ........................... (60) 1/2 TO 30 TPI

FEEDS ............................. (120) .0040 TO .24000 IRP

LEADS ............................. .0033 TO 2.000

SPINDLE HOLE ...................... 2-3/4"

STEADY REST ....................... YES

4 JAW CHUCK ....................... 28"

TAPER ATTACHMENT .................. YES

THREAD DIAL ....................... YES

RAPID TRAVERSE ............... YES

CHIP PAN .......................... YES

COOLANT ........................... YES

HARD WAYS ......................... YES

MAIN MOTOR ........................ 25 HORSEPOWER
