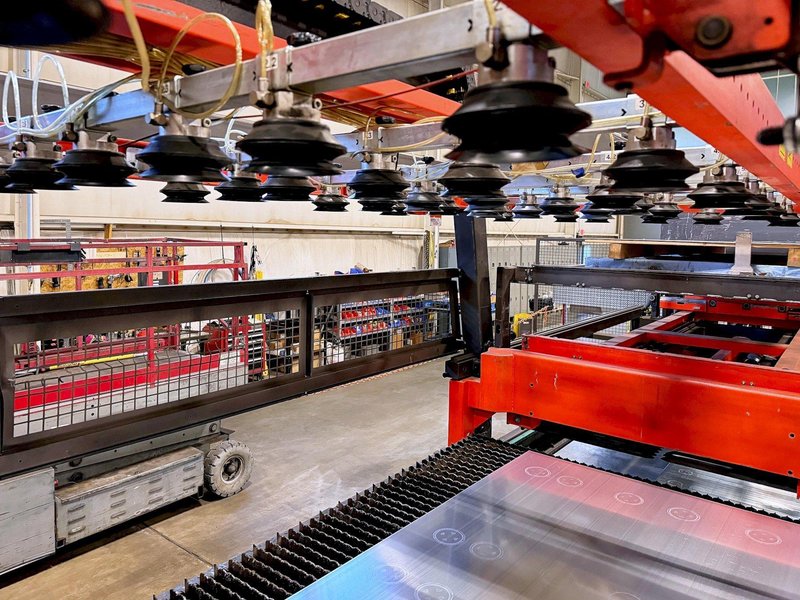

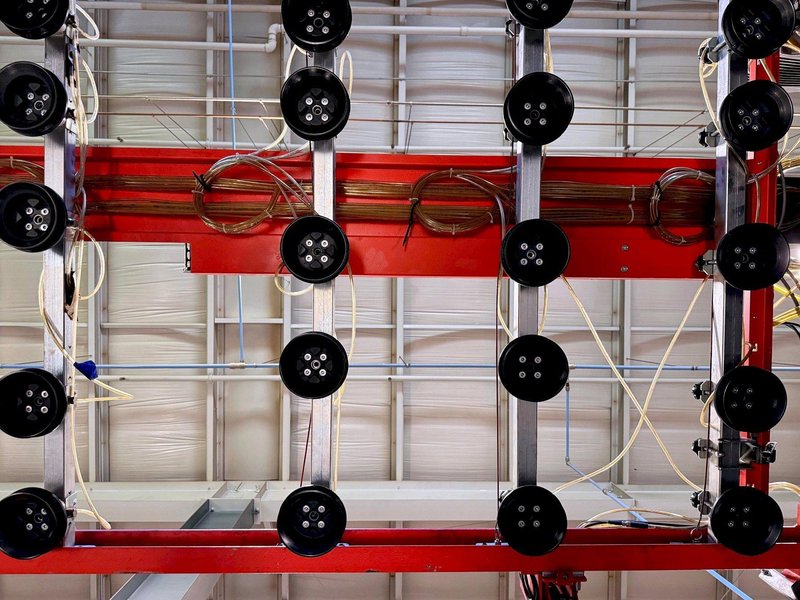

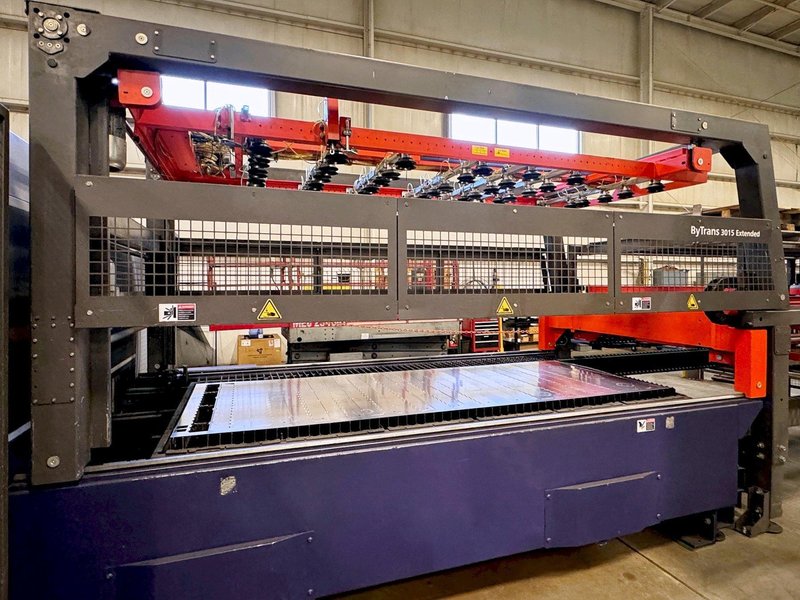

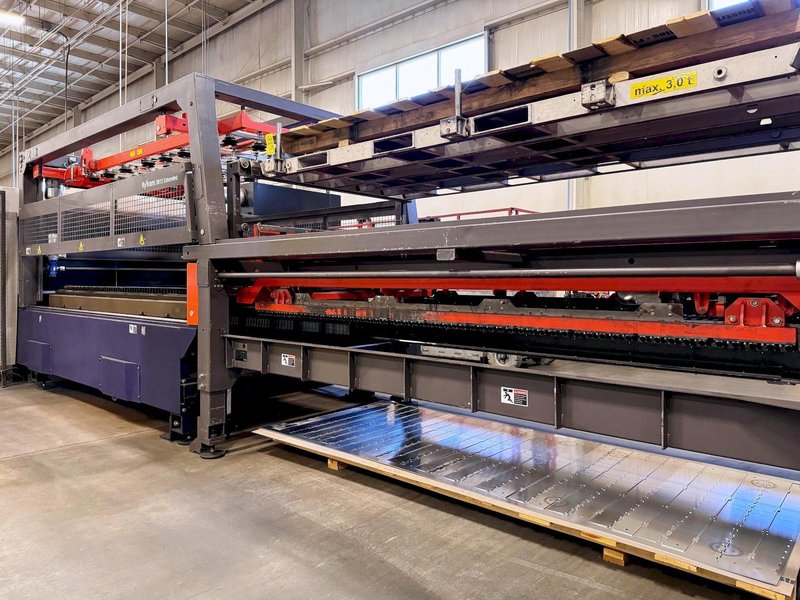

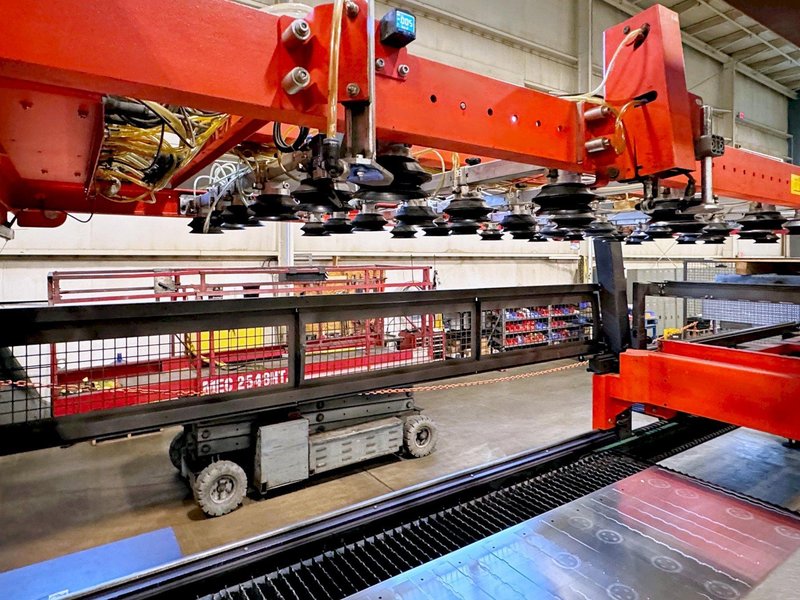

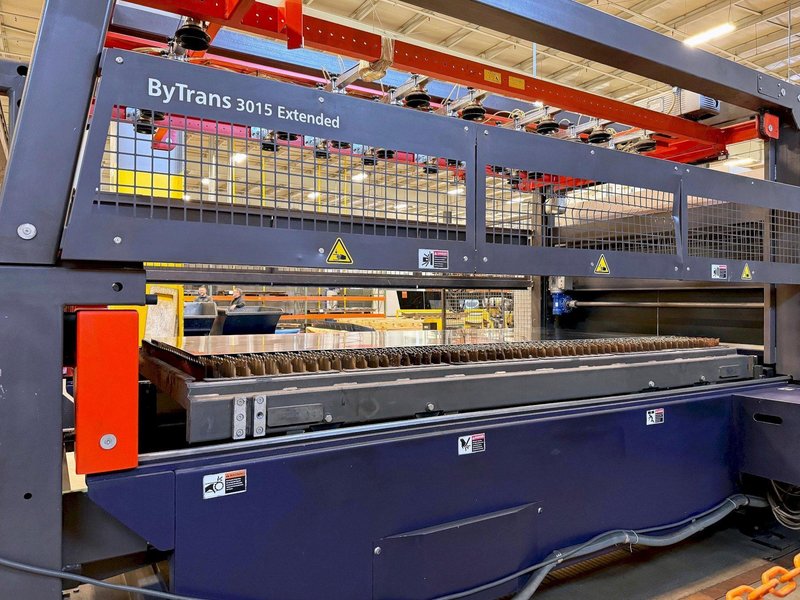

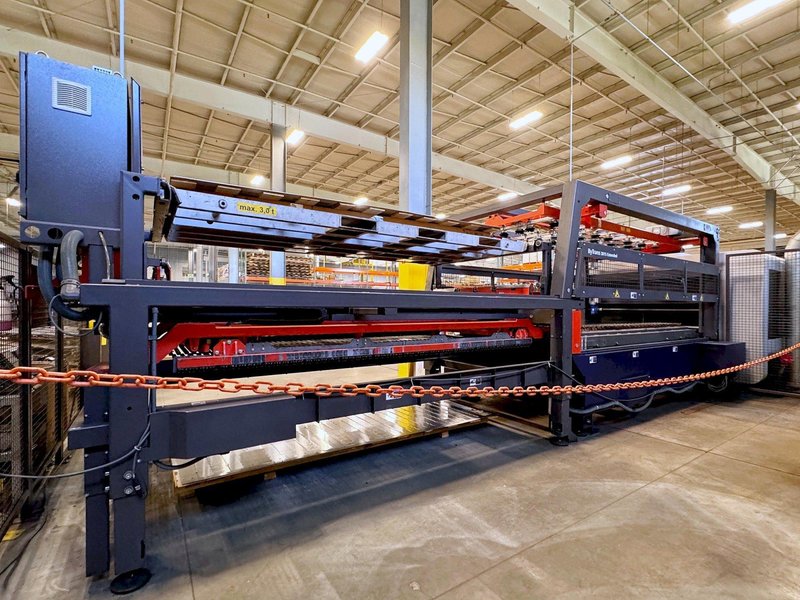

Bystronic ByTrans 3015 Extended

Name: Bystronic ByTrans 3015 Extended
Brand: BYSTRONIC
SKU: 100509
Availability: PreOrder

Brand

BYSTRONIC

Not specified

Nominal Sheet Size	60” X 120”
Max. Sheet Metal Size	60” X 120”
Sheet Metal Sizes	Variable
Number Of Cassettes	2
Sheet Thickness (Loading/Unloading)	0.032” To 1.000”
Max. Sheet Weight	1985 Lbs.
Max. Raw Material, Stacking Height (Incl. Pallet)	9.4”
Max. Raw Material, Stacking Weight	6,613 Lbs.
Max. Cut Sheets, Stacking Height (Incl. Pallet)	14”
Standard Cycle Time	60 Sec.
Cycle Time With Large Part Removal	140 Sec.
Cycle Time With Insertion Of Protective Material	155 Sec.
Weight (Net)	11,023 Lbs.
Customer Benefits: Fast job processing. A complete loading and unloading cycle takes only 60 seconds. Much higher machine utilization for only a slightly higher investment. The ByTrans Extended design has not just one but two cassettes, thereby making the machine system even more autonomous. Flexible use. Not just for storage/return transfer but also for large parts removal. Preparation of plastic protective separators, which are placed between the metal sheets by the system (ByTrans Extended). Entry into lightly-manned parts production.
