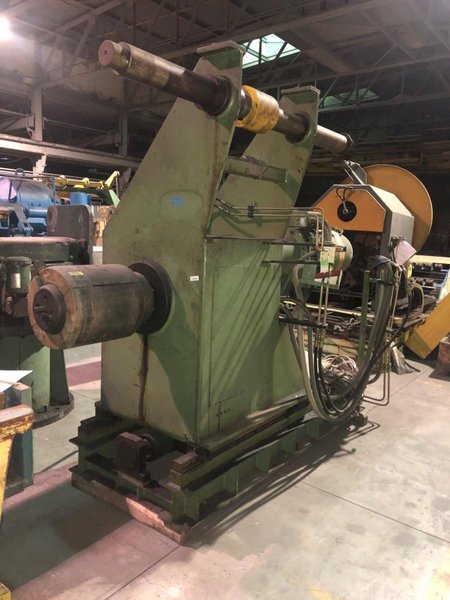

14.5" Face Mandrel

16" ID (15" Dia. colapsed) with 3" Thick Pads

3" Thick Pads

5" Thick Pads

2 additional Mandrel Shafts

72" + OD

Slide Base

Hold Down Arm, Shaft & Cylinder(No roll/wheel presently)

Lenze/Intorq(Extertal Germany) Servo Drive Motor BFK458-20

44kW(59HP)at 60hz, 1770RPM, 480(Y)/277(delta)V.

37kW(49HP)at 50hz, 1470RPM, 400(Y)/230(delta)V.

Lenze GFL09-2 N HCK 2 K Gearbox

GFL Shaft-mounted helical gearbox/geared motor

These 2 and 3-stage parallel-axis gearboxes are primarily used as

shaft-mounted gearboxes. The gearbox has a space-saving design and is

easy to mount. As well as enabling internal power or torque sharing,

the output shaft is accessible for further use (e.g. for installing

encoders).

The gearboxes/geared motors

Drive-end versions

Integrated three-phase AC motors

IEC motor adapter

Free shaft input

Output-end versions

Hollow shaft with keyway or shrink disc

Solid shaft with keyway

Foot or flange mounting

Integrated torque plate with rubber buffer

6.864:1 ratio

1-09 = Size

2 = Stage

N = Gearbox with mounting flange for IEC Standard Motor

H = HOLLOW SHAFT

C = Pitch Circle with Centering

K = Flange with thru holes
