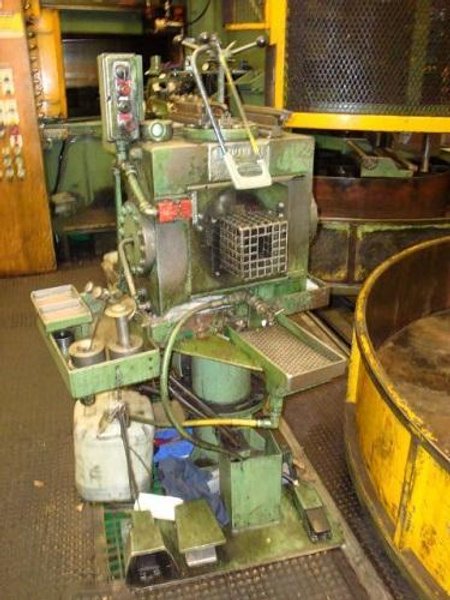

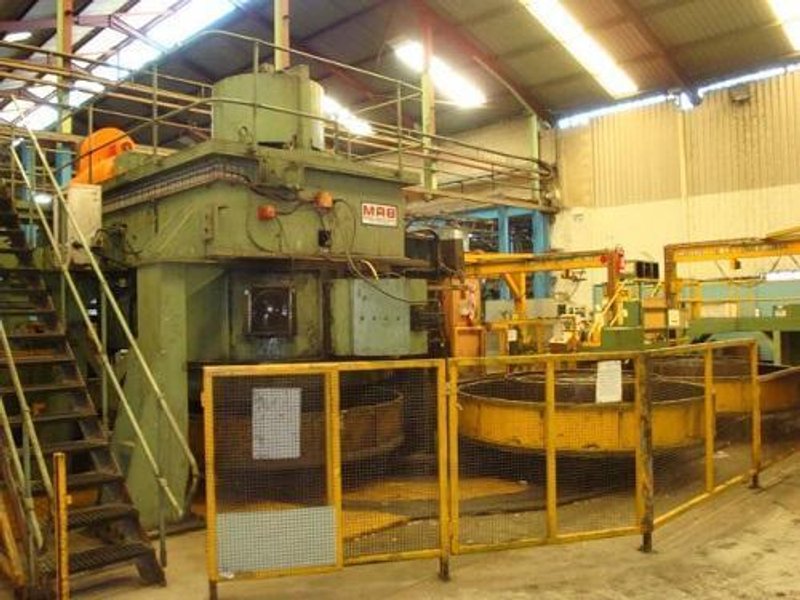

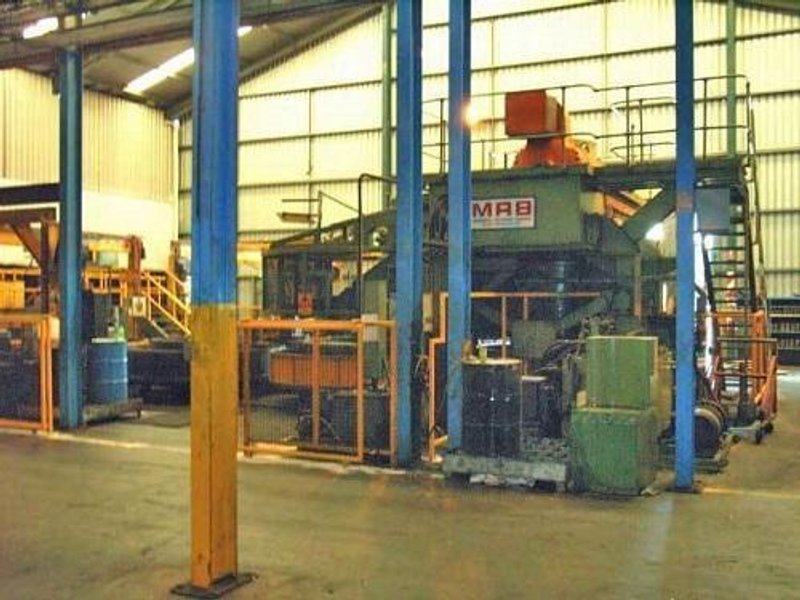

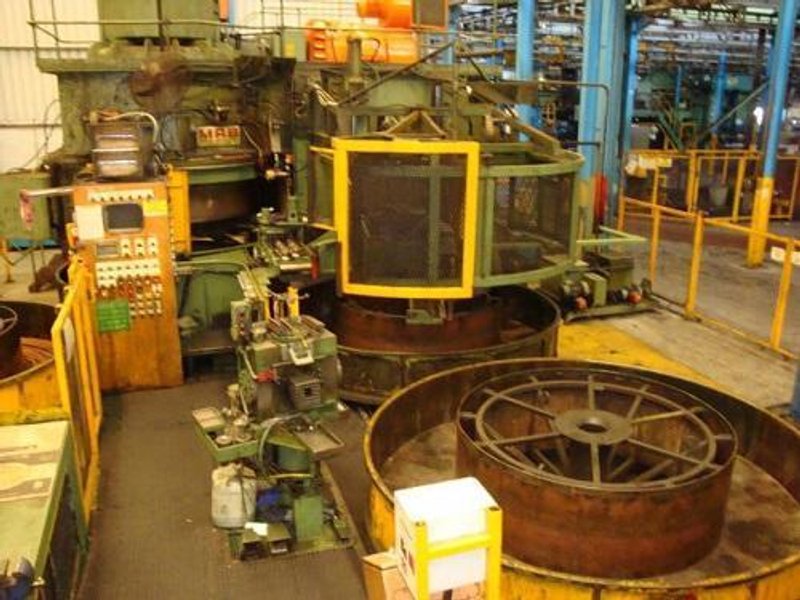

TYPE: SPINNER BLOCK FOR COPPER TUBE
MODEL: VNCB84
YEAR OF MANUFACTURE: 1991 MACHINE NUMBER: M893510
BLOCK DIAMETER: 84" (2134 mm)
MAXIMUM ENTRY TUBE O.D.: 1.2" (30 mm)
MINIMUM EXIT TUBE O.D.: 0.157" (4 mm)
MINIMUM WALL THICKNESS: 0.010" (0.25 mm)
DRAWING SPEEDS:
LOW GEAR: 0/682/2050 FPM (0/208/625 m/min.)
HIGH GEAR: 0/1312/3937 FPM (0/400/1200 m/min.)
MAXIMUM DRAW PULL: 16,535 LBS. (7500 kg)

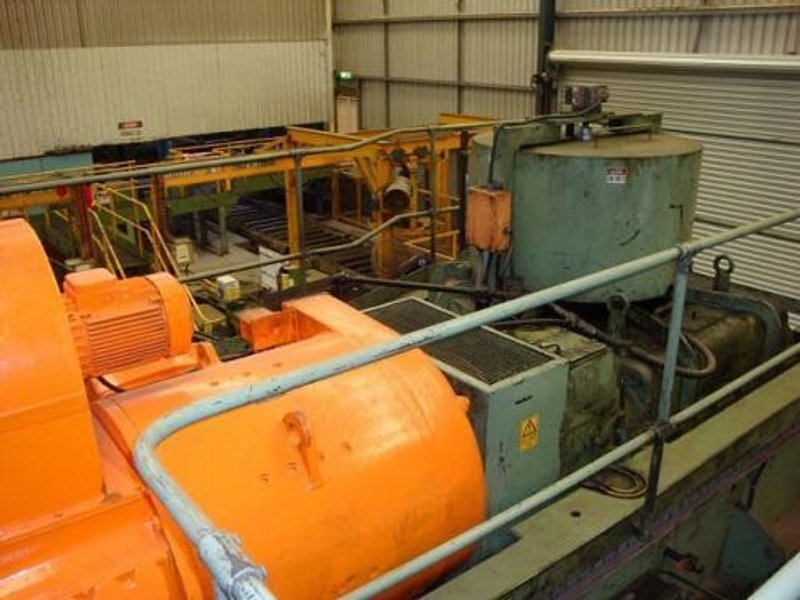

MAIN DRIVE MOTOR: 300/300 KW, 460/460 VOLTS, 600/1800 RPM, 705/705 AMPS

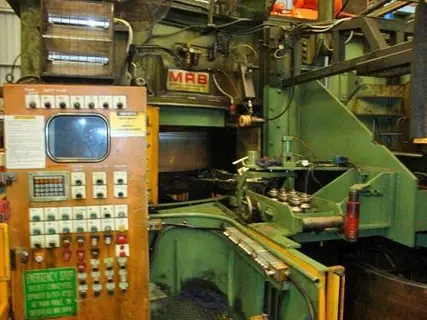

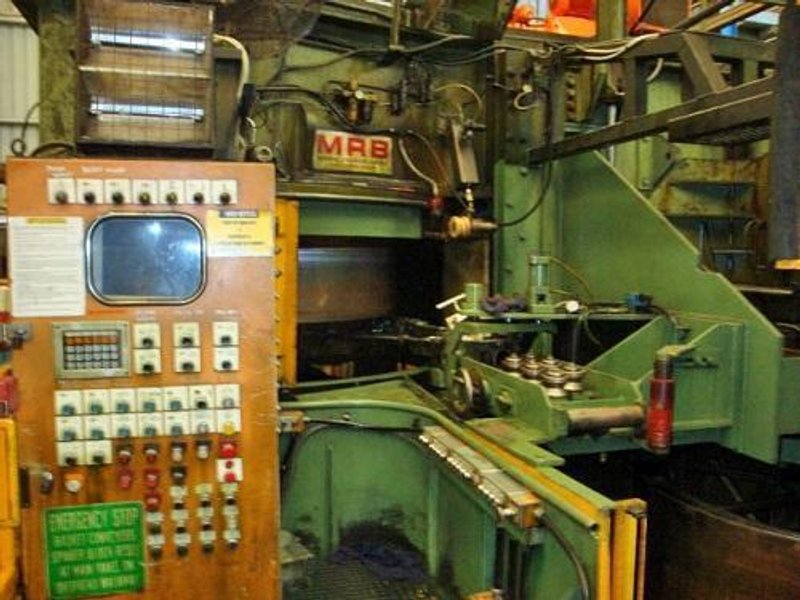

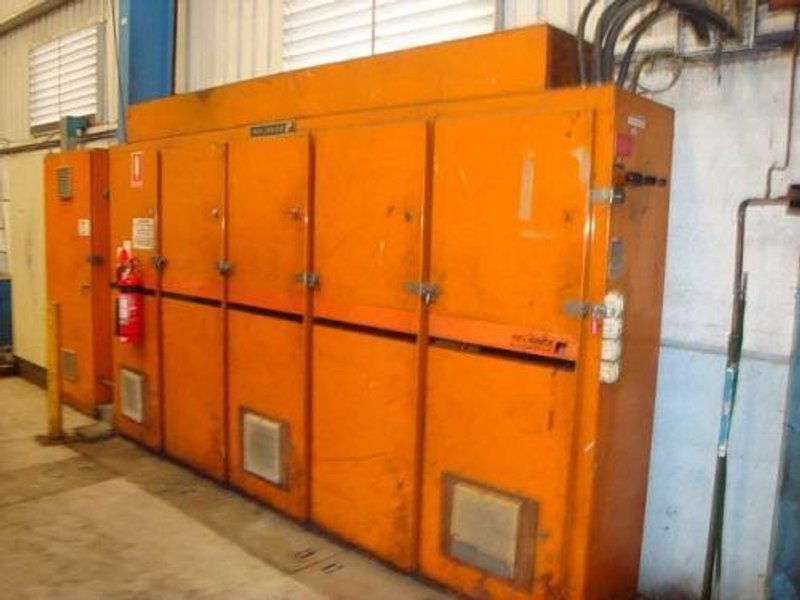

CONTROLS: RELIANCE SCR THYRISTOR DRIVE
DIRECTION: RIGHT HANDED

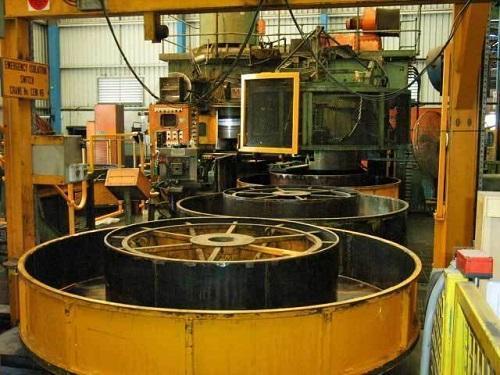

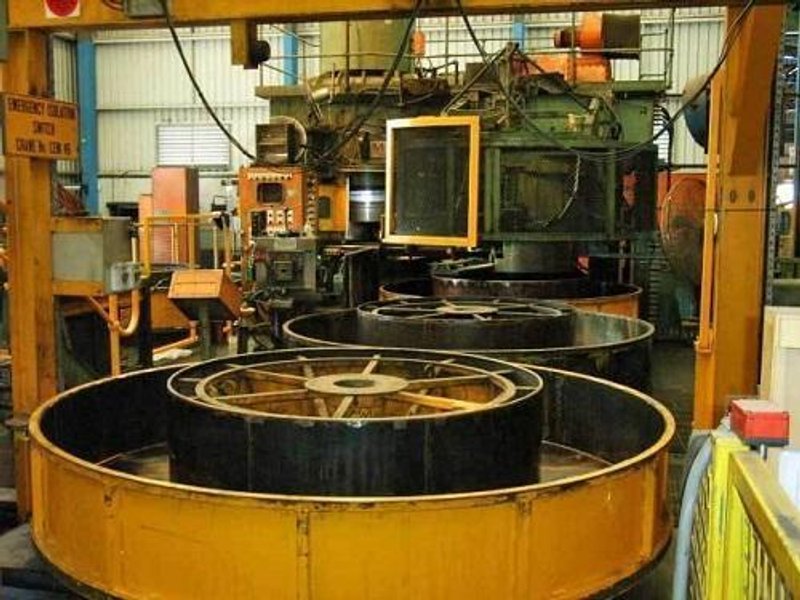

EQUIPPED WITH AN 8 STATION CARROUSEL SYSTEM FOR COIL CONVEYANCE
NO DISMANTLING CHARGES. BLOCK IS ALREADY DISMANTLED AND IN PROTECTED
STORAGE. BLUEPRINTS AND DRAWINGS ARE AVAILABLE
|
