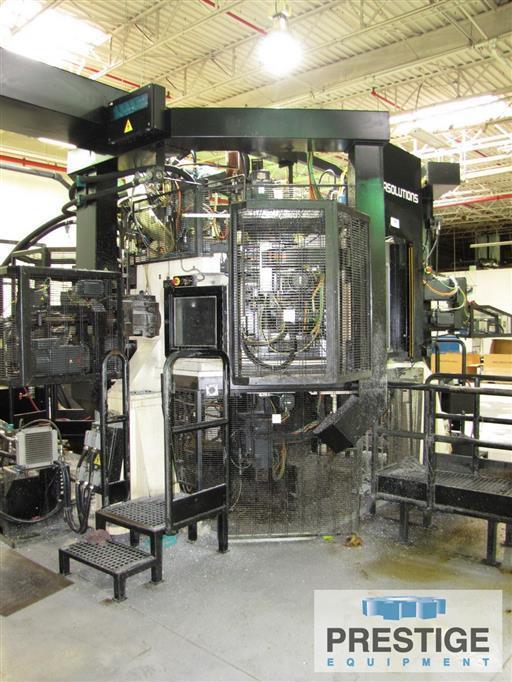

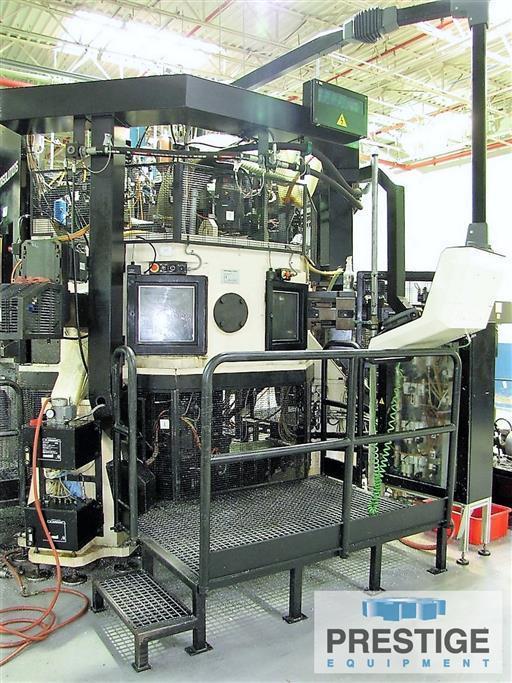

Porta TRV-08-N-16-90-110 CNC Rotary Transfer Machine

Serial Number101196
SPECIFICATIONS:
Stations 8
Vertical Spindles 7
Y-Axis Boring Spindles 3
Z-Axis Boring Spindles 3
Independent XYZ Axis Spindles 4
Number of Controlled Axis Movements 34
Machine Electrics 460/3/60
STATION 1:
Spindle Heads 3
Spindle Head Type FMU 90
Spindle Taper HSK-50
Spindle Speeds 15,000 RPM
Spindle Motor 3.75 HP
Spindle Travel, Z-Axis 4.72"
High Pressure Coolant
STATION 2:
Spindle Heads 2
Spindle Head Type FMU 110
Spindle Taper HSK 63 & ISO 40
Spindle Speeds 6,000 RPM
Spindle Motor 7.37 HP
Spindle Travel, Z-Axis 5.31"
High Pressure Coolant
Predisposition Fixed Unit
STATION 3:
Spindle Heads 3
Spindle Head Type & Taper FMU 90 (HSK 50)
Spindle Speeds 15,000 RPM
Spindle Motor 3.75 HP
Spindle Travel 4.72"
High Pressure Coolant
STATION 4:
Spindle Heads 2 (FMU 110 & FMU 90)
Spindle Taper, FMU 110................. ISO 40 ISO 40
Spindle Speeds, FMU 110................ 15,000 RPM 15,000 RPM
Spindle Motor, FMU 110 7.37 HP
Spindle Travel, FMU 110 5.31"
Spindle Taper, FMU-90 HSK 50
Spindle Speeds, FMU-90 6000 RPM
Spindle Motor, FMU-90 3.75 HP
Spindle Travel, FMU-90 4.72"
STATION 5:
Spindle Heads 2 (FMU 110 & FMU 90)
Spindle Taper, FMU 110................. ISO 40 ISO 40
Spindle Speeds, FMU 110................ 6,000 RPM 6,000 RPM
Spindle Motor, FMU 110 7.37 HP
Spindle Travel, FMU 110 5.31"
Spindle Taper, FMU-90 HSK 50
Spindle Speeds, FMU-90 15,000 RPM
Spindle Motor, FMU-90 3.75 HP
Spindle Travel, FMU-90 4.72"
High Pressure Coolant
With Predisposition XYZ CNC Unit
STATION 6:
Spindle Heads 2 (FMU-110)
Spindle Taper HSK-63
Spindle Speeds 6000 RPM
Spindle Motor 7.37 HP
Spindle Travel 5.31"
High Pressure Coolant
With Predisposition XYZ CNC Unit
STATION 7:
Spindle Heads 2 (FMU 110 & FMU 90)
Spindle Taper, FMU 110................. HSK 63 HSK 63
Spindle Speeds, FMU 110................ 6000 RPM 6000 RPM
Spindle Motor, FMU 110 7.37 HP
Spindle Travel, FMU 110 5.31"
Spindle Taper, FMU-90 HSK 50
Spindle Speeds, FMU-90 15,000 RPM
Spindle Motor, FMU-90 3.75 HP
Spindle Travel, FMU-90 4.72"
High Pressure Coolant
With Predisposition XYZ CNC Unit
STATION 8:
Load / Unload



Equipped With:

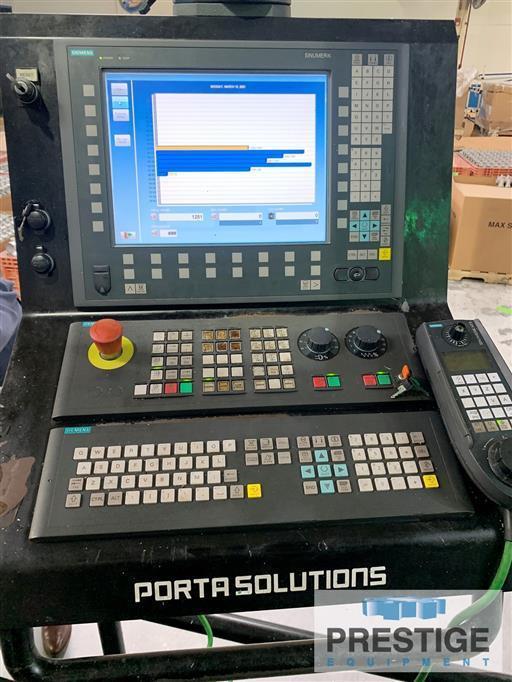

Siemens Sinumerik HT2 CNC Controls
8 Machining Stations
16 Work Spindles
6000 & 15,000 RPM
HSK 50, HSK 63, ISO 40 Taper
Automatic Tool Changer
High Pressure Coolant
Meta Porta Chip Conveyor
Euro Cold Chiller


PLEASE NOTE: This Machine Was Finishing The Surfaces Of 60mm and 80mm Aluminum Components


LOCATION: Our Philadelphia Warehouse
