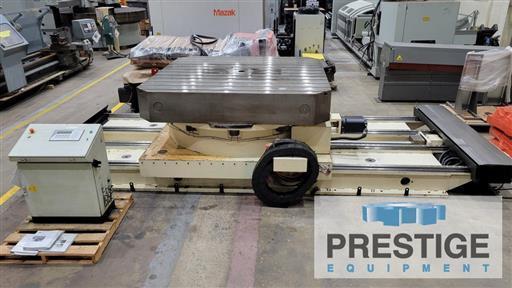

SPECIFICATIONS:

Table Size 96.45" x 96.45"
Maximum Table Load (60,000 kg)......... 132,237 Lbs 132,237 Lbs
Table T-Slots 12
Diameter of Center Bore 3.93"
TABLE ROTATION:

B-Axis Positioning Accuracy +/- 5 Seconds of Arc
B-Axis Maximum Programable Speed 1 RPM
TABLE TRAVEL:

X-Axis Table Travel 102.36"
X-Axis Maximum Programable Speed 196.85 IPM
X-Axis Minimum Programable Speed 0.590 IPM
X-Axis Positioning Accuracy +/- 0.00078"

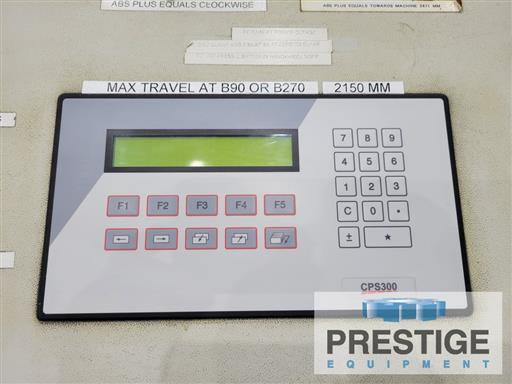

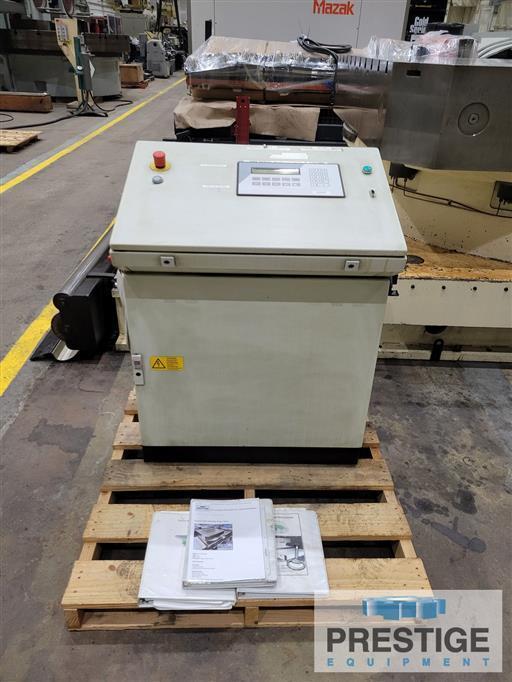

ESITRON DUAL AXIS CONTROL FEATURES:

MDI KeyboardResolution 0.001 DegreeAutomatic OperationManual ModeAutomatic Reference PointLCD DisplayFLOOR SPACE & WEIGHT:

Base Dimensions 280" x 100" x 60" High
Approx Physical Weight 65,0000 Lbs.

Equipped With:

Linear Guide Ways on X Axis

Note:


USA Designed, Engineered and Manufactured.
