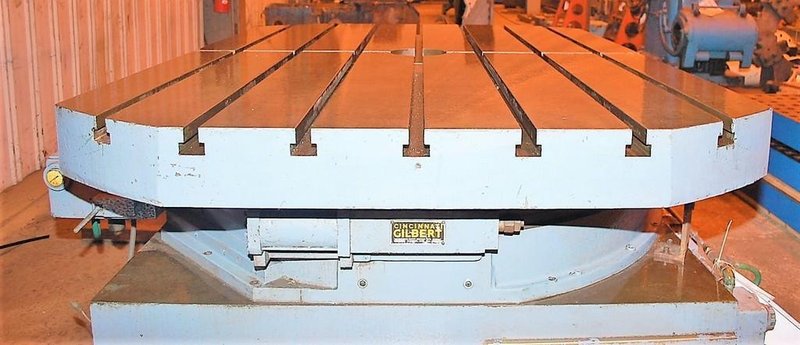

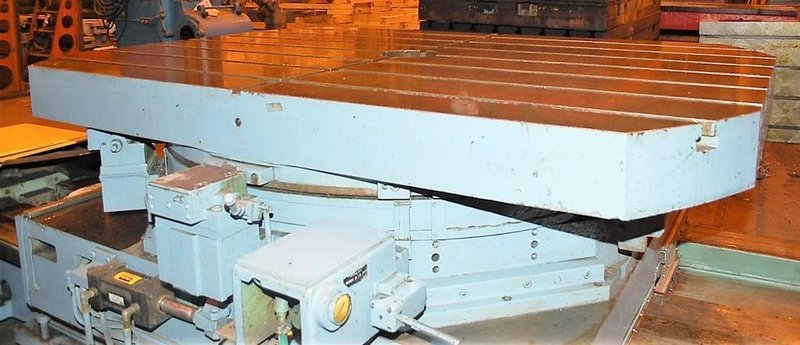

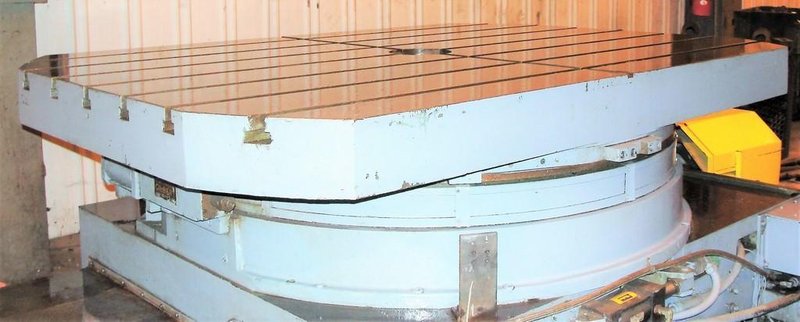

Tables Rotary & Index

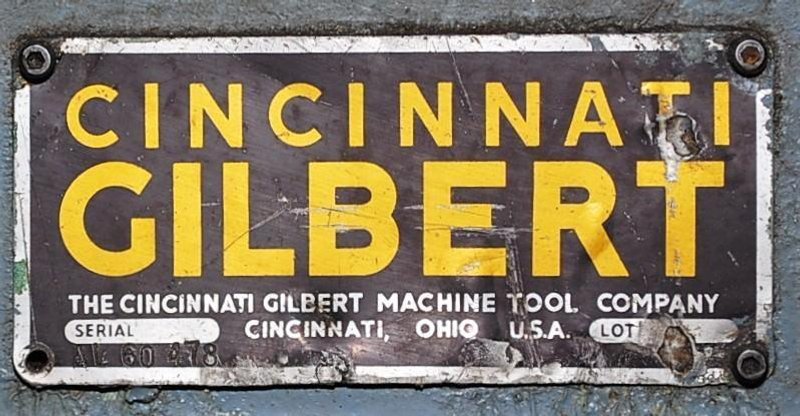

Serial NumberAL-60-478
CAPACITY:

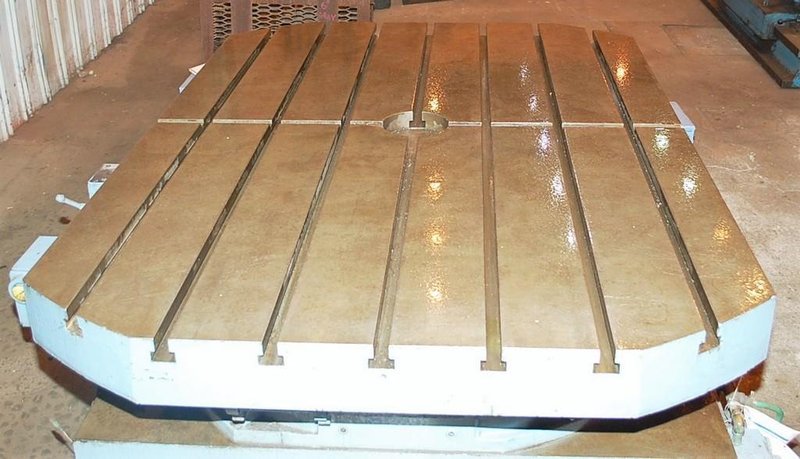

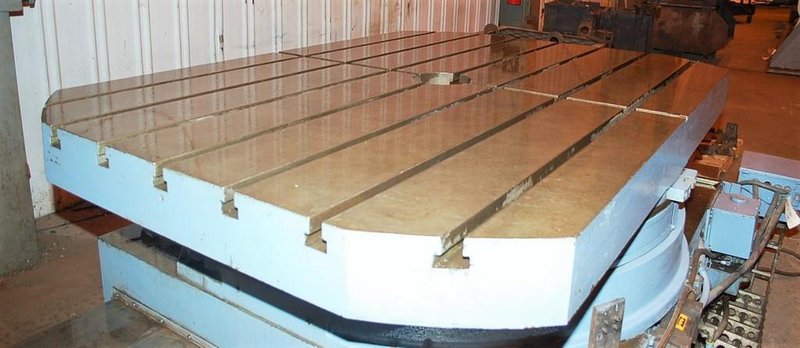

T-Slotted Table Size 60" x 84"
Rotary Table Height 19.5"
Table Weight Capacity On Center 20,000 Lbs
Table Weight Capacity Off Center 15,000 Lbs
Table Weight Capacity On Center 20,000 LBS
Number Of T-Slots 7
Width Of T-Slots, Top 1"
Width Of T-Slots, Bottom 1.875"
Distance Between T-Slot Centers 8"
Center Keyway Width 1"
Shot Pin Locations (Degrees) 90, 180, 270, 360
Approximate Shipping Weight 12,000 Lbs



Equipped With:
Air Lift, Hand Rotation
4-Position Shot Pin
1-Degree Graduated Scale
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway Degree Increments
Fixture Locating Keyway


NOTE: Inspect In Our Philadelphia PA Warehouse
