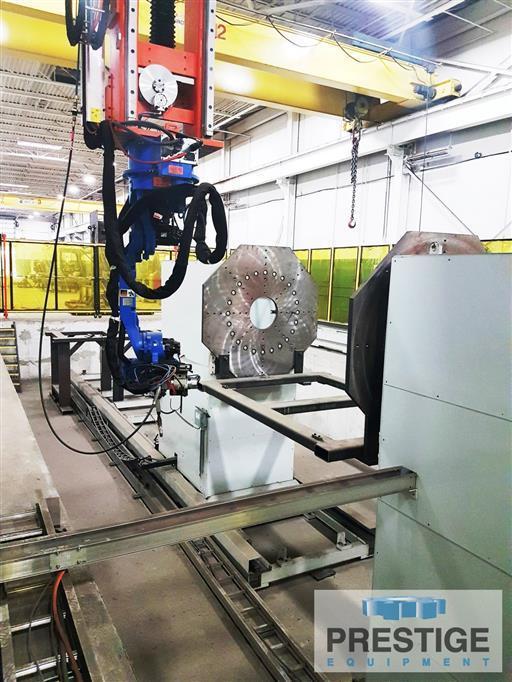

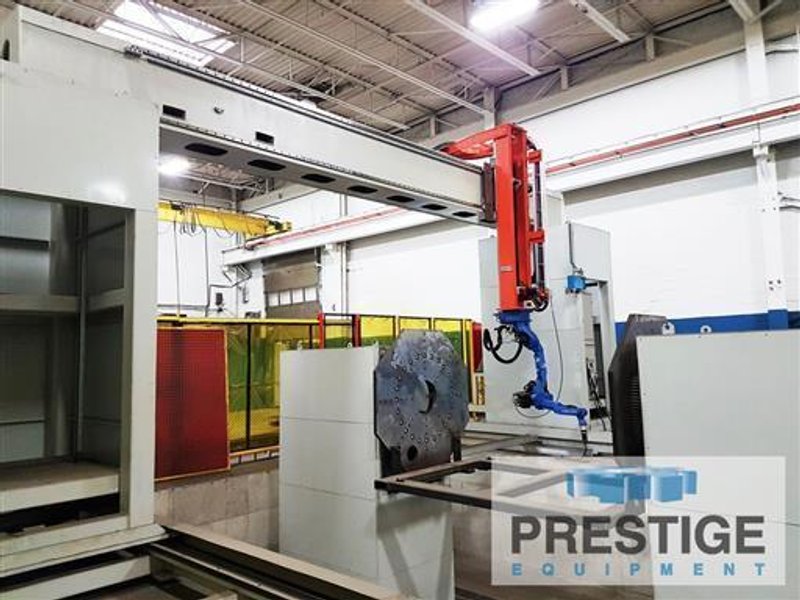

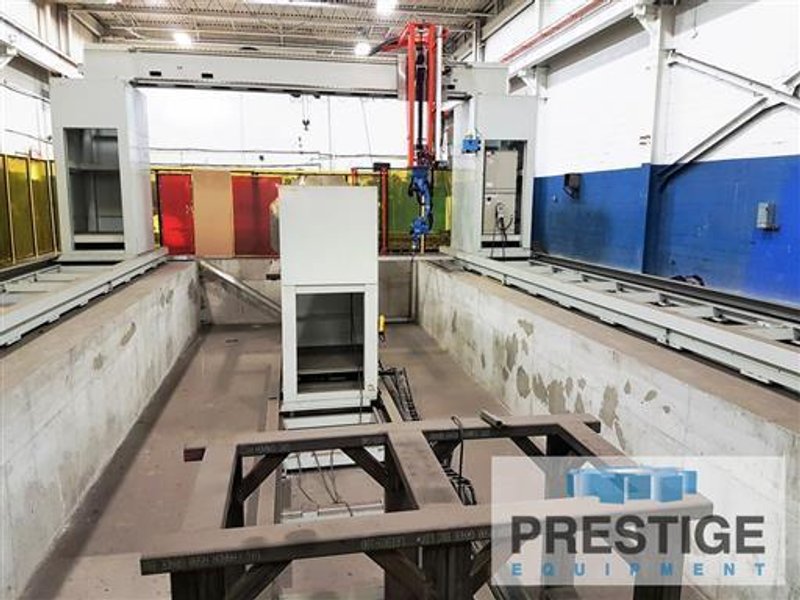

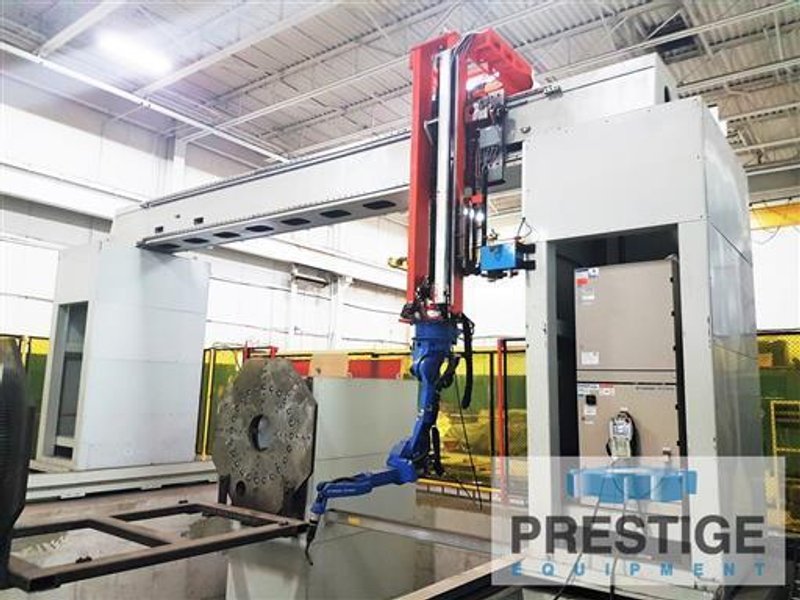

Motoman Gantry Type Robotic Welding Cell

Brand

MOTOMAN

Category

Robots

Type

Robots

Model

Gantry Type

Stock #

32742

Year

2012

Condition

Not specified

Location

Not specified

Specifications
Files & Videos

Specifications:

Gantry Travel, X-Axis 480"
Cross Travel, Y-Axis 241"
Ram Stroke, Z-Axis 72"
Headstock Diameter 72"
Headstock Speed 1 RPM
Tailstock Diameter 72"
Tailstock Travel 360"
Distance Between Headstock/Tailstock 240" - 480"
Center of Rotation from Floor 59" - 98"
Cell Footprint 600" x 384"
Cell Max Height 264"
Cell Min Height 216"

Equipped With:

Motoman DX100 Controller for Robot, Gantry and Rotary Positioner
Motoman MA1900T 6 Axis Robot
Miller Auto-Axcess 675 Weld Controller
Binzel WH650 Water Cooled Torch
72" 60,000 lb Headstock/Tailstock Positioners
Rotary Positioner Torque Capacity:

30,000 lb-ft
Wire Mesh Guarding Fence with Arc Flash Curtains

No files or videos to display
