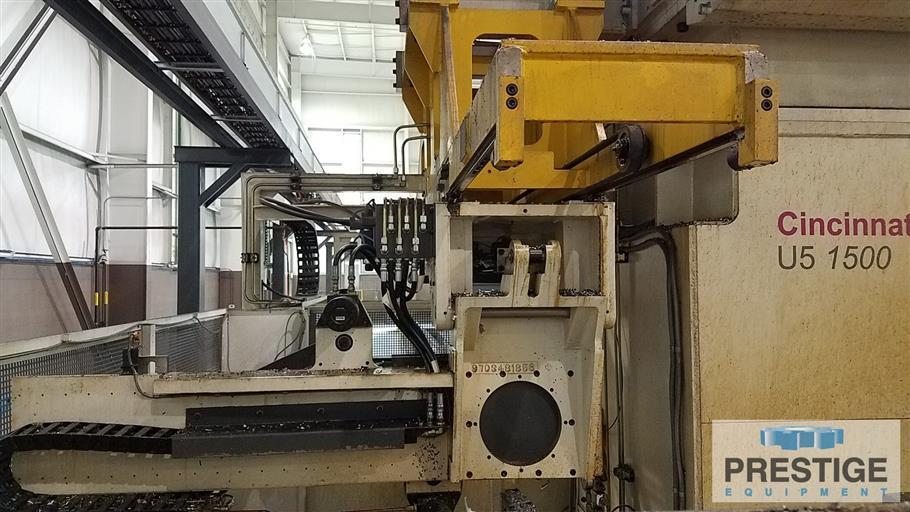

Cincinnati MAG U5-1500 CNC Travelling Gantry Rail Type Milling Machine

CAPACITY:
X-Axis, Longitudinal Gantry Travel 1152"
Y-Axis, Head Travel 144"
Z-Axis, Ram Vertical Travel 60"
Distance Between Columns 199"
Distance Across Ways 213.2"
Length of Rails 1296"
Number of Workplates 16
Workplate Size 72" x 120" Each
Overall Workplate Length 1184.1"
Workplate Width (Each) 120"
Overall Working Surface 120" x 1184.1"
Overall Footprint, Approx. 1296" x 390.1" x 294.4"
SPECIFICATIONS:
Ram Cross Section 20" X 20"
Spindle Speeds, Vertical Head To 6000 RPM
Spindle Speeds, Right Angle Head To 6000 RPM
Spindle Taper CAT 50
Spindle Rotation Programmable Bi-Directional
Speed Steps 1 RPM Increments

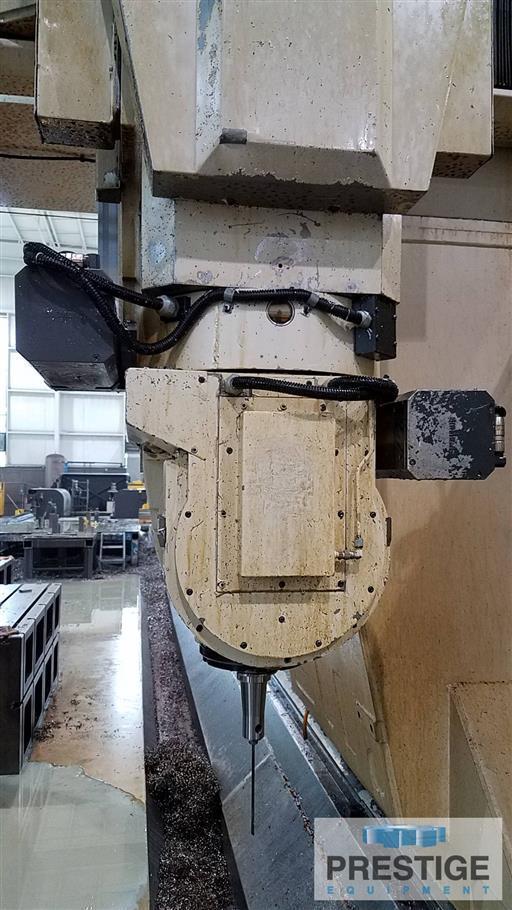

5-AXIS GIMBAL HEAD:
Spindle Taper No. 50 Big Plus
Spindle Speeds 6000 RPM
A-Axis +100 Degrees/-90 Degrees
C-Axis 360 Degrees
Power 40 HP (Continuous Duty)
Distance, Ram Face to Pivot Point...... 18.78" 18.78"



Equipped With:
Siemens Sinumerik 840D CNC Control
63-Station Automatic Tool Changer
3-Station Head Stand, AAC
6,000 RPM Vertical Head, Big Plus
6,000 RPM Right Angle Head, Big Plus
6,000 RPM 5-Axis Gimbal Head
Hinge Belt Type Coolant and Chip System on X & Y
Thru-Spindle Coolant
Flood Coolant
5-Station Tool Rack
Spindle Probe System
Coolant & Chip Conveyor System


NOTE: Inspect Under Power
