Lathes CNC
Brand
Category
Type
Model

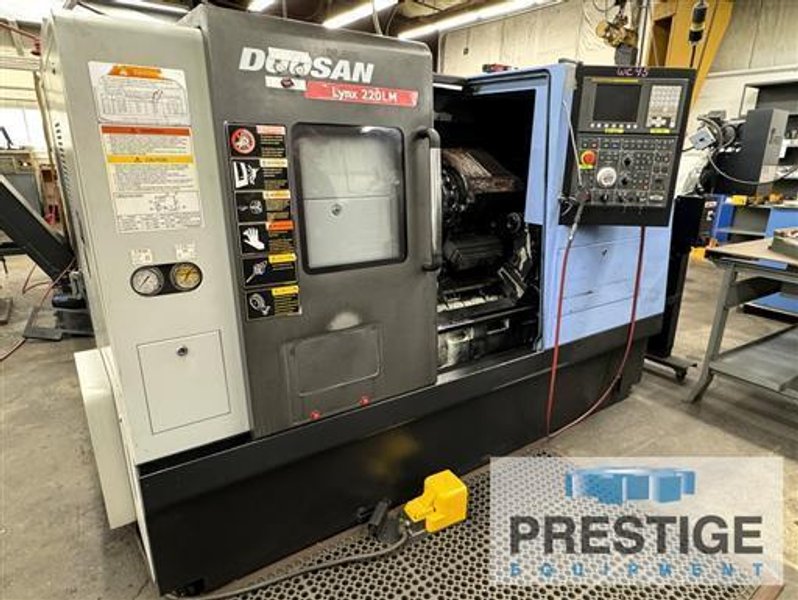

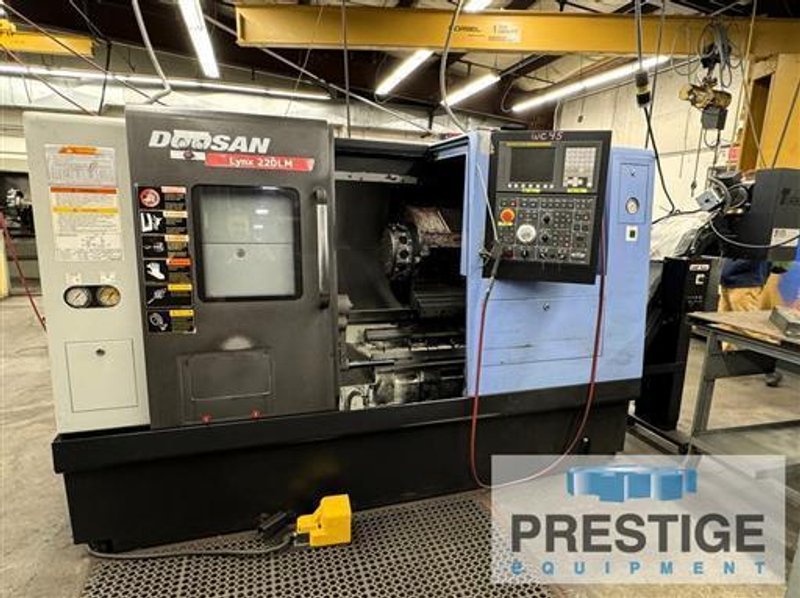

Lynx 220LMA
Stock #
43296
Year
2007
Condition
Not specified
Location
Not specified
|
CAPACITIES:

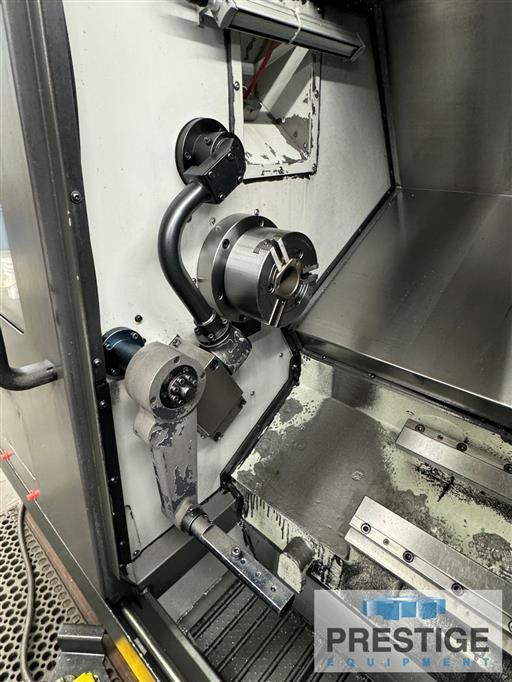

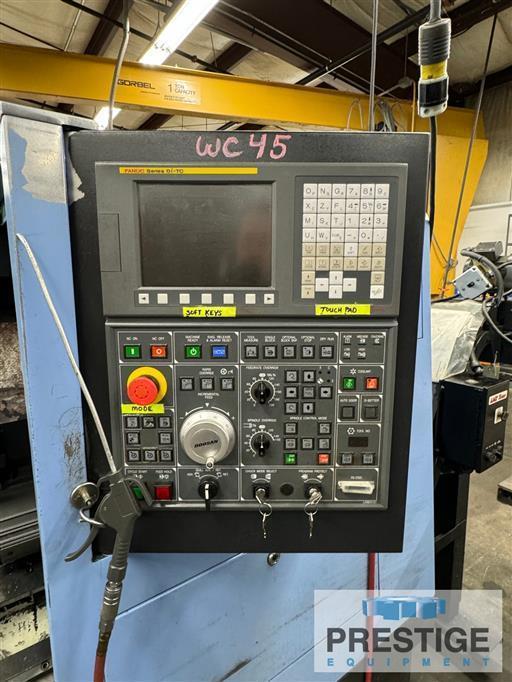

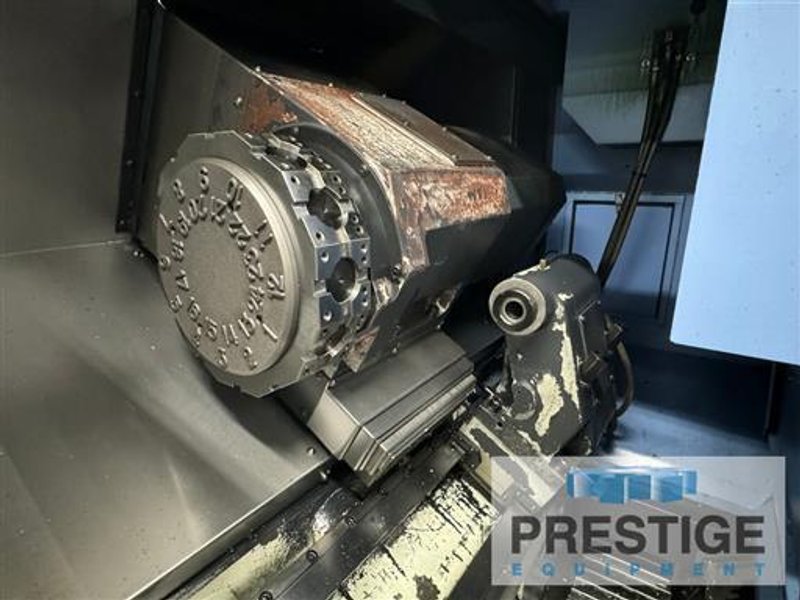

Swing Over Bed 20.1" Swing Over Saddle 11.4" Max. Turning Diameter 9.8" Distance Between Centers 20.1" Max. Turning Length 20.1" Chuck Capacity 6" Bar Capacity 2" X-Axis Travel 6.9" Z-Axis Travel 21.7" Spindle Speed 6000 RPM Spindle Motor 20 HP/15 HP Spindle Nose A2-5 Number of Tool Stations 12 Number of Indexing Stations 24 Rotary Tool Speed 6000 RPM Rotary Tool Motor 5 HP Tailstock Quill Diameter 2.6" Tailstock Quill Bore Taper MT #4 Tailstock Quill Travel 3.1" Rapid Traverse, X-Axis 1181 IPM Rapid Traverse, Z-Axis 1417 IPM Cutting Feed Rate 19.7 IPM Machine Dimensions 103.5" x 63" x 65.2" Approximate Machine Weight 3300 Lbs. Equipped With: Fanuc 0i-TC Series CNC Control 12/24-Position Turret Live Milling & C-Axis Part Catcher Tool Eye Tailstock Turbo Chip Conveyor |
