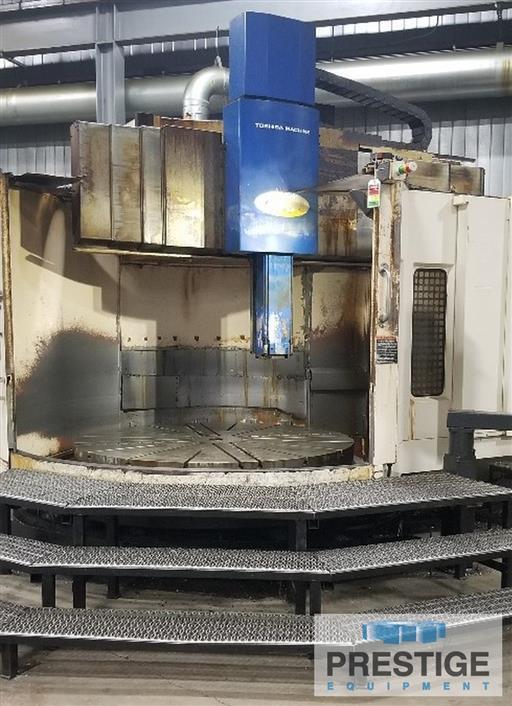

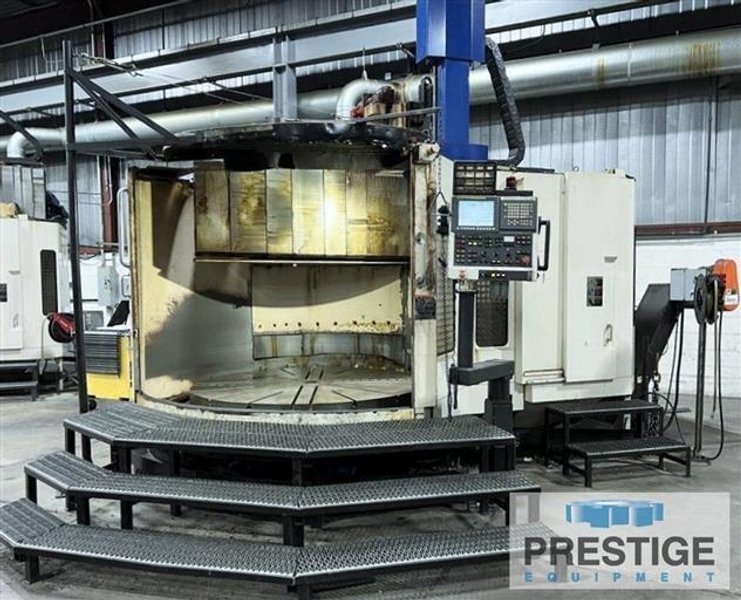

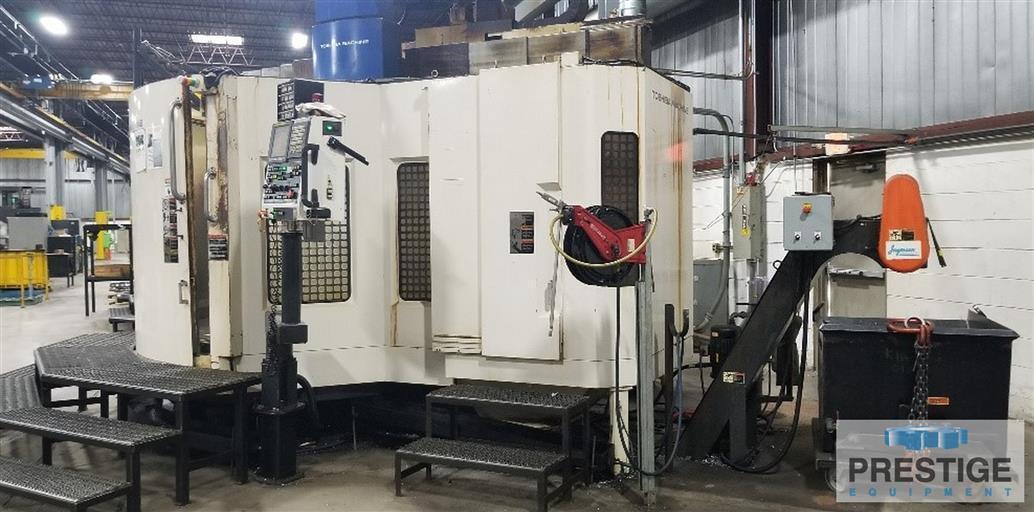

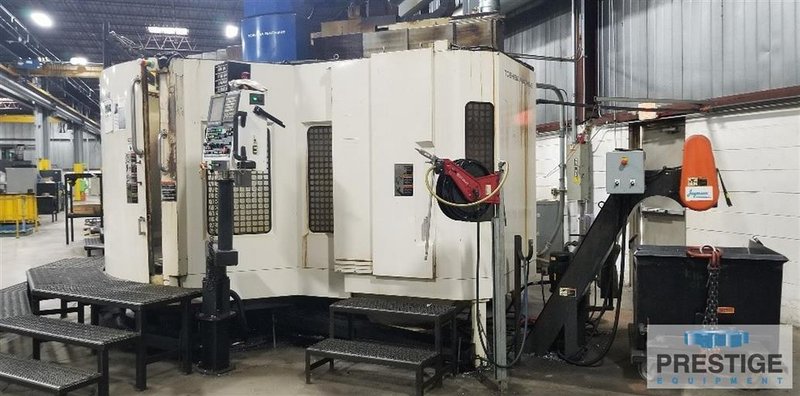

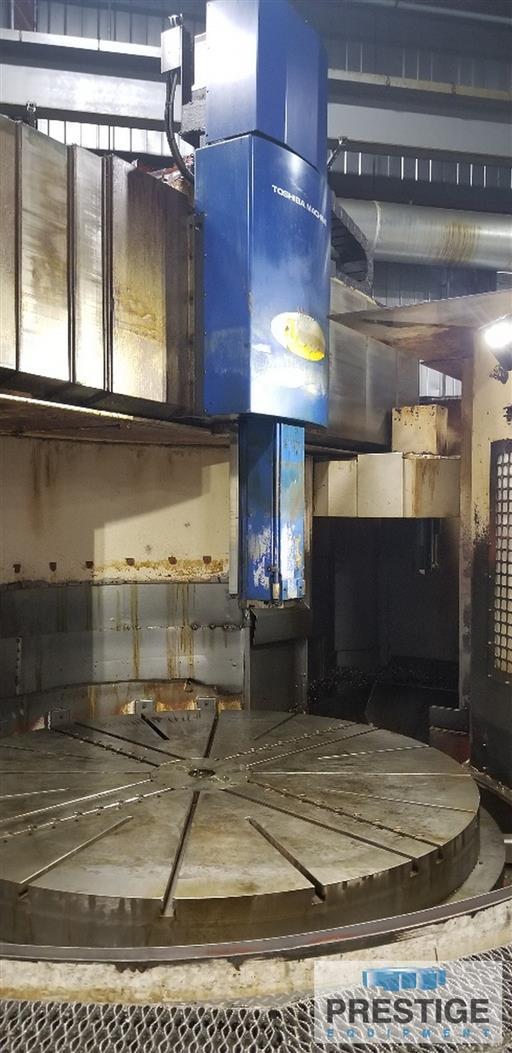

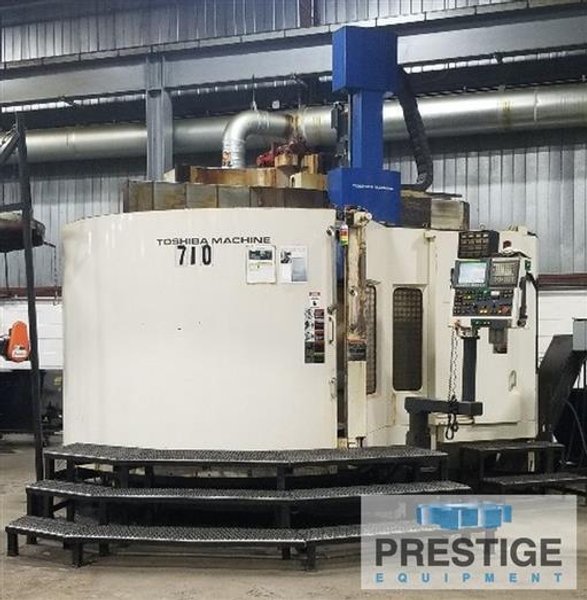

Boring Mills Vertical CNC

Serial Number440543
CAPACITY:
Table Diameter 78.74"
Maximum Swing 90.55"
Maximum Cutting Height 67.71"
Vertical Travel of Ram 35.4"
Vertical Travel Of Cross Rail 41"
Rapid Traverse of Rail Head 393.7 IPM
Table Speeds: Inf Variable, 2-Speed 1-200 RPM
Table Load Capacity 33,000 LBS
Rapid Traverse, X-Axis 393.74 IPM
Rapid Traverse, Z-Axis 295.27 IPM
Maxiumum Tool Weight 200 Lbs
Machine Weight 47,840 LBS
Total Power Requirement 85 KVA
Electric Requirement 220/50/60 Cycle



Equipped With:

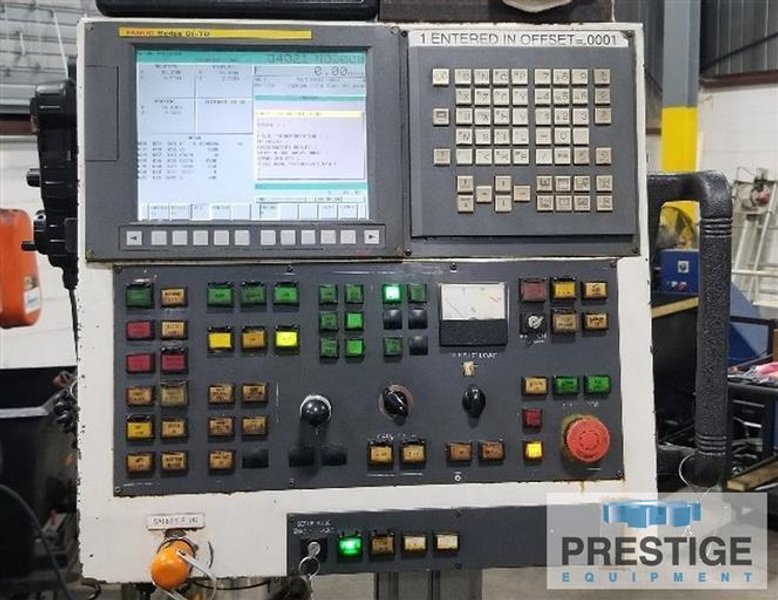

Fanuc Oi-TC CNC Control
12-Position Automatic Tool Changer

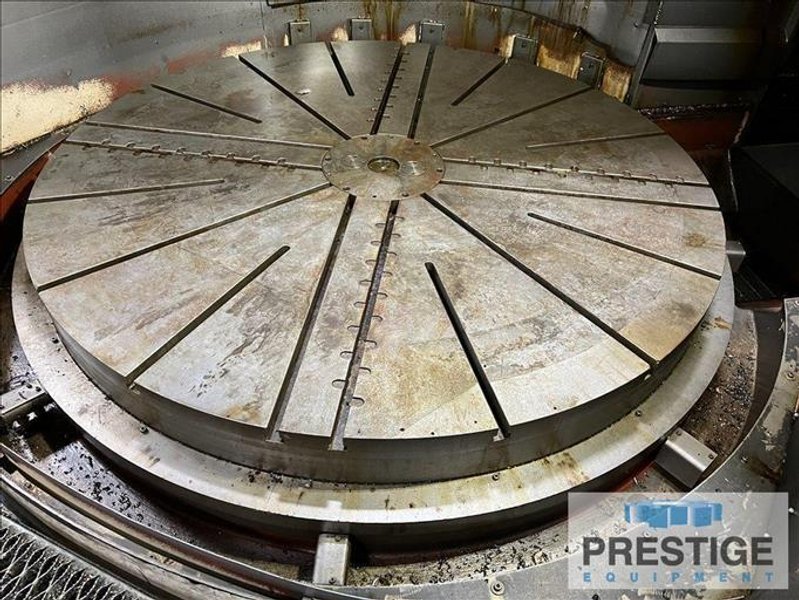

78.74" Diameter Table W/4-Face Plate Jaws

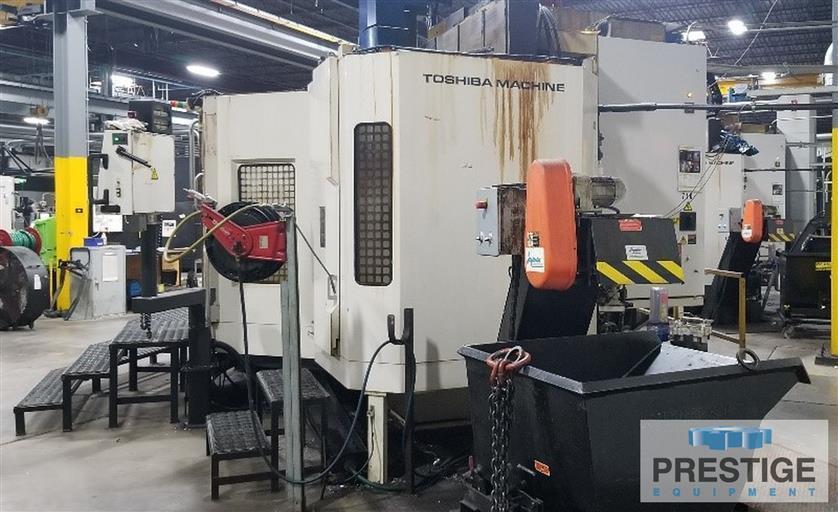

Chip Guards & Chip Conveyor
Telescopic Steel Way Covers on Cross Rail
Probe
60 HP Table Drive Motor


NOTE: Inspect In Plant Under Power!
