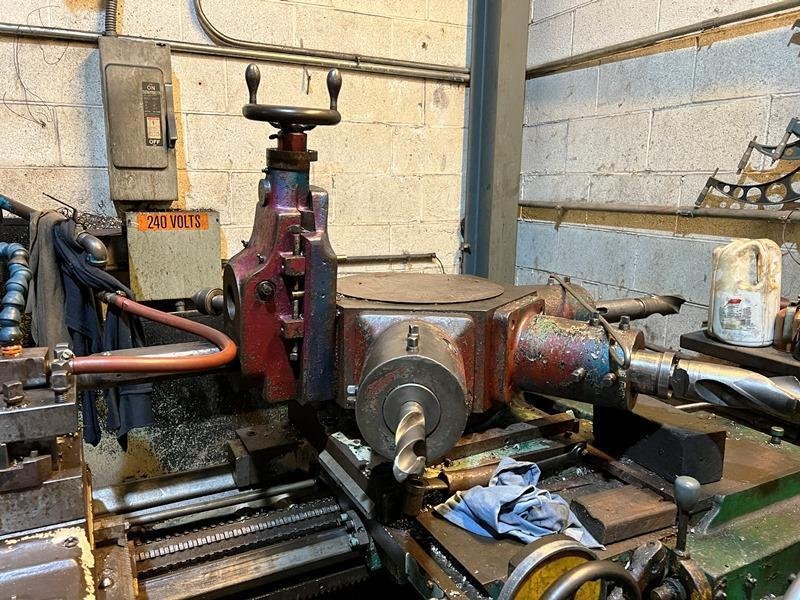

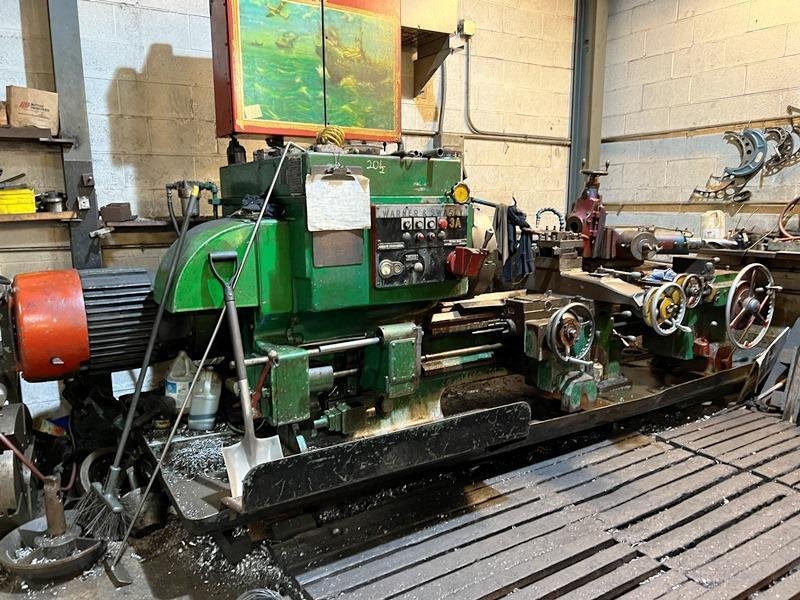

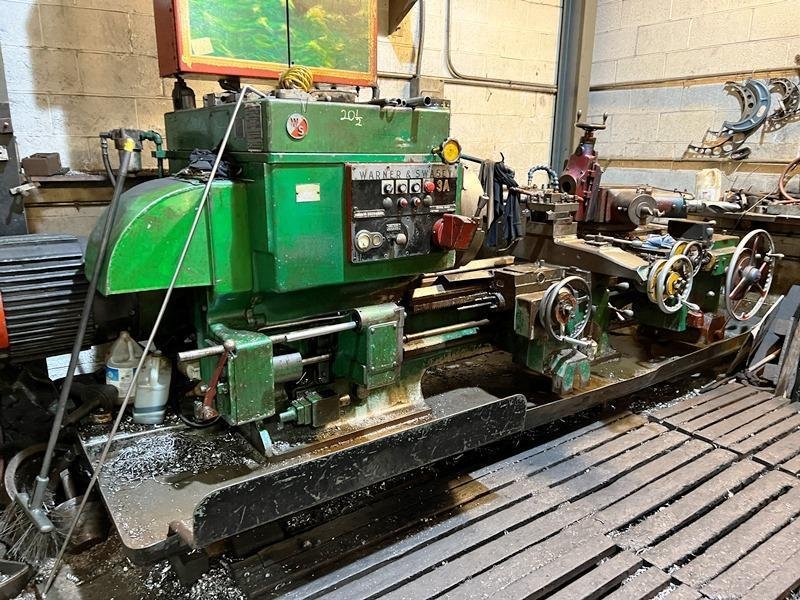

NO. 3A WARNER & SWASEY M3500 SADDLE TYPE TURRET LATHE

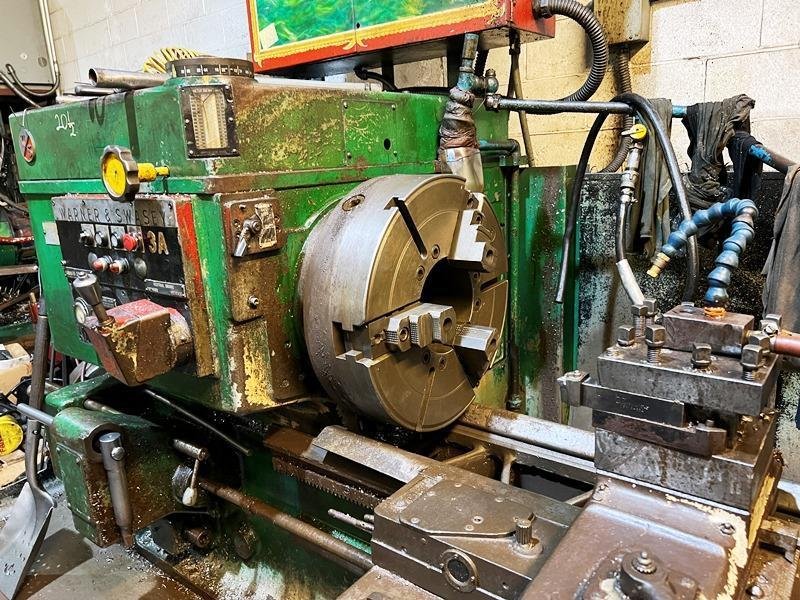

New 1969 Motor Driven with 40/20 HP, 3-Phase, 60 Cycle, AC Motor & Controls EQUIPPED WITH: 20" 3-Jaw Chuck, 4-Way Tool Post, Misc. Tool Holders, Hard Ways SPECIFICATIONS: Swing Over Bedways 24" Swing Over Carriage 18" Spindle Nose to Turret 58-3/4" Hole Thru Spindle 6-1/4" Spindle Speeds (32) 12 To 851 RPM Carriage Longitudinal Feeds (16) .005 to .167 IPR Carriage Cross Feeds (16) .002 to .082 IPR Turret Longitudinal Feeds (16) .005 to .167 IPR Turret Cross Feeds (16) .003 to .096 IPR Max. Turning Length 44-1/4" Approximate Dimensions 193" x 84" Approximate Weight 15,500 Lbs. |
