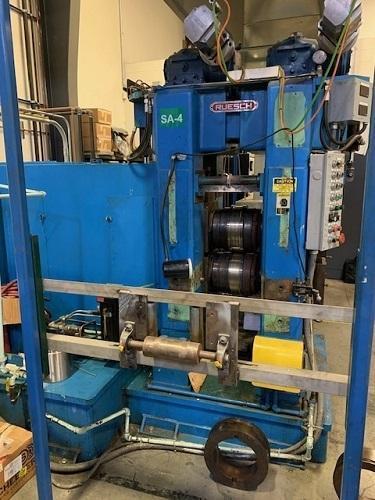

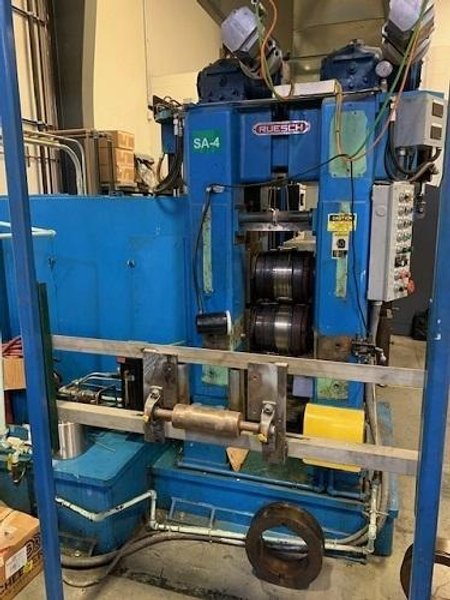

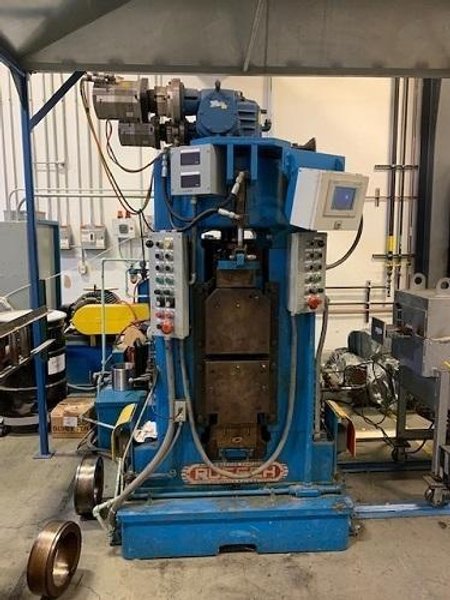

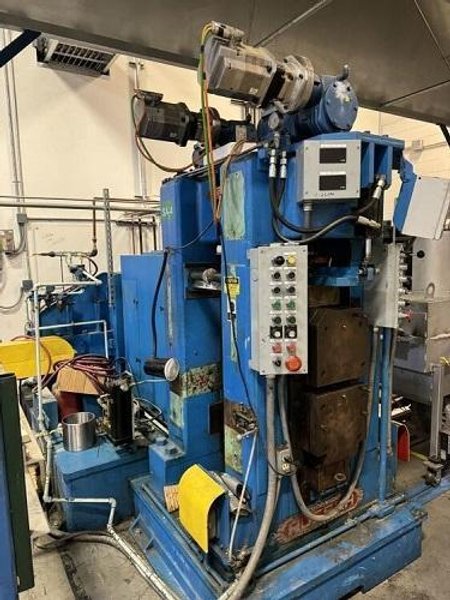

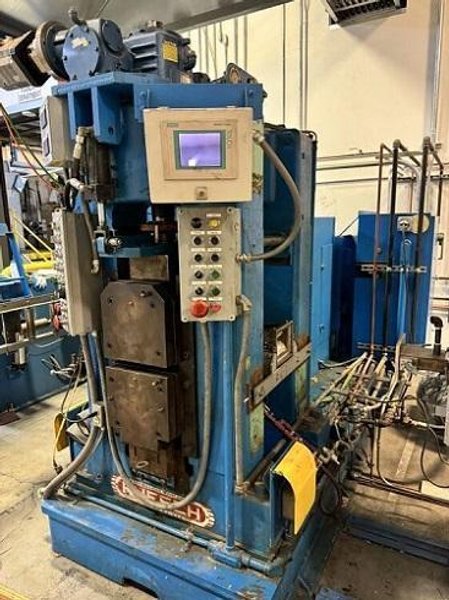

12" (305mm) X 12" (305mm) RUESCH 2 HIGH REVERSING ROLLING MILL

12" (305mm) x 12" (305mm) Ruesch 2 High
Stock # 14280

MANUFACTURER:                         RUESCH MACHINE CO. (USA)
TYPE:                                 2 HIGH REVERSING ROLLING MILL
PREVIOUS USE:                         BREAKDOWN MILL FOR GOLD AND SILVER
                                      INTERMEDIATE MILL FOR COPPER/STEEL/ALUMINUM
                                      CLADDING/BONDING MILL FOR DUAL STRIP

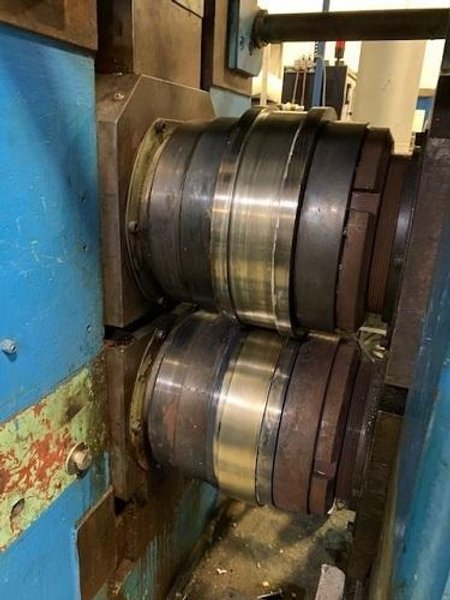

ROLL SIZE:                            12" (305MM) DIA. x 12" (305MM) FACE WIDTH
ROLL BEARINGS:                        ROLLER BEARING
SCREWDOWNS:                           ELECTRO-MECHANICAL
MAXIMUM ROLL OPENING:                 4.25" (108MM)
MILL STAND CROSS SECTION:             9" (228MM) x 10" (254MM)
WINDOW WIDTH:                         13-1/4" (336MM) x 41" (1041MM) HIGH
DIRECTION OF TRAVEL:                  RIGHT TO LEFT IF USED AS A CLADDING MILL
                                      REVERSING CAPABILITY AS A STAND-ALONE MILL

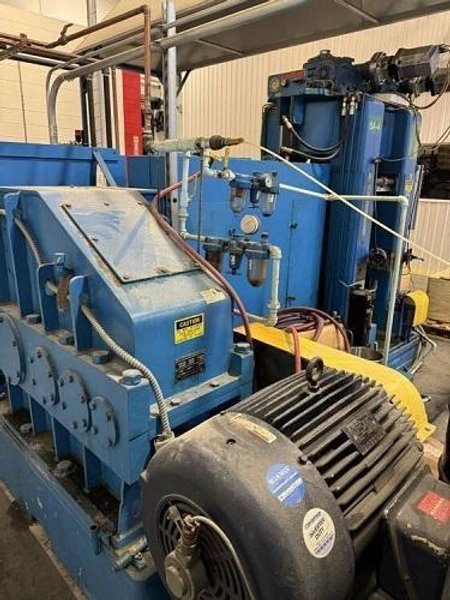

MILL STAND DRIVE MOTOR:               50 HP, 230/460 VOLTS, 1750 RPM, 3 PHASE,
                                      60 HZ VARIABLE SPEED

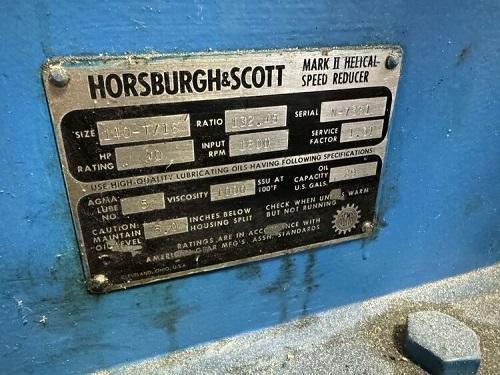

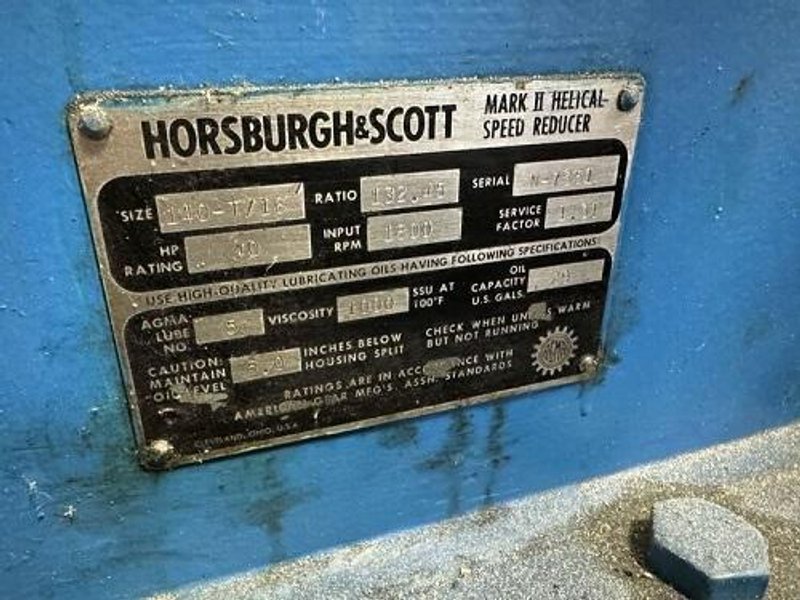

GEAR BOX:                             HORSBURGH & SCOTT RATIO 137.45 TO 1
MILL SPEED:                           0 - 80 FPM (0 - 25 M/MIN)
A.C. VARIABLE SPEED DRIVE:            PARKER A.C. INTEGRATOR 690+ SERIES WITH
                                      HTTL ENCODER

PAYOFF:                               BUYER MUST SUPPLY

ROLLING MILL:                         AS PER SPECS ABOVE

WINDER:
-ENTRY STRIP SIDE GUIDES
-PNEUMATIC STRIP HOLD-DOWN ROLLS
-WINDER MANDREL:                      2-1/2" (63.5MM) DIAMETER
                                      9" (228MM) WIDE
-VARIABLE SPEED CONTROLS

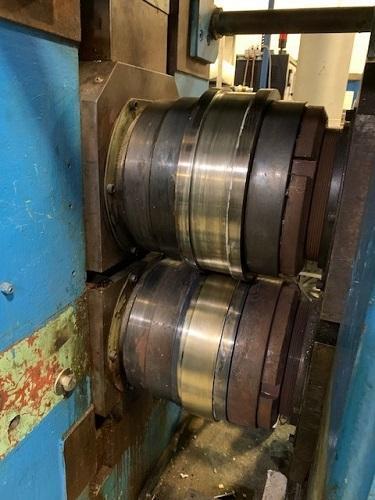

NO. OF ROLLS:
-FLAT ROLLS:                          1 SPARE SET
-SHELL ROLLS:                         1 SET IN MILL

FLOOR SPACE:
-MILL STAND ALONE:                    124" (3150MM) WIDE X 138" (3505MM) DEEP


**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
