SERIAL ................................ 306

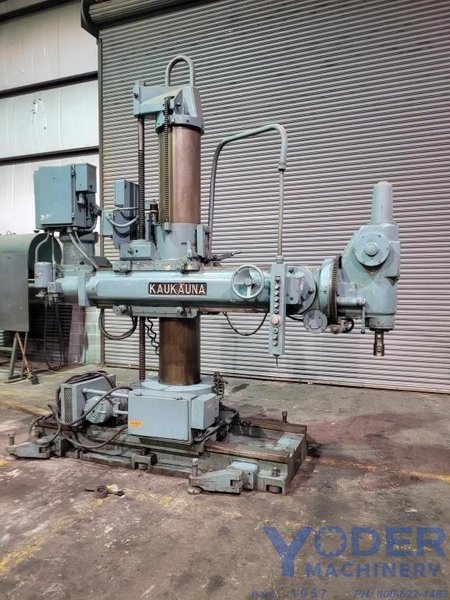

MODEL ................................. 125U-44

LENGTH OF ARM ......................... 4'

DIAMETER OF COLUMN .................... 14"

SPINDLE SPEEDS ........................ (9) 45 TO 800 RPM

SPINDLE FEEDS ......................... (3) .003..007.012 IPR

RAPID TRAVERSE ........................ 80" IPM

SPINDLE TRAVEL ........................ 12"

VERTICAL HEAD TRAVEL OF COLUMN ........ 54"

HORIZONTAL ARM TRAVEL ON HEAD ......... 24"

HORIZONTAL TRAVEL OF COLUMN ........... 48"

SWIVEL OF COLUMN ON BASE............... 360 DEGREES MANUAL

SWIVEL OF TRUNNION .................... 180 DEGREES

SWIVEL OF SPINDLE ..................... 90 DEGREES

TAPER IN SPINDLE ...................... #4 MT

POWER ELEVATION ....................... YES

ARM TRAVERSE .......................... YES

PENDANT CONTROL ....................... YES

MAIN MOTOR ............................ 7-1/2 HORSEPOWER

TRAVELING BASE MOTOR .................. 3 HORSEPOWER
