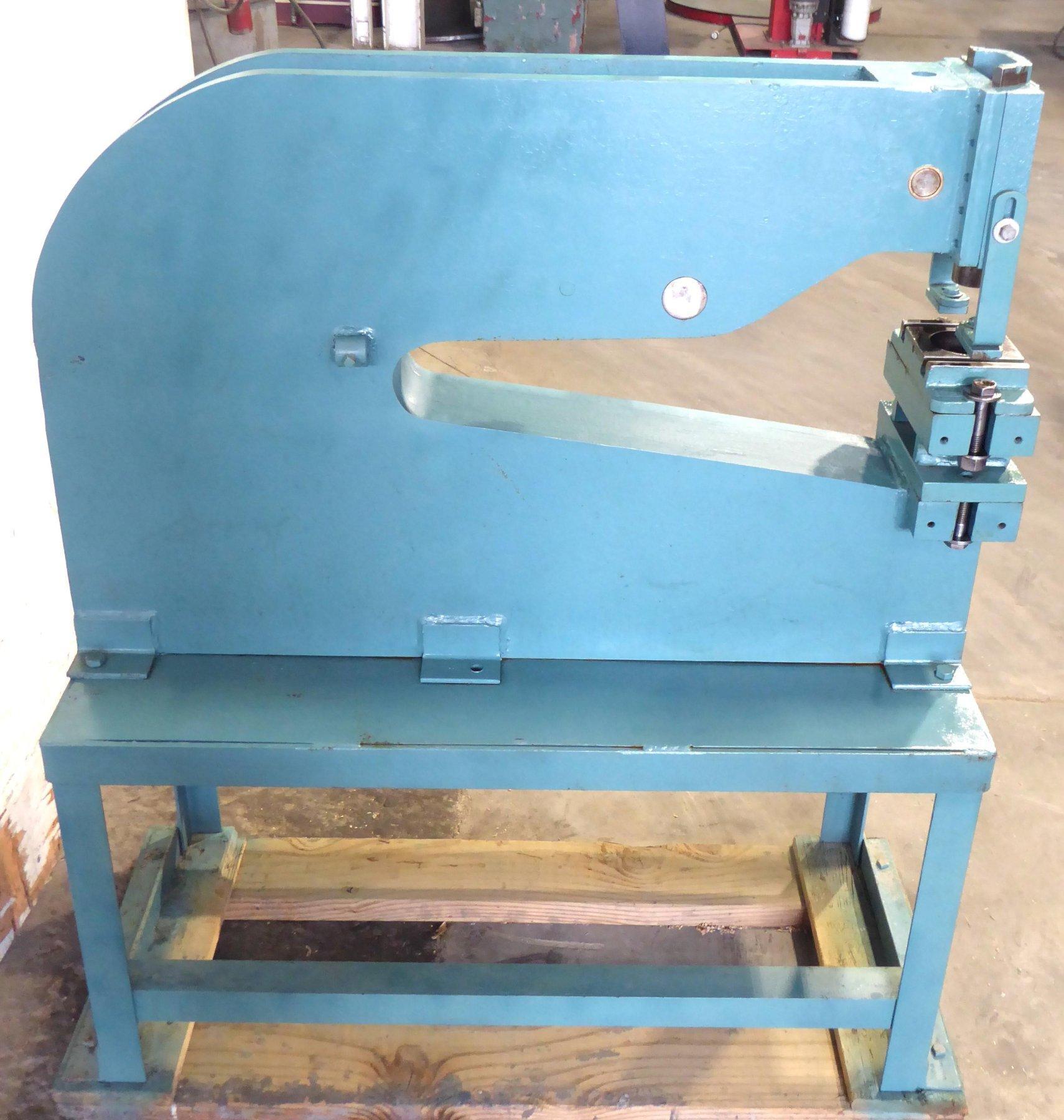

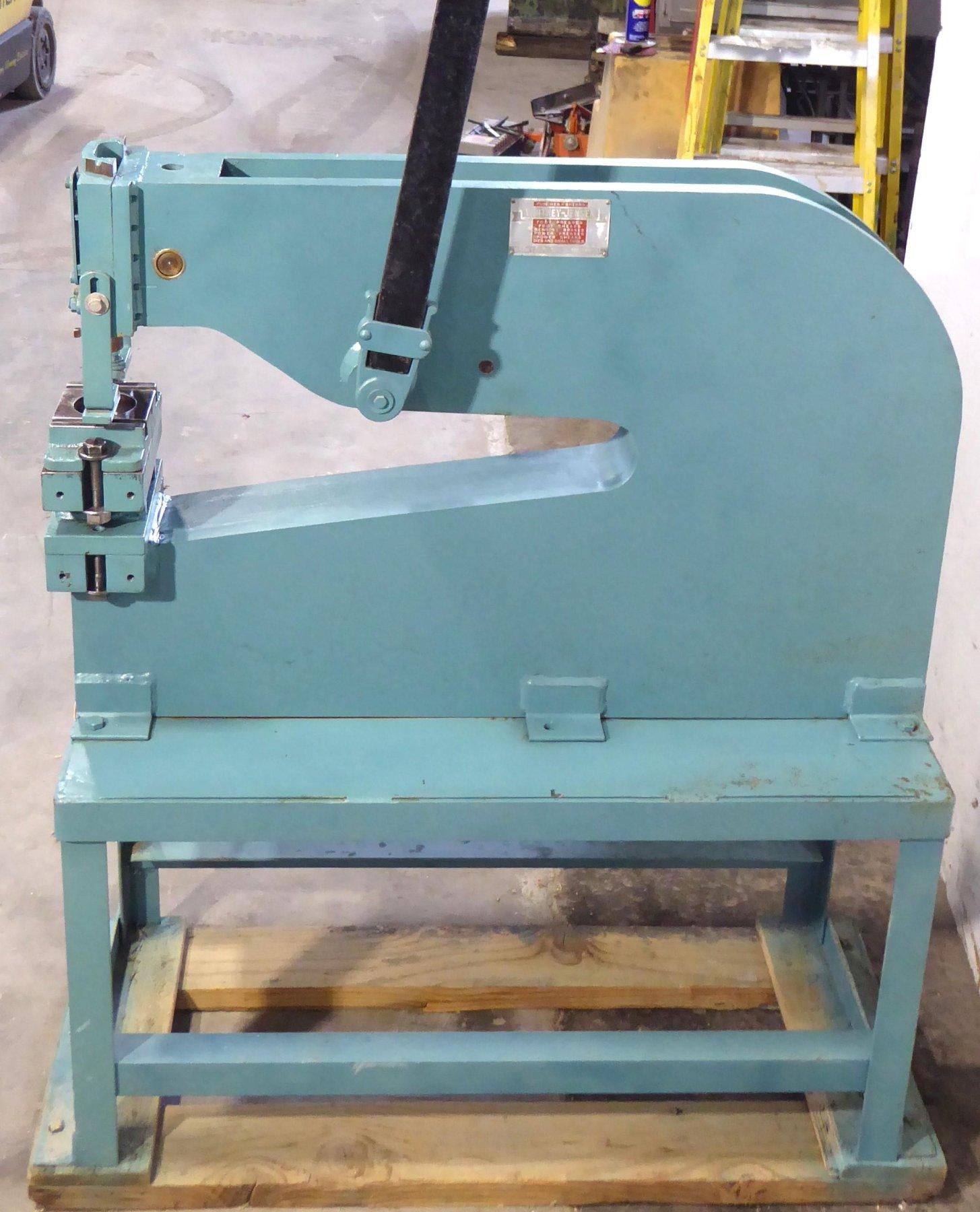

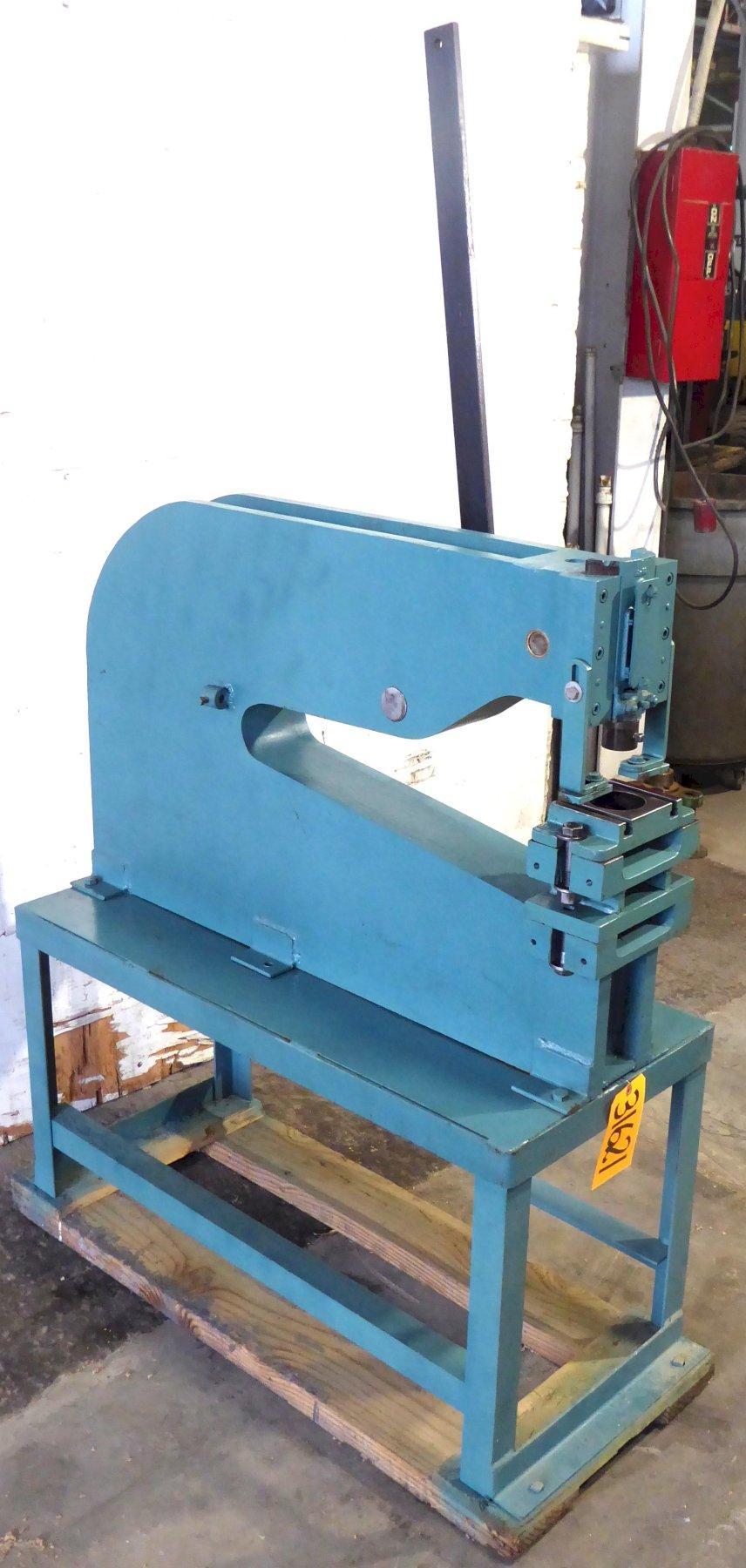

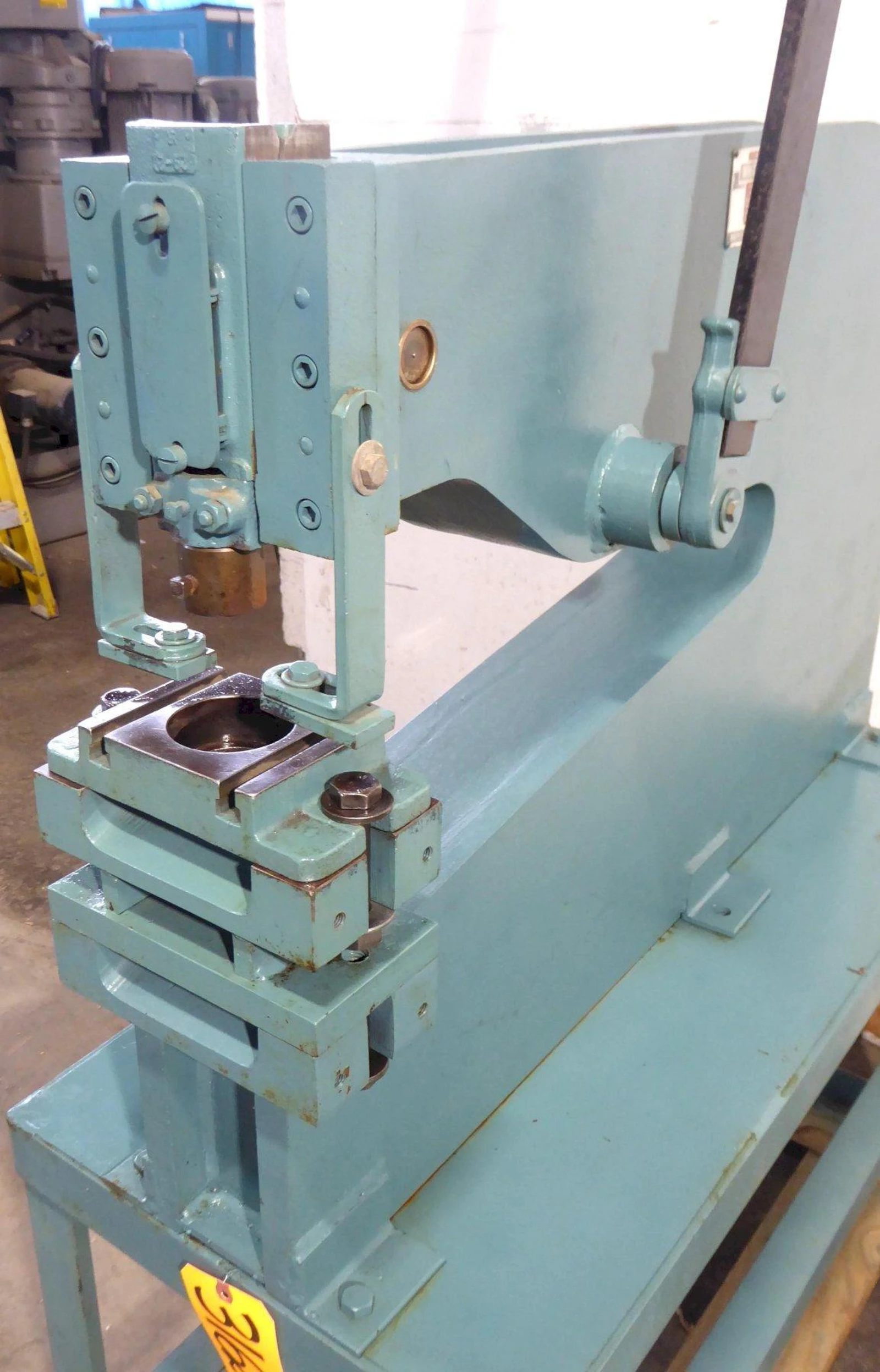

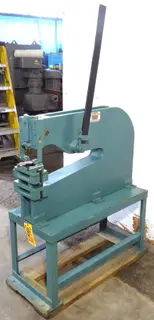

8 Ton Whitney-Jensen Lever Press/Punch , No. 34, 24" Throat

Brand
WHITNEY JENSEN
Category
Punching Equipment
Type
Punches, Fabricating
Model
34
Stock #
31621
Year
Not specified
Condition
Used

Location

Ohio
REQUEST FINANCING
WHITNEY-JENSEN DEEP THROAT LEVER PRESS/PUNCH

MODEL: 34
SERIAL NUMBER: 357 7 58

GENERAL SPECIFICATIONS

Capacity: 8 Ton
Punch Capacity: 1/2" Round Thru 3/16" Mild Steel
                           1-3/4" Round Thru 12 Gauge
Depth Of Throat: 24"
Height Of Throat-At Ram: 10"
Length Of Stroke: 1"
Die Space, Less Die Shoe Support: 10"
Die Space, With Die Support In Position: 6"
Diameter Of Punch Shank Hole In Ram: 1"
Depth Of Punch Shank Hole In Ram: 1-1/4"
Slug Clearance: 3" x 5"
Bed Plate Holes-Center To Center: 6-3/4"

Approximate Weight: 750 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
