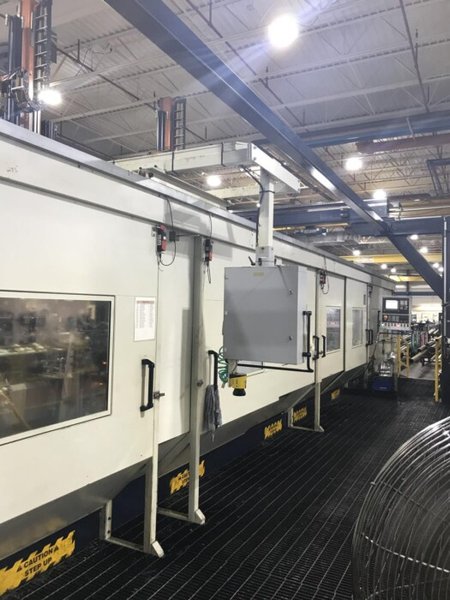

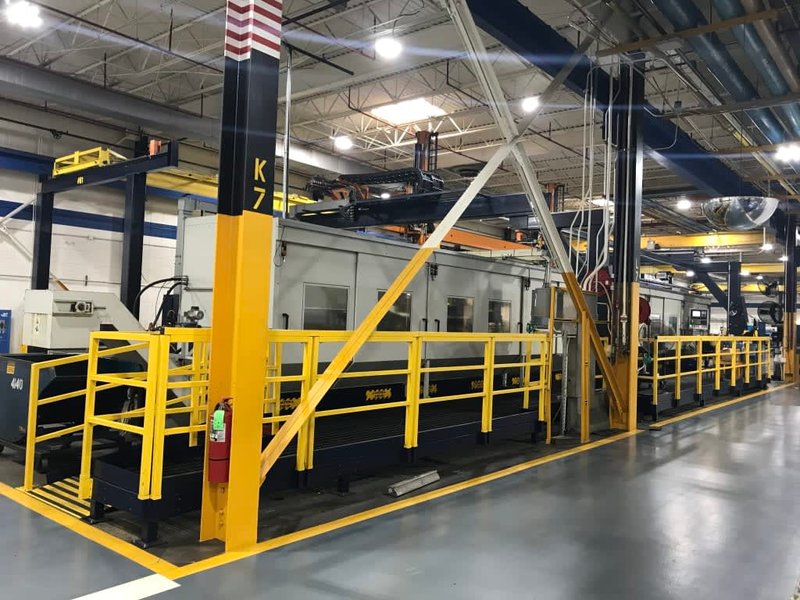

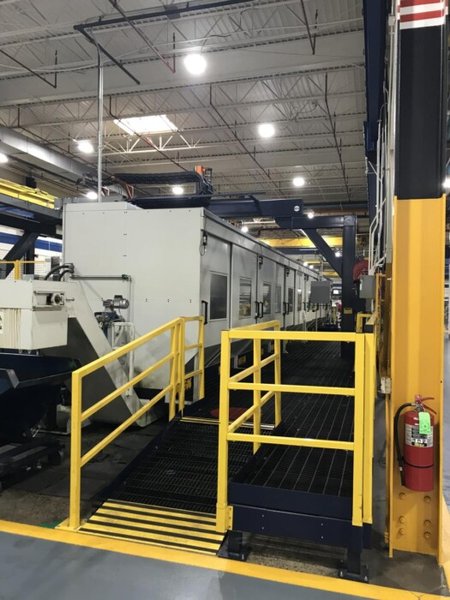

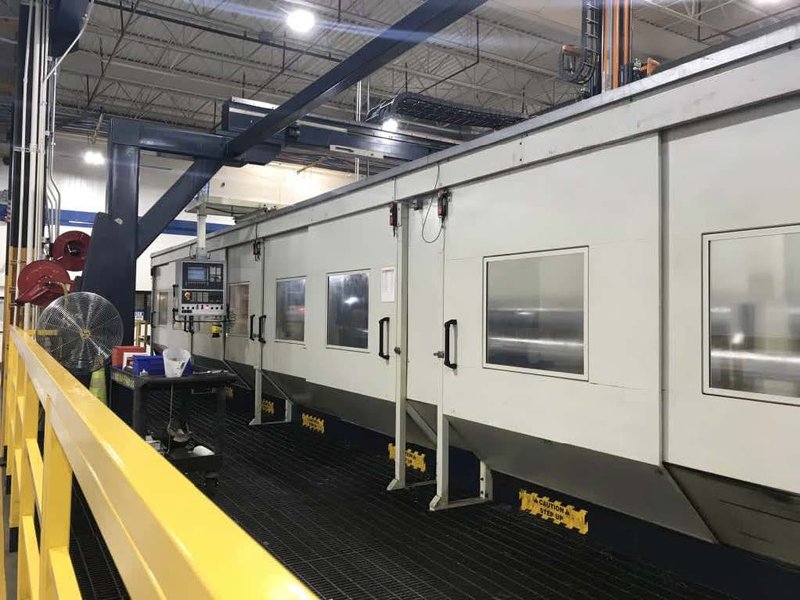

Hirscheider Enduro V800-12000 End Finishing Machine

Hirscheider Enduro V800-12000 End Finishing Machine

Brand

HIRSCHEIDER

Description

Product: Hirscheider Enduro V800-12000 End Finishing Machine
Model: Enduro V800-12000
Stock #: 60427-IS
Serial No.:
Year: 2012

Specifications:


Part Diameter (min)	85mm, 3.346"
Part Diameter (max)	265mm, 10.43" (can be retrofit to 400mm, 15.75")
Part Length (min)	1m, 39.37"
Part Length (max)	12m, 472.44"
Z Axis	27.559"
X Axis	-.984" to .984"
U, Y Axis	-5.158" to 5.158"
XX, YY Axis	-.0276" to .0276"
Rapid Rates (U, Y, Z, X)	1,181 IPM
Spindle Power	15 KW, 20 HP
Spindle Speed Range	10 - 1,000 RPM
Spindle Tool Clamping	Capto C8
Tool Holding (Grippers)	HSK 63
Tool Magazines	(2) 32 Tools Each

Equipped With:

Siemens 840 D CNC Control

Small Jaws (Part Clamping) 85mm – 200mm

Large Jaws (Part Clamping) 165mm – 265mm

High Pressure (319 PSI) Coolant System
