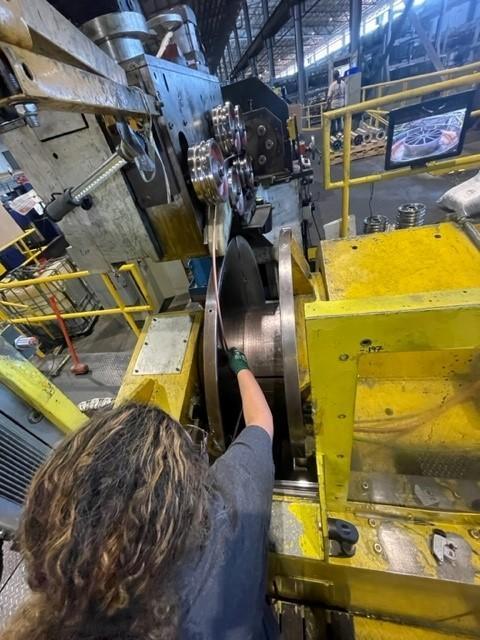

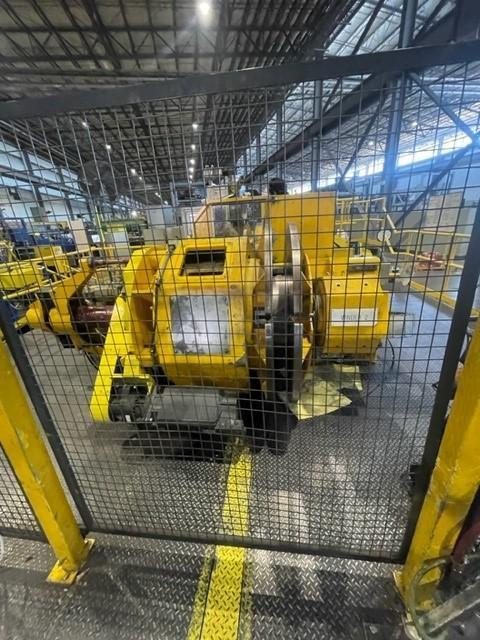

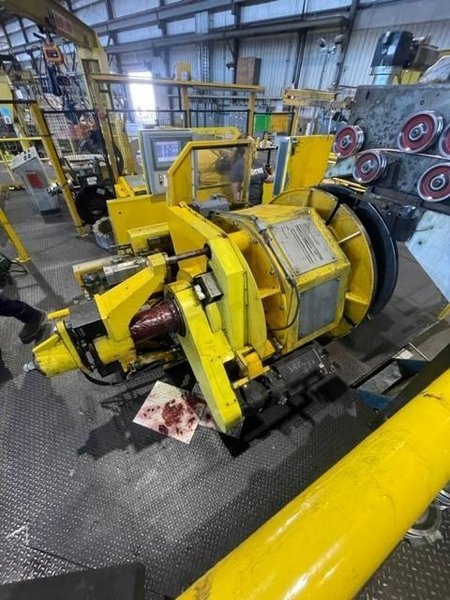

ASMAG COPPER TUBE LEVEL WINDER
Brand
Category
Model
Not specified
Stock #
116344
Year
Not specified
Condition
Used
Location
Not specified
|
MANUFACTURER – ASMAG
TYPE – COPPER AND COPPER ALLOY TUBE LEVEL WINDER
SHAPE – ROUND TUBES
CONDITION – HARD DRAWN
TUBE OD RANGE – 12MM – 35MM
WALL THICKNESS - 1.5MM
LINE DIRECTION – RIGHT TO LEFT
MAIN POWER – 3 X 480 VAC, 60 HZ
WINDING SPEED – 350M/MIN MAXIMUM
LEVEL WOUND COIL
OUTSIDE DIAMETER - (FLANGES)– 1360MM MAX
INSIDE DIAMETER – 625MM (24”) OR 860MM, MODIFIED 660MM (26”)
WIDTH (STEPLESS ADJUSTABLE) - 100 – 500MM
WEIGHT – 500 KG MAX
BASKET DATA
OUTSIDE DIAMETER – 3,050MM
HEIGHT – 550 OR 1000MM
TOTAL WEIGHT (BASKET & COIL) – 900 KG MAX
|
