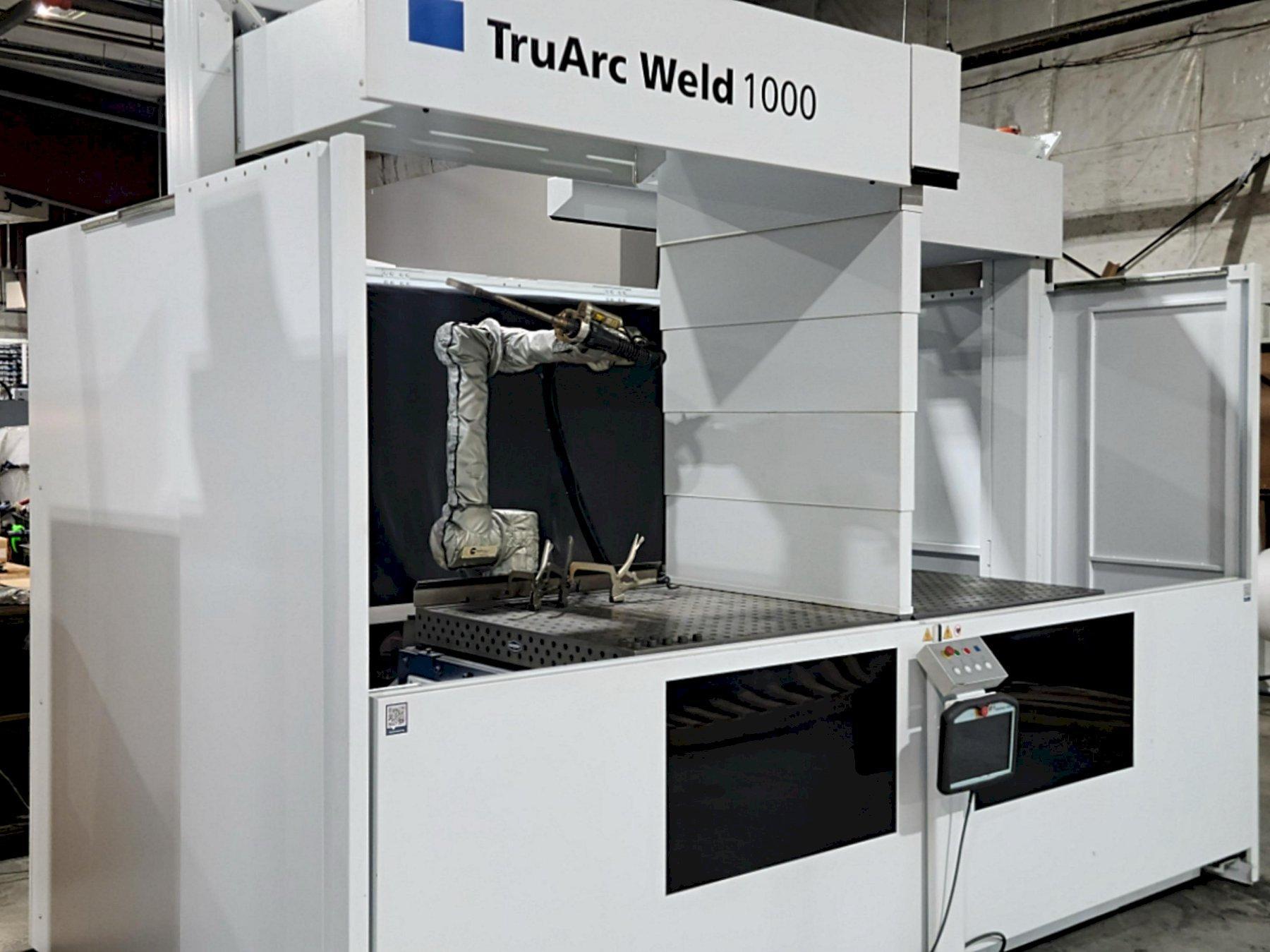

Robotic Arm | Collaborative Industrial |
Number of Axes | 6 |
Range | 51.18” |
Repeatability | ±0.0019” |
Welding Source | Fronius TPS 320i C PULSE |
MIG/MAG Welding Current Range | 3-320 A |
Weld Table Dimensions | 78.74” × 39.37 × 3.93” |
Weld Table Hole Pattern | D16 in a 1.968” × 1.968” |
Typical Max. Component Size (With Closed Telescopic Center Separation) | 23.62” × 23.62” × 23.62” |
Typical Max. Component Size (With Open Telescopic Center Separation) | 78.74” × 23.62” × 23.62” |
Cabin Dimensions | 142” × 97” × 111” |
Weight | 6,481 Lbs. |
Equipped With: Fronius TPS 320i C PULSE Welding Source Welding Package PMC Water-cooled 350 A Torch External Wire Feed System Technology Package 3D Welding Table (Hardened Surface) Housing With Anti-Glare Protection TRUMPF Standard Safety Equipment |
