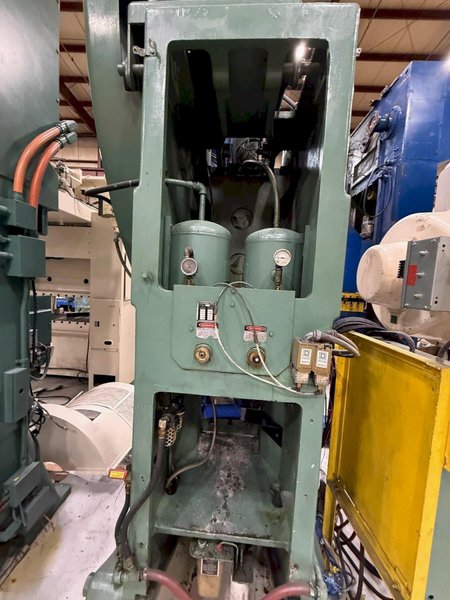

75 ton Minster #7D-SS Die-Namic Mechanical Metal Stamping OBI Single Crank Press For Sale, Year 1983
Brand
Category
Model
#7D-SS
Stock #
2882
Year
1983
Condition
Not specified
Location
Michigan
| Tonnage | 75 |
| Stroke | 6 inches |
| Shut Height | 19 inches |
| Adjustment | 3.75 inches |
| Bed Size | 36" LR x 24" FB |
| Ram Area | 21" LR x 17" FB |
| SPM | 90 |
|
Standard Specifications

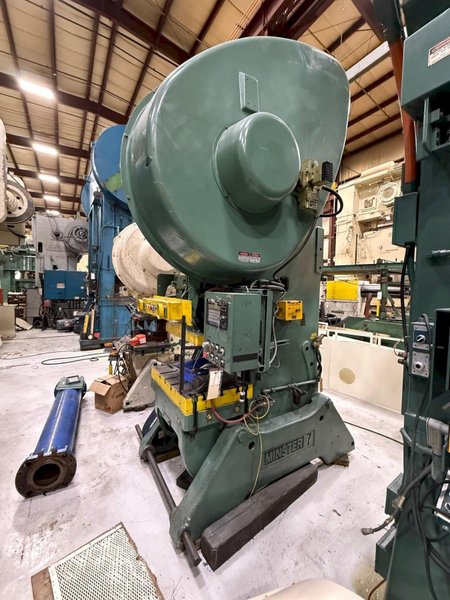

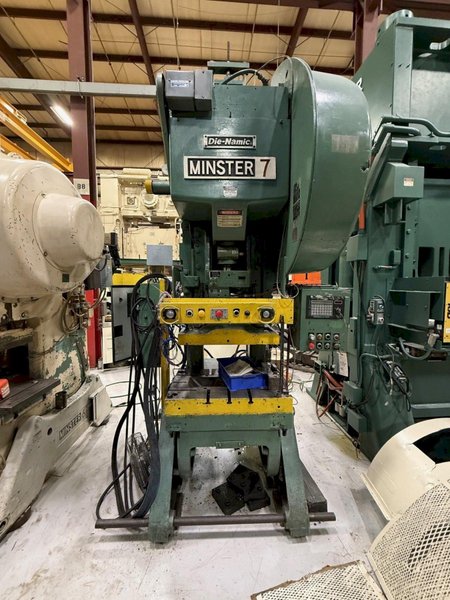

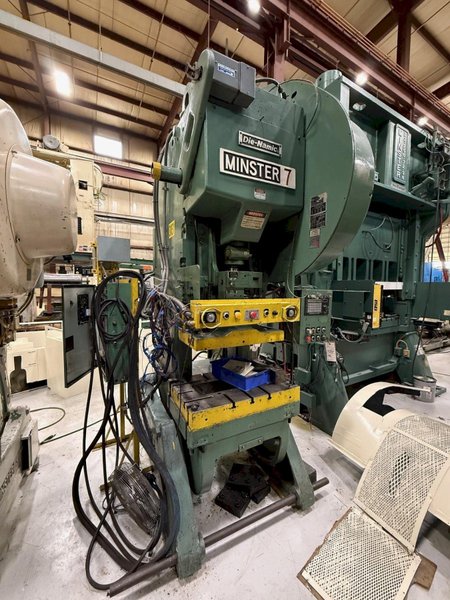

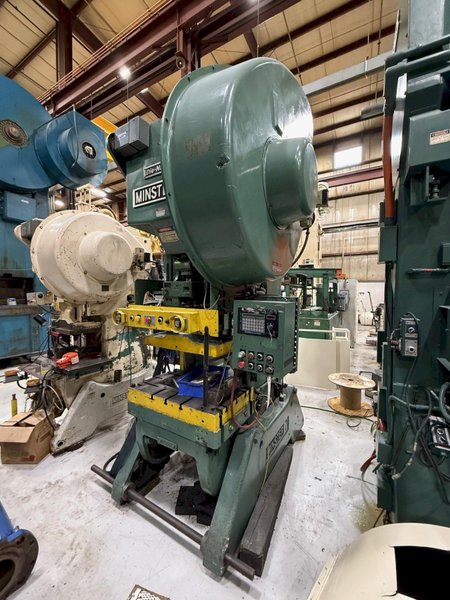

75 ton Minster Single Crank OBI Press

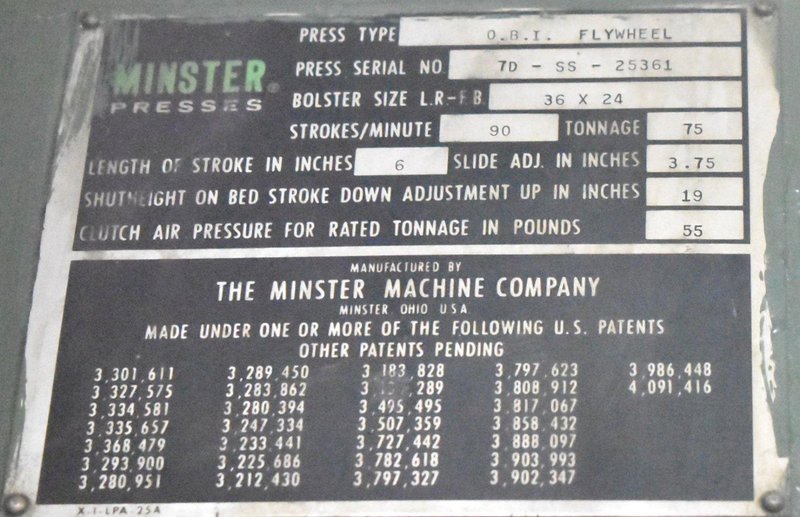

Model#7D-SS - sn/ 25361
75 ton Capacity
7" Stroke
18.5" Shut Height
3.5" Adjustment
36" LR x 24" FB Bed
21" LR x 17" FB Slide Area
90 VSPM
Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
3.5" Thick T-Slotted Bolster
Motors and Controls

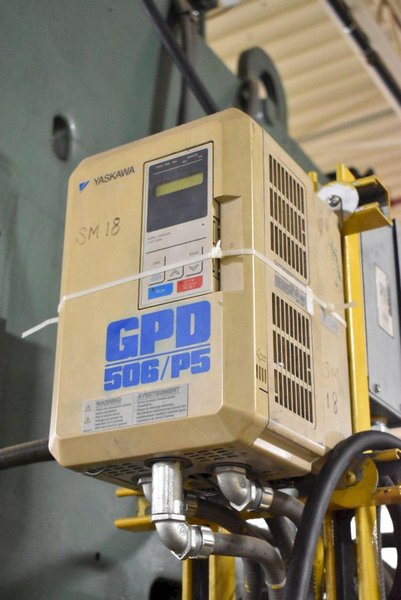

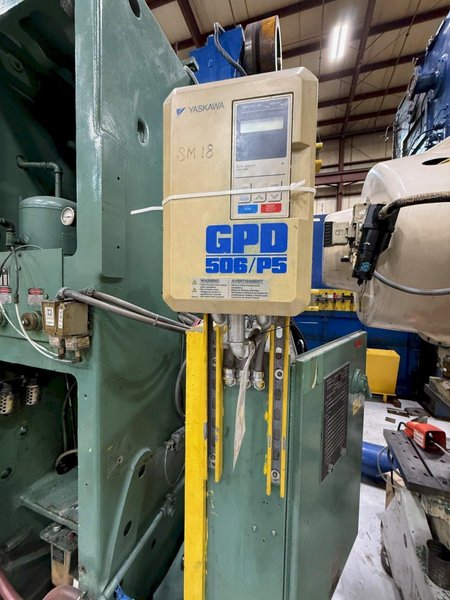

Yaskawa AC Variable Speed Drive Model GPD 506-P5
15 HP - 1800 RPM

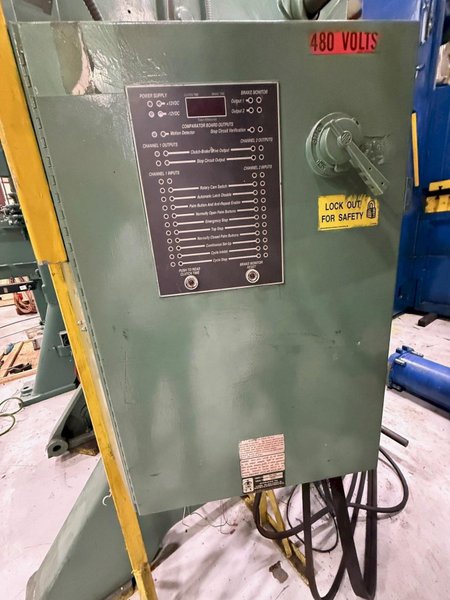

Link 501 Press Controls Link Systems 2500 Programmable Limit Switch
Single, Inch, and Continuous Operation
Flywheel Brake
Palm Button
OBI - Open Back Inclinable Base
Palm Buttons
480 Volt Press Weight: 23,100 lbs.
This Used 75-ton Minster OBI Stamping Press can be seen under power upon request in the S&G Press Livonia MI warehouse!
Minster 75 ton Capacity Mechanical Metal Stamping Single Crank OBI Press For Sale! |
|
