| Max Wire Dia. | 0.375 inches |
|

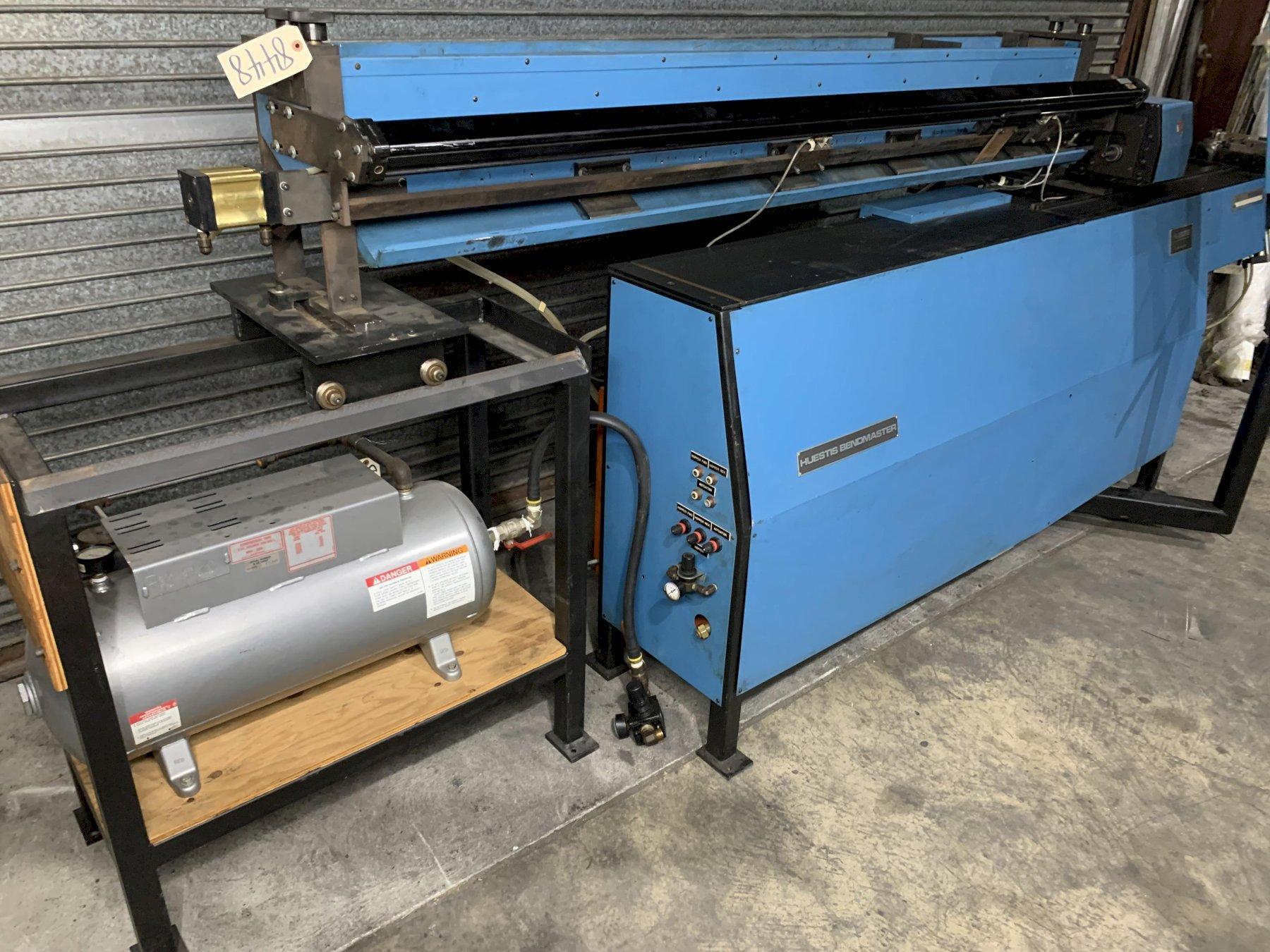

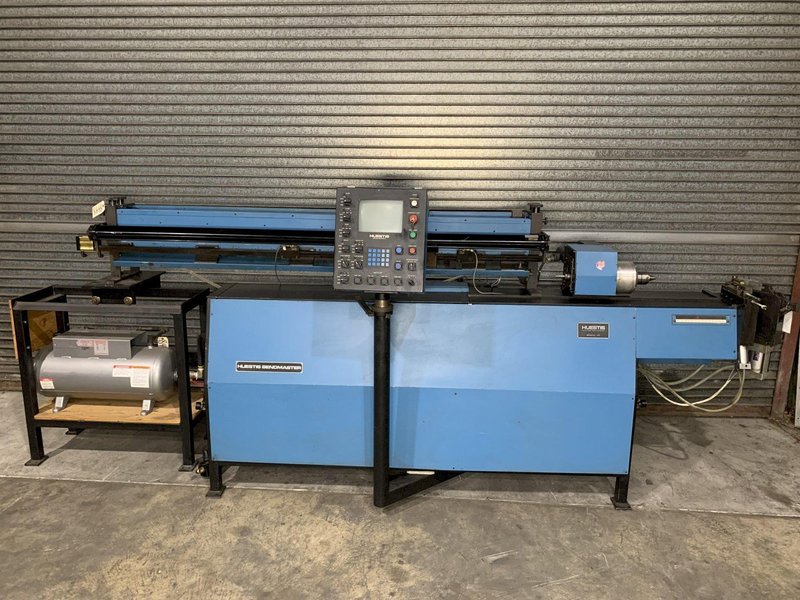

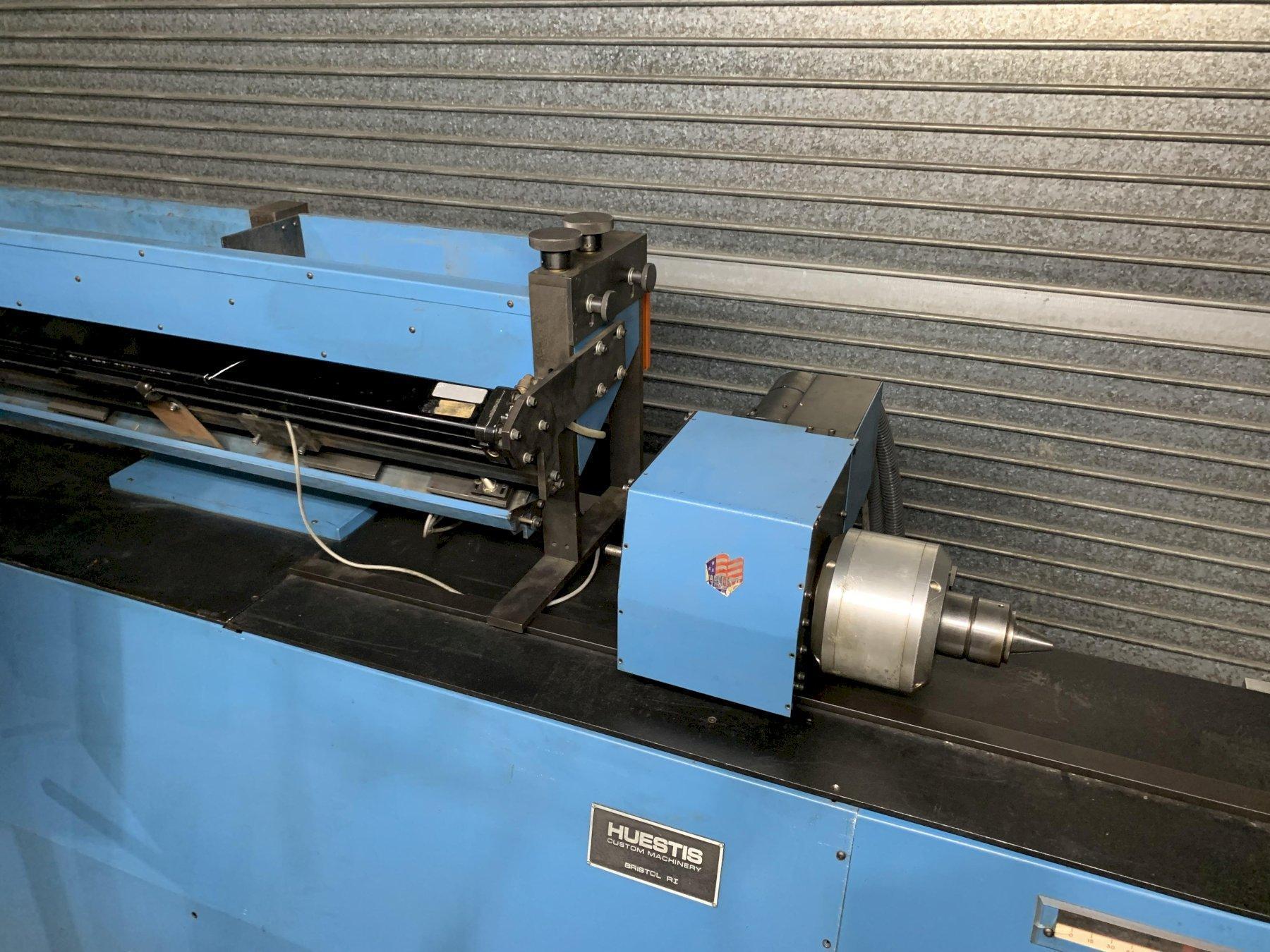

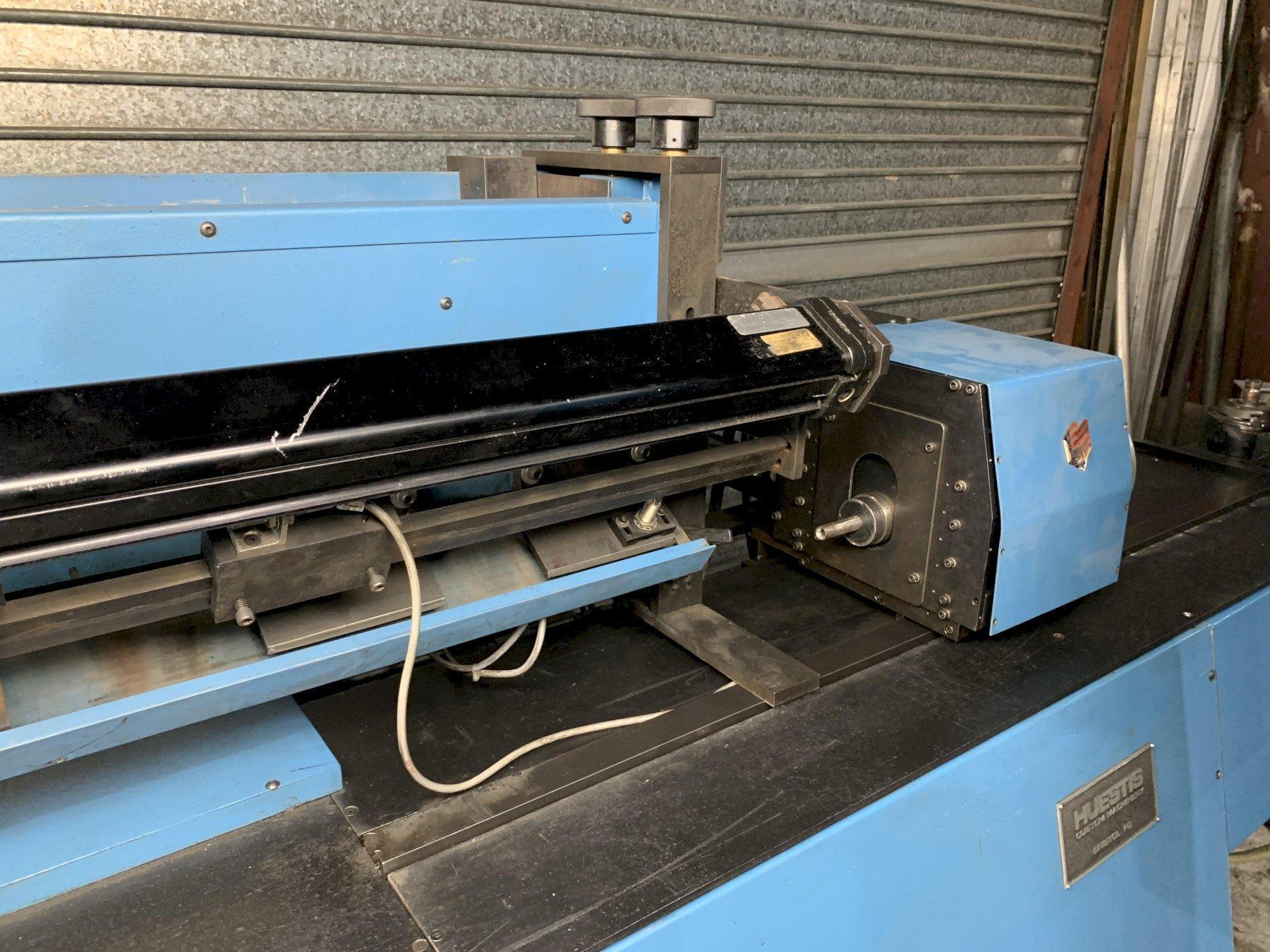

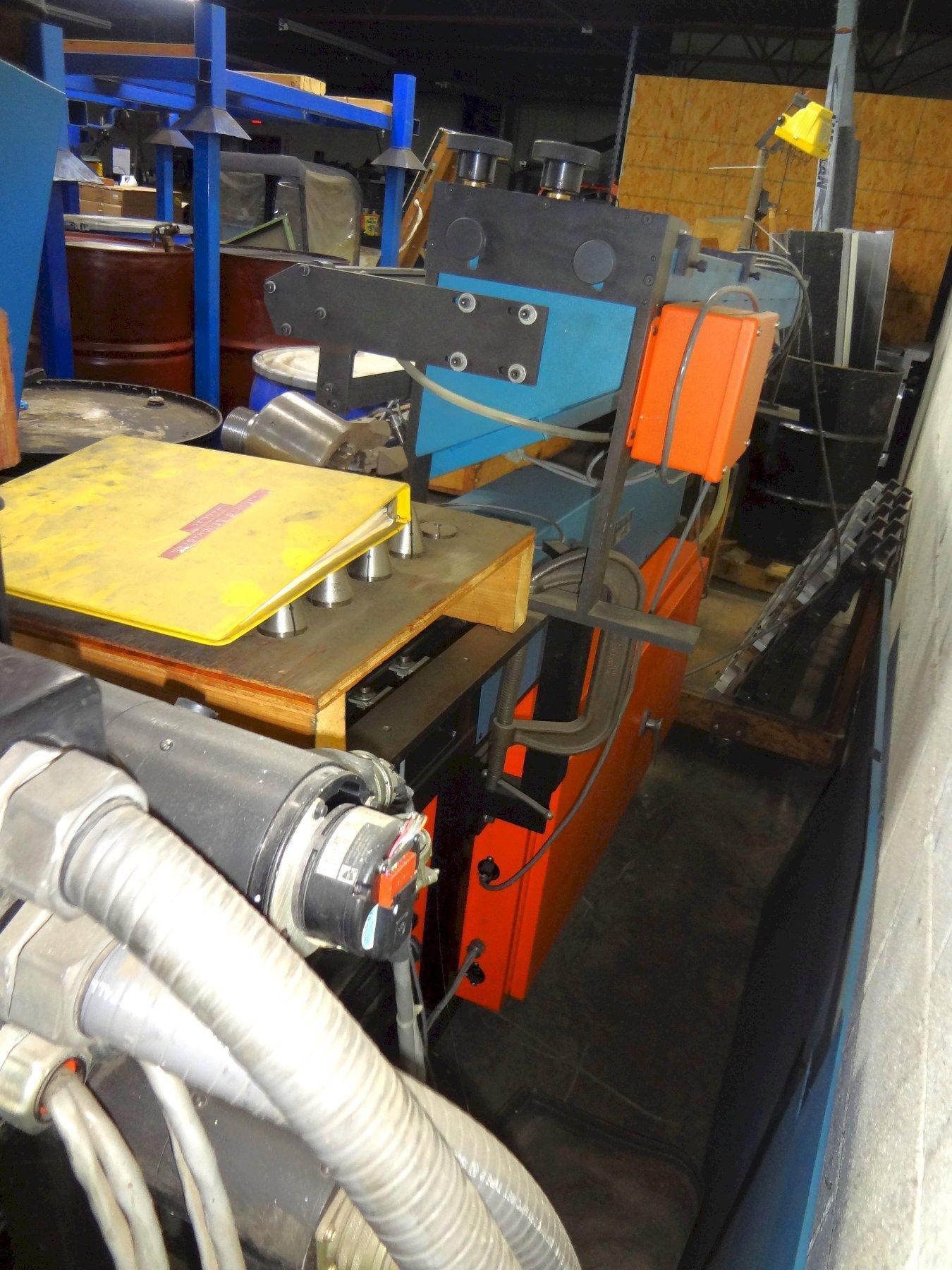

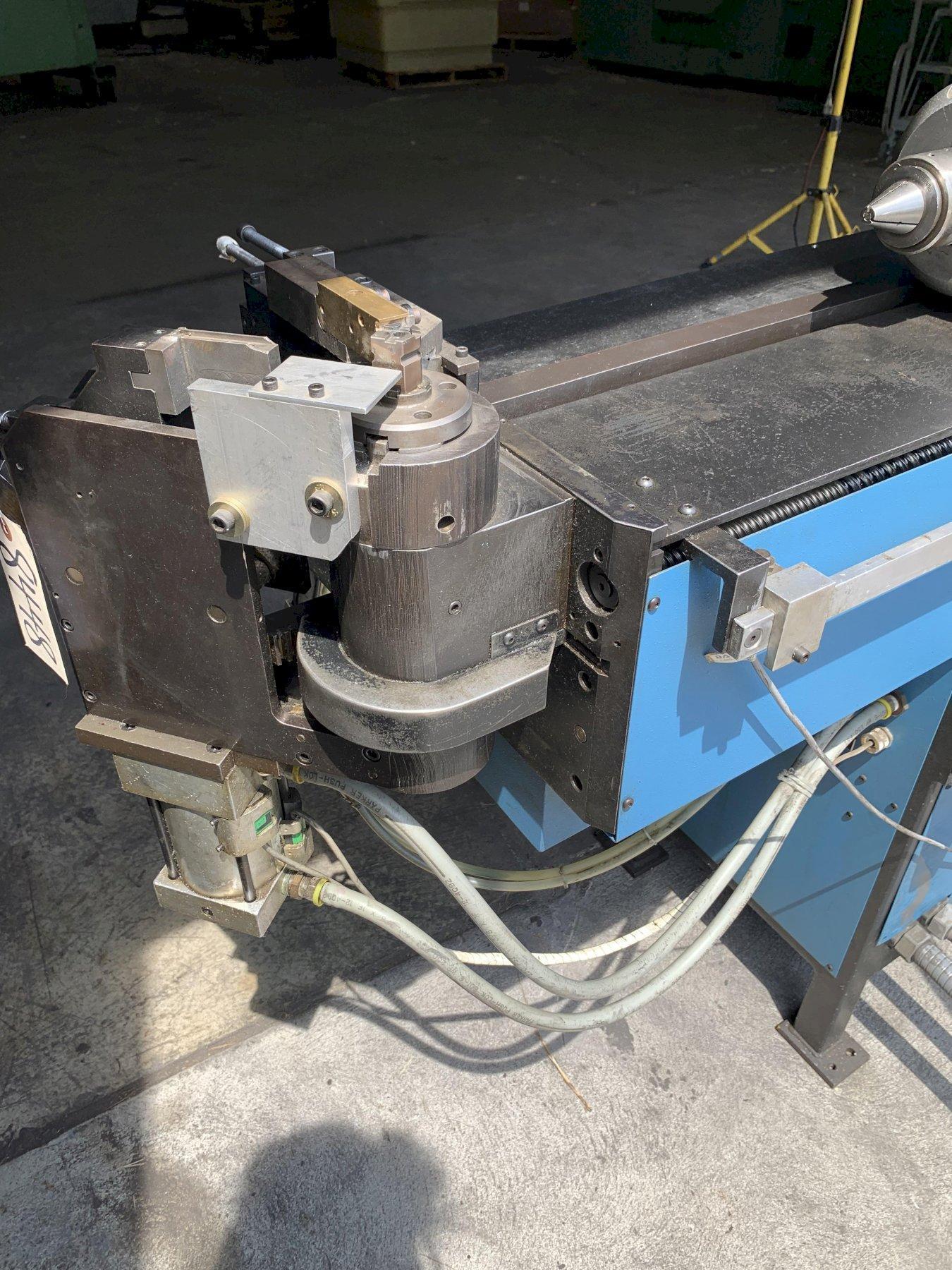

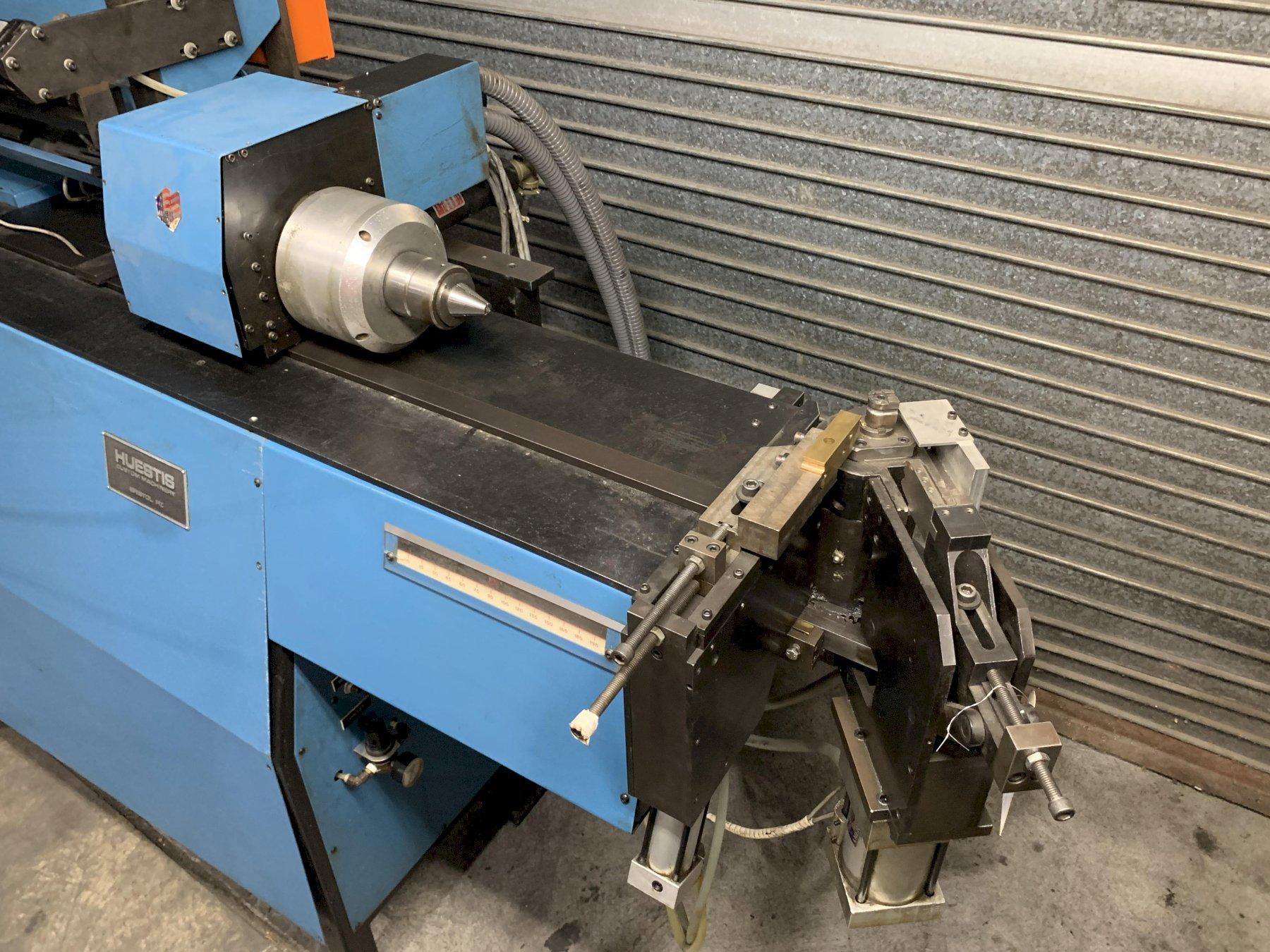

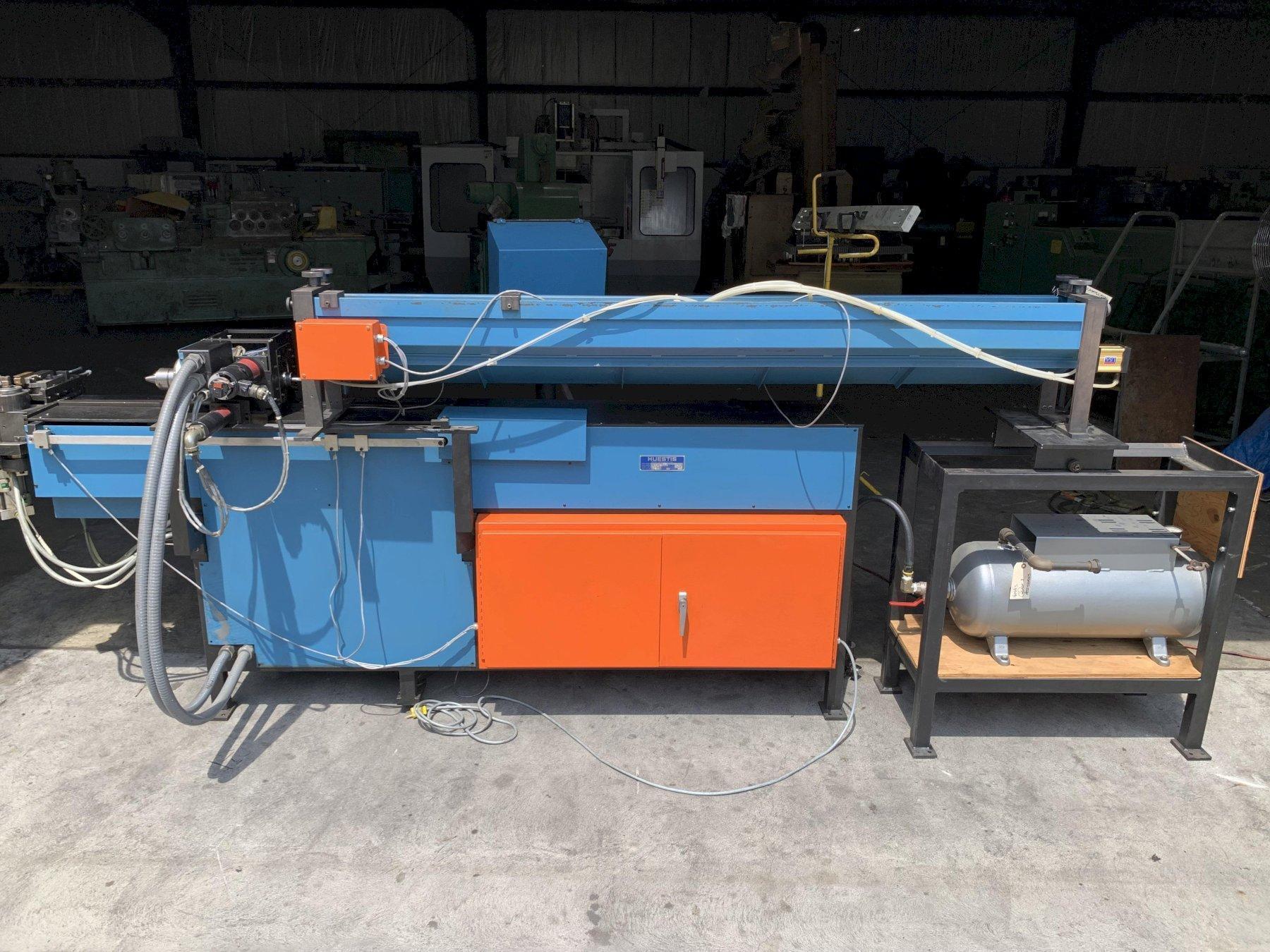

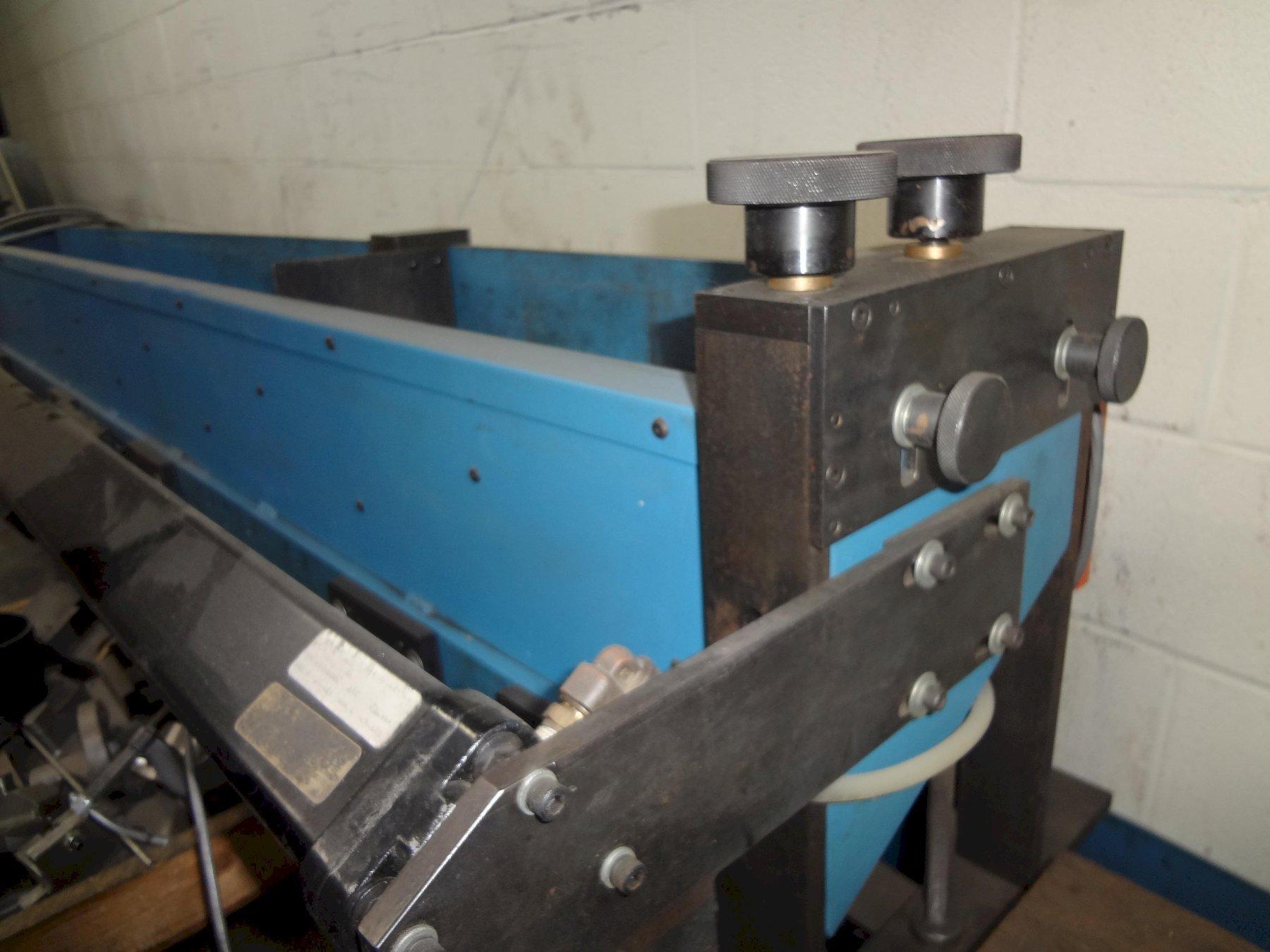

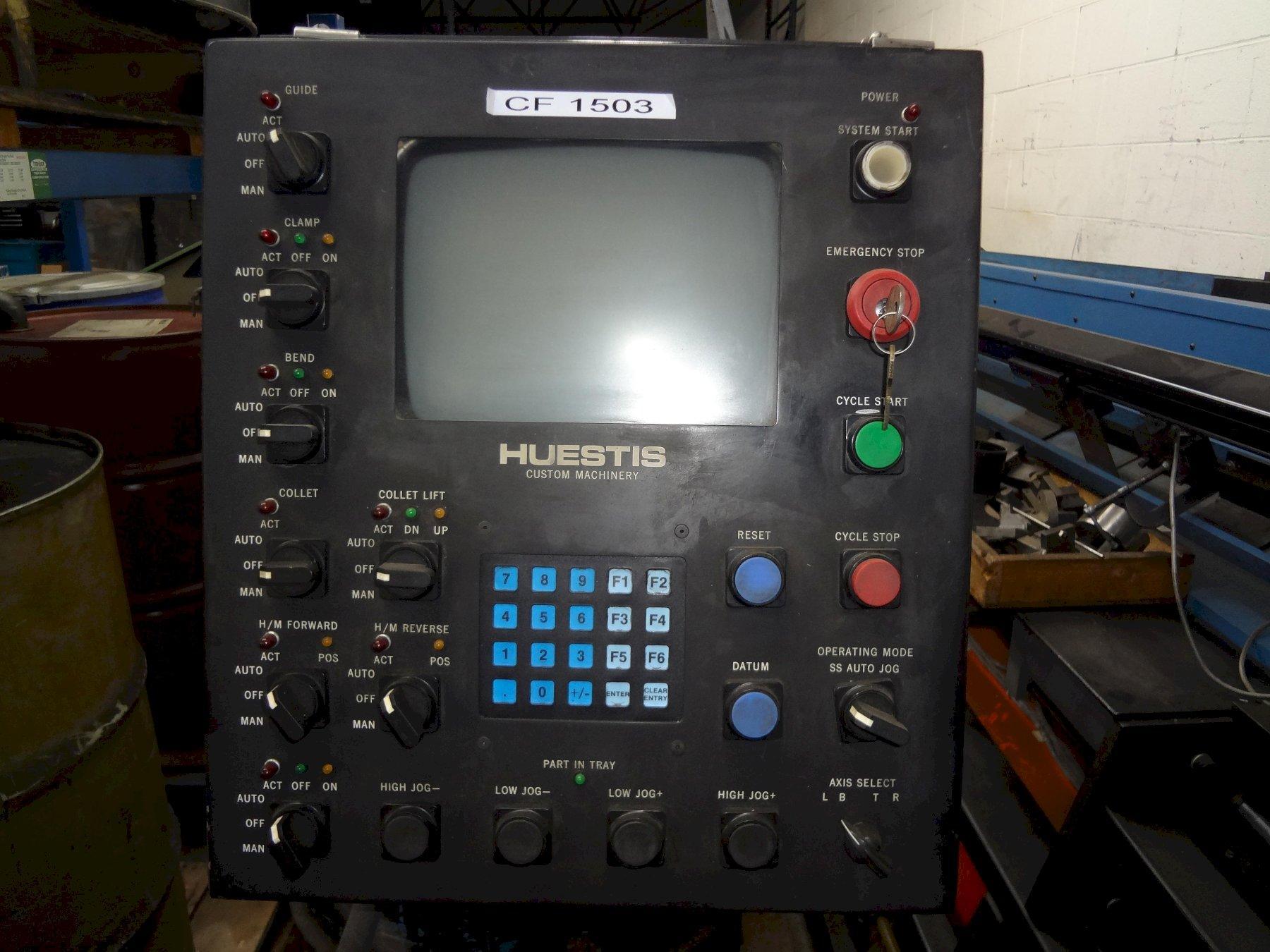

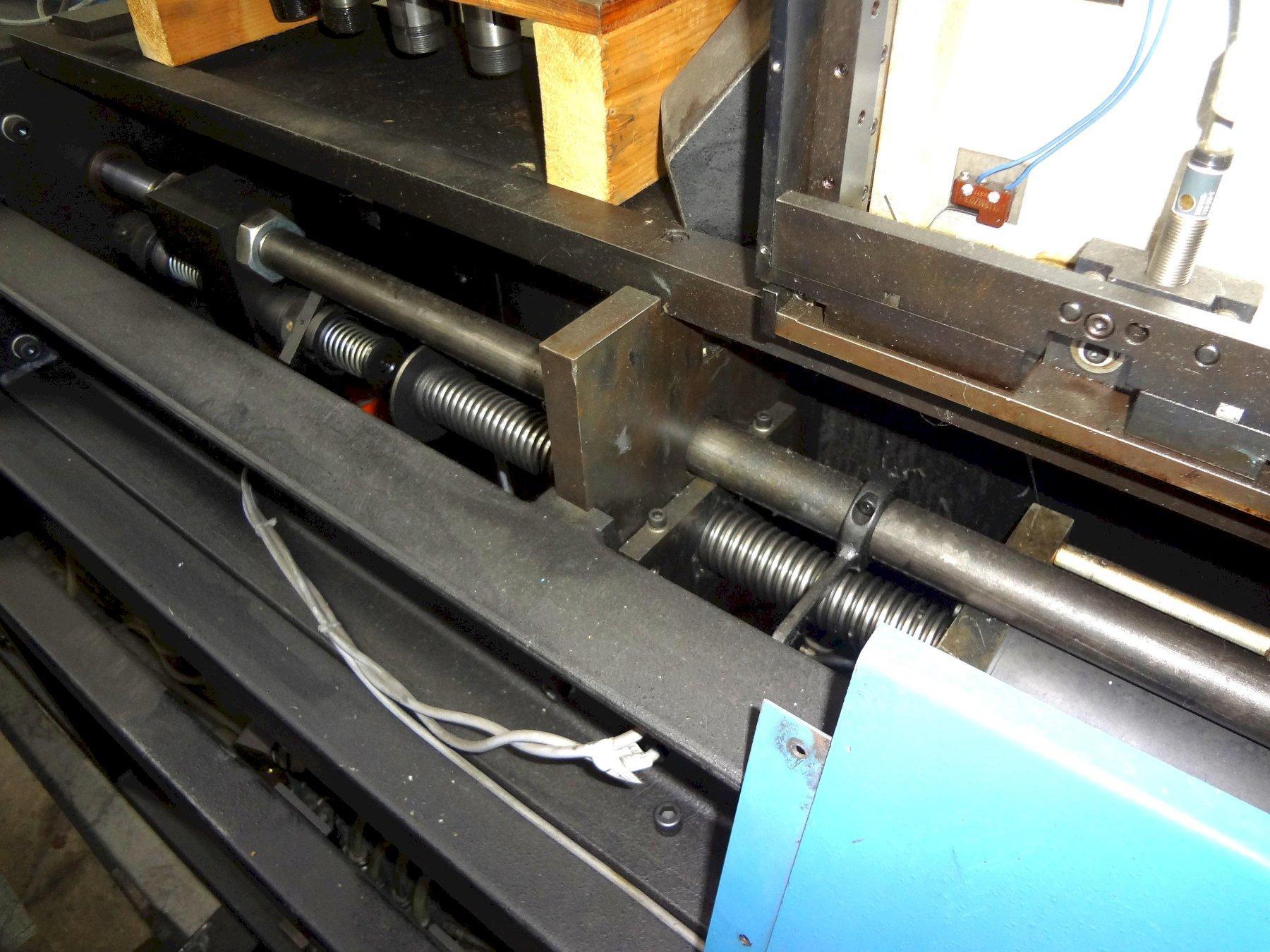

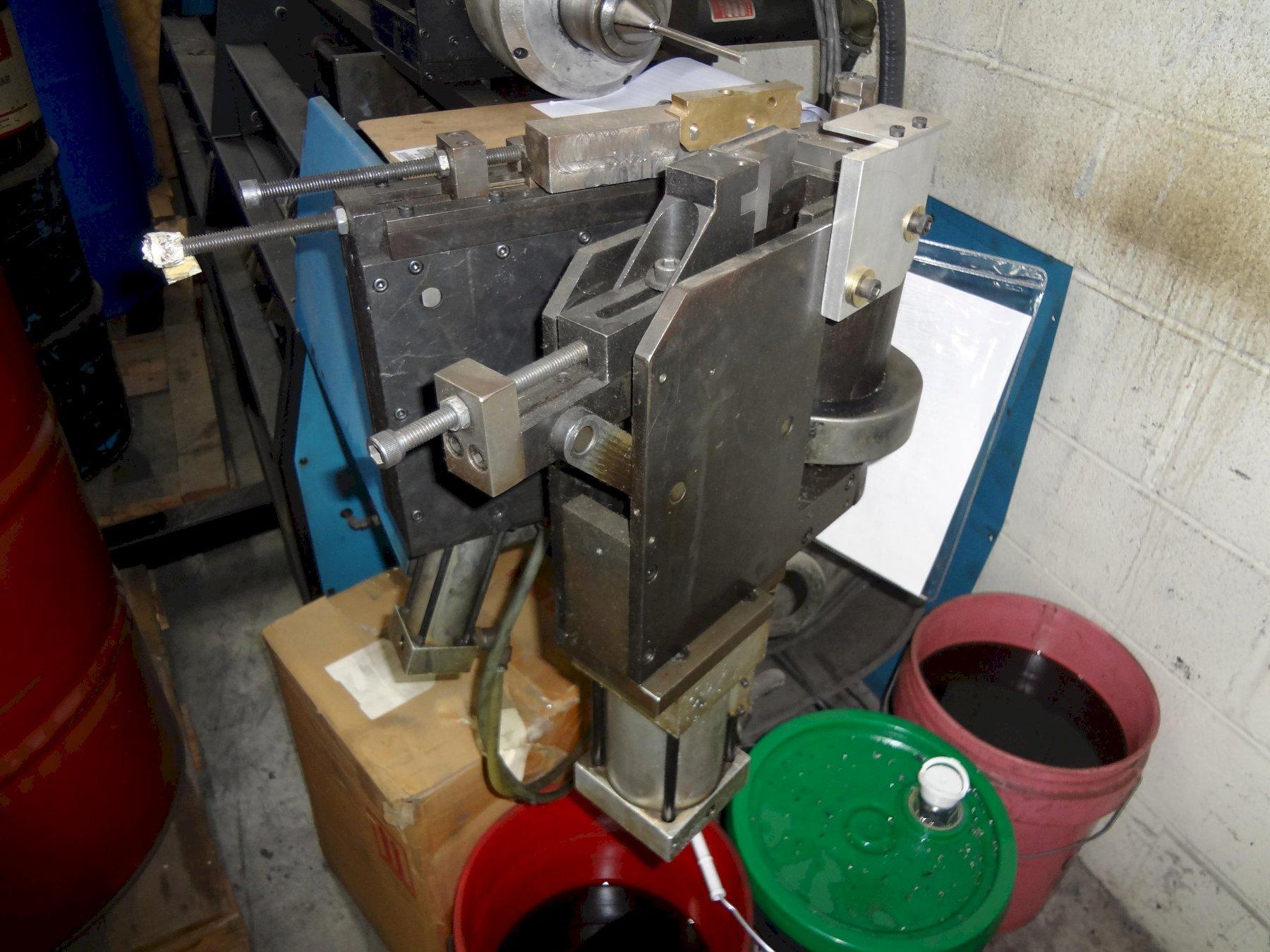

HUESTIS WIRE BENDER

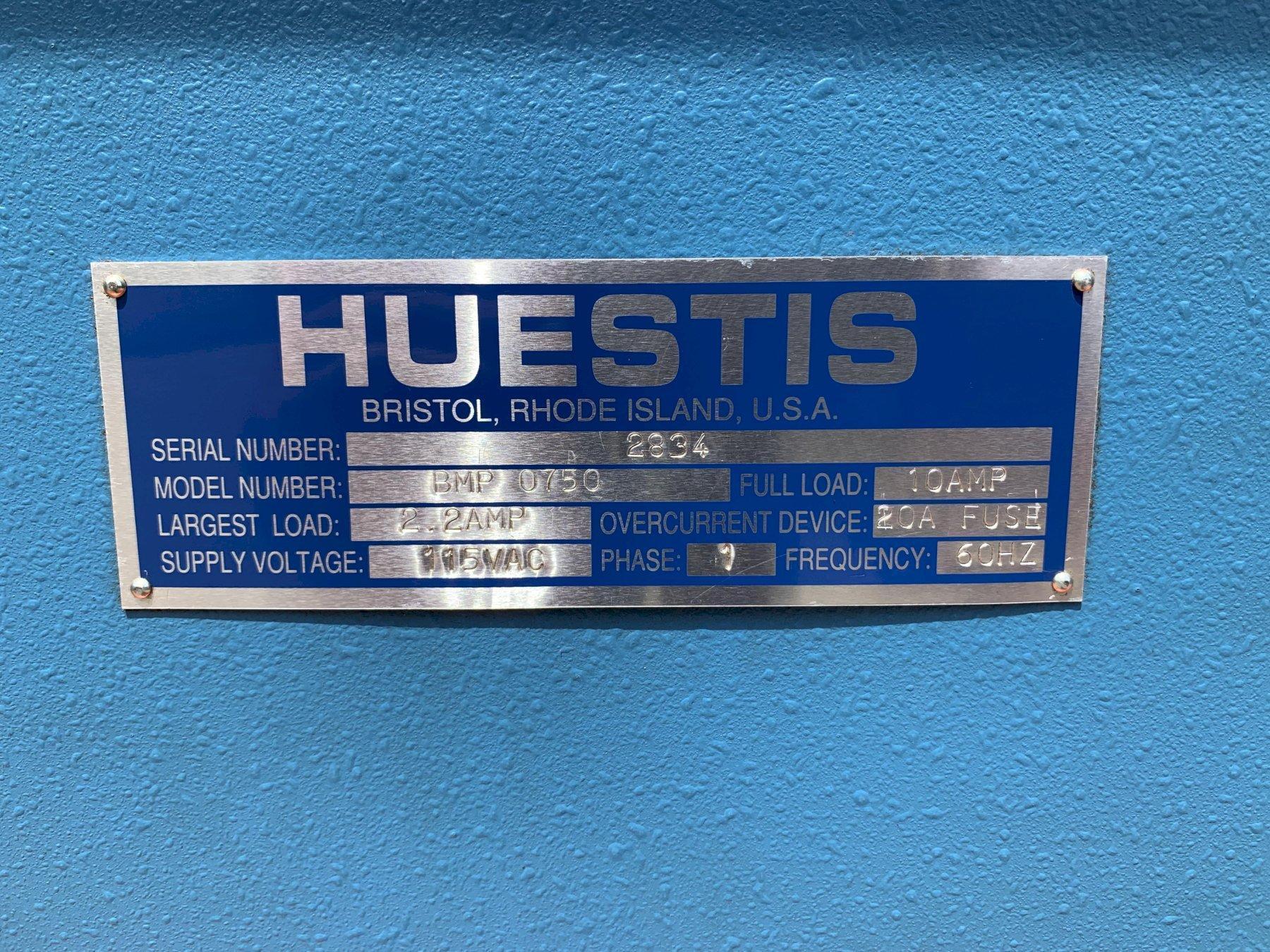

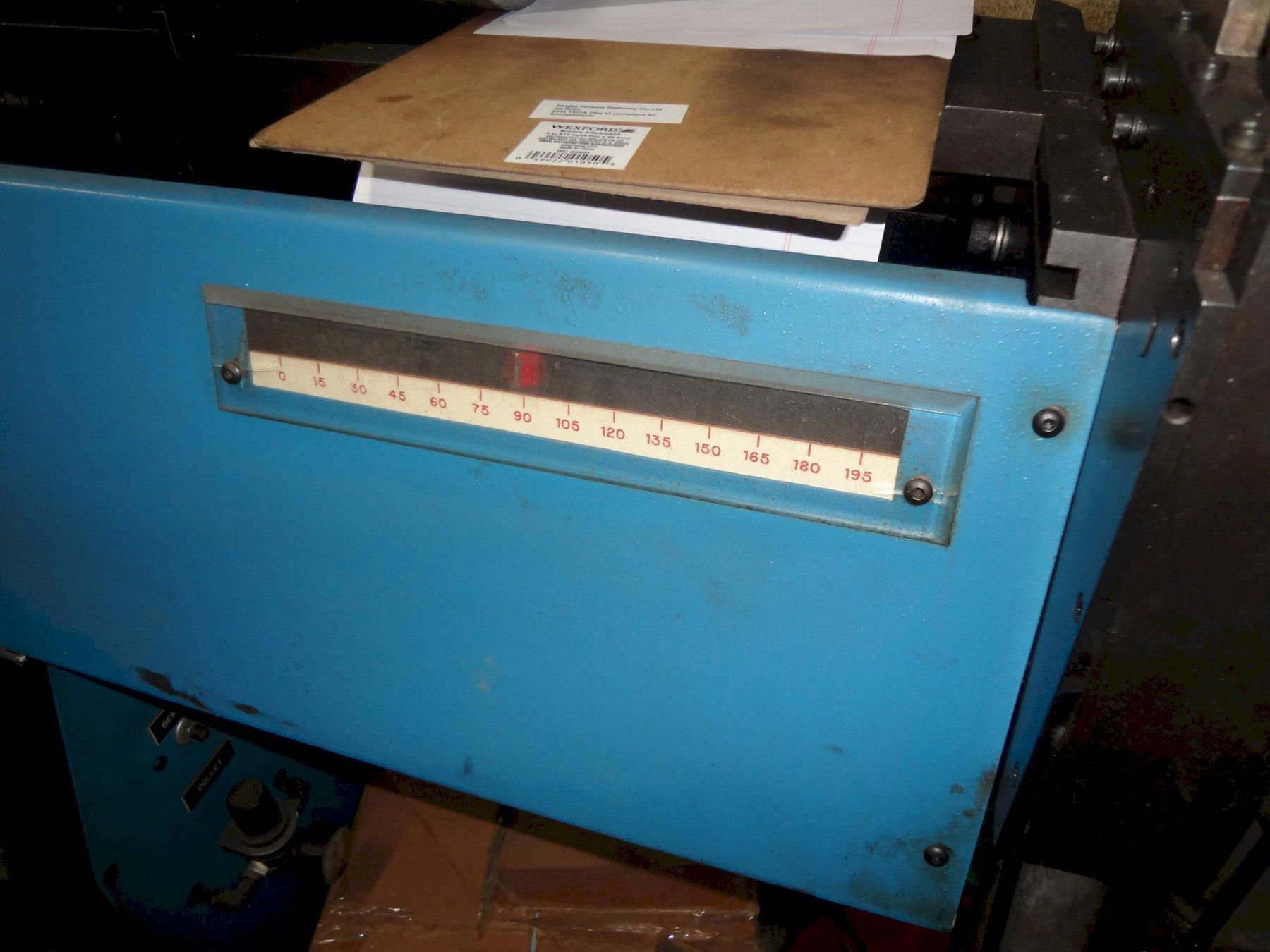

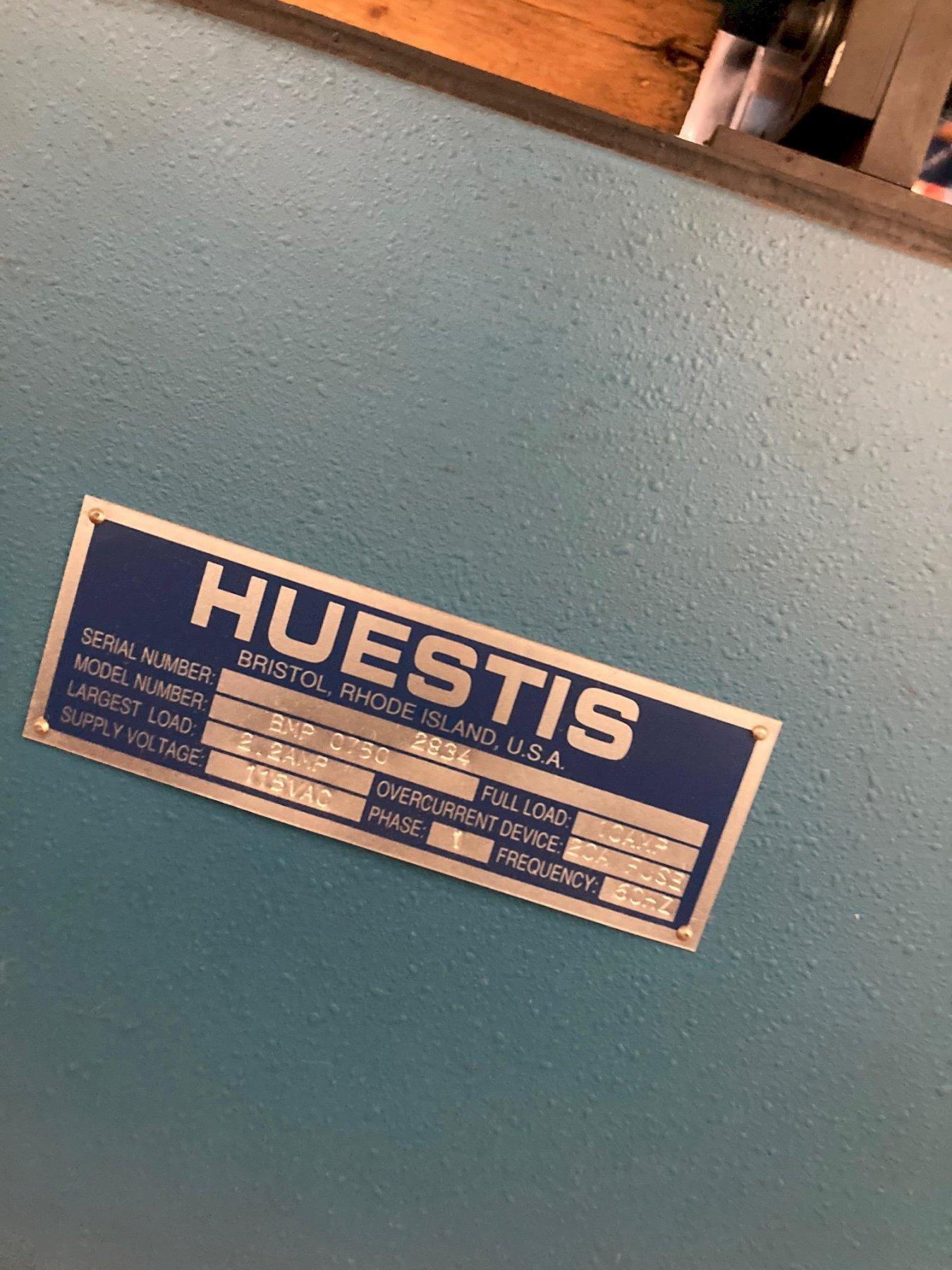

Stock # 14315 Manufacturer:...........Huestis Machine Bristol, Rhode Island USA Type Machine:...........Wire Bender Model:..................BMP-0750 Tube Diameter:................0.059 - 0.750" (1.5 - 19mm) Max Wall thickness:...........0.060" (1.5mm) Max Solid Diameter:...........0.375" (9.5mm) Center Line Bend Radius:......2xD-4.00" (2xD-101.6mm) Max Bend Angle:...............190 degrees Min Straight Length:..........2xD*** ***Min Straight Length for Clamping During Bend. Max Orientation Angle:.......360 Degree Standard Mandrel Length:.....78" Air Requirements:.............80 - 100 psi Machine Weight:...............2,000 lbs **Temporary Specifications Subject to Revision** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION** |
|
