Heavy steel plate producing Equipment Stock # 14313 |
|
|
|
1 |

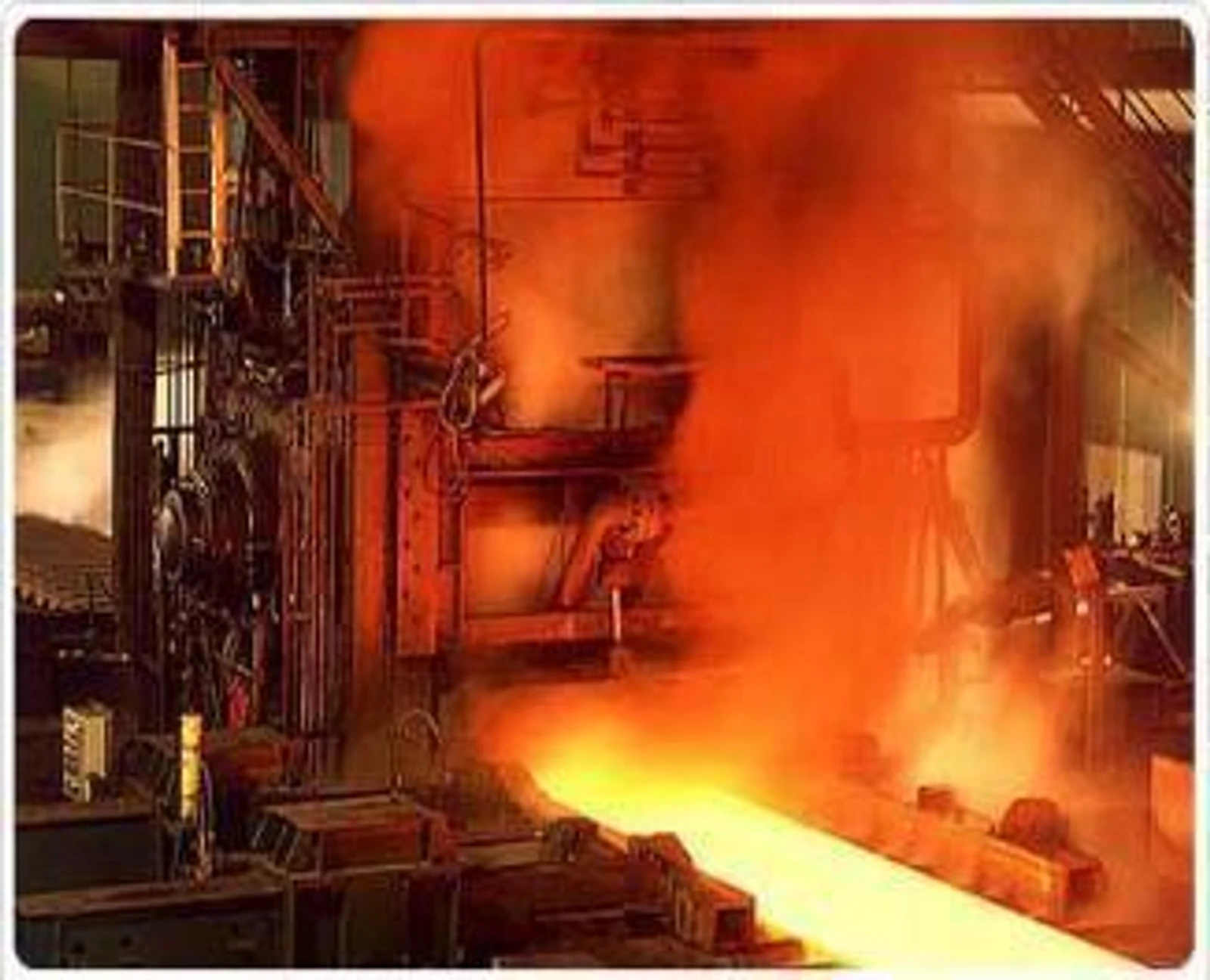

Decaller(All related equipment included) |
|
|
|
|
|
|
|
Specification |
|
|
|
|
|
Descaler |
Type |
Hi-pressure spray |
|
|
|
|
|
|
Size |
W 5,890mm X L 7,835mm |
|
|
|
|
|
Specification |
4550ℓ/min / 228bar |
Maker : Davy |
|
|
|
|
|
Head number(up/down) |
Upper-2EA/ down-2EA |
|
|
|
|
|
Nozzle Spray press |
213 bar |
|
|
|
|
|
|
|
Between Nozzle & Slab |
140 mm |
|
|
|
|
|
2 |

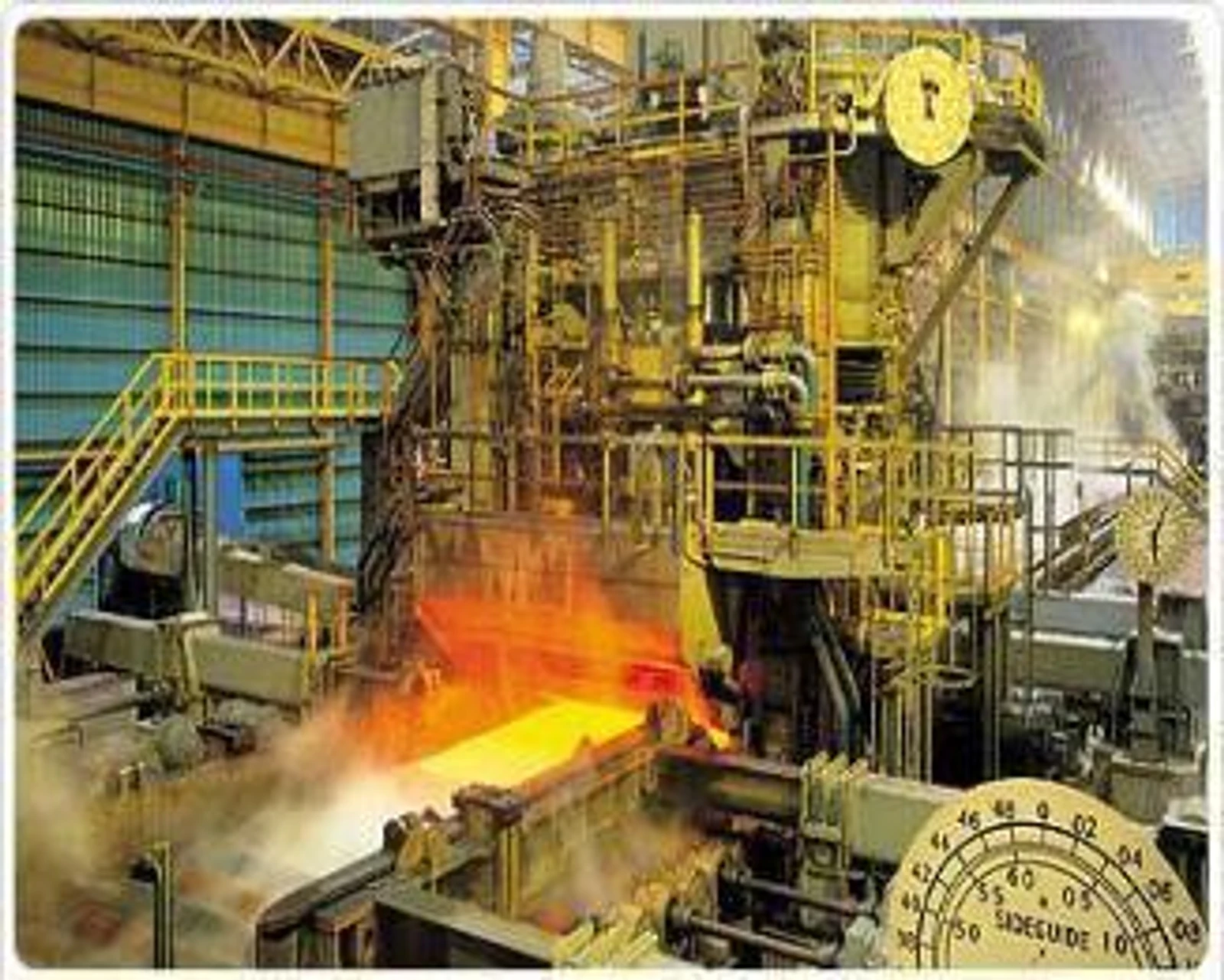

Roughing mill Stand set(All related equipment include) |
|
|
|
|
|
Specification |
|
|
|
|
|
Roughing |
Type |
4-High Reversing Mill |
|
|
|
|
Mill Stand |
Used year |
1997~2017 |
|
|
|
|
|
|
Pressure power |
Max. 9000 ton |
Maker : Davy |
|
|
|
|
|
Work Roll |
1,120Φ X 4,300 mm(L) |
|
|
|
|
|
Back Up Roll |
2,150Φ * 4,300 mm(L) |
|
|
|
|
|
Speed |
45 ~ 110 rpm |
|
|
|
|
|
|
Main Motor |
AC 8,000kw X 2 sets |
|
|
|
|
|
|
Material ( Slab) |
Thickness-130~300mm |
|
|
|
|
|
|
Width- 1,200~2,200mm |
|
|
|
|
|
|
Length- 2,350~4,100mm |
|
|
|
|
|
Weight |
App.-3500ton(includes related equipment) |
|
|
Mill motor |
Division |
Specification |
Remark |
|
|
|
|
|
|
Maker |
TMEIC(Japan) |
Toshiba + Mitsubishi electric |
|
|
|
|
Used year |
2011~2017 |
|
|
|
|
|
|
Capacity |
AC8,000KW(Inverter) x 2 sets |
|
|
|
|
|
Voltage |
3,100V |
|
|
|
|
|
|
|
Frequency |
4.5~11.0HZ |
|
|
|
|
3 |
Finishing mill stand set(All related equipment include) |
|
|
|
|
|
Specification |
|
|
|
|
|
Finishing |
Type |
4-High Reversing Mill |
|
|
|
|
Mill Stand |
(Work Roll Shifting) |
|
|
|
|
|
|
Used year |
1997~2017 |
|
|
|
|
|
|
Pressure power |
Max. 9000 ton |
|
|
|
|
|
|
Work Roll |
1,120Φ X 4,300 mm(L) |
Maker : Davy |
|
|
|
|
|
Back Up Roll |
2,150Φ x 4,300 mm(L) |
|
|
|
|
|
Speed |
45 ~ 110 rpm |
|
|
|
|
|
|
Main Motor |
AC 8,000kw X 2sets |
|
|
|
|
|
|
Products(plate) |
Thickness-5~180mm |
|
|
|
|
|
|
Width-1,200~4,100mm |
|
|
|
|
|
|
Length- Max.25m |
|
|
|
|
|
|
Weight |
App.4800ton(includes related equipment) |
|
|
|
|
Annual production |
2,000,000ton |
|
|
|
|
|
Mill motor |
Division |
Specification |
Remark |
|
|
|
|
|
|
Maker |
TMEIC(Japan) |
Toshiba + Mitsubishi electric |
|
|
|
|
Used year |
2011~2017 |
|
|
|
|
|
|
Capacity |
AC8,000KW(Inverter) x 2 sets |
|
|
|
|
|
Voltage |
3,100V |
|
|
|
|
|
4 |

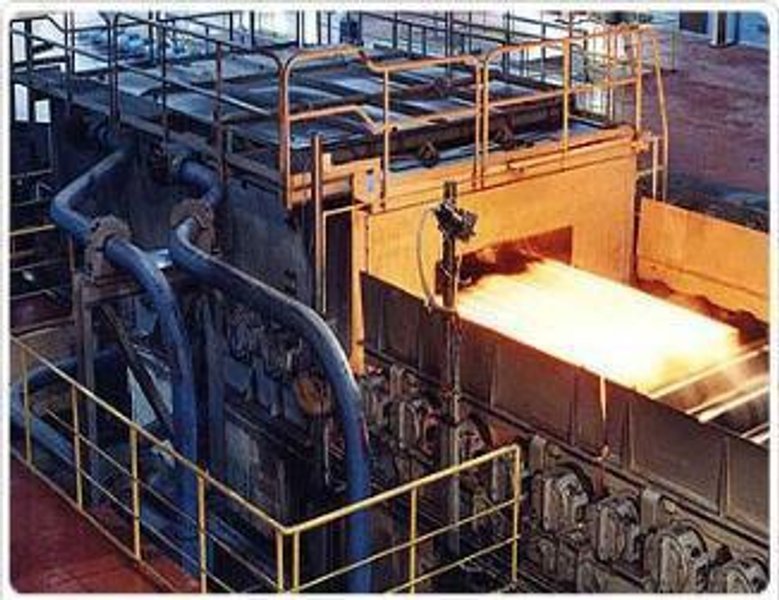

Hot leveler(All related equipment include) |
|
|
|
|
|
|
Specification |
|
|
|
|
|
Hot |
Type |
4High Reversing Leveler |
|
|
|
|
Leveler |
Leveling thickness |
Max 100mm |
|
|
|
|
|
|
Work Roll |
Dia.(280Φ) X Length(4,350mm) |
|
|
|
|
|
|
(WR number : Top 4, Bot 5) |
Maker : Teachchang-Korea |
|
|
|
|
Work Roll hardness |
Hs 68±3 |
|
|
|
|
|
|
|
Back Up Roll |
Dia.(295Φ) X Length(200mm) |
|
|
|
|
|
|
(BUR number : Top 60, Bot 75) |
|
|
|
|
|
Back Up Roll hardness |
Hs 51~54 |
|
|
|
|
|
|
|
Levelering capacity(Size) |
Max, 50T × W4200mm |
|
|
|
5 |
Roll shop |
|
|
|
|
|
|
|
|
|
Item |
|
Q'ty |
|
|
|
|
|
|

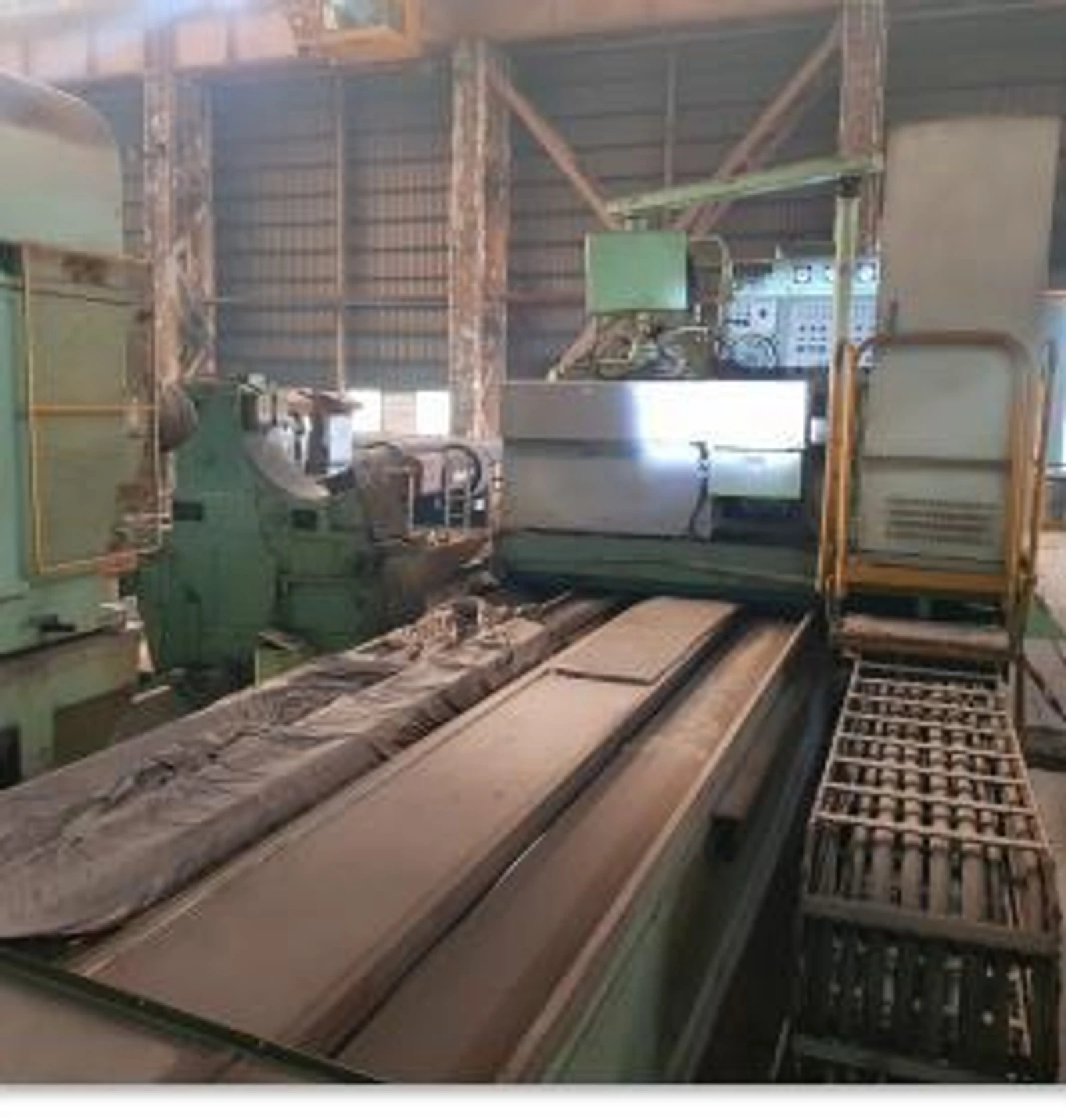

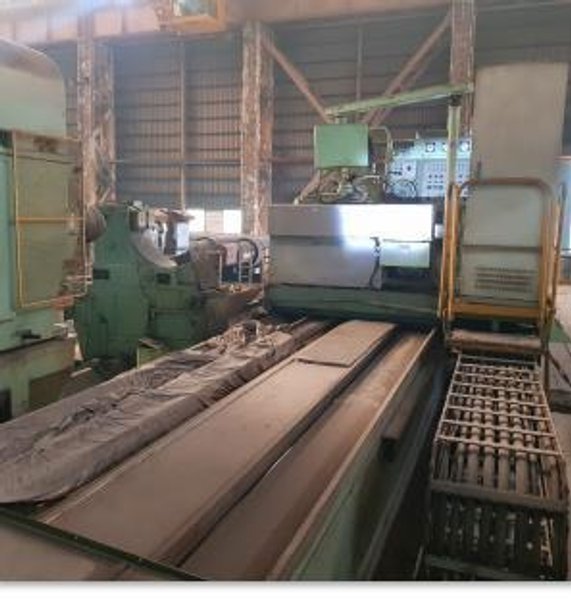

Roll grinder |
1 set |
|
|
|
|
|
|
RM work roll |
10ea |
|
|
|
|
|
|
RM back up roll |
2ea |
|
|
|
|
|
|
RM work roll chock |
32ea |
|
|
|
|
|
|
RM/FM back up roll chock |
15ea |
|
|
|
|
|
|
FM work roll |
31ea |
|
|
|
|
|
|
FM back up roll |
7ea |
|
|
|
|
|
|
Work roll chock |
10ea |
|
|
|
|
6 |
.Others |
|
|
|
|
|
|
|
|
|
All related equipment |
|
|
|
|
|
|
Electric part |
|
|
|
|
|
|
|
Hydraulic part |
|
|
|
|
|
|
|
Lubrication part |
|
|
|
|
|
|
|
Grease feed part |
|
|
|
|
|
|
|
related piping part |
|
|
|
|
|
|
|
Related document, DWG, REF |
