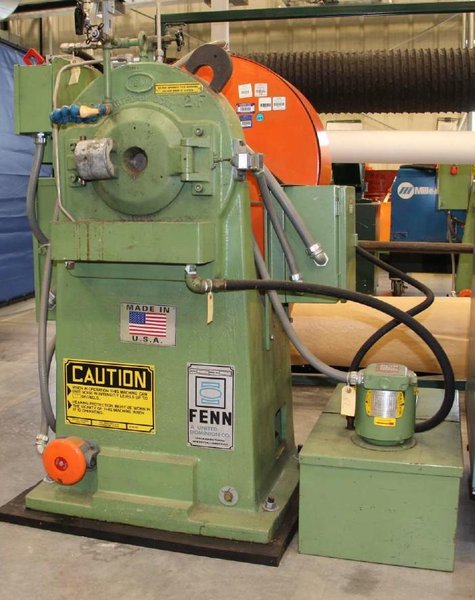

MANUFACTURER:            FENN MANUFACTURING COMPANY
Stock # 14307

MODEL:                   2F
TYPE :                   2 DIE ROTARY
SERIAL NO.:        52884B
CAPACITY
  -SOLID:                 13/32" (10.3mm)
  -TUBING:                1" (25.4mm)
DIE SIZE
  -LENGTH:                1 7/8" (47.6mm)
  -WIDTH:                 1 5/8" (41.3mm)
  -HEIGHT:                1 1/8" (28.6mm)
DRIVE MOTOR:             3 HP (2.2Kw) AC (TO BE VERIFIED)
  -EMERGENCY STOP BUTTON
  -FLYWHEEL DOOR SAFETY SHUT-0FF SWTCH
MOTOR CONTROLS
  - MANUFACTURER:        MOTORTRONICS
  - MODEL:               EB2-24-EX2
  - TYPE:                SOLID STATE A.C. MOTOR CONTROL
  - RATING:              480 VOLT, FLA 20, 10 HP
  - SERIAL NO.:          130174
  - STARTER:             HAMMOND TYPE 12 ENCLOSURE
FLOOR SPACE:             28" (711.2mm) WIDE x 31 1/2" (31.5mm) LONG
WEIGHT:                  1600 LBS. (727 KG)

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
