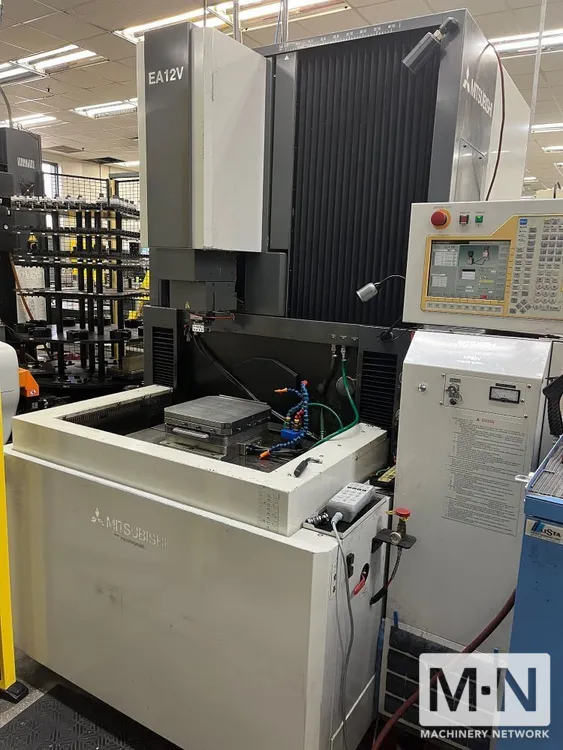

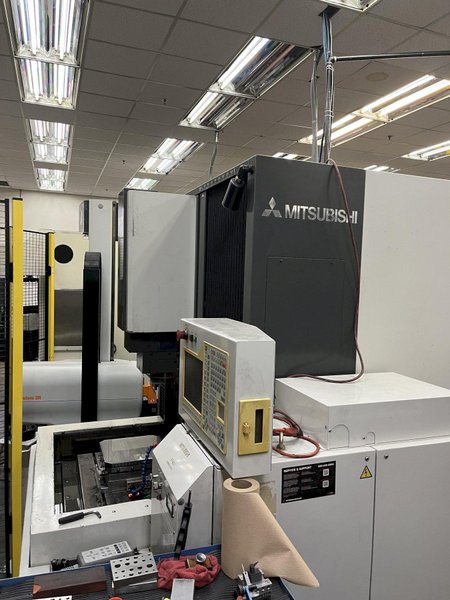

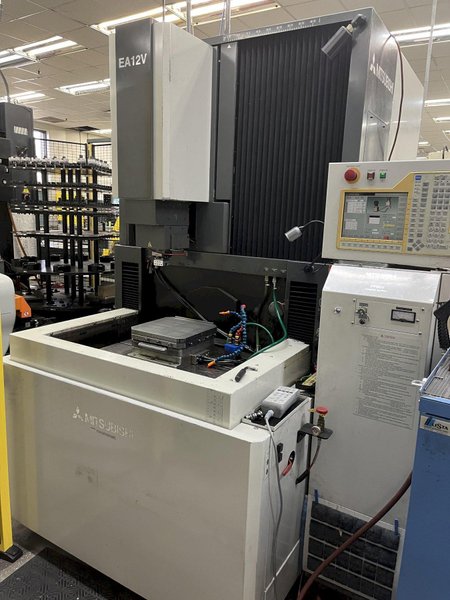

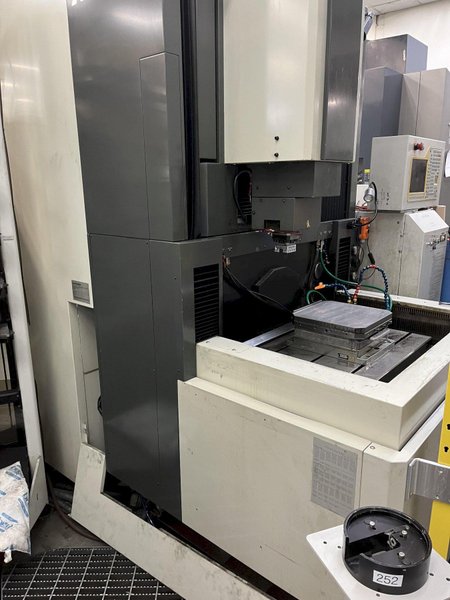

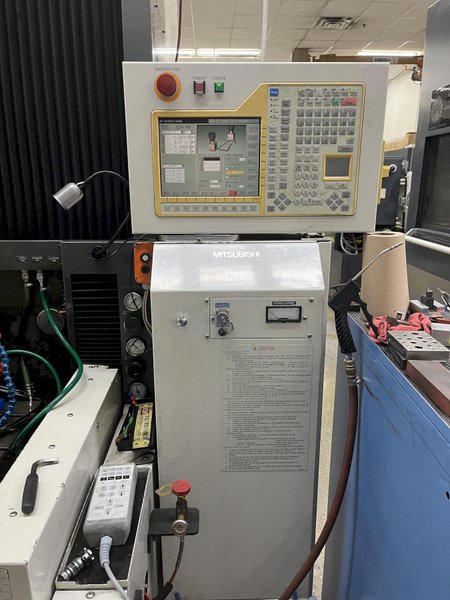

Mitsubishi EA12V Sinker EDM

Brand
MITSUBISHI
Category
EDM Machines
Type
EDM, Conventional, CNC
Model
EA12V
Stock #
Not specified
Year
2004
Condition
Good
Location
Michigan
achining Stroke ( X x Y x Z ) 15.7" x 11.8" x 11.8"
Machining Movement (C) 360 Degrees
Chuck to Table Clearence 6.0" x 17.8"
Worktank Size 37" x 24" x 14"
Table Size 28" x 20"
Tank Type 3-Sided Drop Tank
Maximum Workpiece Dimensions 33.5" x 25.2" x 9.8"
Maximum Workpiece Weight 1,540 lbs
Maximum Current 80 Amps
Maximum Electrode Weight 110 lbs/22 lbs with C-Axis
Dielectric Capacity 106 Gal
Machine Shipping Dimensions 84" x 56" x 94"H
Machine Base Only Weight 7,480 lbs
Power Supply Shipping Dimensions 22" x 46" x 74"H
Machine Total Weight 9,365 lbs
No files or videos to display

Want to request a quote from the owner of this listing?
